Патч панель cat6 rj45 UTP с 24 портами 19 дюймов 1U

Product Model

P-6-24AP

Product Color

Black

Product Material

Metal:Cold rolled steel sheet

Product Name

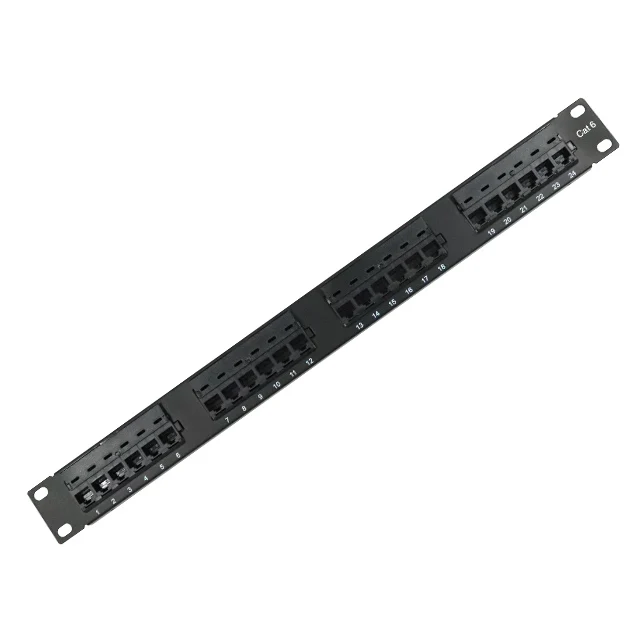

19''1U 24 Port CAT6 UTP Patch Panel

Packing

1pc/box;

Product Description

Application

Certification:ISO9001,CE,RoHS

Standard:ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;ANSI/TIA–1096-A (FCC Part68);IEC 60603-7

Wiring Standards：T568A/T568B

Application: for home ,hotel, office and buildings network wiring

Specification

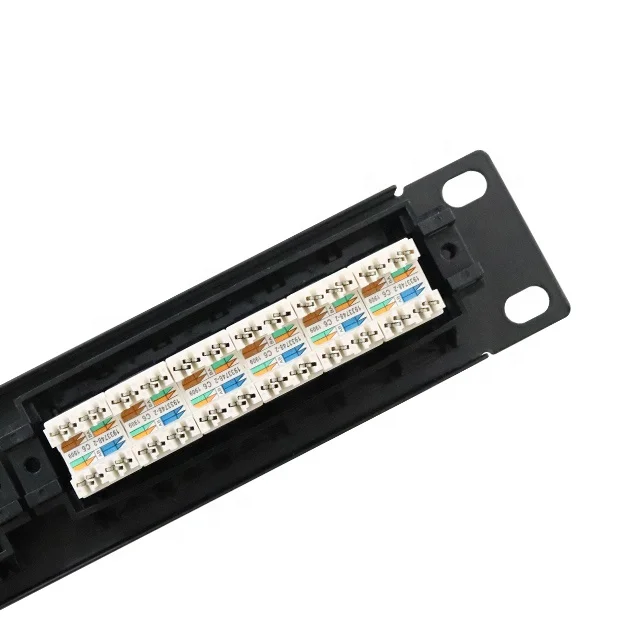

Material: *Panel:SPCC 1.5mm *Housing:PC/ABS *Spring Wire: Phosphor Bronze with Gold-plated 3u-50u" *IDC Contact:Phosphor Bronze with tinned

Working life: 750 times Min for RJ45 jack; 200times min for IDC

Current Rating：1.5 Amps

Contact Resistance:2.5mΩ max

Insulation Resistance：500mΩ minimum

Dielectric Strength:1000V RMS at 60Hz for 1 minute

Flammability rating:UL 94V-0

QC:100% broken circuit testing

Humidity:10% ~ 90%RH

Temperature:-20℃~ 60℃

OEM / ODM:Available

Feature

*Unique design is essential to manage any additions, and changes efficiently and effectively. *The front identification design can be ease to identify the port and manage the wiring.

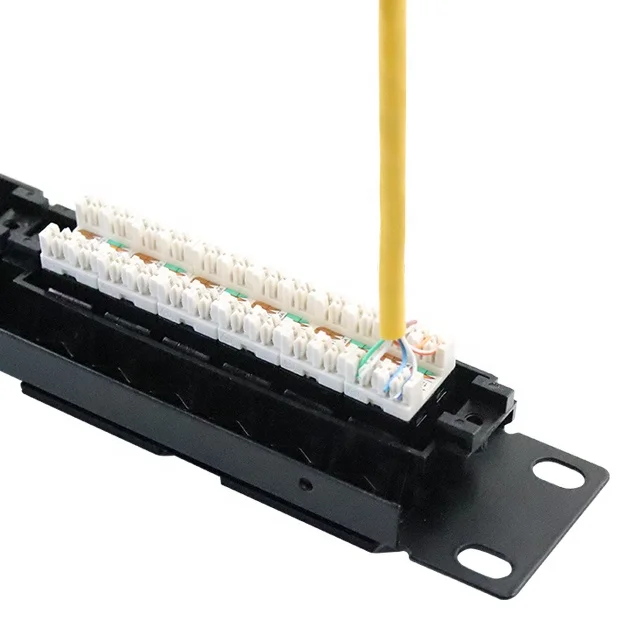

*The rear cable guider can control the bending radius of the cable, maintain the cable direction, and makes the wiring system more stable.
