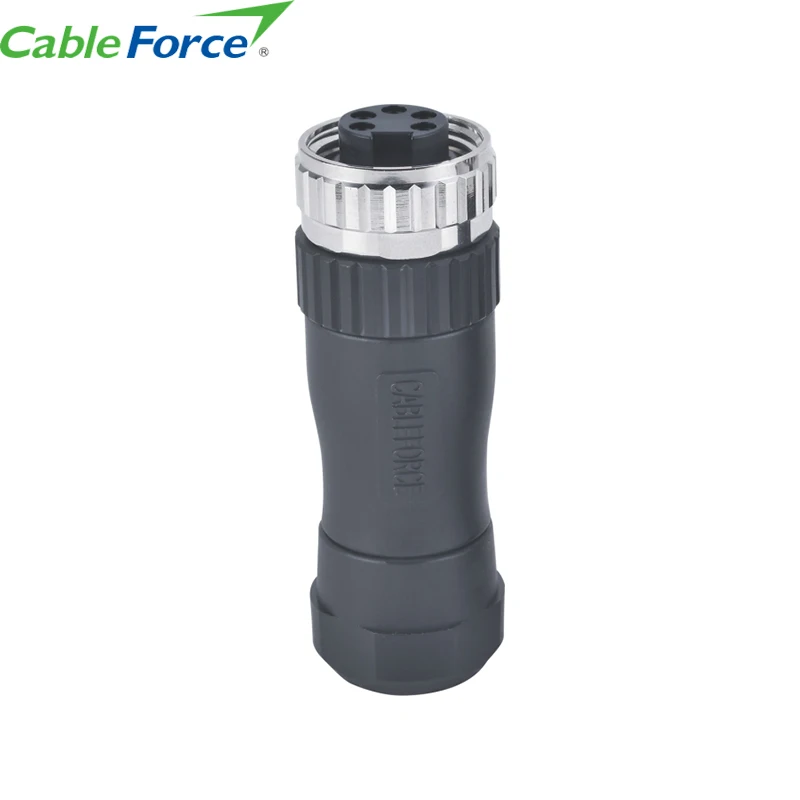

7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector
7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector
7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector
7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector
7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector
7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector
7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector

7/8 inch Mini change Field Wireable A Code Female 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector

Share on (1600459094458):


Price:$10.00 - $12.00

Quantity:


Product Overview

Description



Products Description

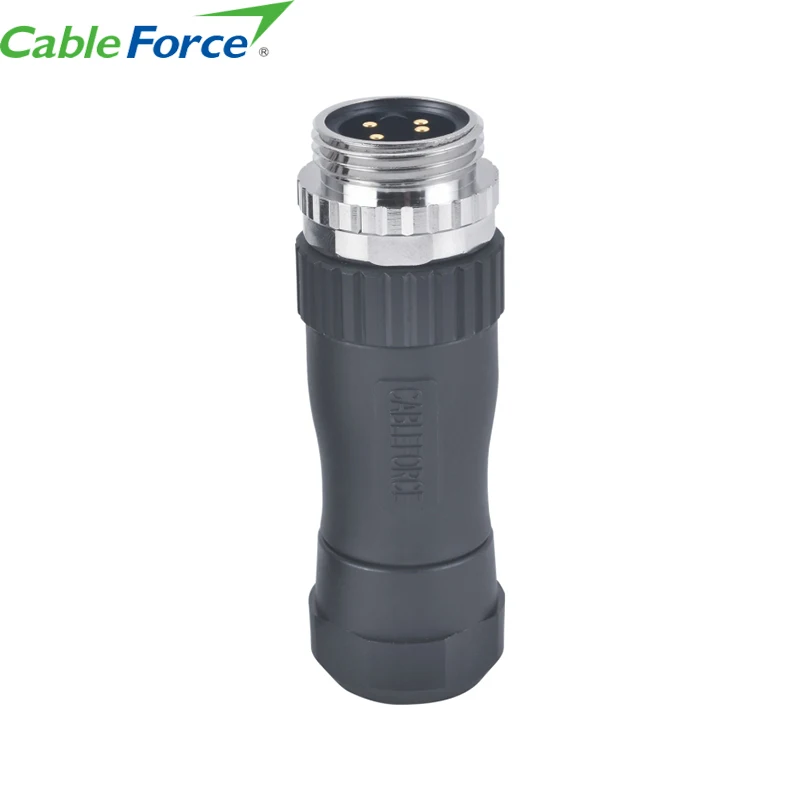

7/8" A Code Male 5 Pin Brass Screw Termination Waterproof Sensor Assembly Connector



Contacts No.
5Pin
Rated current
13A, 8A
Rated voltage
300V
Rated temperature
-25℃ ~ +80℃
Insulation resistance
≥100MΩ
Contact resistance
≤5mΩ
Over-molding
TPU
Contact carrier
TPU+GF
Screw nut
Brass, CNC, Nickel-plated
Contact
Phosphor bronze
Contacts plating
Au(Gold)
O-ring
FKM/Silicon
Protection degree
IP67, IP68
Pollution degree
3



Note

● Optional connector poles: 3Pin, 4Pin, 5Pin
● IP67, IP68, IP69K and UL approvals
● 360° Shielded or Un-Shielded versions are available
● All of the above options can be customized, please Click Here to contact us to get what you need~
