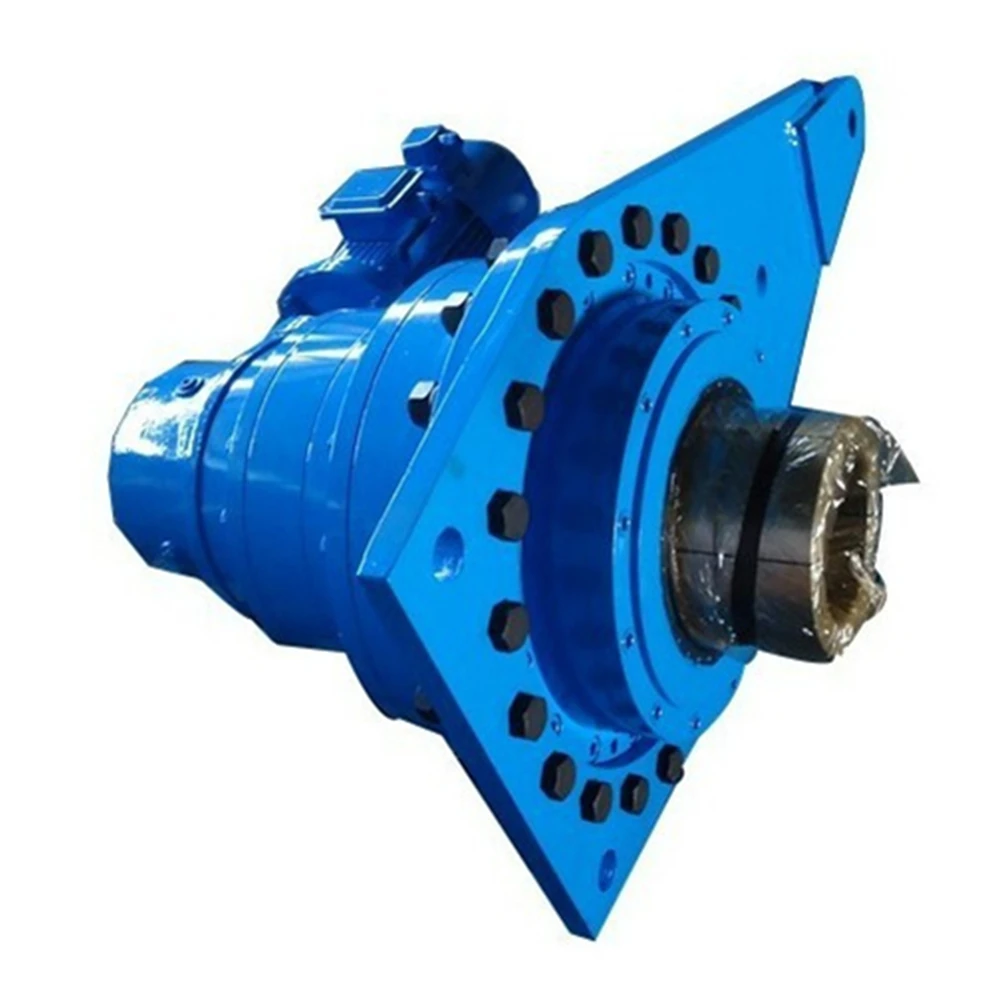

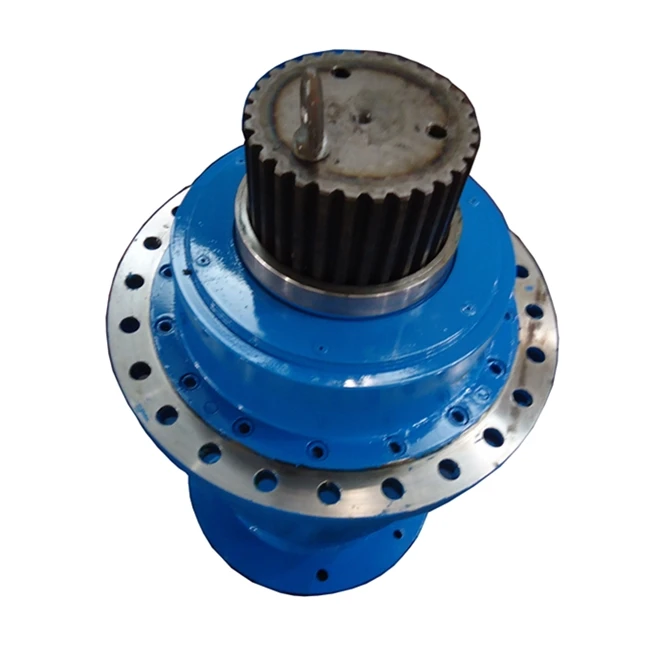

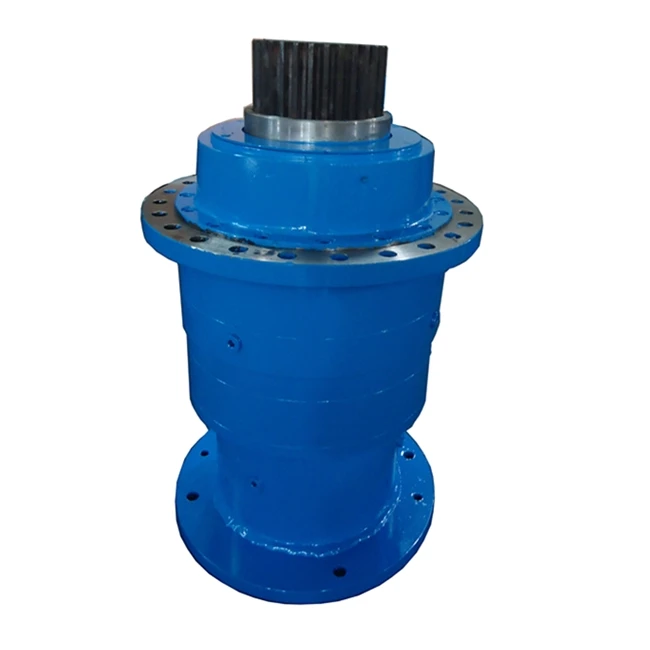

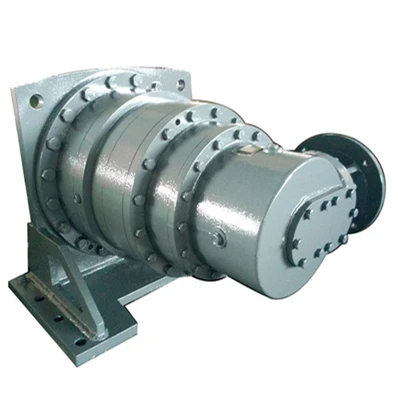

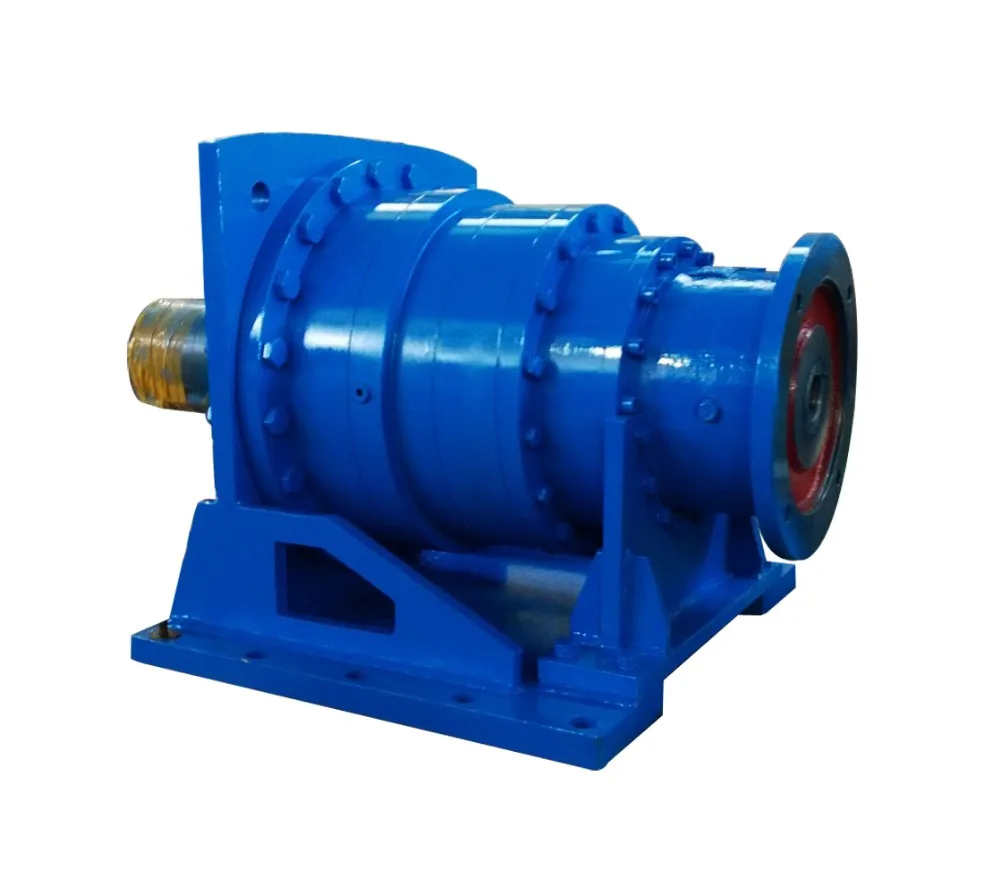

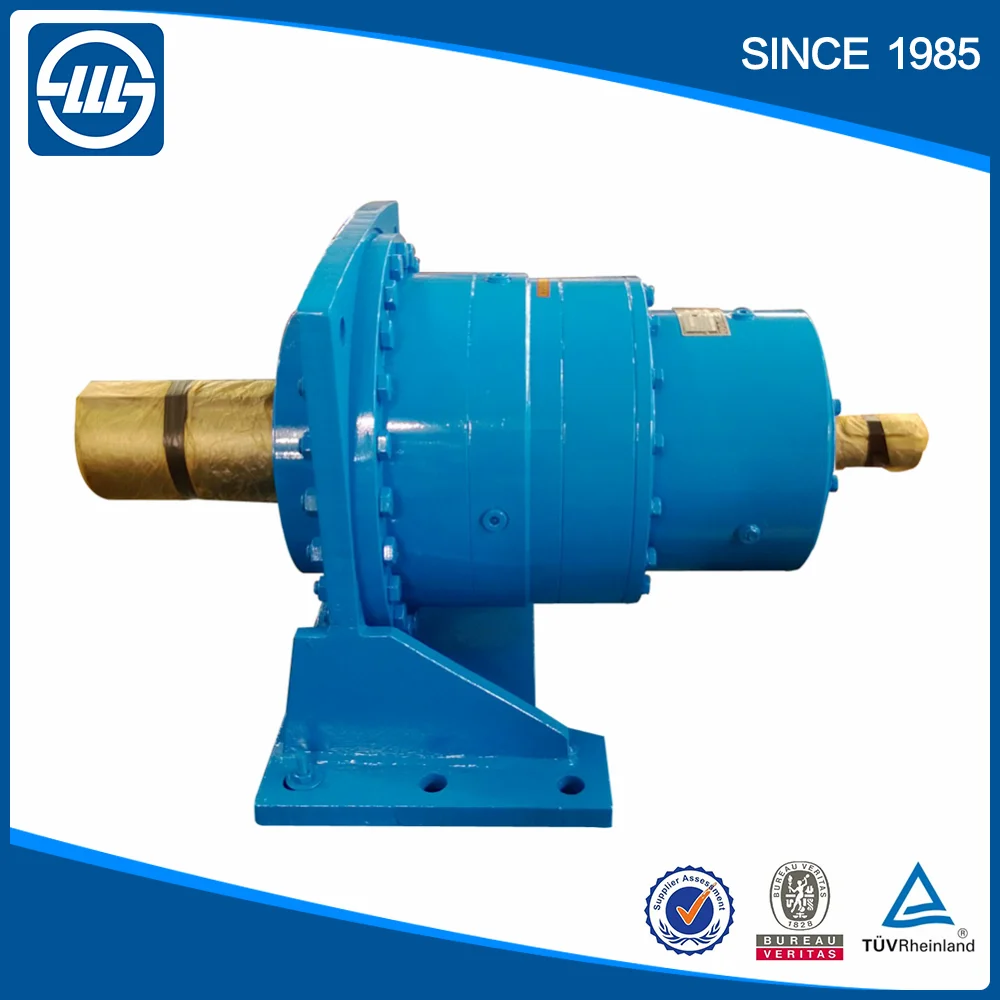

Hot sale P series high torque planetary reducer gearbox drill 2 speed gearbox gears reduction planetary gearbox



Product Description

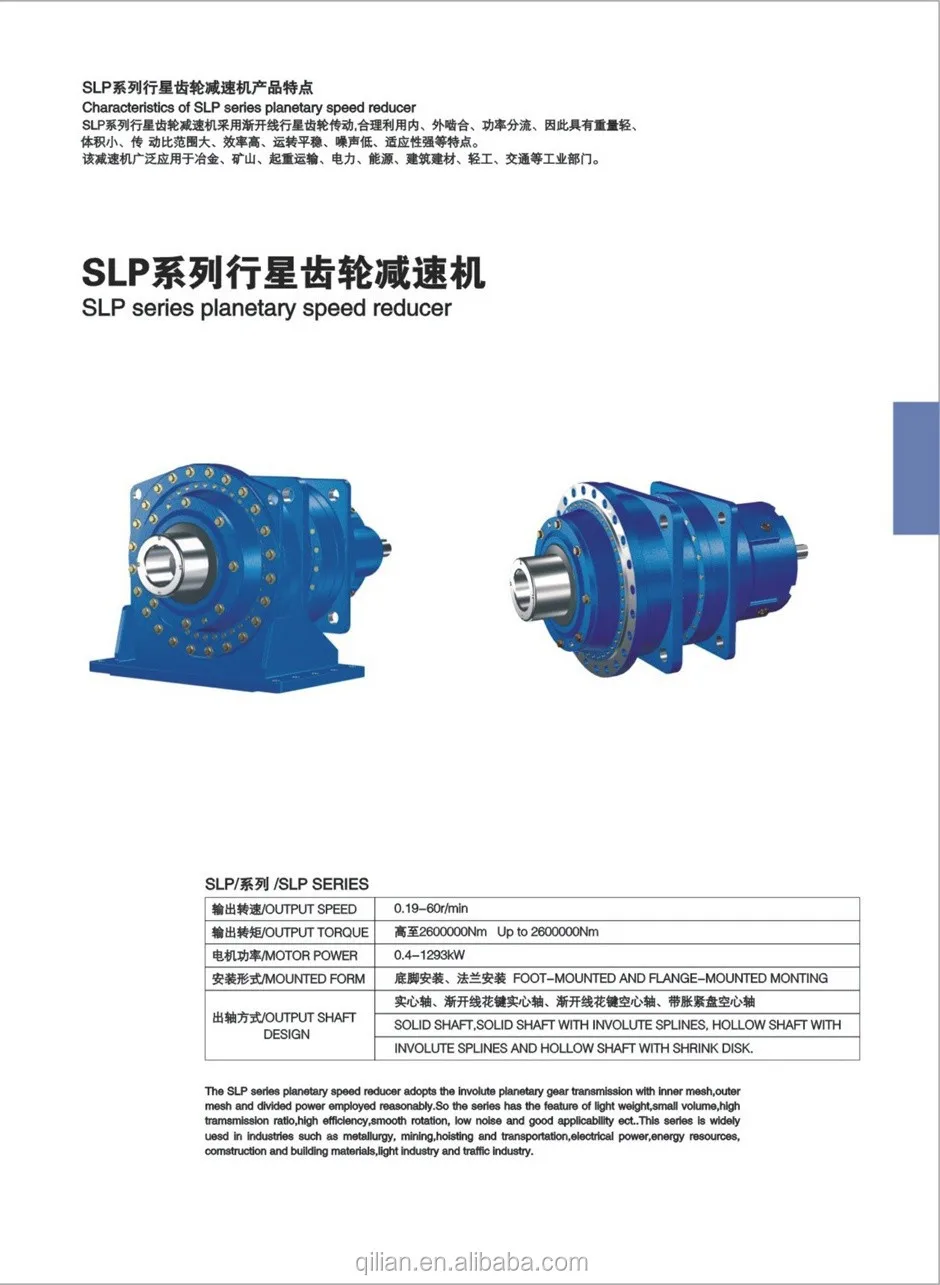

 P series planetary gearbox i 300 series speed reducer has the features of light weight, small volume, high transmission ratio, high efficiency, smooth rotation, low noise and good applicability.
1) Output speed:0.19~60r/min
2) Output torque: up to 260,000N.m
3) Motor power: 0.4~1293kW
4) Mounted form: foot-mounted ,flange-mounted
Main application:
Mixers / Agitator,Roller presses,Conveyor drives,Shredders ,Filtration technology,Water treatment,Reactors,Travel drives,Feeder,Mill


































Housing material


Cast iron/Ductile iron


Housing hardness


HBS190-240


Gear material


20CrMnTi alloy steel


Surface hardness of gears


HRC58°~62 °


Gear core hardness


HRC33~40


Input / Output shaft material


42CrMo alloy steel


Input / Output shaft hardness


HRC25~30

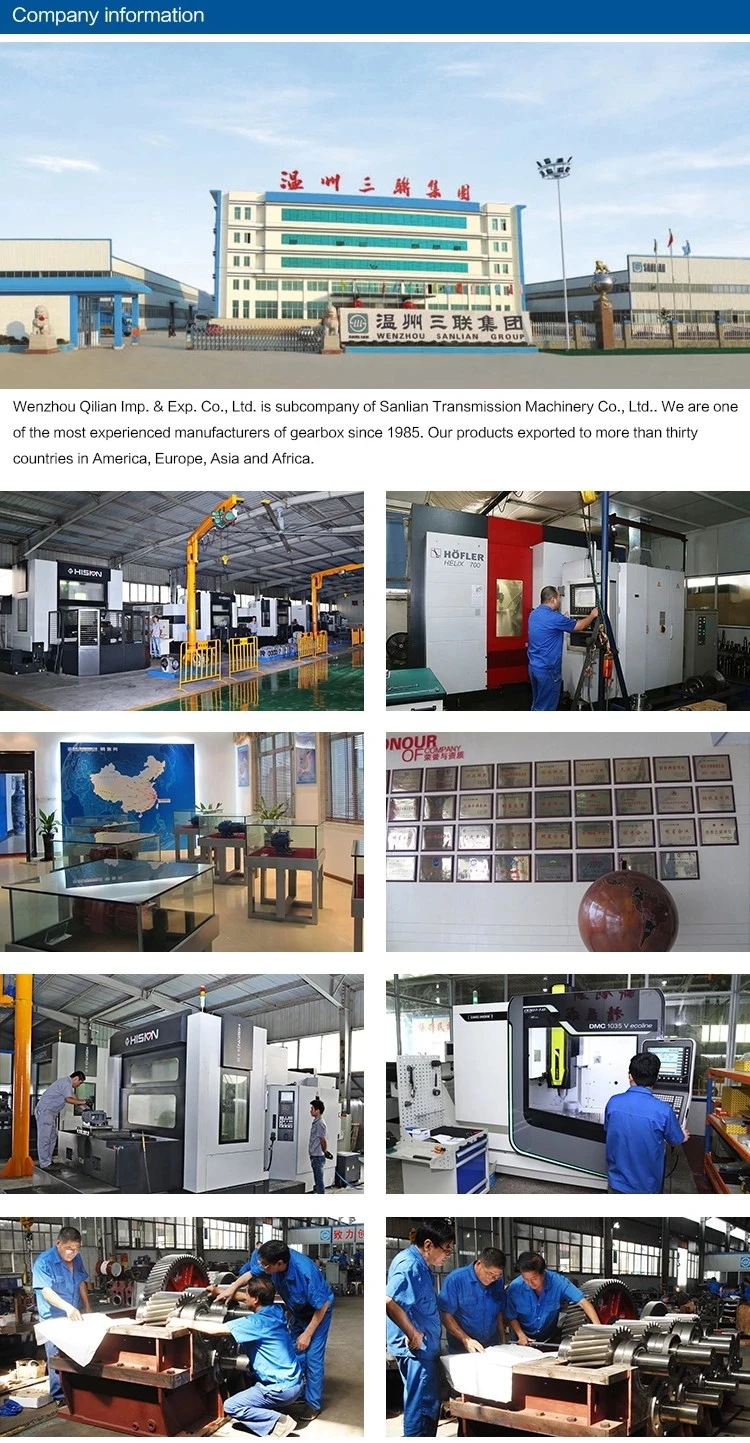

Company Information








Certifications








Expo& Customers








Our Services

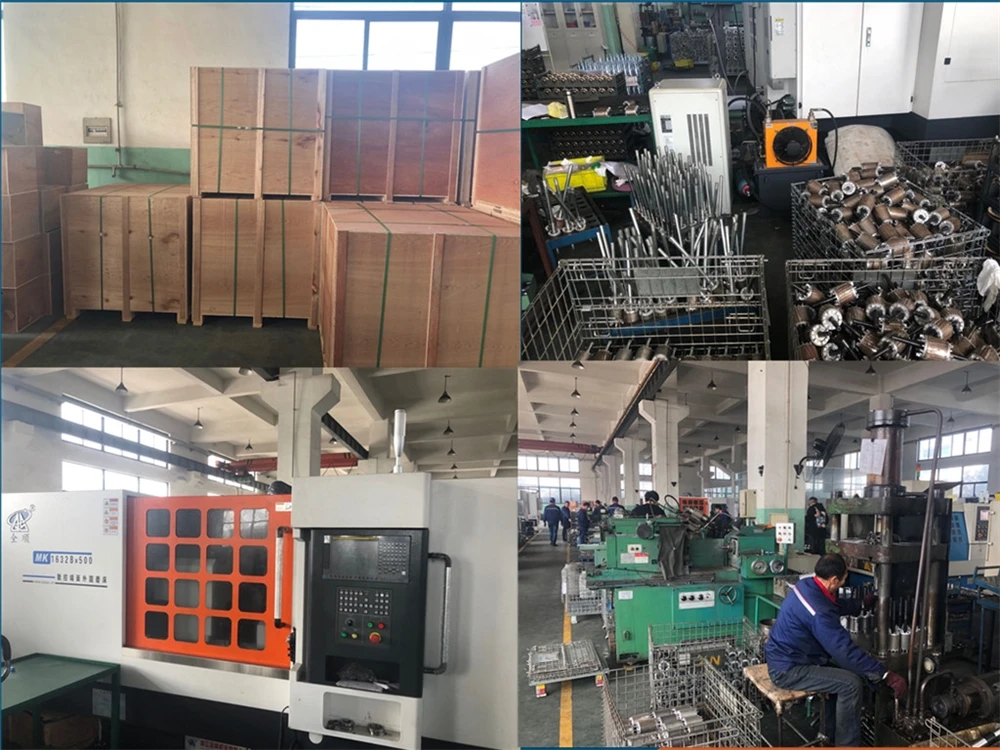

packing 2








FAQ





: Are you trading company or manufacturer ?




A: We are factory.








Q: How long is your delivery time?




A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.








Q: Do you provide samples ? is it free or extra ?




A: Yes, we could offer the sample for free charge but do not pay the cost of freight.








Q: What is your terms of payment ?




A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
