RFID UHF Card reader Pr9200 chip 2dBi antenna 2 meters uhf rfid usb desktop reader writer

Product Overview

Description

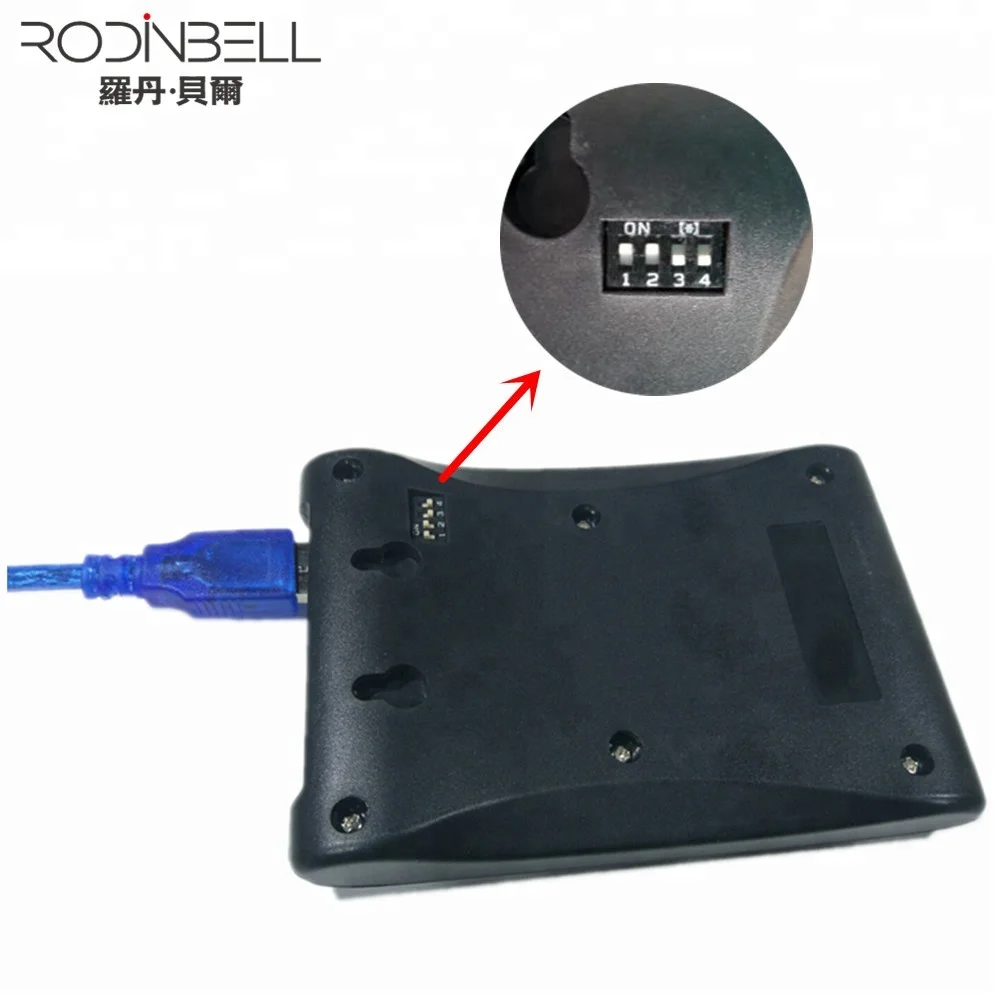

RFID UHF Card reader Pr9200 chip 2dBi antenna 2 meters uhf rfid usb desktop reader writer





(Model: D-100)



1. Main advantages

• PHY Chips PR9200 inside with outstanding performance and cost-effective.


• Chip: FT232 USB to UART, providing the most stable USB communication in the industry.


• All components with high-end materials and low temperature drift coefficient ensure stable performance in harsh environment.


• Two models: D-100/101 optional.


• Read distance: 80cm-2m (D-100), 10cm-50cm (D-101). (Note: Tested with Impinj E41b inlay)


• Host communication: USB 2.0/ RS-232/ Wiegand 26/ Wiegand 34


• Read rate: >50PCS per second.


• Super low power consumption; no additional cooling devices required under indoor use.


• Power supply: USB or independent power supply.


• Full compatible with different communication interfaces of RodinBell INDY R2000 series products.

2. Specification of D-100 USB Desktop Reader

Input Voltage	DC 3.5V – 5 V.
Standby Current	<80mA.
Working Current	180mA @ 3.5V (26 dBm Output,25°C). 110mA @ 3.5V (18 dBm Output,25°C).
Starting Time	<100mS.
Operating Temperature	- 20 °C  -  + 70 °C
Storage Temperature	- 20 °C  -  + 85 °C
Operating Humidity	< 95% (+ 25 °C)
Air Interface Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Spectrum Range	902Mhz – 928Mhz, 865MHz – 868MHz (Optional)
Supported Regions	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China Japan Korea Malaysia Taiwan
Output Power	10dBm, 18-26 dBm
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
Receive Sensitivity	< -70dBm
Peak Inventory Speed	> 50 pcs/s
Tag Buffer Size	200 pcs @ 96 bit EPC
Tag RSSI	Supported
Antenna	D-100	2dbi Circular Polarization Antenna. Read range:80cm-200cm  (Tested with Impinj E41b tag)
	D-101	0dbi Circular Polarization Antenna. Read range:10cm-50cm  (Tested with Impinj E41b tag)
Host Communication	USB 2.0, RS-232, Wiegand 26, Wiegand 34
Baud Rate	115200 bps ( default and recommended) 38400 bps

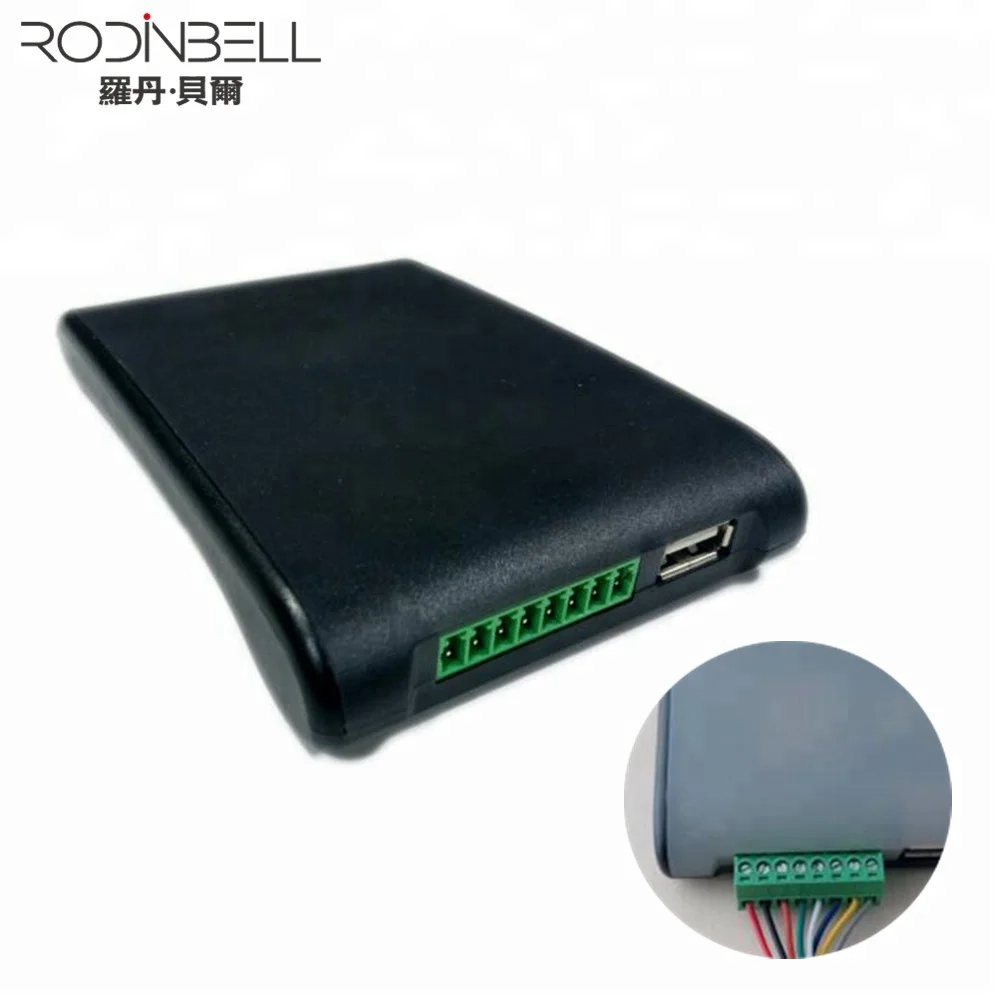

3. Pin assignments

PIN Assignments





PIN	Interface	Description
1	+ 9V	External 9V power supply. (Note: Don’t connect an external power supply and USB power supply both.)
2	GND	Common ground with +9V external power.
3	RS-232 TXD	RS-232 data output.
4	RS-232 RXD	RS-232 data input.
5	GND	Common ground with RS-232 interface.
6	GPIO3	GPIO3 or Wiegand Data 0.
7	GPIO4	GPIO4 or Wiegand Data 1.
8	GND	Common ground with Wiegand data.





Product Certificates:

FCC Certificates, CE Certificates



Packing & Shipping



Packed with PP bag and Paper box

Shipped with DHL, FEDEX, UPS, TNT and other methods



Company Information



Founded in 2010, Shenzhen RodinBell Technology Co., Ltd. is one of the leading companies that offers products and solutions confining industrial and commercial intelligent equipment.

With the importance we attached to the integrity of research, development and innovation, and to the respect for independent intellectual property rights, RodinBell R&D team is made up of engineers and designers including those who had worked in microwave communications, embedded operating systems, application development and industrial design for more than 20 years.



Our service:



ADK/API file will be provided for you with the products.
