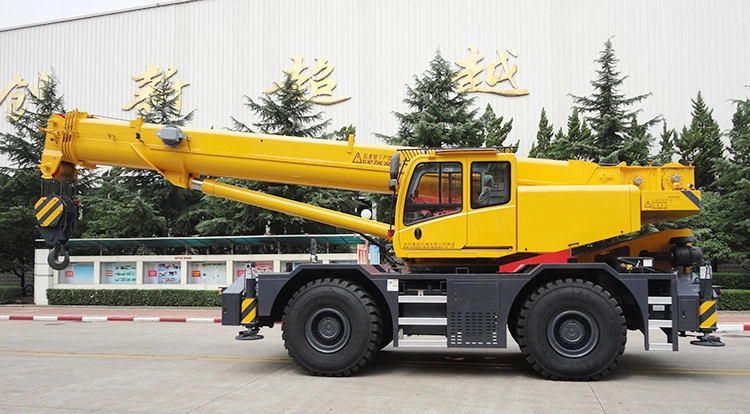

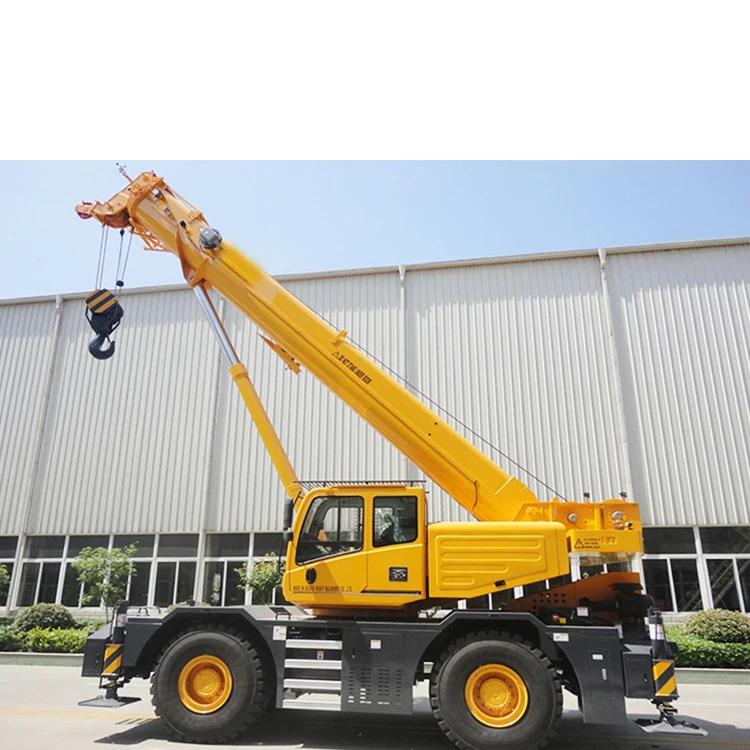

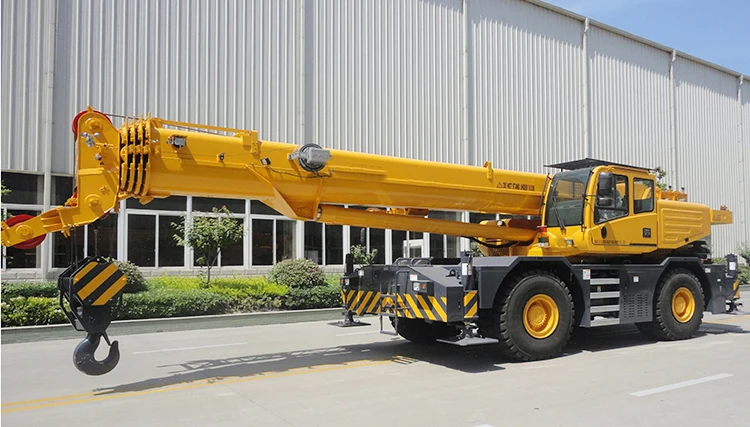

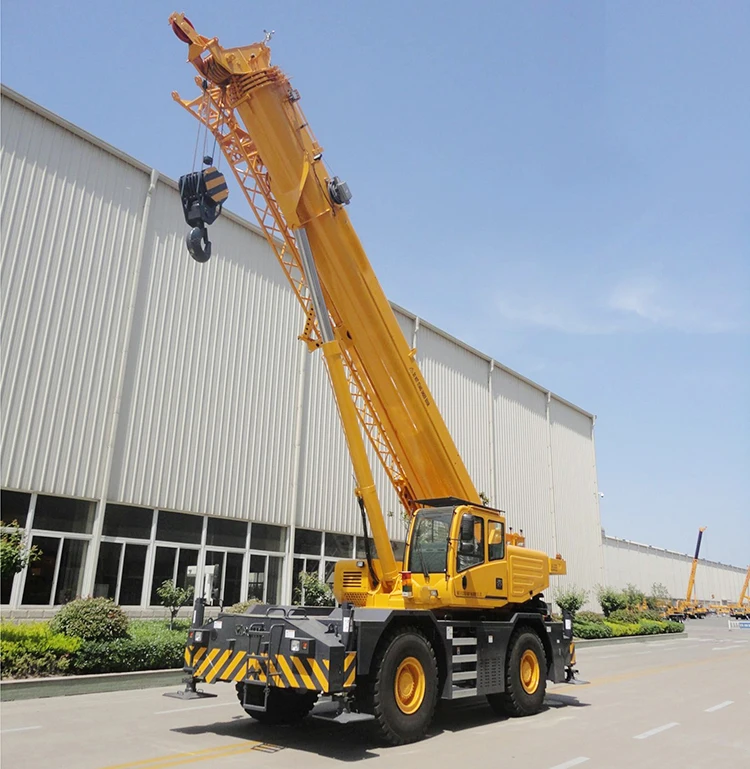

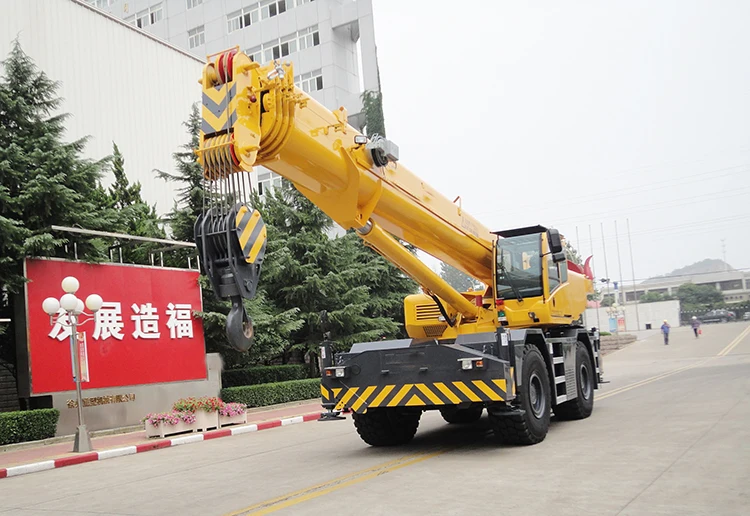

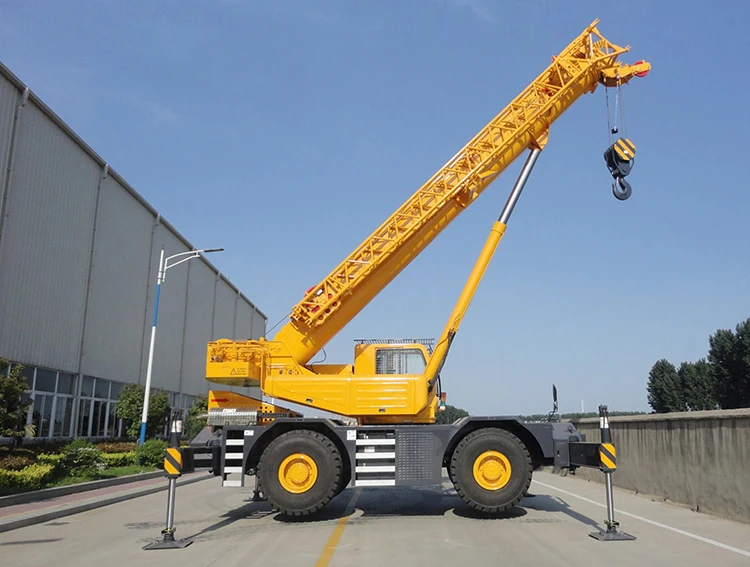

New Large RT50 Heavy 50 ton Crane for Construction Rough Terrain Truck Crane with Factory Prices
- Category: >>>
- Supplier: Hegong Heavy Industry(hefei) Co. Ltd.
Share on (1600459157074):
Product Overview
Description
Product Description
Product Description
Item | Unit | |||
Dimensions | Overall length | 12100 | mm | |
Overall width | 2980 | mm | ||
Overall height | 3530 | mm | ||
Weight | Dead weight in travel state | 38350 | kg | |
1st axle | 17750 | kg | ||
2nd axle | 20750 | kg | ||
Power | Engine model | QSB6.7 | ||
Engine rated output | 149/2100 | KW/(r/min) | ||
Engine rated torque | 740/1500 | N.m/(r/min) | ||
Travel | Max.travel speed | ≥35 | km/h | |
Min.turning diameter | ≤5.5 | m | ||
Min.ground clearance | 460 | mm | ||
Approch angle | 25.8 | ° | ||
Departure angle | 21.8 | ° | ||
Max.gradeability | ≥55 | % | ||
Lifting Performance | Max.total rated lifting load | 50 | t | |
Min.rated working radius | 3 | m | ||
Turning radius at swing table tail | 4090 | mm | ||
Base boom amx.load moment | 1690 | kn.m | ||
Base boom | 10.3 | m | ||
Full-extended boom | 38.2 | m | ||
Full-extended boom+Jib | 55 | m | ||
Outrigger longitudinal distance span | 7 | m | ||
Working speed | Boom elevating time | ≤80 | s | |
Boom telescoping time | ≤120 | s | ||
Max.swing speed | ≥2.0 | r/min | ||
