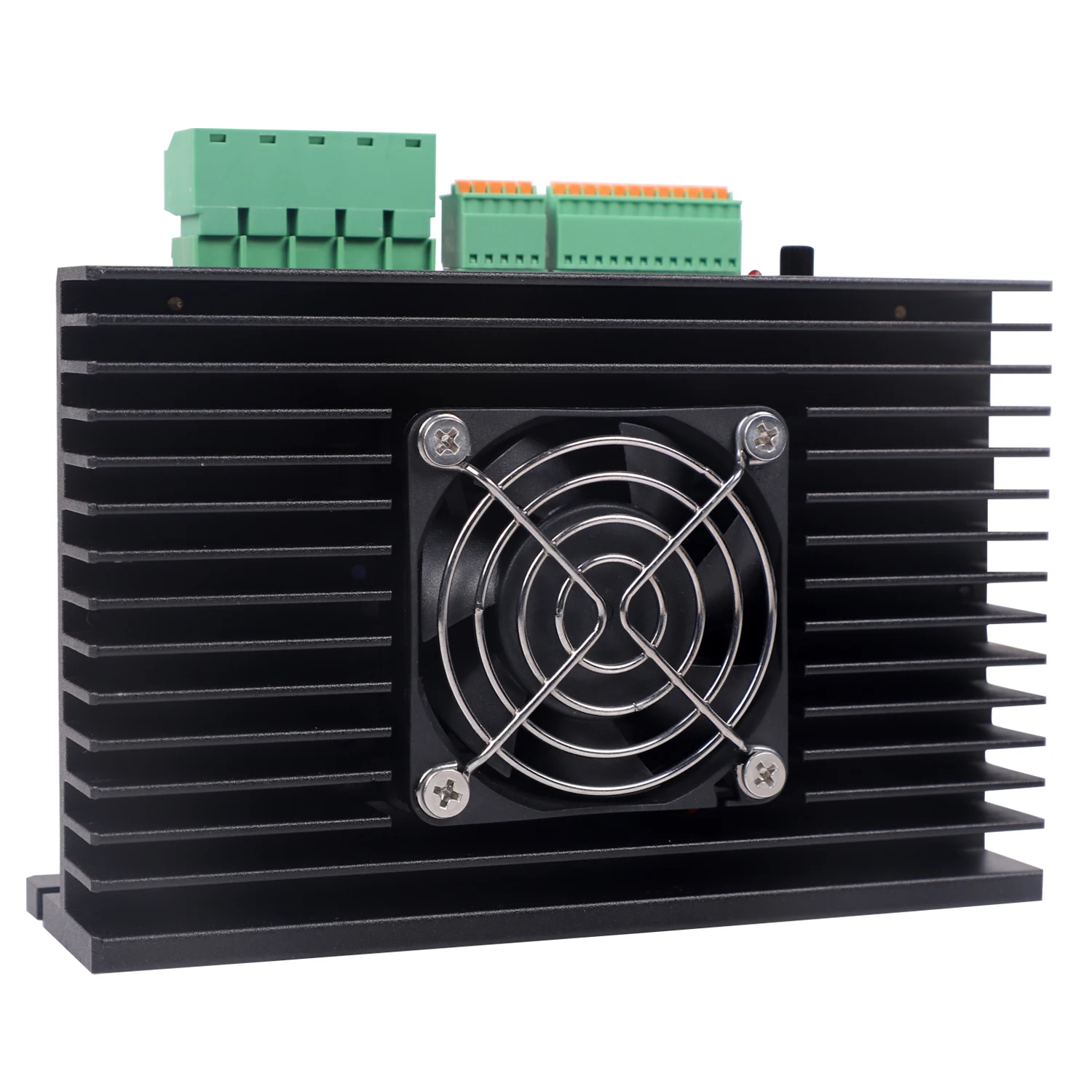

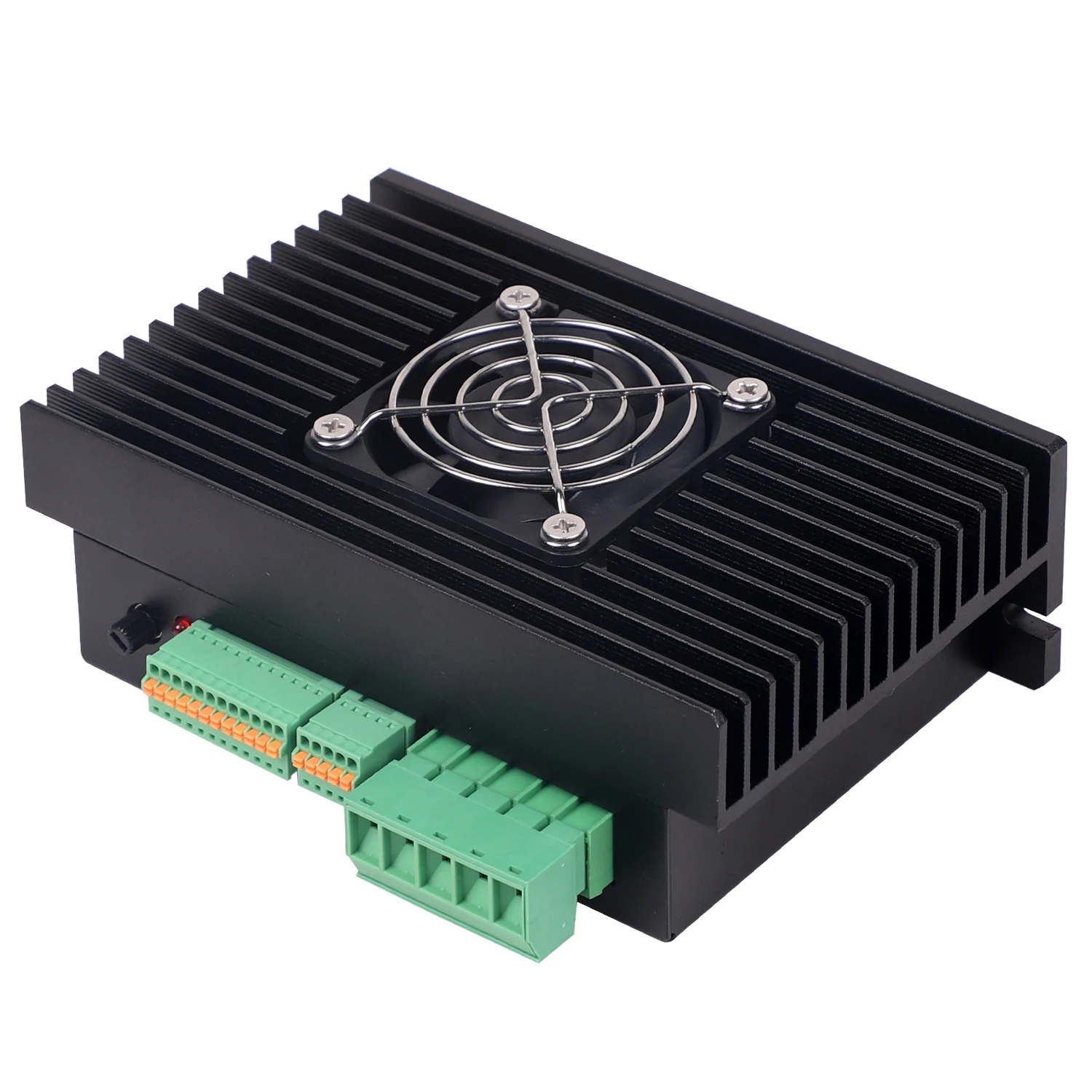

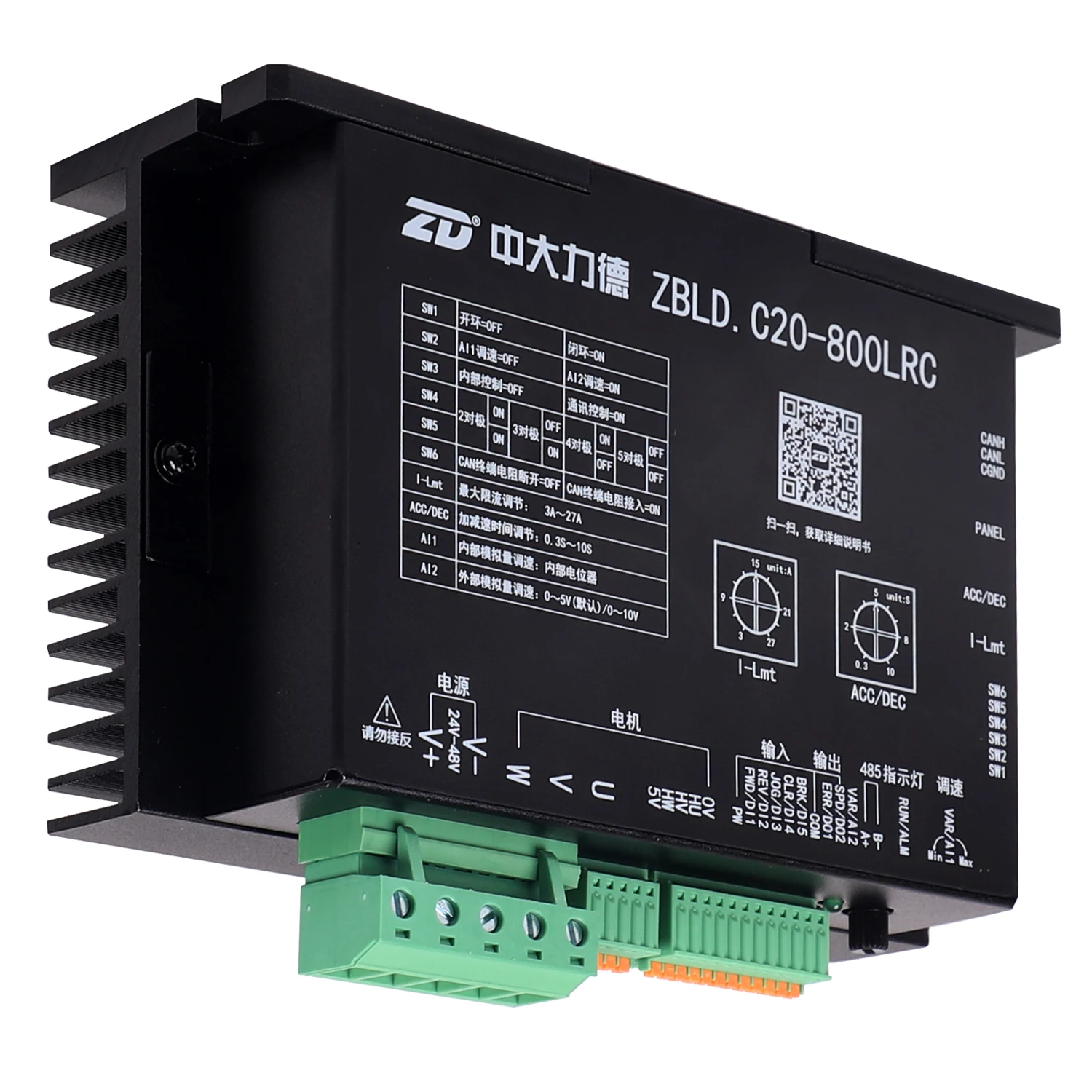

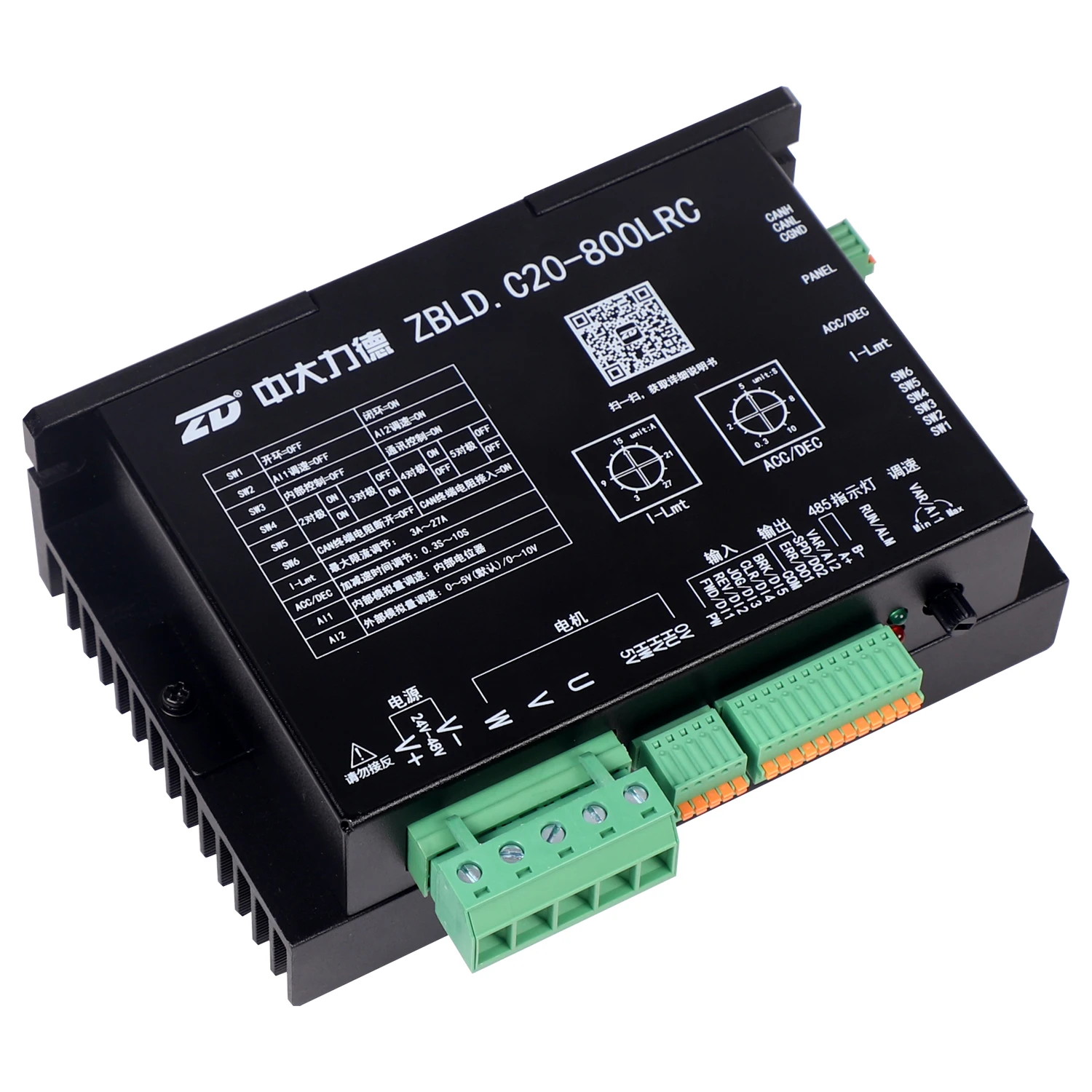

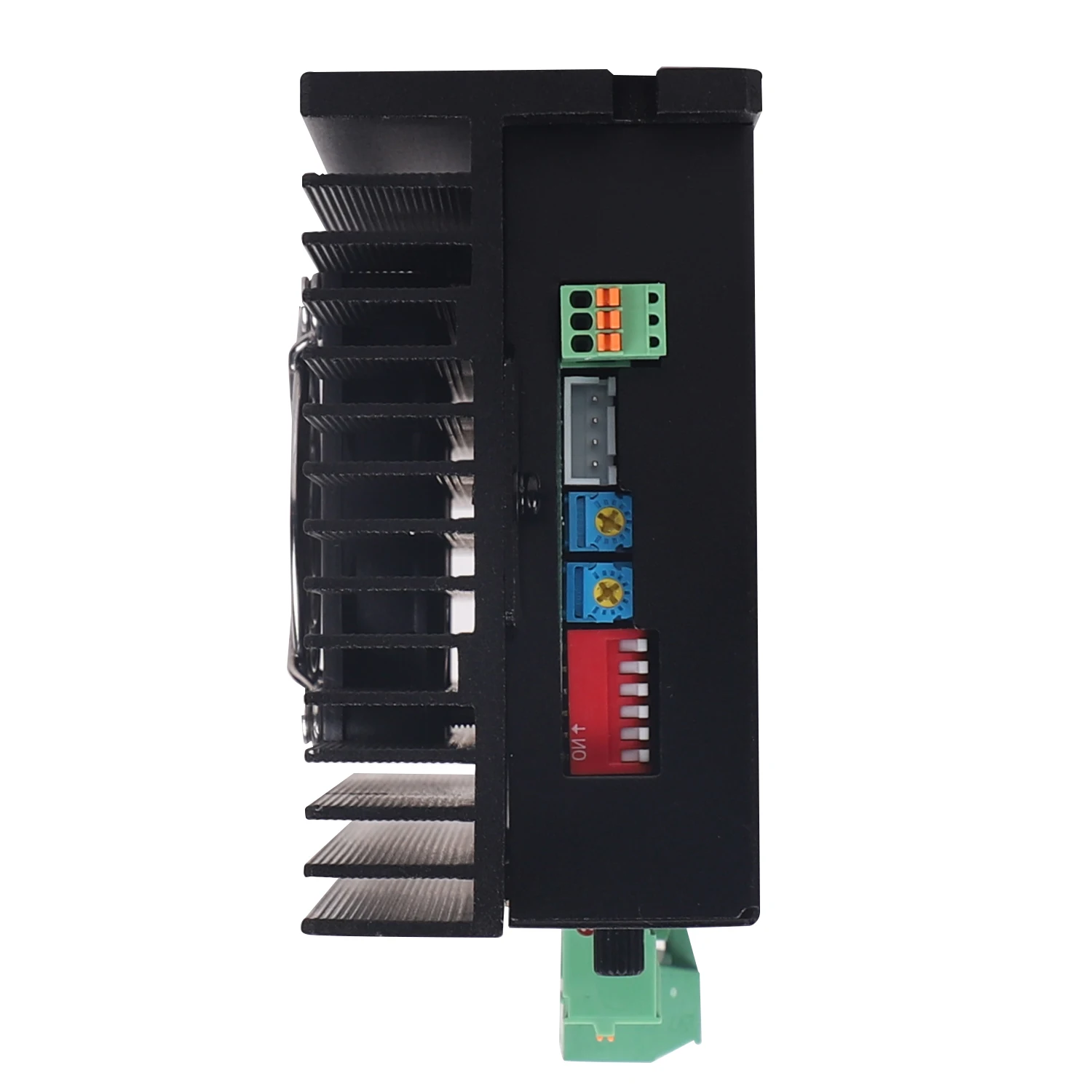

ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor
ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor
ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor
ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor
ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor
ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor
ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor

ZD Leader Low Voltage 24V 36V 48V BLDC Controller Driver For 750W Brushless Motor

Share on (1600459159667):


Price:$48.00 - $50.00

Quantity:


Product Overview

Description



Products Description



ZD have established five development platforms(C10/C20/C30/C40/S10): precision motion controller assembly, intelligent control system, and industrialized high-end intelligent equipment. After several years of development,ZD has a professional R&D and design team and has been providing industry experience and key technologies for BLDC motor and AC motor.


Input Voltage
Low Voltage:24~48VDC
High Voltage:220VAC
Output Current
1.3A~27A
Output Power
25W-800W
Default Speed
0~3000 rpm
Poles
2~5
Digital Input
DI1~DI5, NPN / PNP
Digital Output
DO1 error output
DO2 speed output
Analog Input
With/Without(Optional)
HDI Input
With/Without(Optional)
Speed Control Knob
With
Current Limited Knob
With/Without(Optional)
Acceleration and Deceleration Knob
With/Without(Optional)
IP Class
IP 20
RS485
With/Without(Optional)
CAN
With/Without(Optional)
Overheating Protection
With
Keyboard
With/Without(Optional)
Display
Digital display / Built-in




Related Products




Why Choose Us




FAQ


Q1: What're your main products?
A1: We currently produce Brushless DC Gear Motor,Motor Driver,AC Gear Motor, DC Gear Motor, Planetary Gearbox,Drum Motor,Precision Cycloidal Reducer,Harmonic Drive,etc. You can check the specifications for above motors on our website and you can also tell us your special requirements by email and we will recommend the motor you need.

Q2: How to select a suitable motor?
A2: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor as per your request accordingly.

Q3: Do you have a customized service for your standard motors?
A3: Yes, we can customize as per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q4: Do you have an individual design service for motors?
A4: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.

Q5: What's your lead time?
A5: Generally speaking, our regular standard product will need 15-30 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
