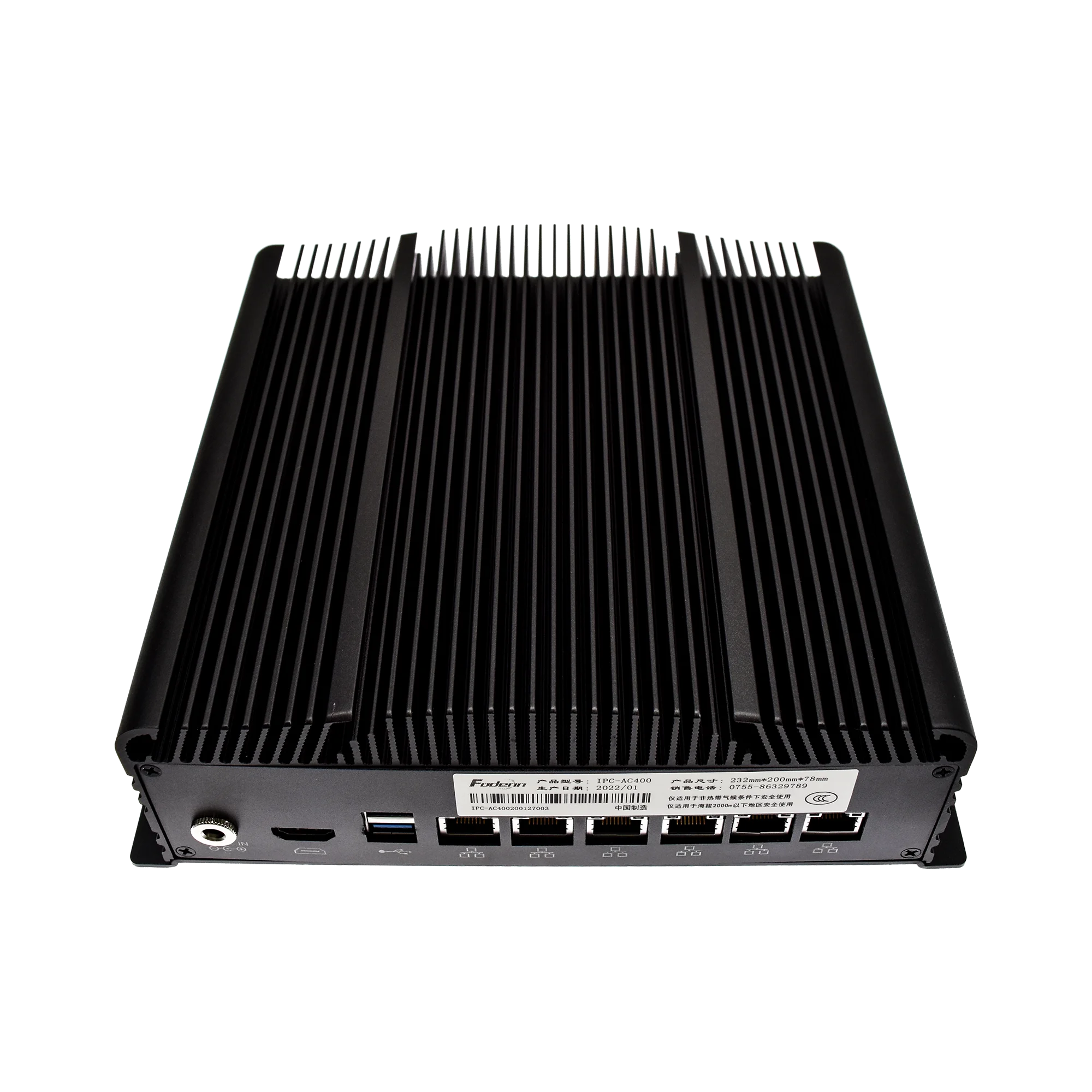

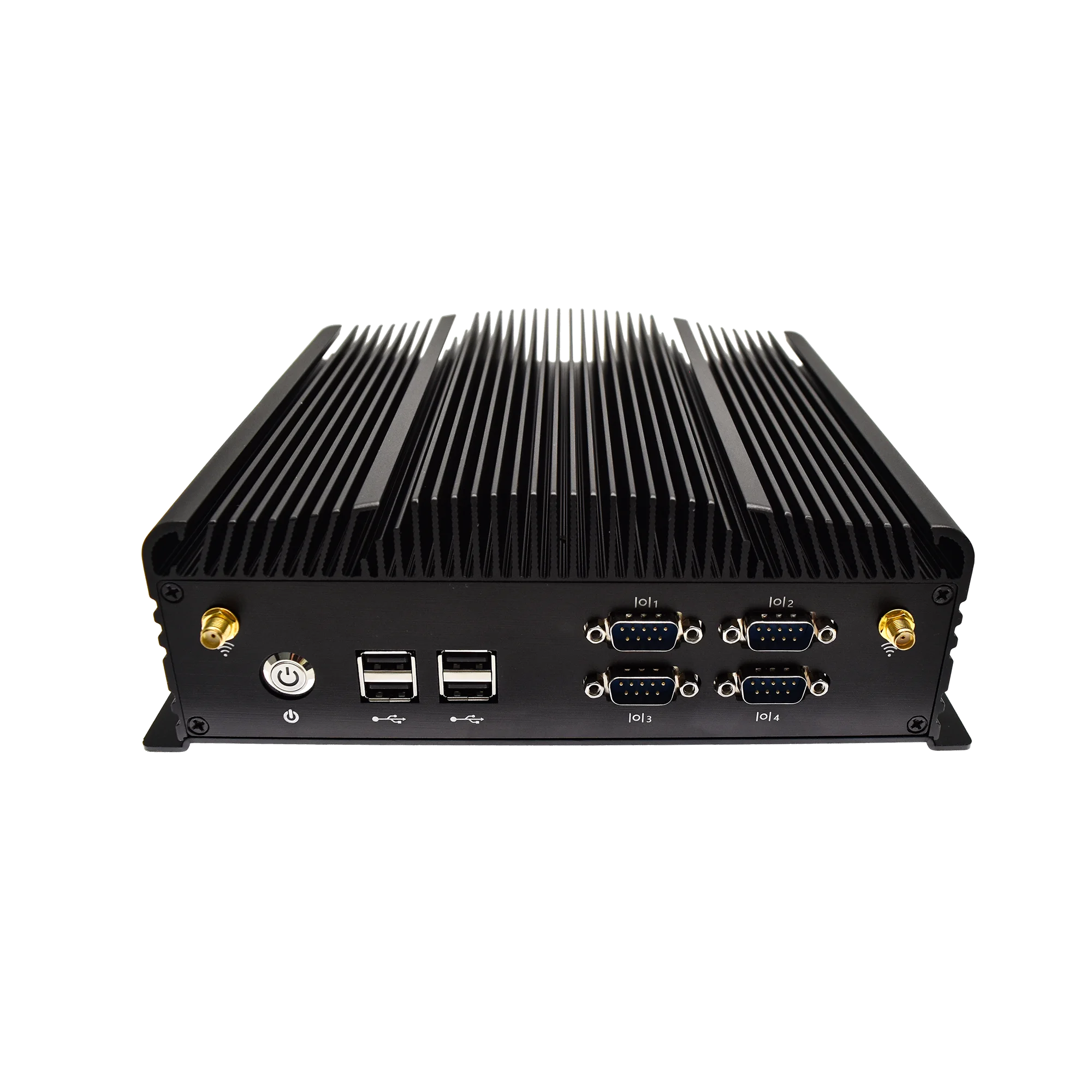

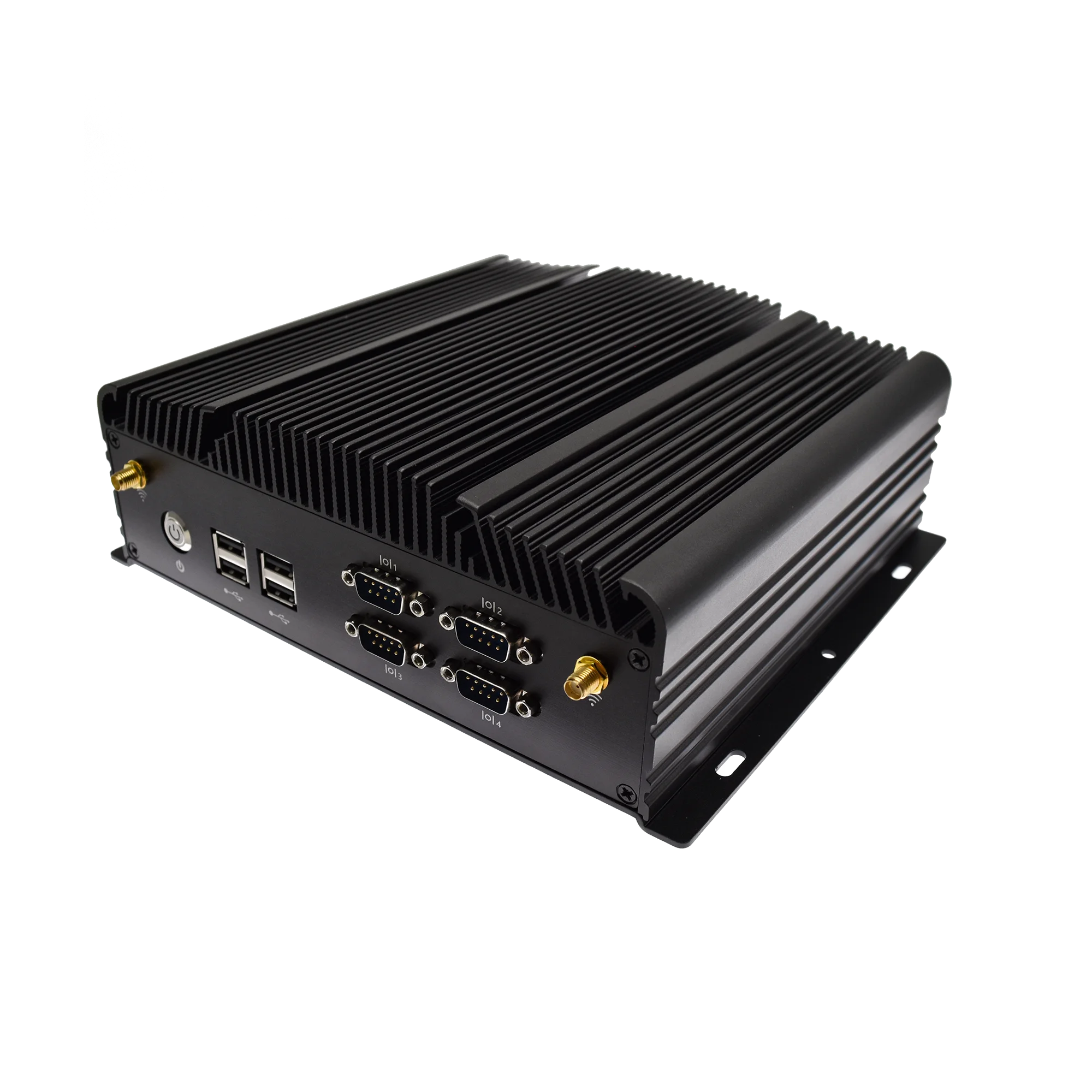

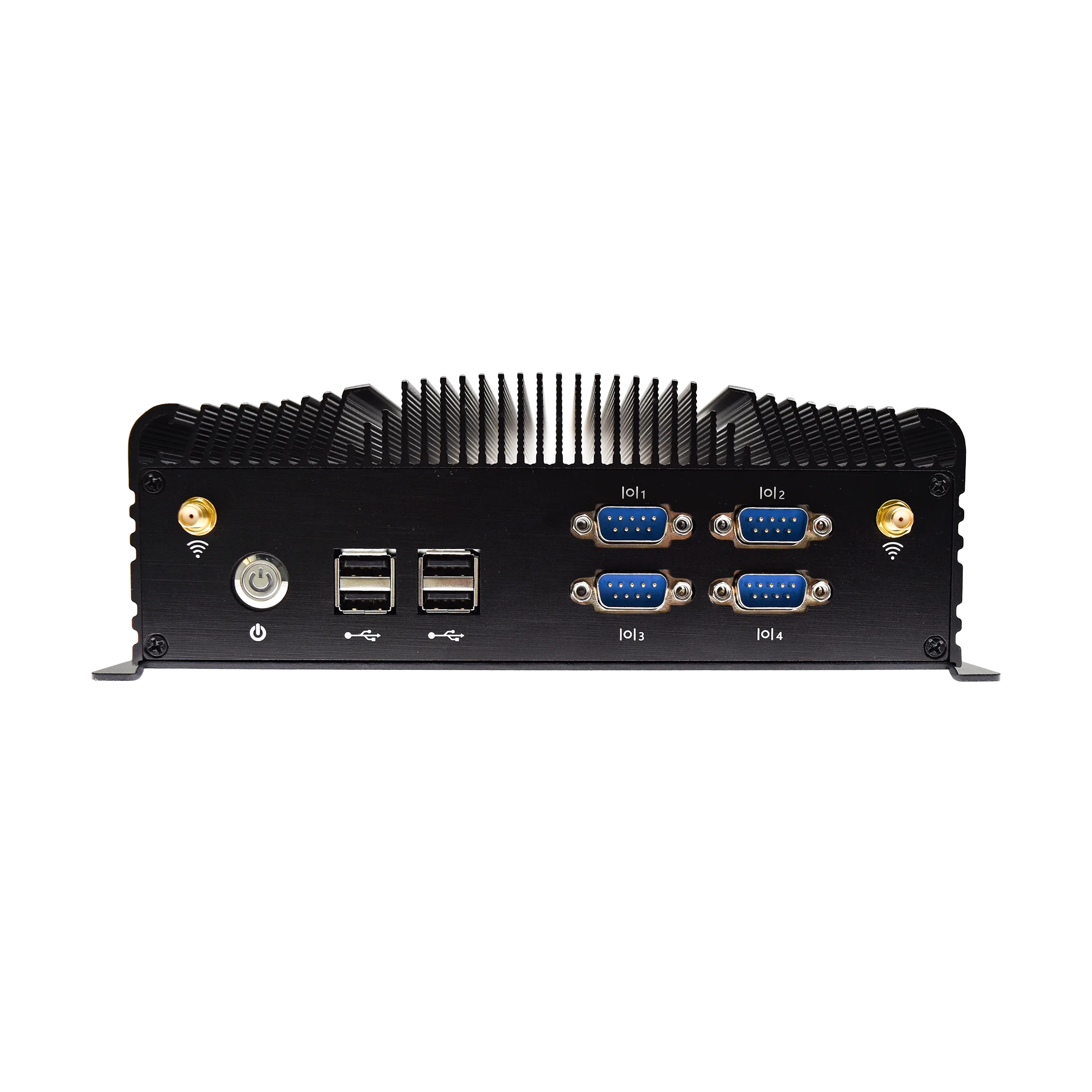

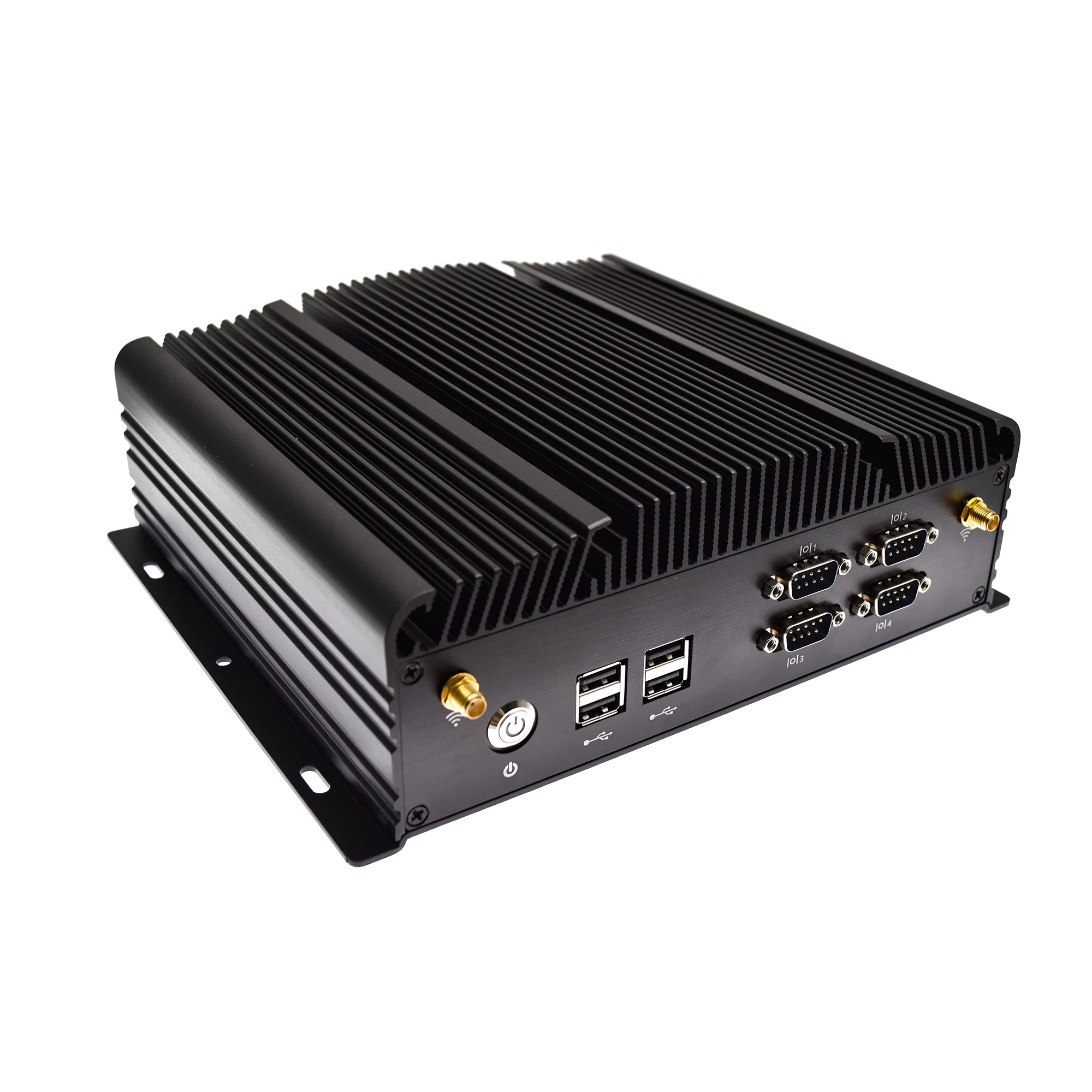

Fodenn Tigerlake U Intel Core 11th Gen Windows/Linux Machine Vision HMI Control Industrial Computer
- Category: >>>
- Supplier: Fodenn Electronic Technology Co. Ltd.
Share on (1600459238656):
Product Overview
Description
Features
1.Intel low-power embedded industrial host
2.Support DDR4 notebook memory
3.VGA+HDMI supports dual screen synchronization/asynchrony
4.Support 4 COM (COM1/2:RS232/RS422/RS485;COM3/4:RS232)
4.Support 4 COM (COM1/2:RS232/RS422/RS485;COM3/4:RS232)
5.Support 4 USB 2.0 +2USB 3.0
6.Support 6*LAN Port(Include 4*POE port)
Application
Automated industry,machine vision,interactive application,all in one pc....
Specification
Model | IPC-AC400 |
CPU/CHIP | Onboard Intel Tiger Lake i5-1135G7 CPU, support 11th generation embedded platform Celeron 6305, Pentium 7505, Core i3/i5/ i7 series |
AMI 128Mbit SPI FLASH | |
Power | 12-36V DC in |
RAM | 2*SO-DIMM For DDR4 2400MHz |
Max 64GB | |
SSD | 1*M.2 Socket (2242/2280, SATA/NVMe, Jumper，Default NVMe ) 1*SATAIII |
DISPLAY | 1*HDMI2.0b: 4096*2304@60Hz（EXT） 1*CRT: 2560*1600@60Hz（Hi-EXT, Option） 1*EDP：4096*2304@60Hz (INT) 1*LVDS：2560*1600@60Hz |
LAN | 10/100/1000 Mbps |
4*Intel I211AT（PoE PS）+ 2*Intel I211AT GIGALAN | |
Audio | Front_FP（Support ALC888S/ALC897/ALC662）+ 3W Speaker |

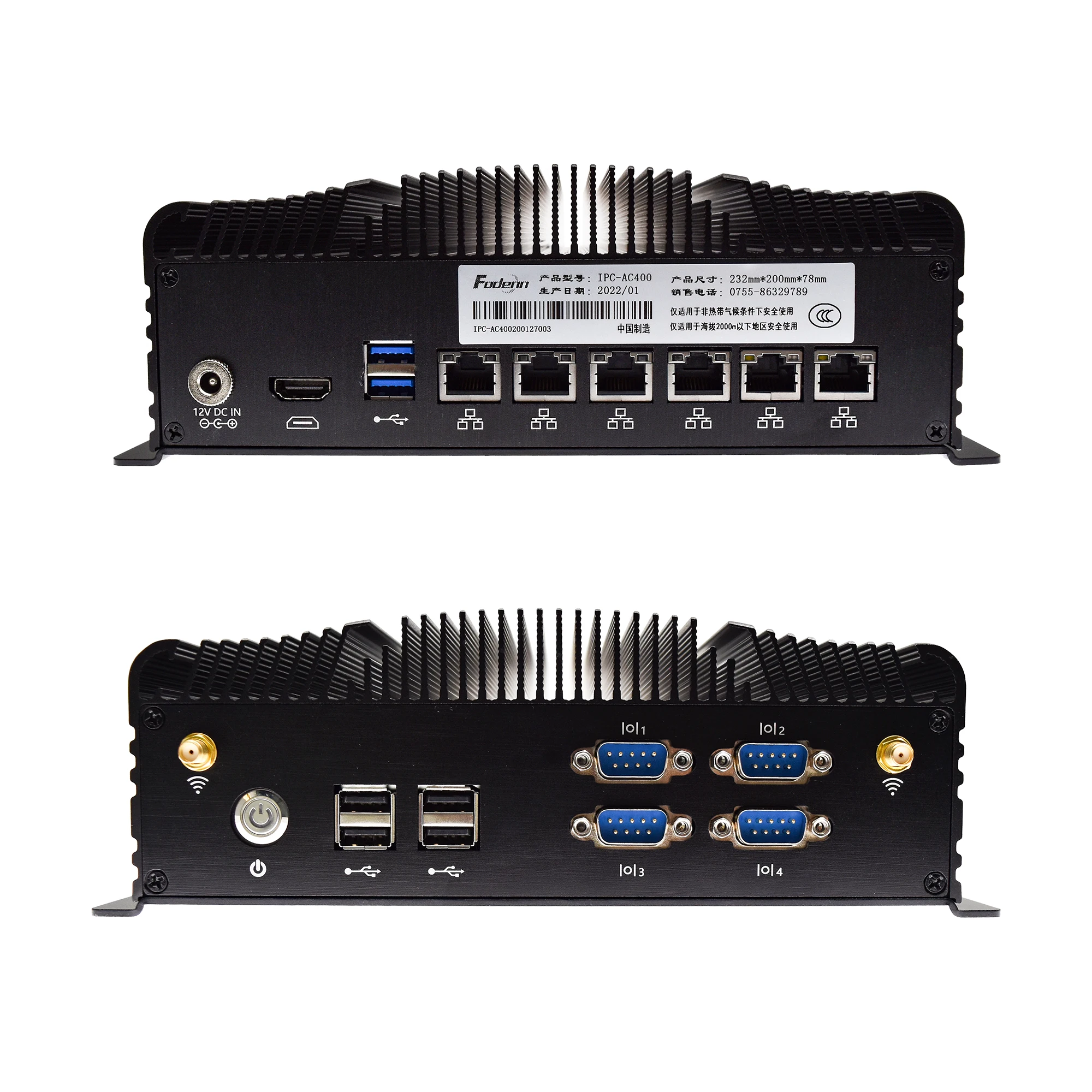

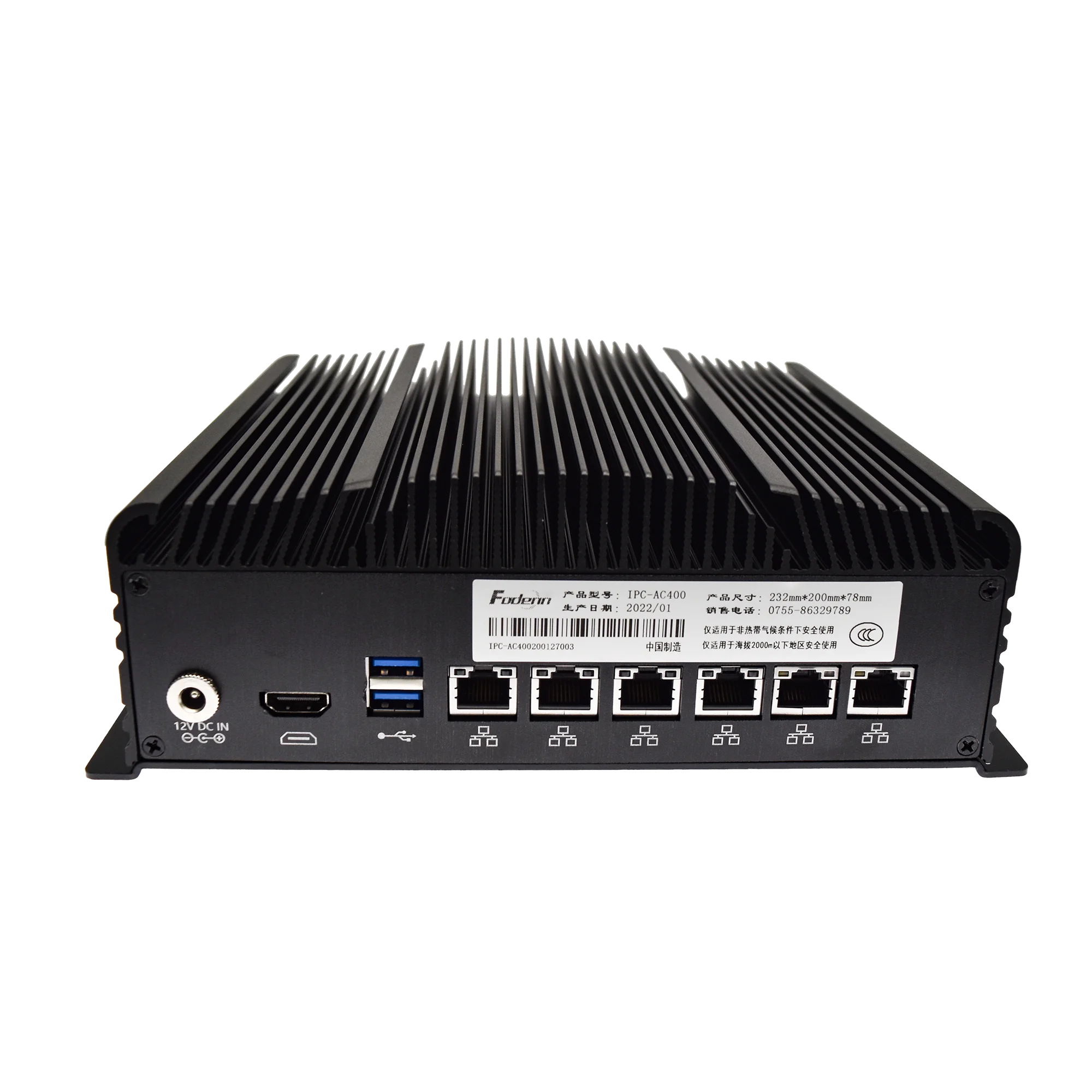

Front I/O | 1*HDMI 2*USB3.1 6*RJ45(4*PoE , ASM1806 FOR 4*LAN, 2*Intel PCI-E) |
Expansion Plug | 1* M.2 (B key 3042/3052 for 4G/5G) 1* M.2 (E key 2230 PCI-E,USB2.0） 1* CAN（F81251） 1* SIM Card hold(Co-lay FPC Connector) 1* CPU FAN (Support smart FAN) 1* SYSTEM FAN（W/O Smart FAN） 1* AT_Mode 1* FP_PW (PS ON) 1*CRT（15pin Header, Option） |
USB Port | 4*USB2.0+2*USB3.0 |
Serial Port | 4*COM port（COM1/2:RS232/422/485;COM3/4:RS232） |
PS/2 | N/A |
GPIO | 16 Bit |
Fan Interface | CPU_FAN1，SYS_FAN1 |
Button | Power button and reset button |
Indicator Light | Power light, hard disk light |
Power Supply | 9-36 DC,DC-025M with threaded lock |
Dimensions | 232MM* 200MM* 78MM |
Product Description
Recommend Products
Company Profile
Fodenn Electronics Technology Co.,Ltd.
Fodenn electronic technology Co., Ltd is a high-tech enterprise integrating R&D, design, production, sales and after-sales service
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
