Product Overview
Description
Product Overview
MODEL-X series | X1000 |
Maximum bending speed | 0.2s/time |
Maximum bending width | 1000mm |
Maximum bending size | 1000mm*1000mm |
Bending height | 170mm |
The rated voltage | 380V |
Peak power | 15KW |
Average power | ≈1.5KW |
noise | ≈50db |
Overall dimensions(L*W*H) | 3000mm*1500mm* 2700mm |
weight | ≈ 7 t |
system | Win7 |
CNC system | PC-BASE New independent research and development 11 axis linkage Full servo CNC system |
screw | HIWIN |
bearing | NSK |
guide | HIWIN |
Lathe bed | Casting in one piece |
Upper and lower bending tool | Patented spherical cutter |
Maximum bending thicknes（standard) | SS 1.2mm，GI 1.5mm，CS 1.5mm，Aluminium 2.0mm |
Minimum material thickness | 0.35mm |
Minimum inner dimensions for four - sided forming | 130X190mm |
Double sided forming minimum within inches | 130mm |
Hinge knife | √ |
High-class instruction | √ |
Circle-arc bending function | √ |
Automatic lubrication system | √ |
Partial load testing | √ |
Thickness detection | √ |
High speed control module | √ |

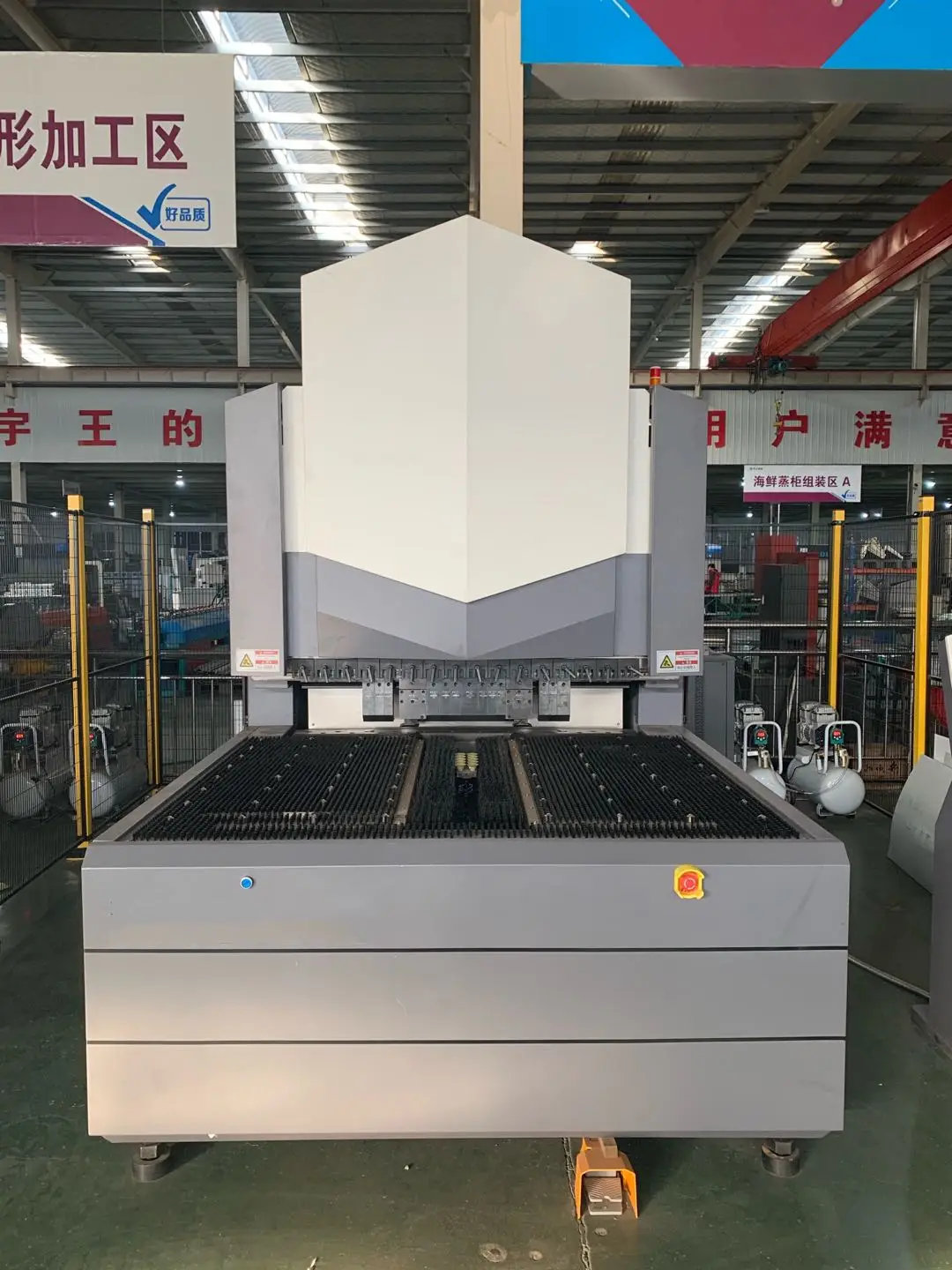

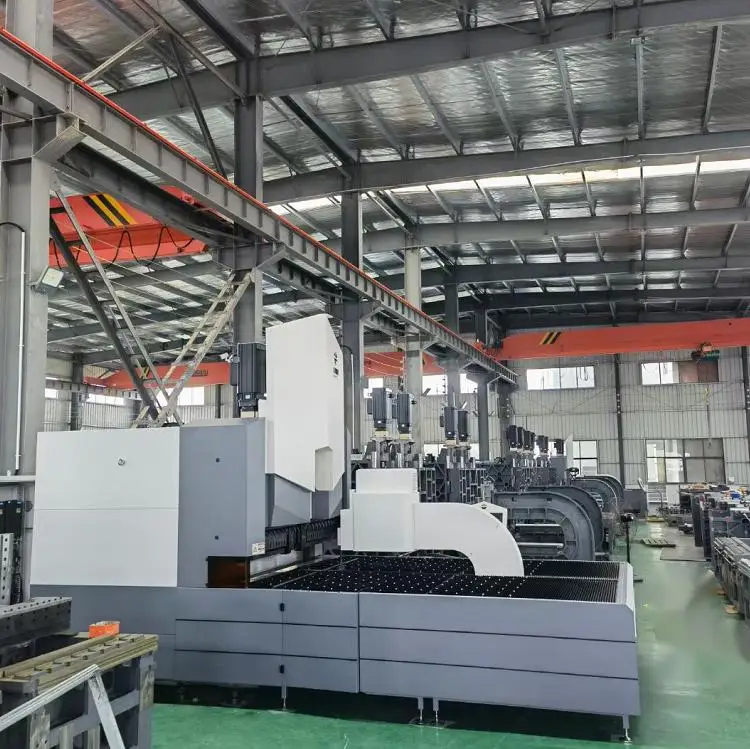

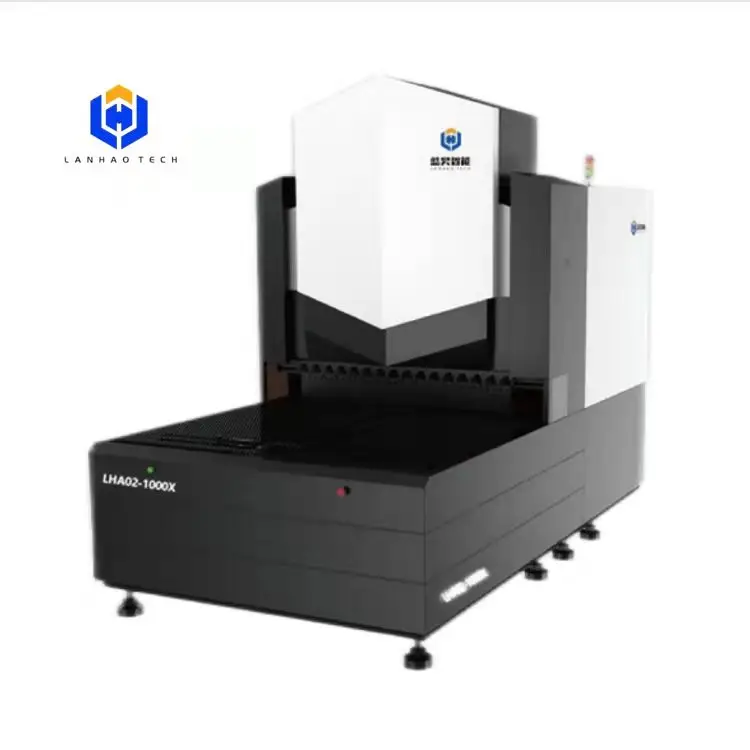

Product Display
Why Choose Us

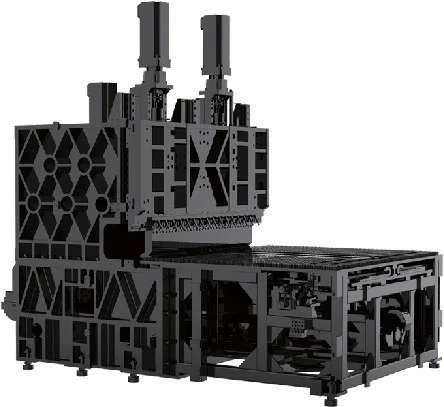

Casting iron machine bed
QT500-7&HT300 casting bed，Every time the casting label shall be measured by the testing instrument. After precise finite element force analysis, the frame adopts the most stable triangular interconnection design, which greatly ensures the stability under high tonnage impact force.
High standard welding
No matter large or small parts, carbon dioxide protection welding is used in the whole welding process, welding point adopts full welding process, to ensure that the welded parts are firm and beautiful.
Precise maching
High-precision multi-axis machining center is used to finish the spare parts, ensuring the accuracy of the parts.
Complete stress relief
High precision temperature control furnace is adopted for both the castings and the welded support table. According to the corresponding temperature curve of the material, multiple tempering, annealing and other heat treatment processes are carried out, and then the full frequency vibration is processed for a long enough time to completely release the internal stress of the workpiece and ensure that the workpiece is not deformed in the future.

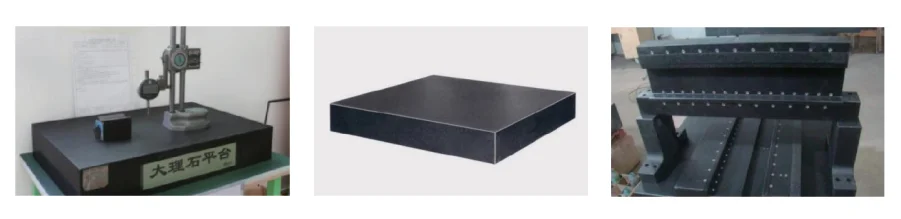

Strict test
Using high-precision micrometer U table, with marble platform and marble square, precise measurement for each workpiece, strictly control the processing quality of each workpiece to ensure that the assembly accuracy of the whole machine conforms to the high

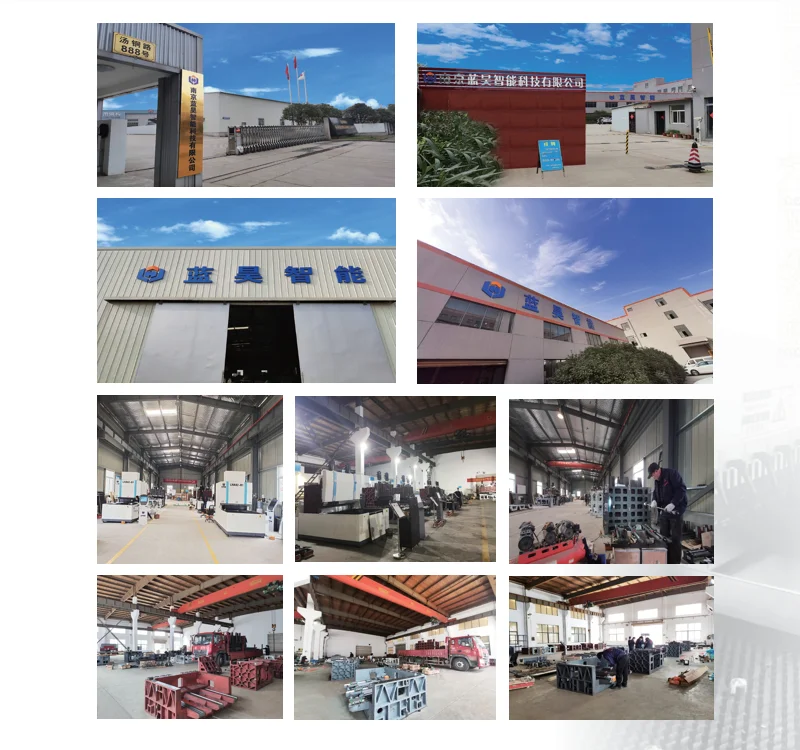

Company Profile
We have applied for more than 80 patents and obtained more than 30 authorized patents, got ISO certificate, etc.

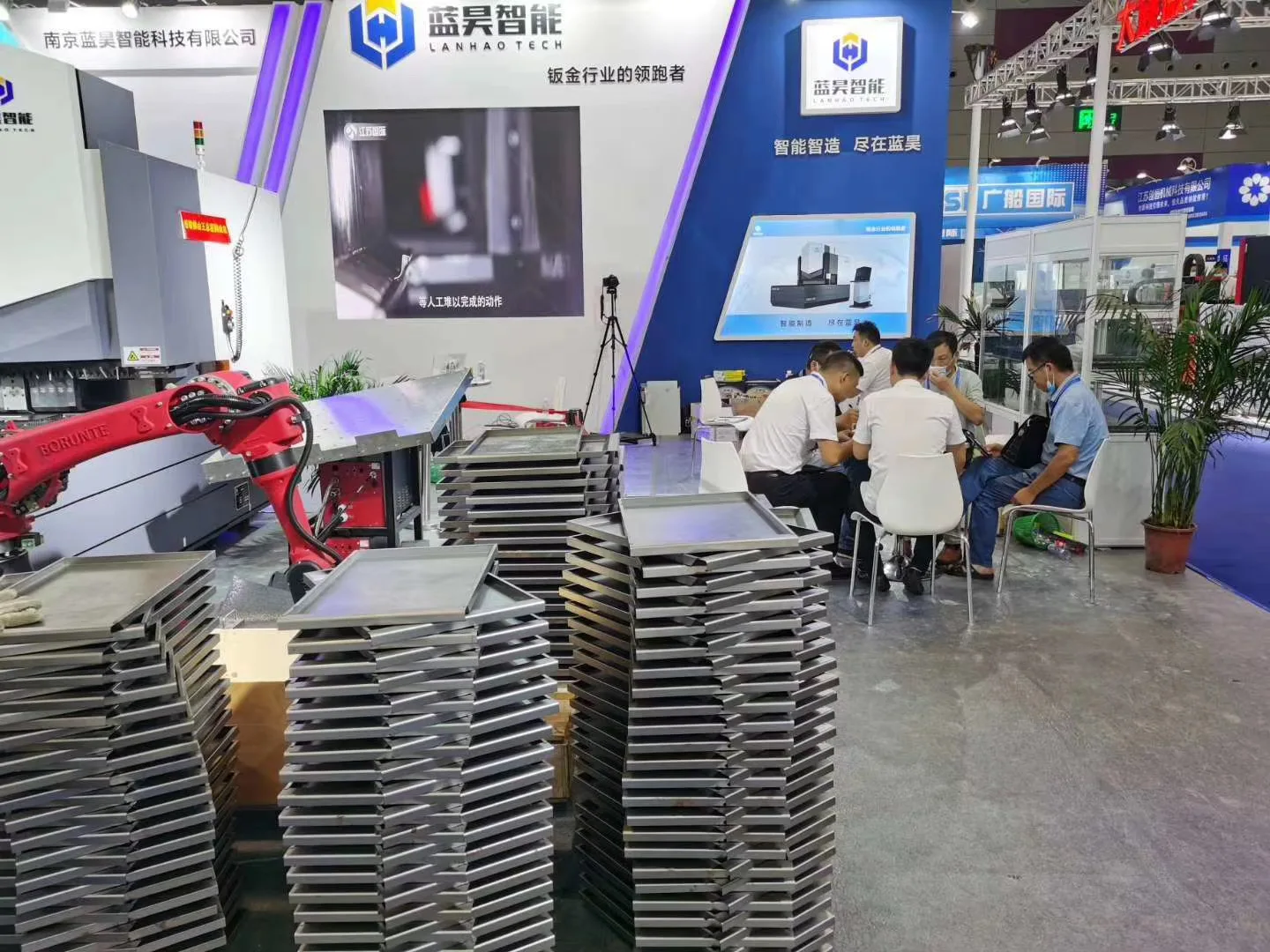

Exhibition

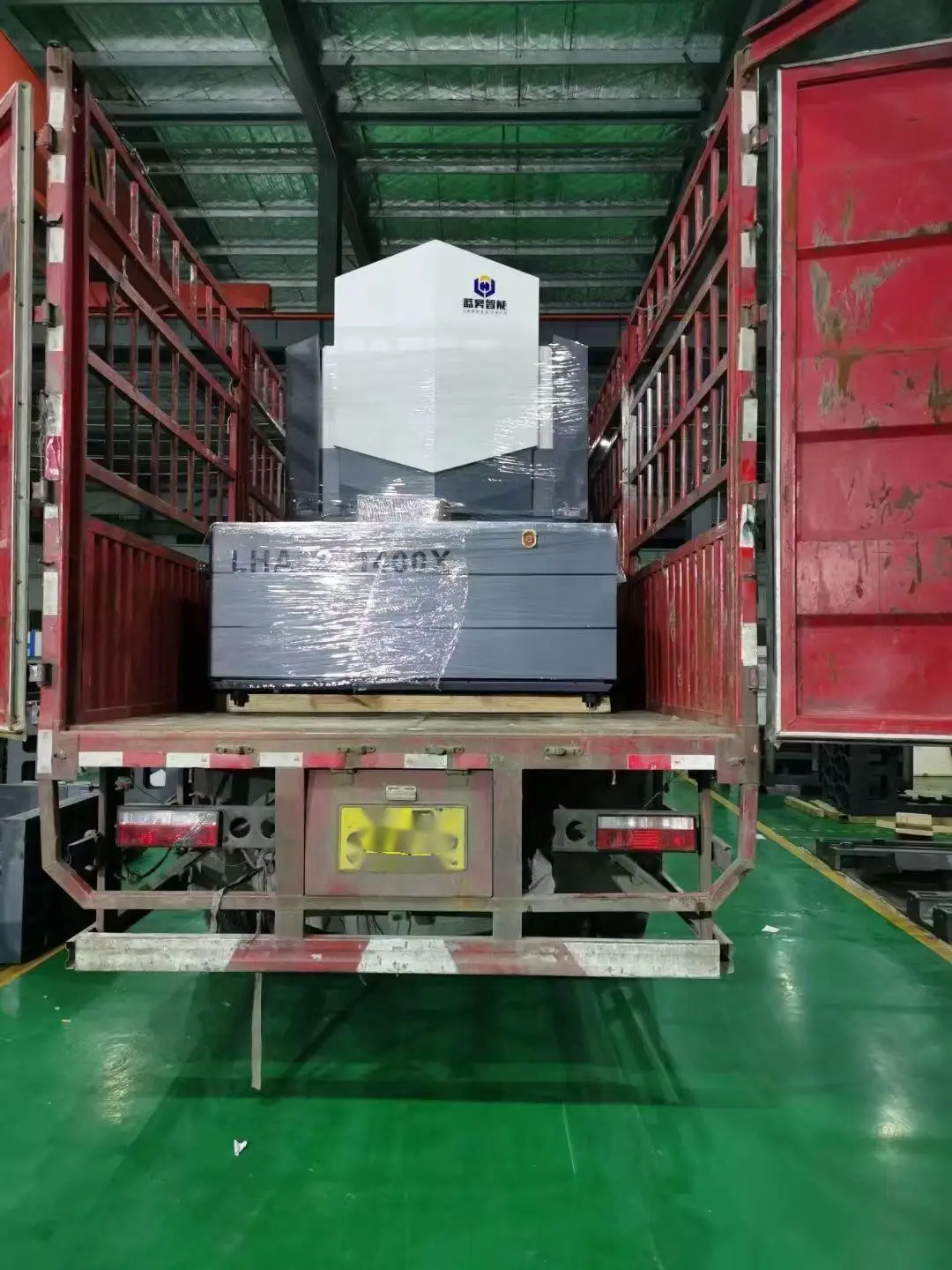

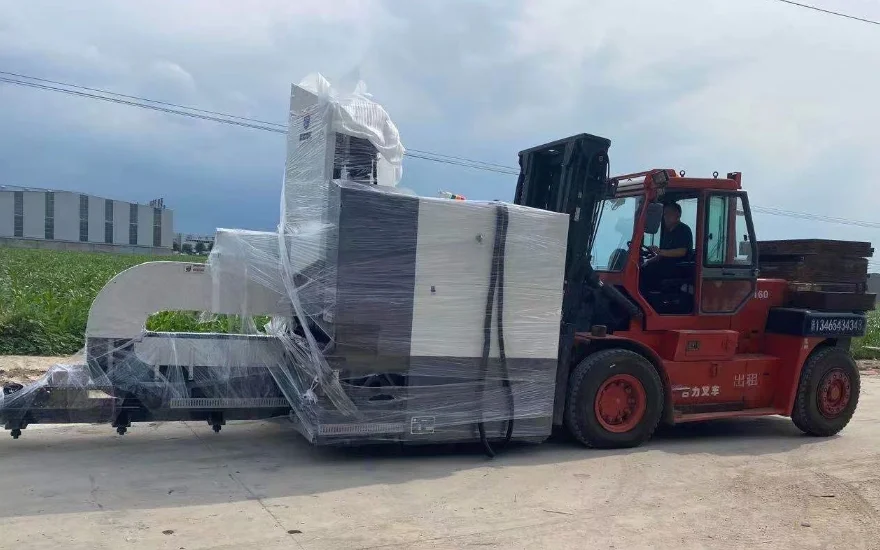

Product packaging
