Product Overview
Description
Digital display 16kw 80V 160V 200V 240V 300V 400V 500V 1600V DC Power Supply support adjustable power supply
Product Description
1. Advanced switching mode power supply technology and components, excellent design, small volume, light weight, high efficiency, which ensures the stability and reliability of long-term full-load operation.
2. 0-3000vdc 0-2000A can customize base on request,max power: 16000W.
3. Constant voltage value and constant current value can be continuously adjustable within the range 0~100%

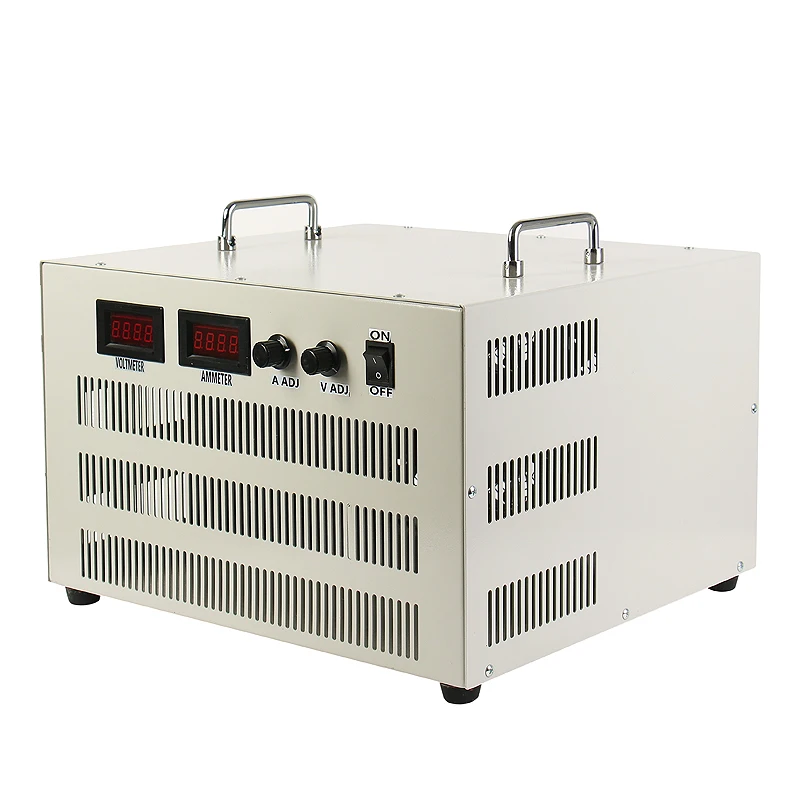

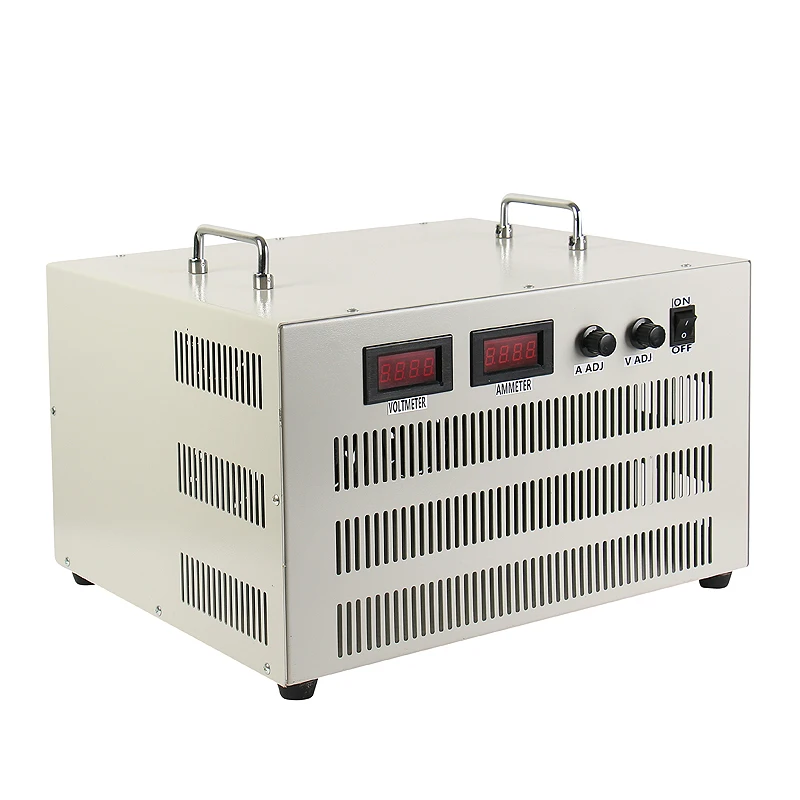

4. Digital display output voltage and output current.

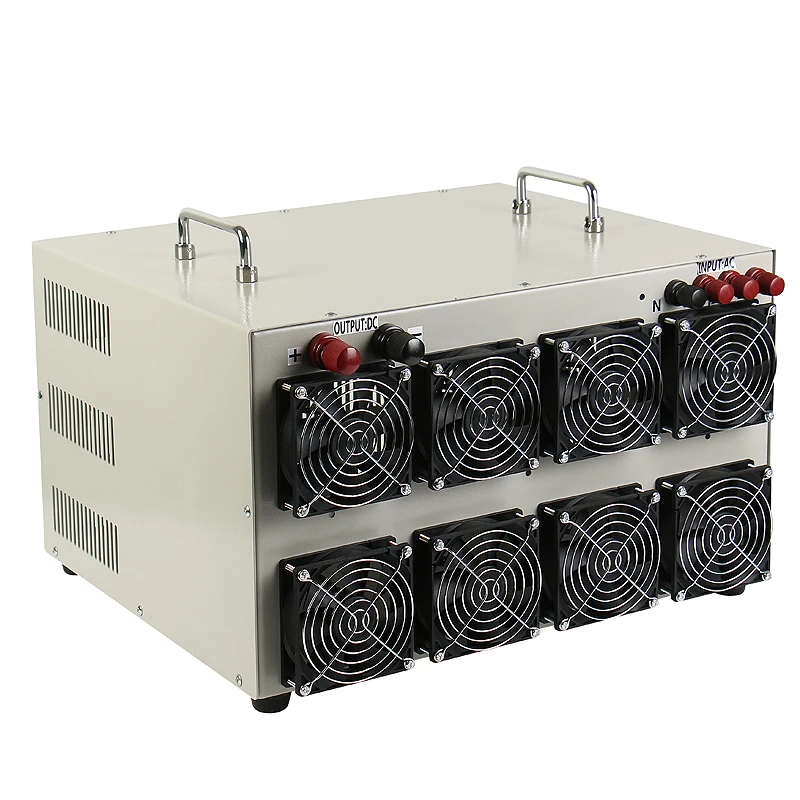

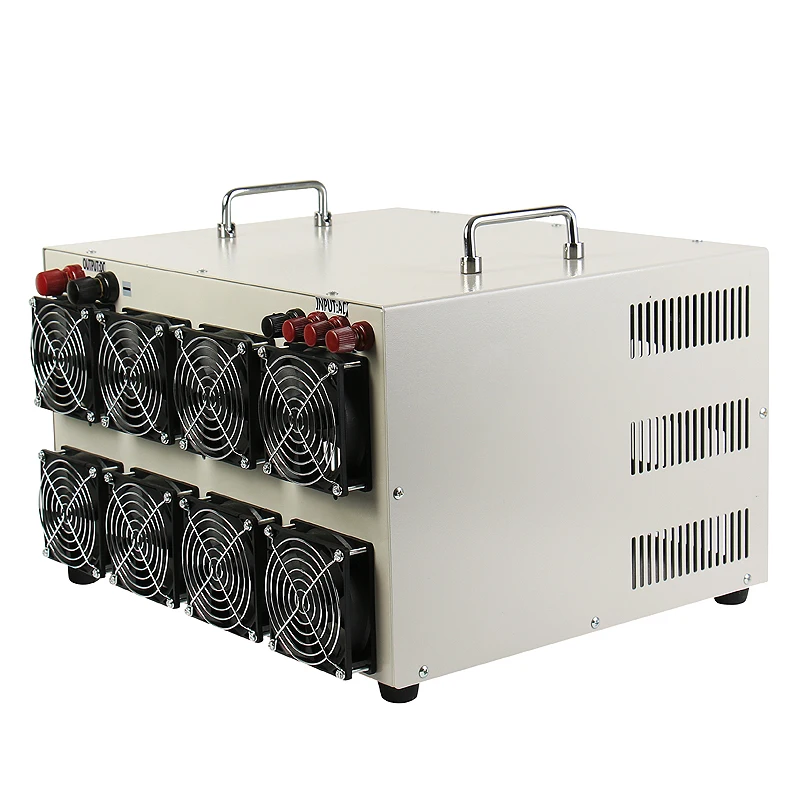

5. Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start up delay soft starting can avoid the overshoot voltage when start up.
6. Simple operation, convenient use
7. Store temperature: (-40~70)℃, Working temperature: (-20~50)℃
8. Relative humidity: 90% (40±2℃), atmospheric pressure (70-106)kPa
Brand | S-16000- |
AC Wide Input | 3 Phases AC380V±15%, 50/60hz |
Output Range | Customized output voltage *10%~Customized output voltage (Variable Or Appointed) Constant Curren: 16000/Customized output voltage~10*Customized output voltageA/ Customized output voltage (Variable Or Appointed) |
Power | Max 16000W |
Source Voltage Regulation | Constant Voltage ≤0.2% |
Load Regulation | Constant Voltage ≤1%; Constant Current≤2% |
Line Regulation: | Constant Voltage ≤0.3% |
Ripple Voltage | Total Ripple Vpp≤2% (Max Voltage) 100Hz Ripple: Vpp≤0.5%(Max Voltage) |
Operation Environment Temperature | (-10~45)℃ |
Efficiency | ≥89% |
Digital Meter | Voltage Meter And Current Meter |
Digital Display | Precision Of Output Voltage±1.5% |
Insulating Resistance | Input-Output:≥20MΩ |
Input— Shell:≥20MΩ | |
Output-Shell:≥80MΩ | |
Insulating Strength | Input-Output:AC1500V,10ma,1minute |
Input— Shell:AC1500V,10ma,1minute | |
Output-Shell:AC1500V,10ma,1minute | |
Unbalancedness Of Equalized Current | ≤5%+2.5A |
Protection | Temperature Control Fan, Over-Temperature Automatic Protection; Output Overvoltage, Over-Current And Short-Circuit Protection; Switch-On Delay Soft Starting Can Avoid The Over Swung Output Voltage When Switching On. |
Over-Temperature Protection | (70~80)℃ |
MTTF | ≥50000h |
External Dimension |
|
Weight | NW:37(KG) |
Radiating Wind Hole | Internal Radiating Wind Hole |
Customize range | 0-3000vdc 0-2000A can customize base on request |
