2V 96V 0 200A adjustable constant current Battery charge discharge tester
- Category: Battery Testers >>>
- Supplier: Xi'an,Foresight,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

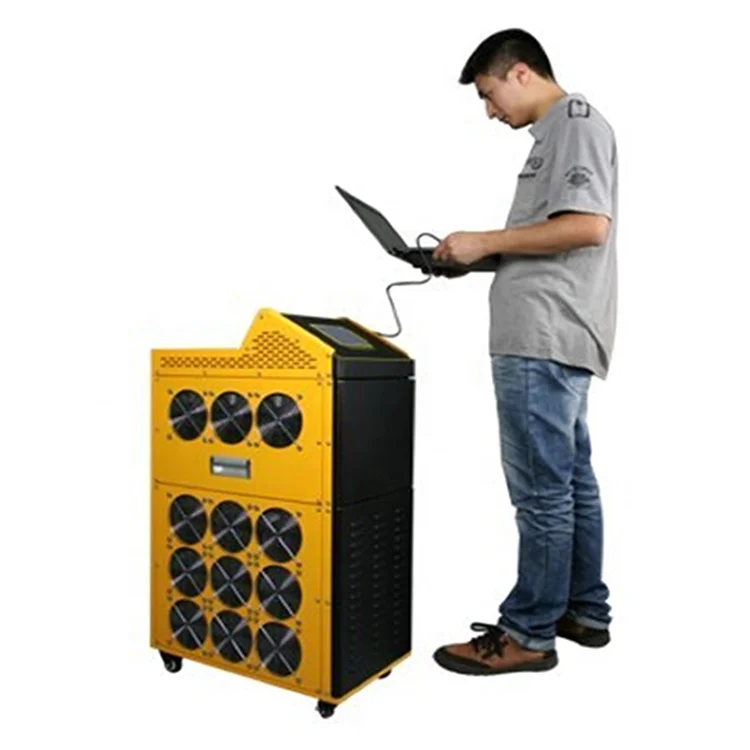

Battery Discharge Cycler
(Forklift batteries , Golf batteries etc.)
Wide voltage range battery discharger: 2V to 96V
Auto run multiple discharge/charge cycles

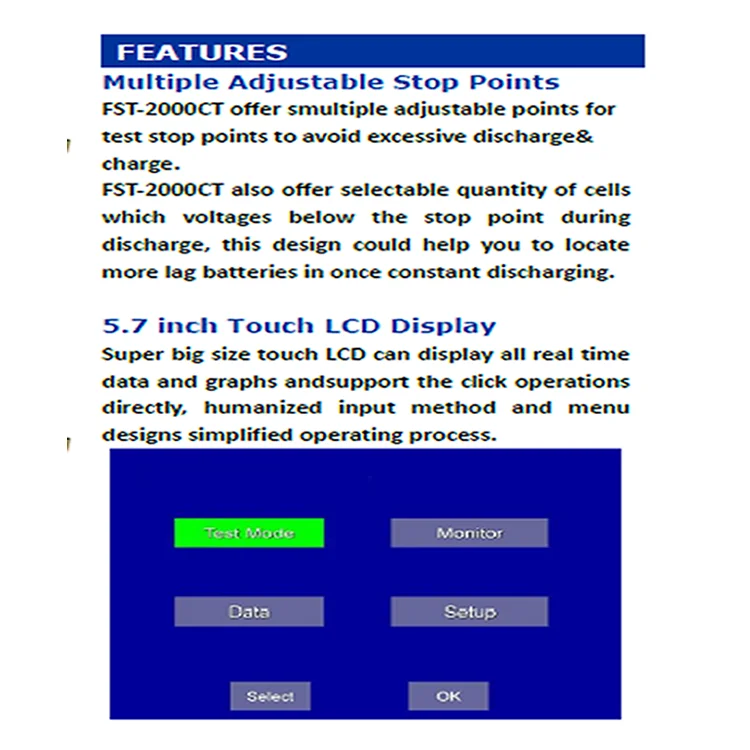

5.7 inch LCD touch screen for easy operation and showing various parameters real time
djustable stop points and multiple alarm designs to control the discharge & charge process intelligently
Support RS232 real time monitoring by PC or USB download data after discharge
PC software for capacity evaluation and report generation
Optional wireless & wiredmodules for 1.2V/2V/6V/12V cells voltage real-time measuring
Optional wireless or wired cells voltage monitoring
n Wireless modules for cells voltage measuring are available for 1.2V/2V/6V/12V batteries voltage monitoring during testcycles.
n Each wireless module can monitor 24 batteries simultaneously. Compared with the traditional cable voltage measuring method that each module only can monitor 1 battery, the new wiring operation is much easier.
n With proper number wireless modules, main tester can real time scan and display the voltage data of each battery during the discharging& charging, and display the histogram of all batteries to follow the battery voltage tracks in whole cycle process.
n Powerful capacity estimating function, the software can predict the capacity of each battery in the tested group.
n The software shows the data by various ways like bar charts, curve, and form. And users can magnify or minify any windows to read more details.
n Automatically create EXCEL data report, it’s so convenient to send or download the data.
SPECIFICATIONS |
Discharge Ranges
Voltage range | current range |
1.6-2.5V | 0-60A |
3-6V | 0-180A |
6-120V | 0-200A |
Current measurement
Internal current range | 0-200A |
Accuracy &resolution | ≤±0.5%, 0.1 A |
External current range | 0-600A(optional current clamp) |
Accuracy &resolution | ≤±1%, 0.1 A |
Voltage measurement
Group voltage range | 1.6-120V |
Accuracy &resolution | ≤±0.5%, 0.1 V |
Cell voltage range | 0-15V |
Accuracy &resolution | ≤±0.5%, 0.01 V |
Power Supply
Power supply voltage | 220 V AC (-20% to +30%) 110 V AC (optional) |
Frequency | 50/60 Hz |
Power consumption | 500W(max) |
Communication & Storage
Communicate port | USB/RS232 |
Environment
Operation temperature | -5 to 50o C |
Storage temperature | -40 to 70o C |
Humidity | 5% - 95% RH |
Altitude | below 4000 m |
Working noise | <60 dB |
Dimensions&Weight
Main tester | 294 x 502 x 1005 mm |
Carrying case | 314 x 522 x 1025 mm |
Weight | 55kg (main tester only) 100kg (included all accessories and carrying case) 0.3 kg (each optional wireless module) |
Accessories
Carry case | 1 x 314 x 522 x 1025 mm |
Power cable | 2 x 3 m cables 50 mm2 |
AC power cord | 1 x 3 wires x 1 mm2 |
Software | 1 x CD-ROM |
RS232 wire | 1 |
User manual | 1 |
USB disk | 1 x 8GB |
