Product Overview

Description

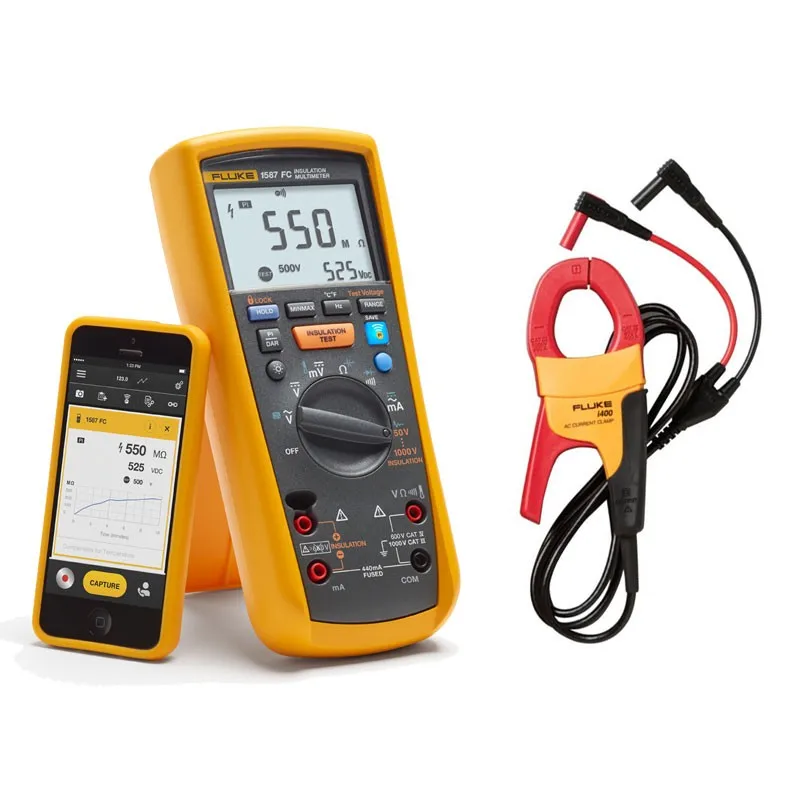

Fluke Megger  Fluke 1587FC:





Two powerful tools in one:

The Fluke 1587 and 1577 Insulation Multimeters combine a digital insulation tester with a full-featured,
true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and
preventative maintenance. Like other tools that you have come to expect from Fluke, the 1587 and 1577 are rugged, reliable and easy to use. Whether you work on motors, generators, cables or switch-gear, the Fluke 1587/1577 Insulation Multimeters are ideally suited to help you with your tasks.



•


  • Large display with backlight
  • Insulation test (1587: 0.01 MW to 2 GW)
  (1577: 0.1 MW to 600 MW)
  • Insulation test voltages (1587: 50 V, 100 V, 250 V,
  500 V, 1000 V),(1577: 500 V, 1000 V) for many
  applications
  • Live circuit detection prevents insulation test if voltage
  > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user
  protection
  • AC/DC voltage, DC milliVolts, AC/DC milliamps,
  Resistance (W), Continuity
  • Filter for motor drive measurements (1587 only)




          • Capacitance, diode test, temperature, Min/Max,
           •  frequency (Hz) (1587 only)
          • Auto power off to save battery power
          • CAT III 1000 V, CAT IV 600 V measurement category

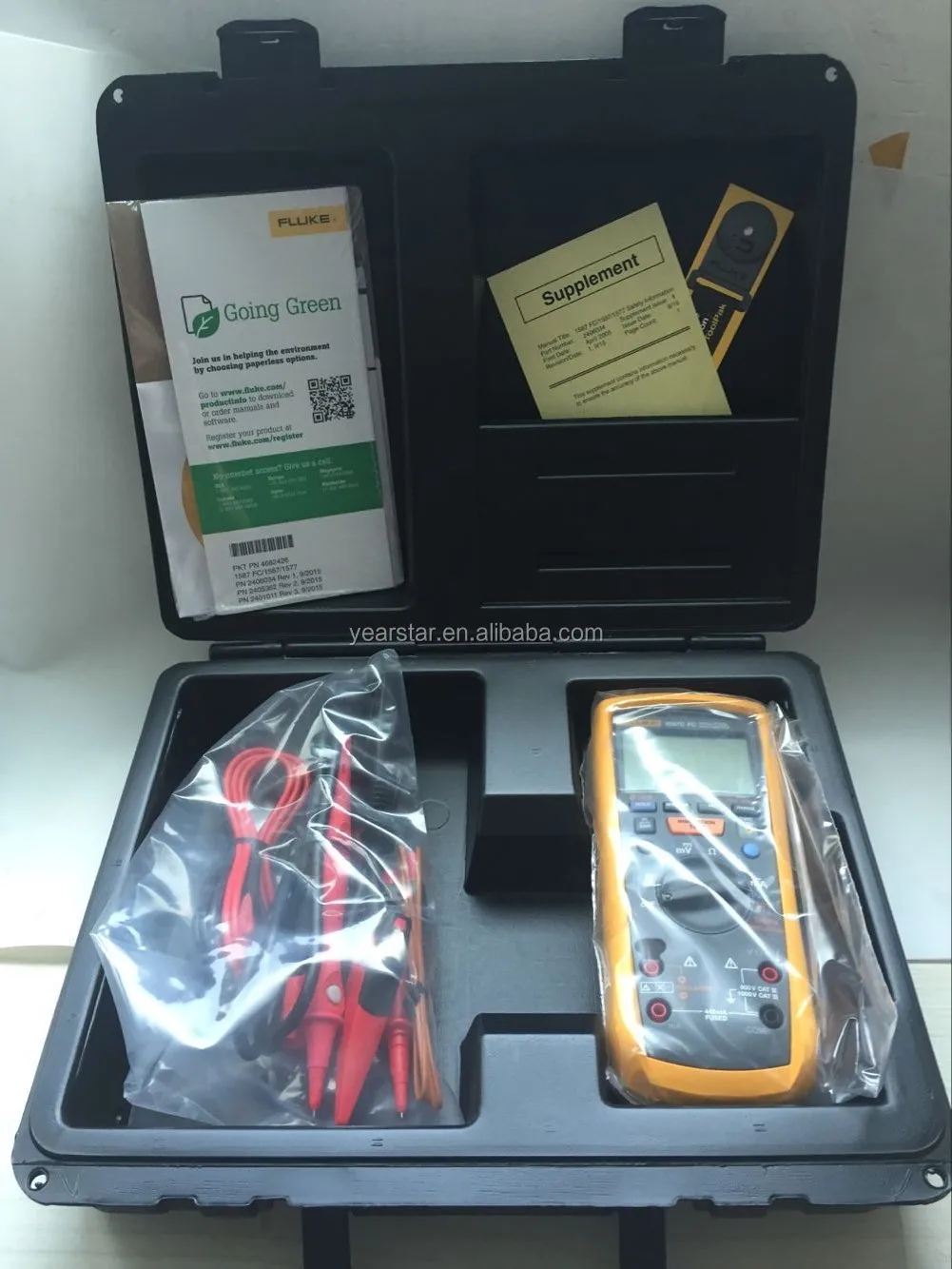

          • Included accessories: Remote probe, test leads and probes, alligator clips, (K-type thermocouple,1587 only)
          • Accepts optional Fluke TPAK™ magnetic hanging system to free your hands for other work

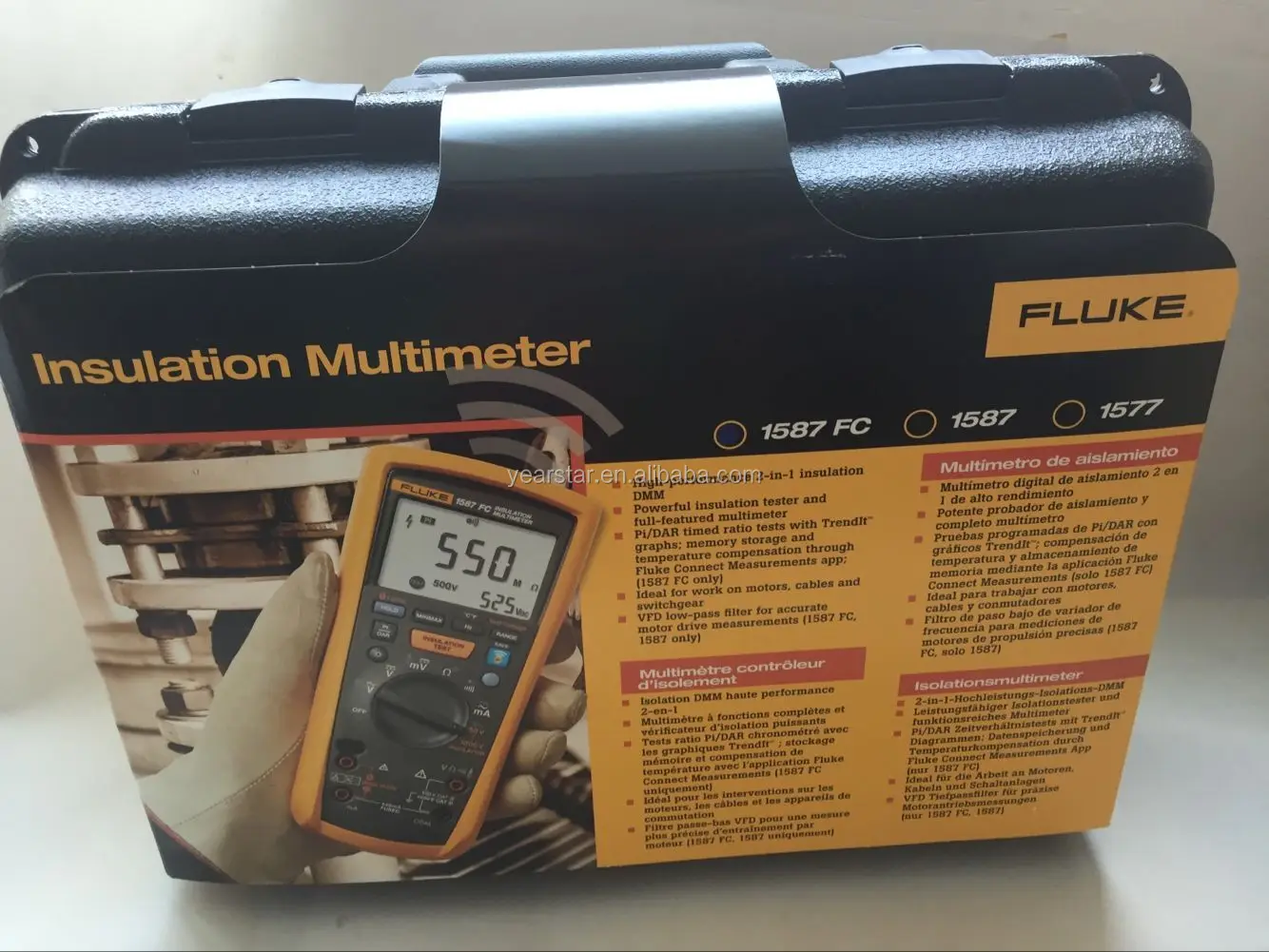

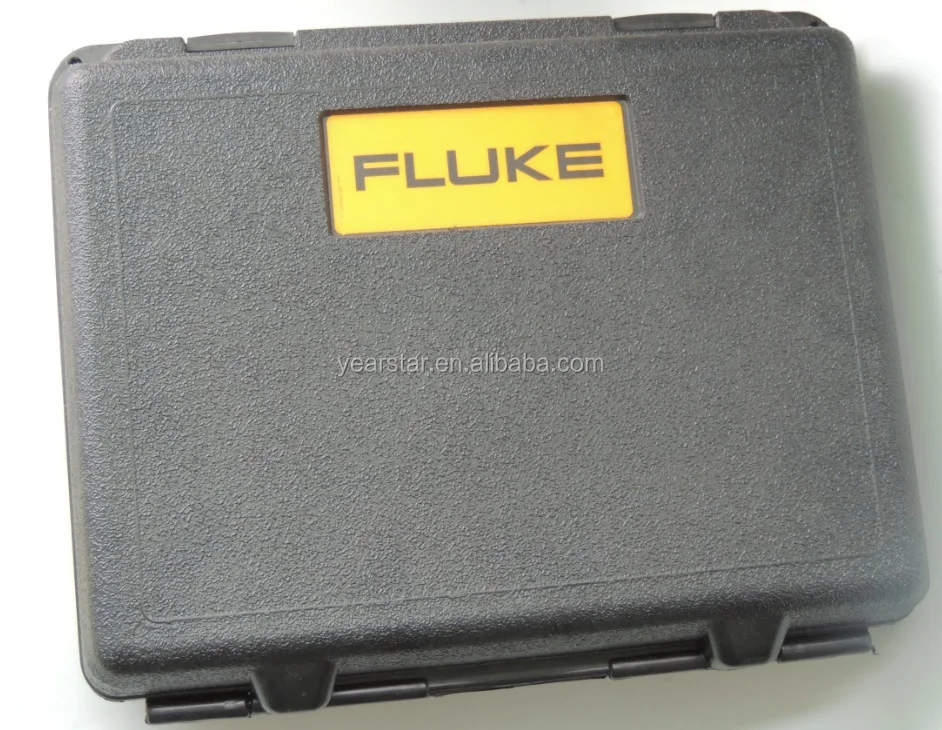

          • Rugged, utility hard case allows you to bring everything you need for the job
          • Three year warranty



General Specifications:



* Maximum voltage applied to any terminal: 1000 V ac rms or dc
* Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
* Operating temperature: -20 °C to 55 °C (-4 °F to 131 °F)
* Temperature coefficient: 0.05 x (specified accuracy) per °C
* for temperatures < 18 °C or > 28 °C (< 64 °F or > 82 °F)
* Relative humidity, non-condensing: < °C
* 0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F)
* 0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F)
* 0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)
* Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F,
* Class 2 instrument
* Shock: 1 meter drop per IEC 61010-1 2nd Edition (1 meterdrop test, six sides, oak floor)
* Electromagnetic compatibility: In an RF field of 3 V/M,
* accuracy = specified accuracy except in temperature:
* accuracy = specified accuracy ± 5 °C (9 °F). (EN 61326-1:1997)
* Safety: Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd
* Edition for measurement CAT III 1000 V and CAT IV 600 V

* Certifications: CSA per standard CSA/CAN C22.2
* No. 61010.1-04; TUV per standard EN 61010 Part 1-1002
* Batteries: Four AA batteries (NEDA 15A or IEC LR6)
* Battery life: Meter use 1000 hours; Insulation test use: Meter
* can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of
1000 V into 1 MW with a duty cycle of 5 seconds on and 25 seconds off
* Size: 5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in
* W x 8.00 in L)
* Weight: 550 g (1.2 lb)
* IP rating: IP40
* Altitude (operating): 2000 m CAT III 1000 V, CAT IV 600 V;
* 3000 m CAT II 1000 V, CAT III 600 V
* Storage: 12,000 m
* Over-range capability: 110 % of range except for
* capacitance which is 1 %
* Compliance to EN 61557: IEC61557-1, IEC61557-2









  -----------------------------------------------------
