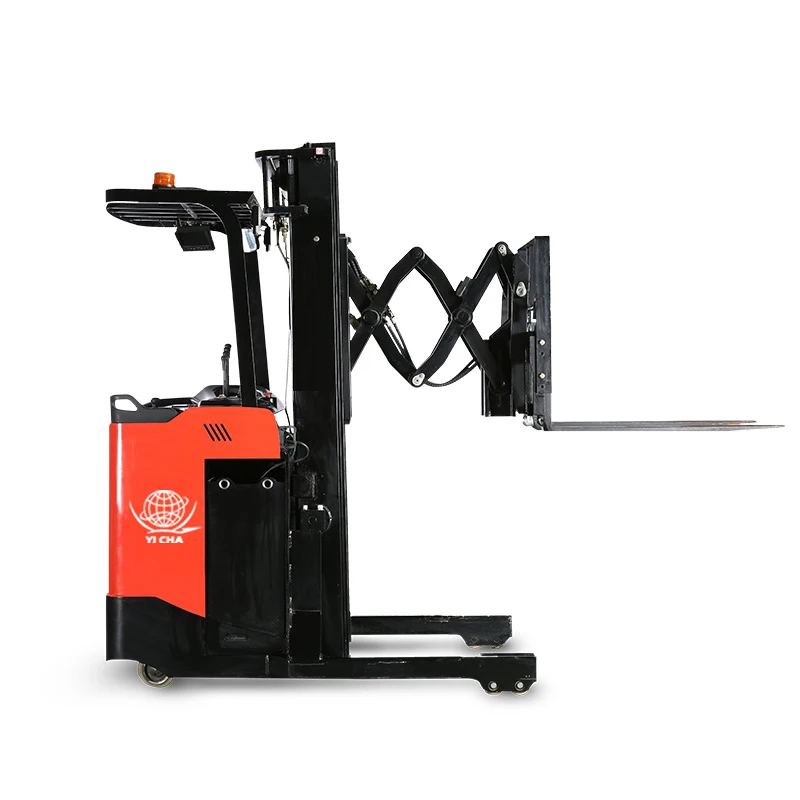

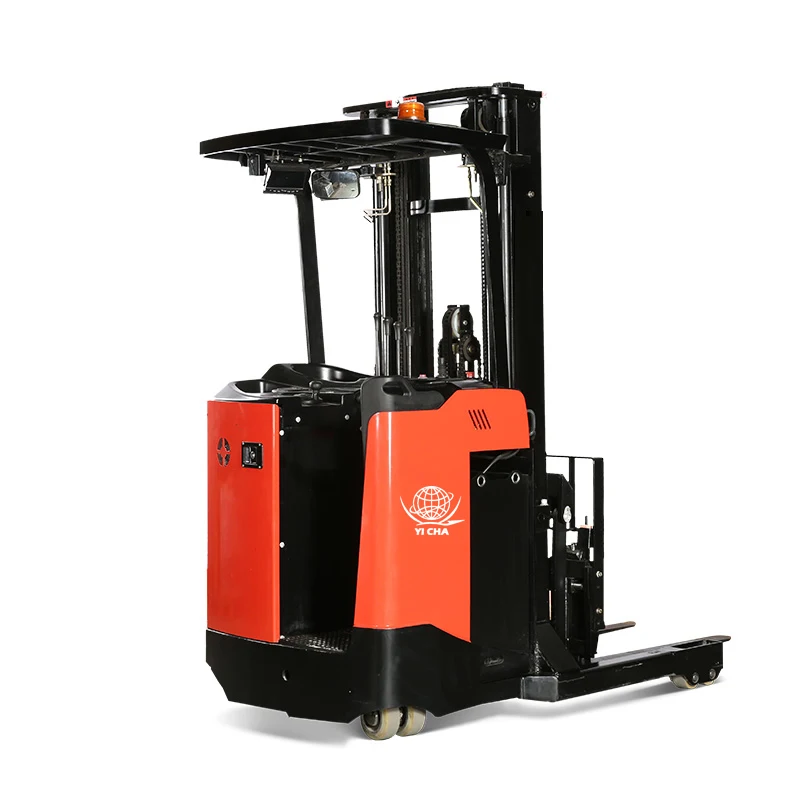

Top Sale Guaranteed Quality Pallet Stacker Electric Pallet Stacker1.2t Electric Reach Truck
- Category: >>>
- Supplier: YANTAI YICHA MACHINERY EQUIPMENT CO. LTD
Share on (1600459646258):
Product Overview
Description
Product Description
General | 1.1 | Model | EPT20-18EHJ | ||||
1.2 | Dynamic Type | Electric | |||||
1.3 | Operating Type | Walking | |||||
1.4 | Rated capacity | Q | kg | 1800 | |||
1.5 | with load center at | c | mm | 600 | |||
1.6 | Bearing length | x | mm | 882/946 | |||
1.7 | Wheelbase | y | mm | 1169/1233 | |||
Weight | 2.1 | Weight | kg | 145 | |||
2.2 | Axle load，before full load/after full load | kg | 620/1325 | ||||
2.3 | Axle load，before no load/ after no load | kg | 115/30 | ||||
Tire | 3.o | Tyre type | polyurethane | ||||
3.1 | Drive wheel | mm | 210*70 | ||||
3.2 | Front wheel | mm | 80*60(74*88) | ||||
3.3 | Balance wheel size | mm | — | ||||
3.4 | Drive wheel number | 1*/4(1*/2) | |||||
3.5 | Bearing wheelbase | b11 | mm | 410(535) | |||
Overall Dimension | 4.1 | Maximum lifting height | h3 | mm | 115 | ||
4.2 | Min/max height of the handle lever in the driving position | 715/1280 | |||||
4.3 | Fork lowered height (with hook) | mm | 85(75) | ||||
4.4 | Overall length of frame | mm | 1613 | ||||
4.5 | length of vertical plane of arrival fork | mm | 463 | ||||
4.6 | Overall width of frame | mm | 560(685) | ||||
4.7 | Fork size | mm | 50/150/1150 | ||||
4.8 | Fork outside width | 560(685) | |||||
4.9 | Floor gap at center of wheelbase | 35(25) | |||||
4.1O | right-angle stacking aisle width（pallet1000*1200） | Ast | mm | 2191 | |||
4.11 | right-angle stacking aisle width（pallet800*1200） | Ast | mm | 2248 | |||
4.12 | Turing radius | Wa | mm | 1430 | |||
Performance | 5.1 | Travel speed(full load/empty load) | km/h | 2.5/3 | |||
5.2 | lifting speed(full load/empty load) | m/s | 10mm/time | ||||
5.3 | lowered speed(full load/empty load) | m/s | manual descent | ||||
5.4 | ascend slope ability(full load/empty load) | % | 5∕10 | ||||
5.5 | Travel brake | electromagnetism | |||||
Electric motor | 6.1 | Drive motor rated powerS2 60 minutes | kw | 0.65 | |||
6.2 | Lifting motor rated powerS3 15% | kw | manual raise | ||||
6.3 | Voltage | V/Ah | 24/30 | ||||
6.4 | battery weight | kg | 9.5*2 | ||||
Other data | 7.1 | Drive unite type | continuous current | ||||
7.2 | Turning type | machinery | |||||
7.3 | Noise levelS | dB(A) | 74 | ||||
Company Profile
Yantai, YICHA machinery equipment co., LTD is located in yantai, shandong province, China. our company was established in 2008, is a electric four-wheel forklift truck, electric tricycle forklift, reach tier forklifts, all-electric weight, pallet stacking cars, full electric truck, electric stacker, electric truck, and diesel forklifts and other products distribution wholesale. Forklifts operated by Yantai Yicha Machinery Equipment Co., Ltd. have a good consumer market, with annual sales of more than 1200 forklifts. The company's products enjoy a high status among consumers, my company and a number of retailers and agents to establish a long-term stable cooperative relations. The company has a complete range of products, reasonable prices can also be matched according to customer requirements for customer demand forklift. Because of operating forklift truck for many years, the performance of forklift truck and the adaptation to the environment and its understanding. The company has strong strength, heavy credit, abide by the contract, ensure product quality, with multiple varieties of operating characteristics and the principle of small profits and quick turnover,
