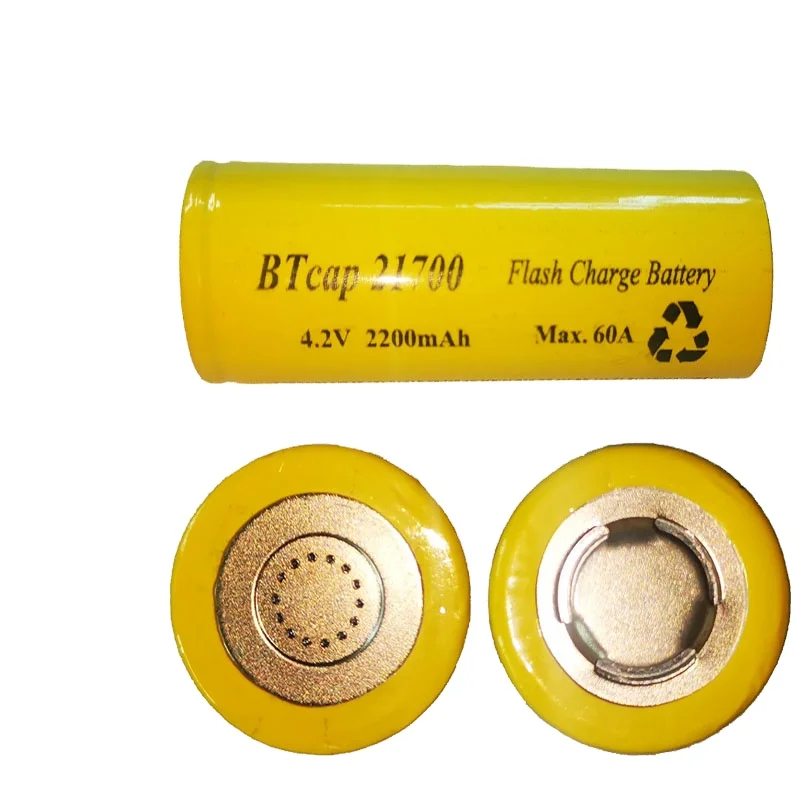

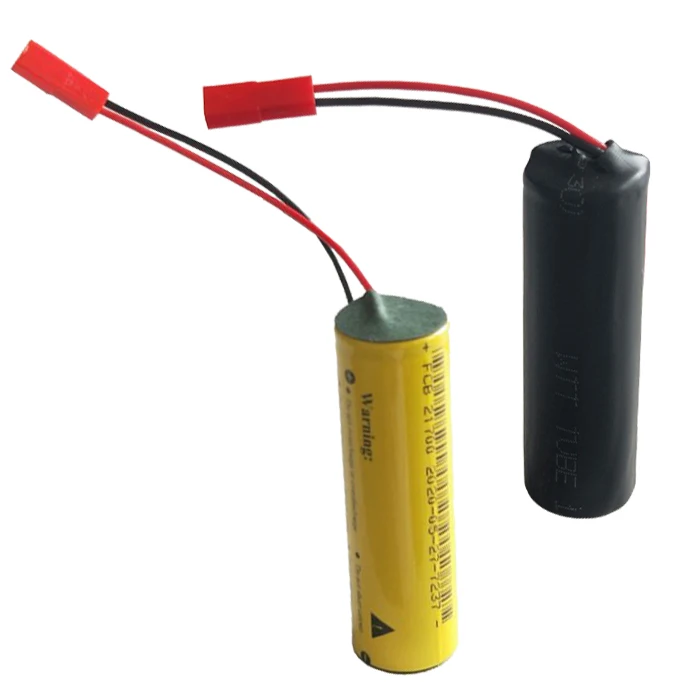

Лидер продаж, ультраконденсатор емкостью в, 5300f, сверхконденсатор F, Графеновый аккумулятор, Суперконденсатор
- Category: >>>
- Supplier: Shenzhen Yukun Technology Co. Ltd.
Share on (1600459709276):
Product Overview
Description
Shenzhen Yukun Technology Co., Ltd. is a manufacturer integrating R&D, production and sales of supercapacitor batteries integrating supercapacitor power density and battery energy density.
Product Description
Advantages of super capacitor battery
1) No less than 20,000 cycle life. Use it for ten years, it still works.
2) Great safety and reliability: Unlikely to catch fire or explode. Much safer than chemistry-based batteries.
3) Energy density is 75-220wh/kg. Lots of power in small unit.
4) Quick charge: 80% charge in 5-15 minutes.
5) -40℃ to 70℃ range of operating temperature. Suitable for harsh condition.
6) Cost-efficient: Not necessary to replace for years. One-time investment
2) Great safety and reliability: Unlikely to catch fire or explode. Much safer than chemistry-based batteries.
3) Energy density is 75-220wh/kg. Lots of power in small unit.
4) Quick charge: 80% charge in 5-15 minutes.
5) -40℃ to 70℃ range of operating temperature. Suitable for harsh condition.
6) Cost-efficient: Not necessary to replace for years. One-time investment
.
Rated Capacity | 1900mAh+5% | 2200mAh+5% | 2500mAh+5% |
Upper limit voltage | 4.2V | 4.2V | 4.2V |
4000F+5% | 4650F+5% | 5300F+5% | |
Lower limit voltage | 2.5V | 2.5V | 2.5V |
DC internal resistance (10ms) | ≤12mΩ | ≤10mΩ | ≤9mΩ |

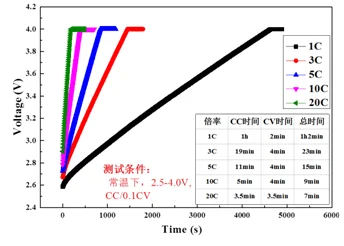

Standard charging current | 5.7A(3C) | 6.6A(3C) | 7.5A(3C) |
Fast charging current | 19A(10C) | 22A(10C) | 25A(10C) |
Rated discharge current | 19A(10C) | 22A(10C) | 25A(10C) |
Maximum continuous discharge current | 57A(30C) | 60A(30C) | 75A(30C) |
Maximum discharge duration | 100s | 100s | 100s |
Maximum temperature rise | 55±5℃ | 55±5℃ | 55±5℃ |
Charge and discharge temperature range | -40~85℃ | -40~85℃ | -40~85℃ |
Storage temperature range | -40~55℃ | -40~55℃ | -40~55℃ |
Fast charge cycle life (@ 25 ± 2 ℃) | ≥40000times(2.6V-4.1V 10C) | ≥40000times(2.6V-4.1V 10C) | ≥40000times(2.6V-4.1V 10C) |
Slow charge cycle life | ≥50000times(2.7V-4.0V 1C) | ≥50000times(2.7V-4.0V 1C) | ≥50000times(2.7V-4.0V 1C) |
weight | ≤60g | ≤65g | ≤68g |
Dimensions (diameter D × height H) | Φ21mm×70mm | Φ21mm×70mm | Φ21mm×70mm |

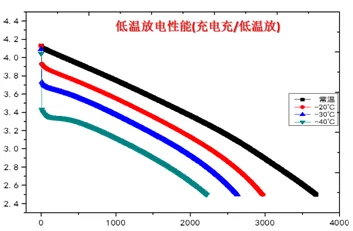

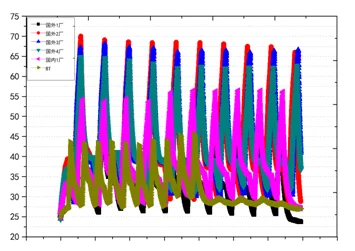

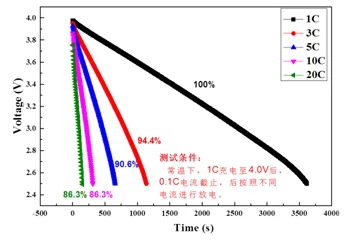

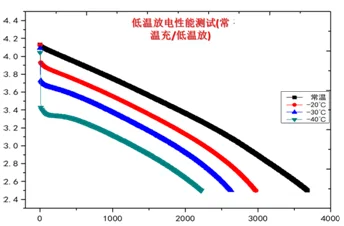

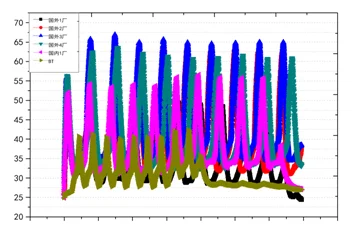

Other technical information

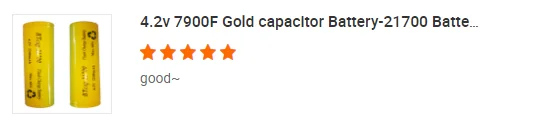

Buyer feedback
packaging&shipping
Company Profile
Dust-free workshop
Colleagues working in dust-proof operation box in dust-free car
Electrode coating machine
Coating machine is producing electrode
Finished product test
Colleagues are testing the product performance
Electrode roll forming workshop
Super capacitor electrodes are formed by pressing in this workshop
Business colleagues
Corner of the office
A corner of a dust-free factory
A corner of a dust-free factory
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
