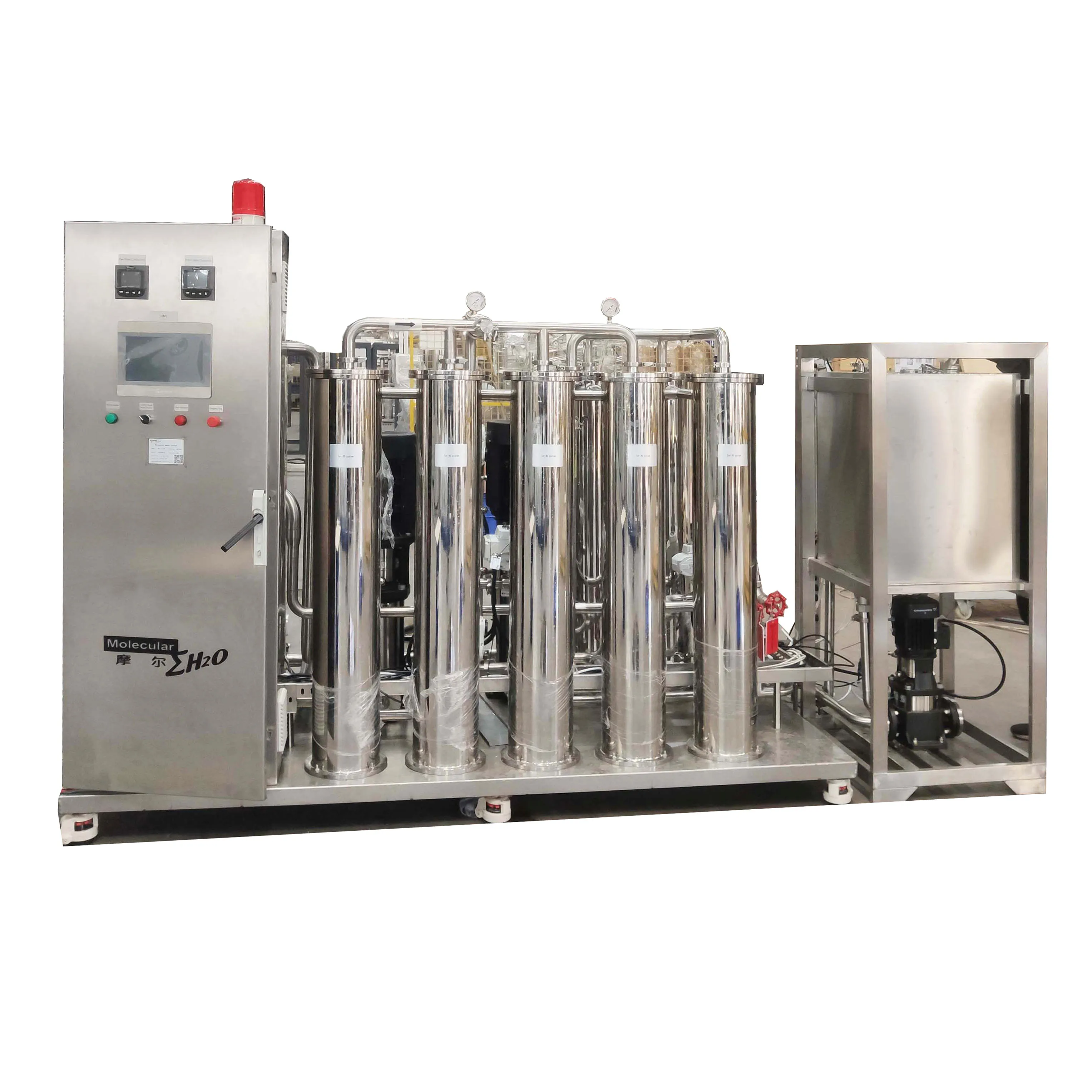

Chinese Manufacturer High Quality Water Treatment System for Hemodialysis (HD) Machines
- Category: >>>
- Supplier: Molewater System Co. Ltd.
Share on (1600459724923):
Product Overview
Description
About Molecular
Certifications | ISO9001:2008,CE,14001,18001,ISO13485:2003. Registeration Certificate of Medical Device of the people's republic of China |
Production Capacity | 500 sets of industrial water system 3000 sets of lab water system per year. |
Quality Control | 100% inspected and operated by our technician or customers before shipment. |
Our Clients From | USA, UK, Australia,Tajikistan, Belarus, Mongolia, India , Thailand, Vietnam, Bangladesh,Indonesia,Nigeria,Colombia,Bolivia,Ecuador, Chile, Peru, etc; |
Partial Customers: | More than 40% of world top 500 domestic companies did cooperation with us. |
Product Description

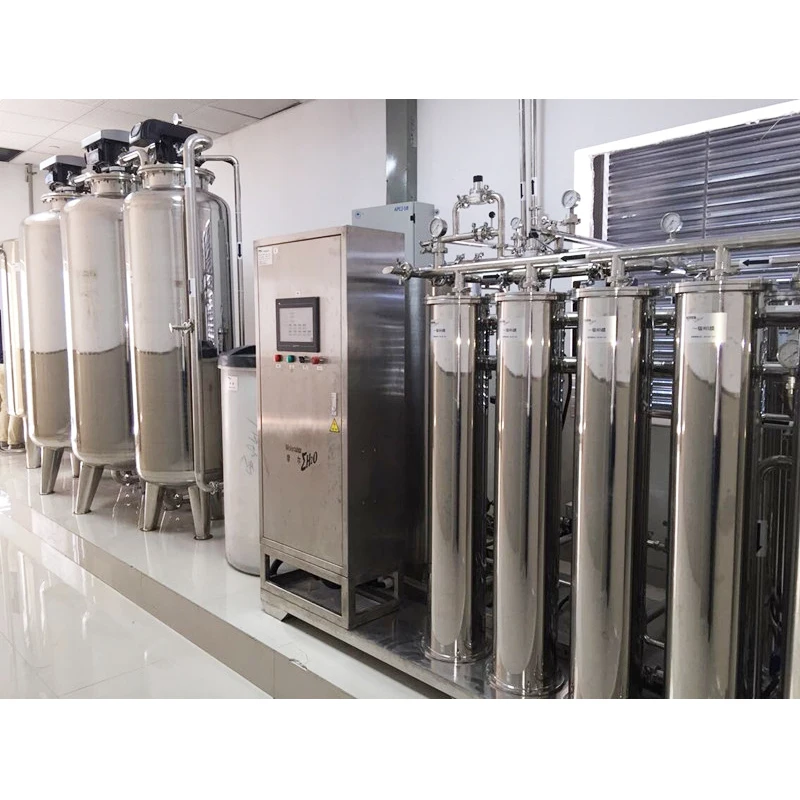

Dianalysis Water Treatment Plant
Application:
Diversified blood goods, injection, biological bactericide etc.
System Features:
●. Removal rate of endotoxin and bacteria ≥99%
●. Ion removal rate >99.9%
●. Bacteria < 100 CFU/ml
●. in compliance with registered enterprise product standards, USA AAM/ASIO standard and YY0572-2015 Standard.
●. Removal rate of endotoxin and bacteria ≥99%
●. Ion removal rate >99.9%
●. Bacteria < 100 CFU/ml
●. in compliance with registered enterprise product standards, USA AAM/ASIO standard and YY0572-2015 Standard.
●. System design strictly compliance with
YY0793-2010 standard
YY0793-2010 standard
●. USA AAM/ASIO standard

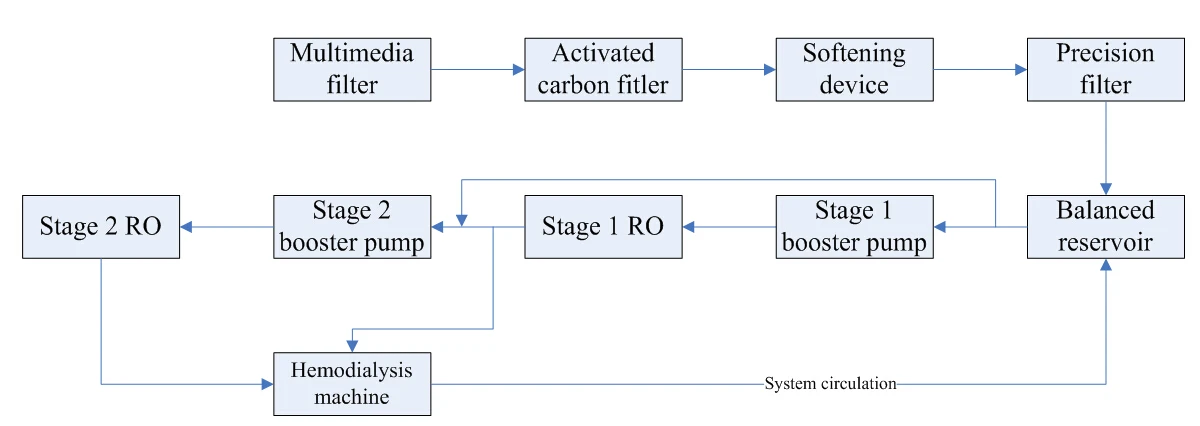

Product Flow for Reference :
The Hemodialysis RO Water Treatment System List: | |
1 | Raw water tank |
2 | Raw water pump( can be 1W+ 1S) |
3 | Auto-backwash quartz multimedia filtration system |
4 | Auto-backwash activated carbon filtration system |
5 | Auto-backwash DUBLEX water softener system |
6 | High quality high pressure pump |
7 | Full automated double pass RO water purification system |
8 | Directly dispensing purified water circulation loop, components and connectors |

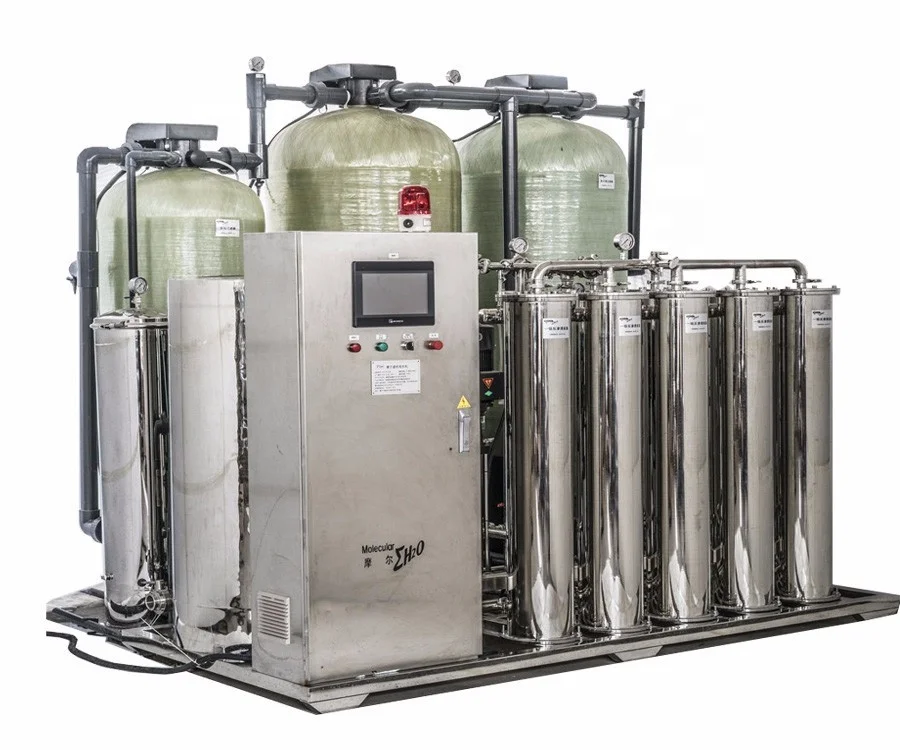

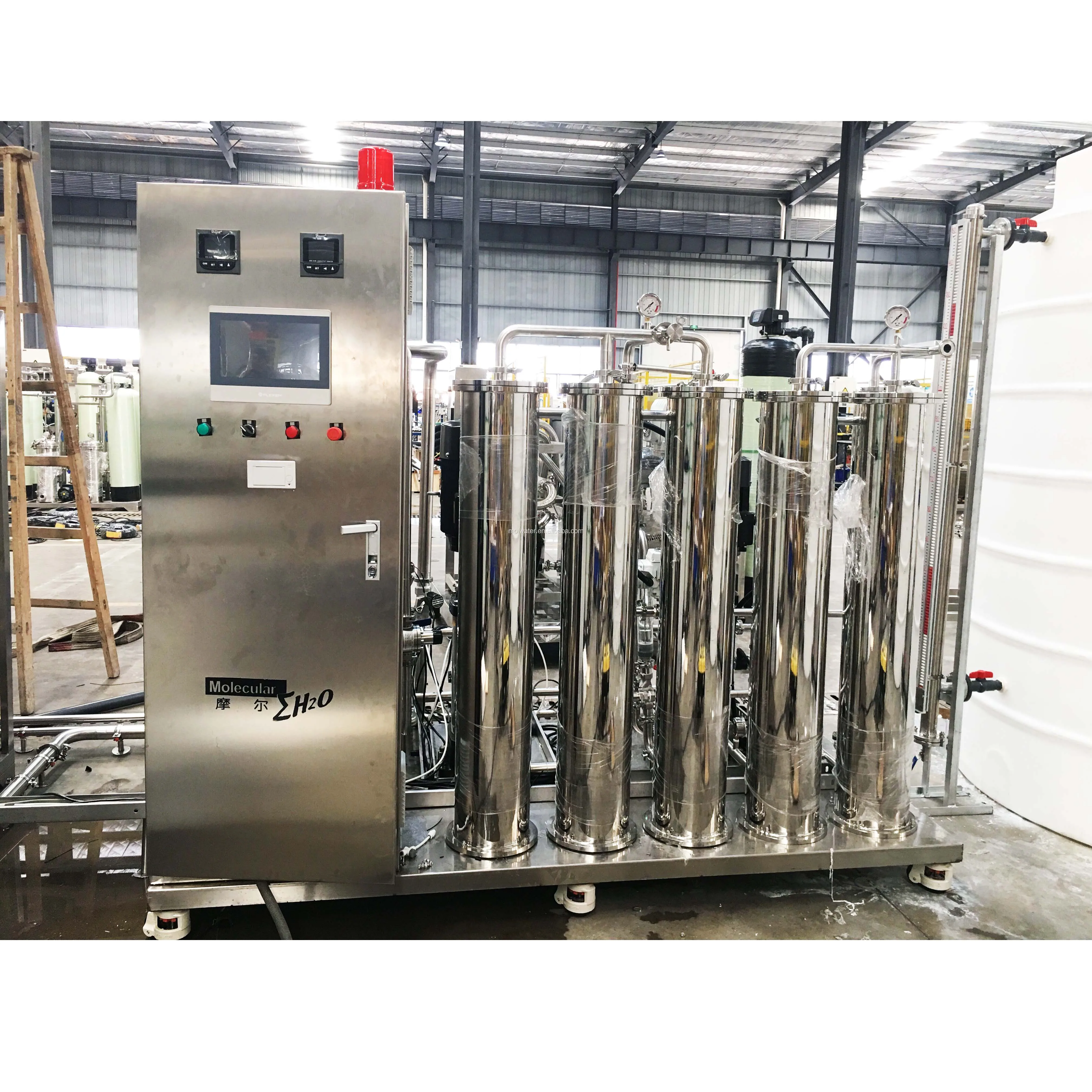

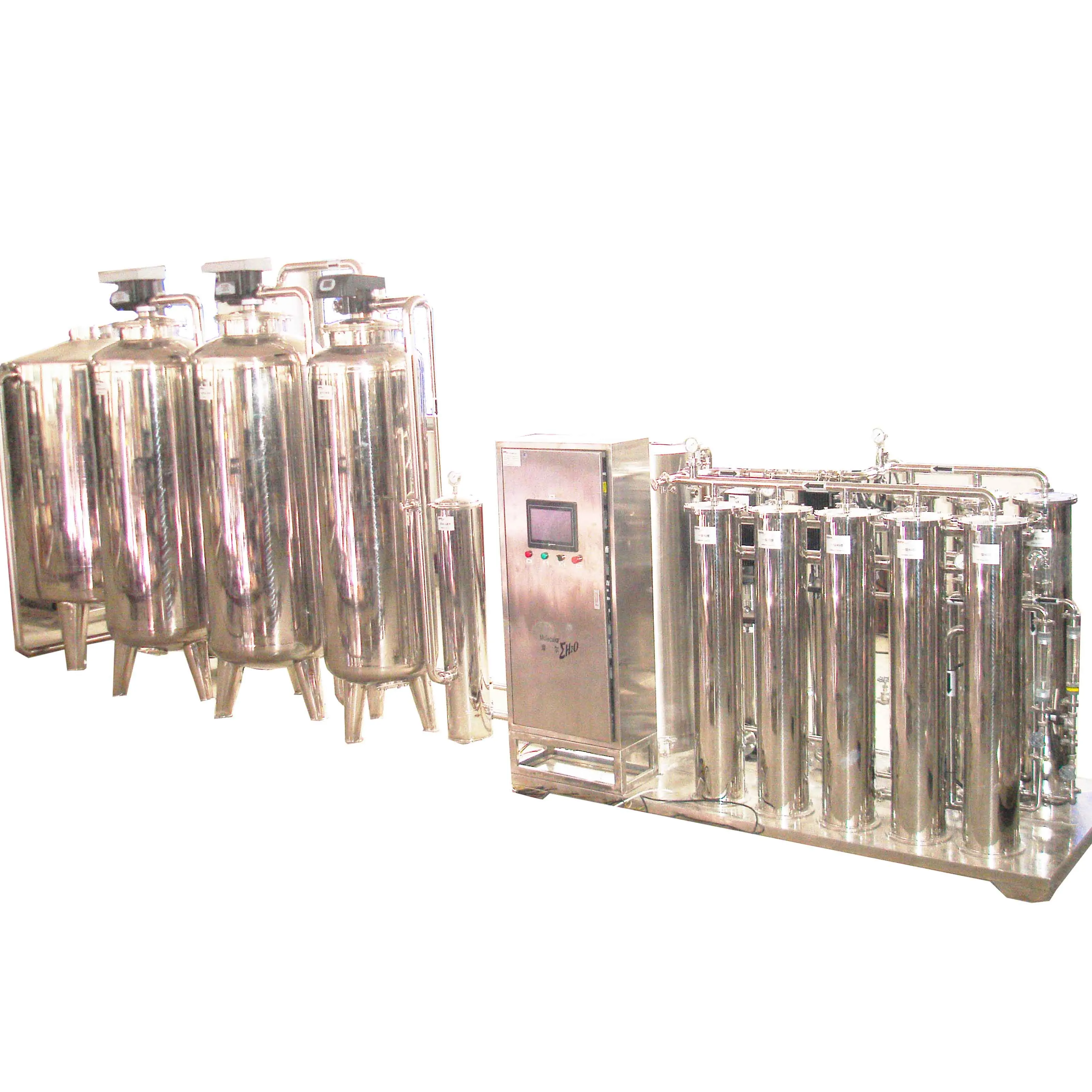

Detailed Images
No. | Items | Parameters |
1 | Model | MOL-TX-CSB Kidney Dialysis Water System |
2 | Outlet water capacity | 1000-1500L/H@15℃ |
3 | Quality of outlet water | TDS :> 95% |
Bacterial endotoxins: >99% | ||
Outlet water is in accordance with Hemodialysis and Related Therapies YY0572-2005 AAMI standarrd | ||
4 | Water source of equipment | suppose that the conductivity of feed water≤500μs/cm. Feed water pipeline diameter:DN25 |
5 | Application | Pure water for hemodialysis, pure water is directly supplied to the 20-30 sets hemodialysis machines |
6 | Chemicals | All the chemicals needed in this system(like industrial salt that is used to the regeneration of softening resin ) are prepared by the buyer, the supplier will provide the chemicals specifications |
7 | Control method | Fully automatic PLC control |
8 | Power supply | 8KW(380/220V,50-60Hz, Single phase) |
9 | Pipeline, valve | Pre-filter : UPVC |
RO Unit : SS304 | ||
10 | Project limit of equipment | The raw water pump inlet to the outlet of the equipment |
Our Advantages of Hemodialysis Water Treatment System: | Standard Performance | |
1 | Imported USA DOW RO membrane,high desalination rate, low running pressure, ro membrane performance is reliable | |
2 | Fully automatic operation, micro-computer control , there are failure indicator and onsite alarm function | |
3 | Colorful HMI touch screen operation interface, it is easy to operate the machine and understand the system running status . | |
4 | Second stage RO rejected water all are recycled, the machine will automatic drain water based on purified water quality . | |
5 | Multiple emergency control measures can be used to switch the first and second stage RO separately to ensure normal use of the equipment. | |
6 | Concentrated water recycling and pure water non-discharge design can achieve the best rational utilization of water resources and save water costs. | |
7 | The system has automatic protection functions, such as water stop, power failure, overload, high and low voltage automatic protection to ensure equipment safety. | |
8 | 1)PLC touch screen control, 2)intelligent security protection measures, 3)password access to the operation interface, 4)human-machine interface display: automatic mode, manual mode, system mode, disinfection mode four interfaces for users to choose; 5)system can automatically switches on/off the machine, no need downtime for maintenance , and it has the ability to calibrate the screen display time | |
9 | The system automatically calculates the usage time of the pre-stage filtration system (including sand, activated carbon, softener) and reverse osmosis system to facilitate the maintenance and replacement of system materials. | |
10 | The water system is automatically flush and clean the reverse osmosis membrane when machine is powered on/off. | |
11 | Water conductivity real-time curve monitoring. | |
12 | System operation parameter setting includes: 1) concentrated water recovery conductivity setting, 2) produced water conductivity exceeding standard setting, 3) startup flushing time setting, 4) shutdown cycle interval time, 5) power on/off time setting, 6)disinfection pure water pre-flushing time setting, 7)pure water cleaning time setting, etc | |
Technical Parameters of Dialysis Water System
●. Feed water: city water, pressure: 0.3-0.4MPa. Water supply: At least 2 times the designed treatment water flow, inlet water temperature: 5-40 °C.
●.Power supply voltage: AC380V, 50Hz, three-phase five-wire system, reliable grounding.
●. Ambient temperature: 5-40 ° C
●.Power supply voltage: AC380V, 50Hz, three-phase five-wire system, reliable grounding.
●. Ambient temperature: 5-40 ° C
●. Relative humidity: ≤80%, no strong acid, strong alkali and other volatile gases, no strong electromagnetic interference.
●.Site installation requirements: floor is waterproof, equipped with floor drain to ensure smooth drainage.
●.Site installation requirements: floor is waterproof, equipped with floor drain to ensure smooth drainage.
Packing & Delivery
Our Service
The customer is always right and continuing to be provided with first-class service" has been the principle of the after-sales service of our company, and an independent technical service department has been set up, having a professional team for customers to resolve technical and clinical problems at any time.
Pre-Sales Service
--General technical advice and business consultation.
--Suitable scheme and equipment as order.
--Designing as special requirement.
--Complete plan with technology and production line equipment.
After-Sales Service
-- One year warranty.
--Inspecting equipments in every working procedure.
--Assisting foundation construction.
--Dispatching engineer to install and debug.
--Training the first-line worker on site;
--Visiting clients and solving production problem.
--Life-long maintenance service.
--Technical support.
Our Company
Chongqing Molecular was established in 2003. Our new factory occupies 20,000 square meters. Molecular has more than 120 workers. After long years concentrated in water treatment system,Molecular has got 36 patents & new technology under the guidance of our CEO---Mark Ma.
Certifications: ISO 9001:2008, 14001 18001 ISO 13485:2003. We are Alibaba Golden supplier assessment by BUREAU VERITAS.
Production Capacity: 500 sets of industrial water system & 3000 sets of lab water treatment machines per year.
Quality Control : 100% inspected and operated by our technician or customers before shipment.
Design(ODM):The water treatment system can be customized according to your request.
Certifications
FAQ
1)What's the guarantee, in case the water purifier breaks down?
The water purifier (except consumable items) has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts will be replaced for free if the problems are caused by quality fault.
2)How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL or FedEx, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
3)How long is the production period?
For desktop and water purifier , it would be 7~15 days; For large scale water purification system and customized water filter system according to client s specific requirements, it would be 25 to 45 days.
4) How's the payment?
Telegraphic Transfer (T/T) or Letter of credit (L/C), Western Union is also OK.
5)Do You Arrange Shipment For The large scale water treatment equipment?
Yes, dear esteemed customers, for CFR or CIF price, we will arrange shipment for you. For FOB price, clients need to arrange shipment by themselves or their forwarders.
