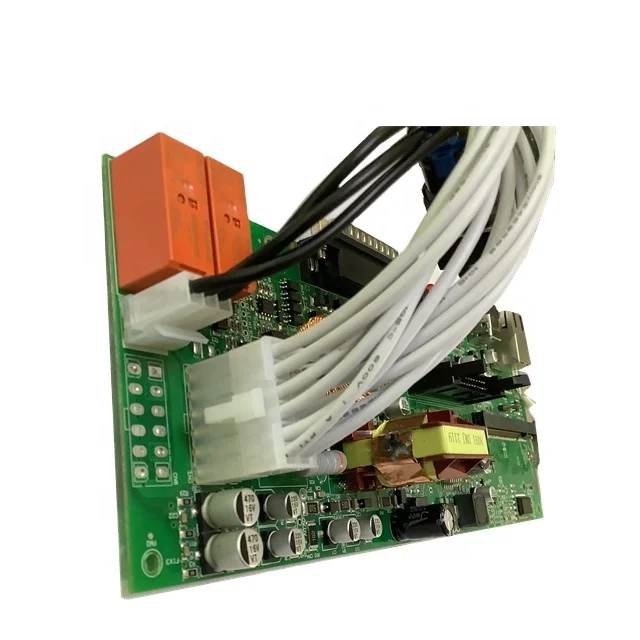

2022 Hot selling Multilayer Pcb for Speaker PCBA HDI Impedance Control PCB Printed Circuit Board
- Category: Multilayer PCB >>>
- Supplier: ZSL Electronics (Shenzhen) Co. Ltd.
Share on (1600459727395):
Product Overview
Description

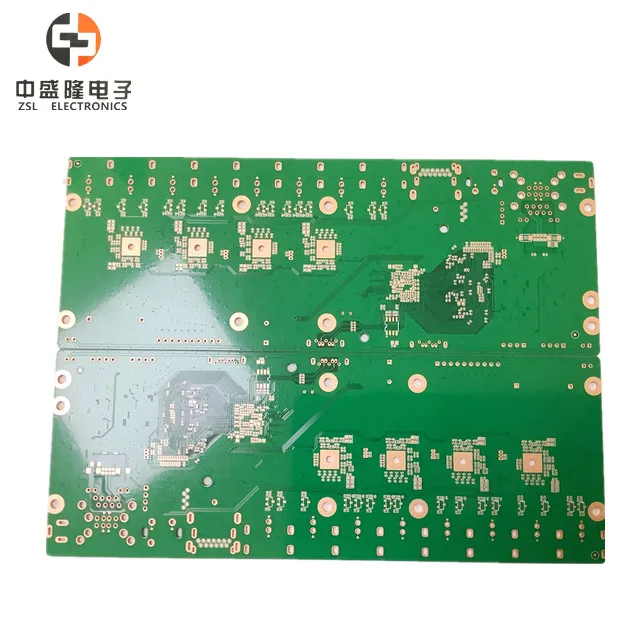

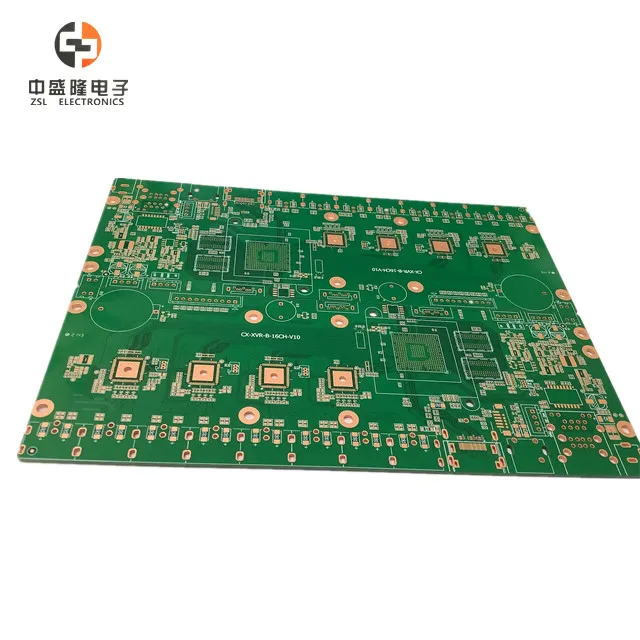

Product Description
Items | Parameters | Items | Parameters |
Layer | 4 | Surface Protection | OSP |
PCB Size | 207.25*77 mm | Copper weight: | 1/1/1/1 OZ |
Panel`s Size | 207.25*154 mm/2pcs | Min Holes | 0.25 mm |
Material | FR-4 TG150 | Line Width/Space | 0.1mm / 0.17mm |
Board Thickness | 1.2 mm | Impedance | YES |
Manufacturing Capability
Rigid PCB Manufacturing Capability | ||||||||
Layer | 1-24 layer (Customized) | Peeling Strength | 12.3N/cm2 | |||||
Service | Turnkey Service PCB,Components, Assembly | Max.Panel size | 546mm*650mm (max) | |||||
Finished Board Thickness | 0.4-4mm | Min.Track Width/Space | 0.075mm/0.075mm | |||||
Bare Board Material | FR-4/CME/PET/PI/aluminum | Solder Mask Contronl | ±10% | |||||
Board Material Supplier | Shengyi/KB/Isola/Rogers | Skill Screen | white/black | |||||
Copper Thickness | HOZ-6OZ | Skill Screen Tolerance | ±0.076mm/±0.05mm | |||||
Solder Mask | white/blue/green/yellow | Outline Tolerance | ±0.075mm | |||||
Min.hole | 0.1mm | Surface Finishing | HASL-LE/OSP/ENIG/Immersion Tin/silver/gold | |||||
Aspect Ratio | 10/1 | Certification | UL/ISO/ROHS/IATF16949/SGS | |||||
Bow and Twist | ≤0.5% | Production Standards | IPC - Ⅲ & IPC -Ⅱ | |||||
FPC Manufacturing Capability | ||||||||
Layer | 1~6 | Min.Track Width/Space | 0.06mm/0.06mm | |||||
Finished Board Thickness | 0.027~1.0mm | Outline Tolerance | ±0.075mm | |||||
Board Thickness Tolerance | ± 0.03mm | Skill Screen | White,Black | |||||
Basic Copper Weight | 1/3OZ,1/2OZ,1OZ, | Min,Ring | 0.125mm | |||||
Solder Mask | Black/yellow | Surface Finishing | Immersion NI & Gold | |||||
Min.Hole Diamater | 0.1mm | Etching Tolerance | ±0.02% | |||||
Stiffener Material Type | PI / PET / Steel piece | Application | Electronics Device | |||||
Max.Panel Size | 250mm~600mm | Certificate | ISO/RoHS/TS16949 | |||||
Main Equipments
Quality Control

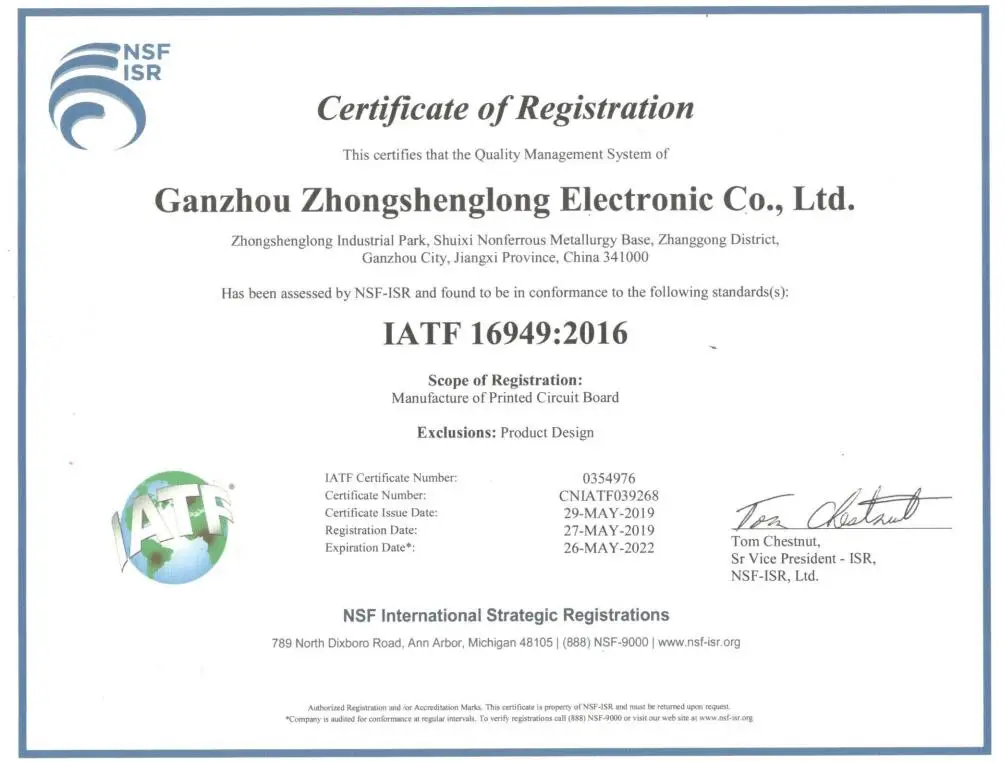

Certifications
