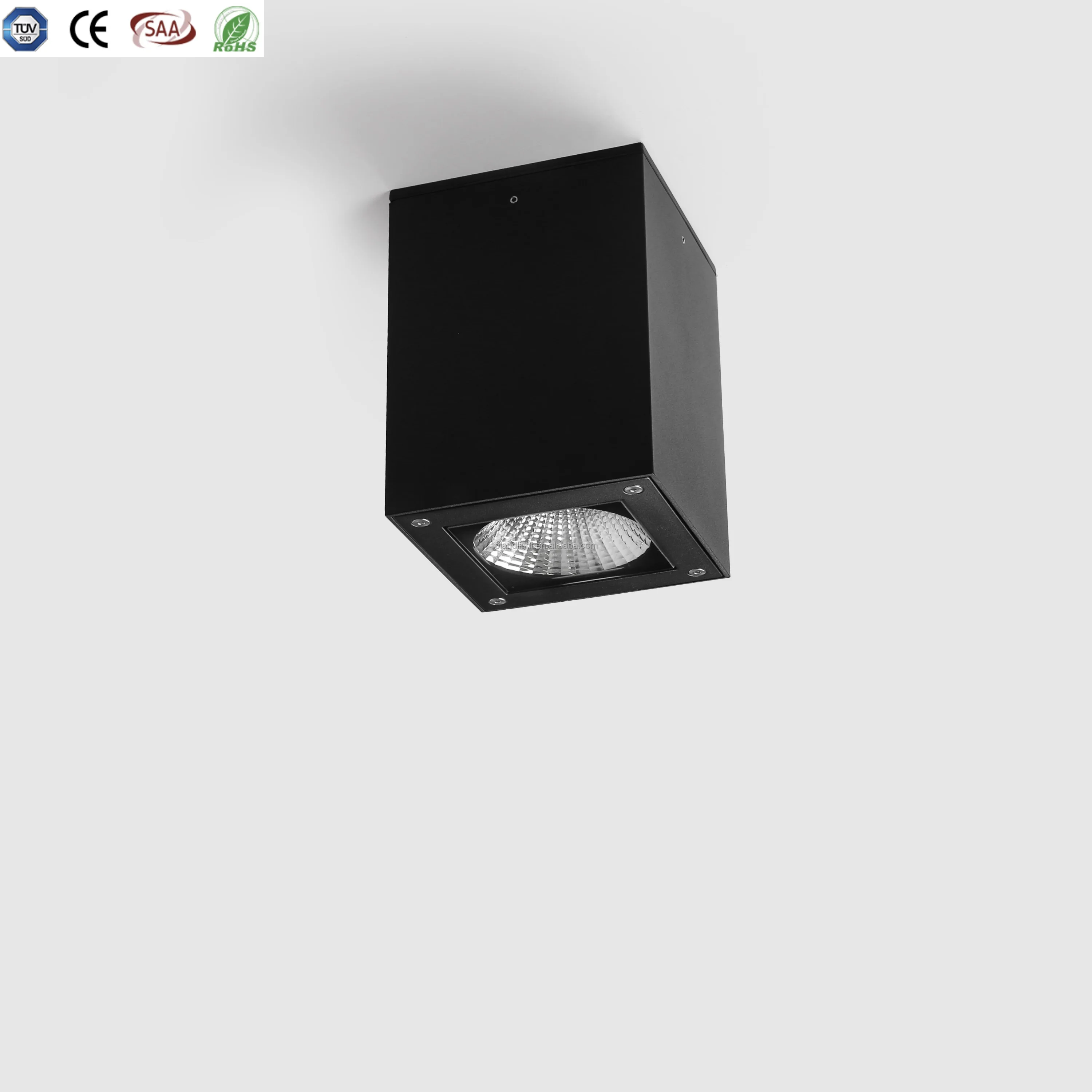

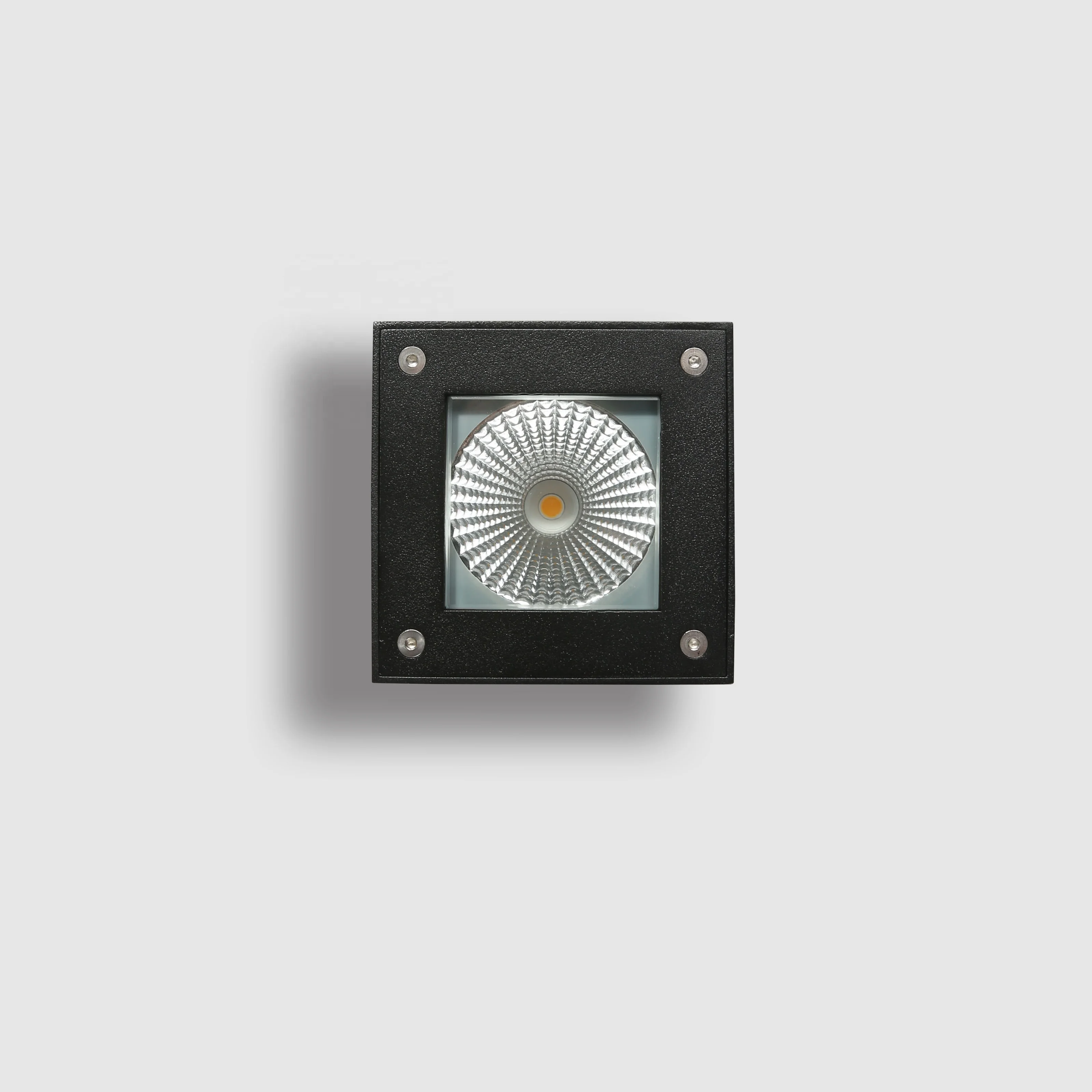

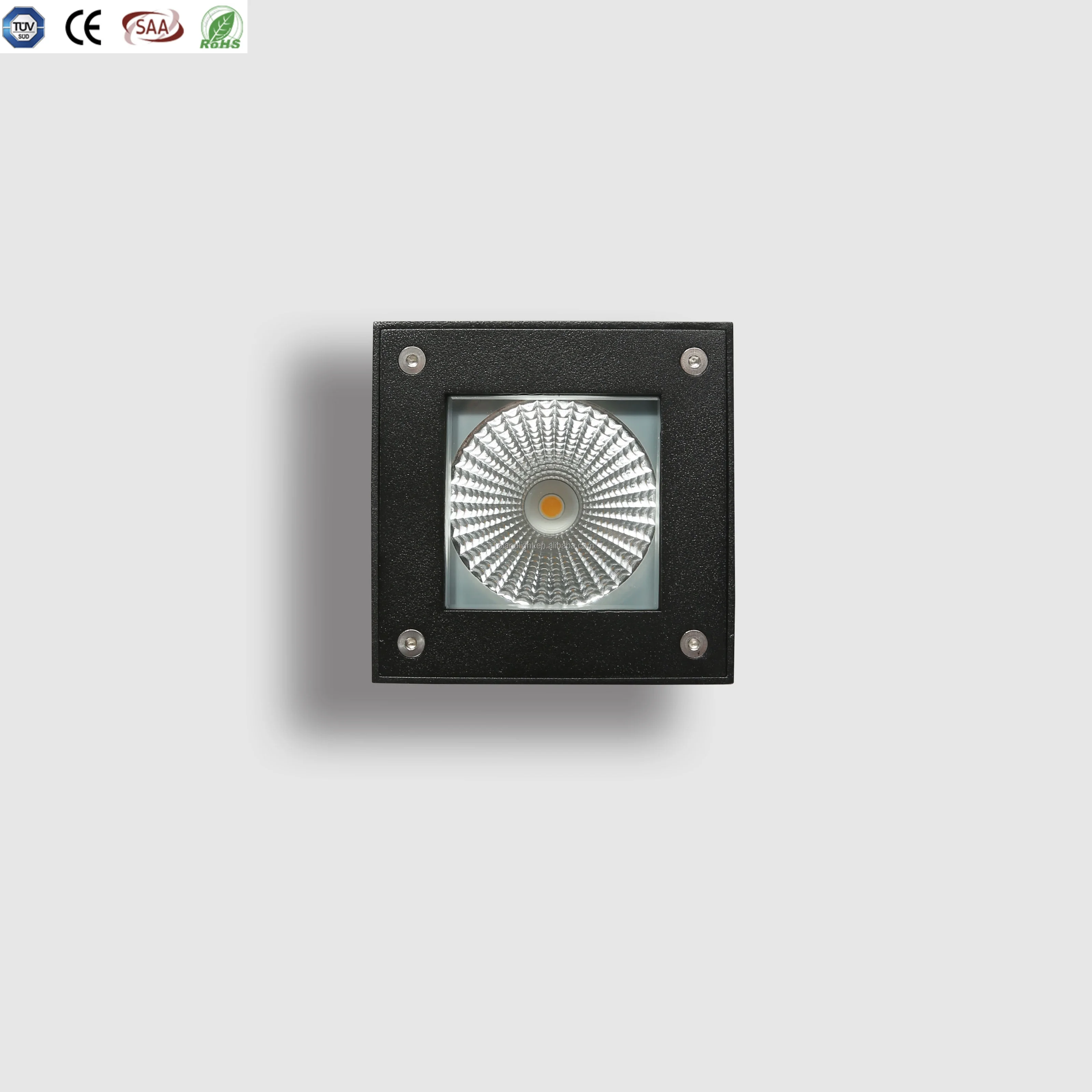

Extruded aluminium and die-cast aluminium housing,Outdoor UV resistant powdercoat finish
316# stainless steel screws/ Integral gear
Fire resistant silicone seal waterproof gasket
8mm thick toughened FLUSH glass with trim
CE/ ROHS/SAA/ IP65/
Class 1

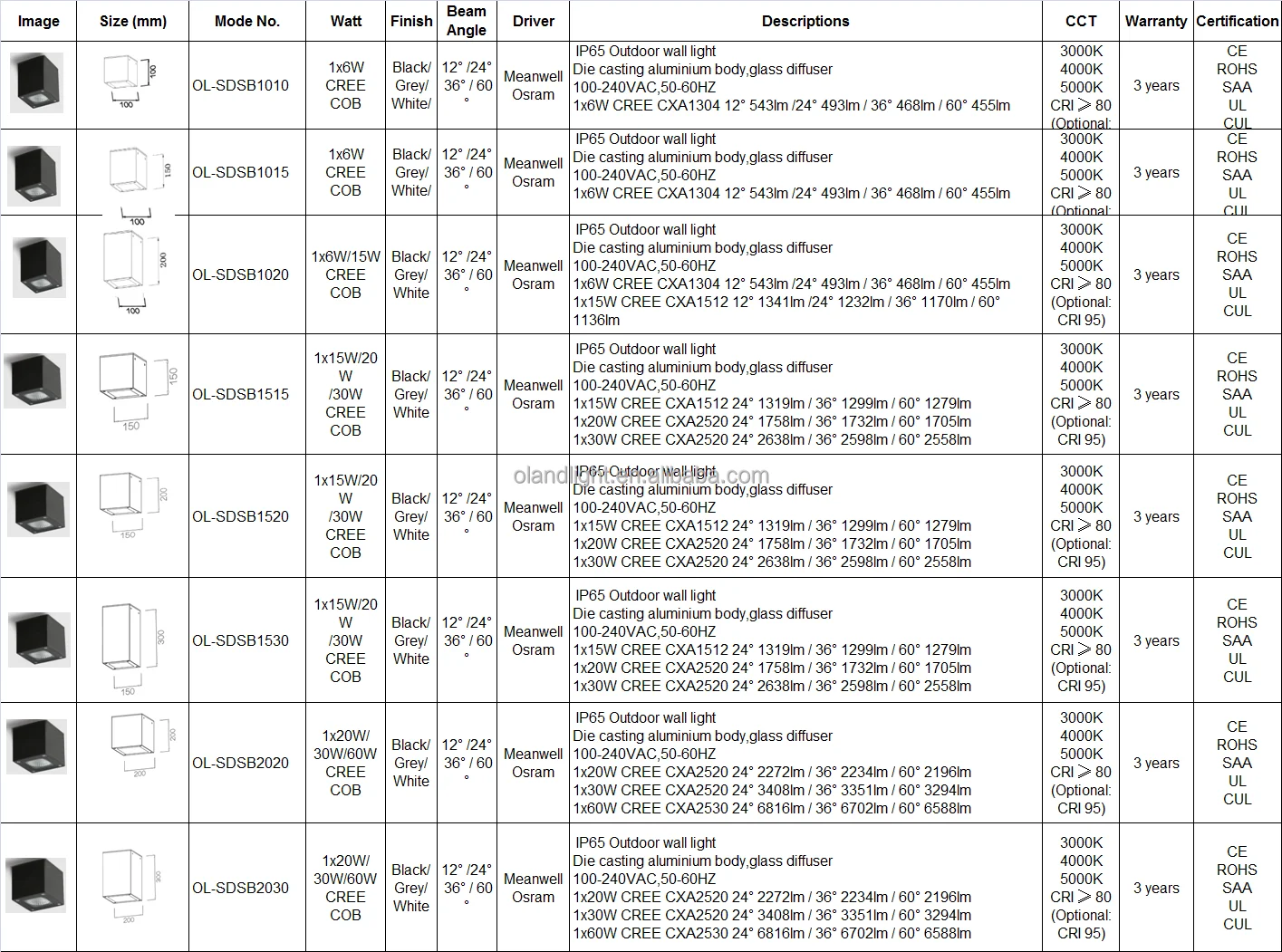

Model Number:
For 100X100Hmm
OL- SDSB1010 Black/Grey/White-1X6W
For 100X150Hmm
OL-SDSB1015 Black/Grey/White-1X6W/1X15W
For 100X200Hmm
OL-SDSB1020 Black/Grey/White-1X6W/1X15W
Lamp: CREE COB

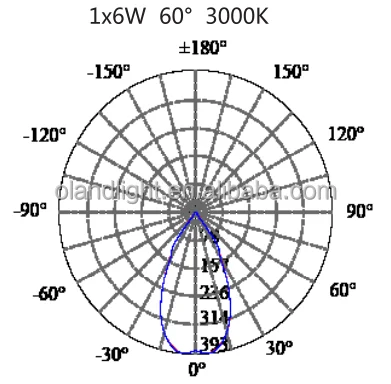

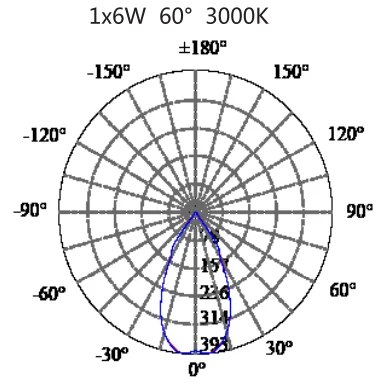

Beam Angle: 12° /24° / 36° / 60°
CCT: 3000K/4000K/5000K/
1x6W CREE CXA1304 24° 451lm / 36° 434lm / 60° 417lm
1x15W CREE CXA1512 24° 1319lm / 36° 1299lm / 60° 1279lm
CRI ≥ 80 (Optional: CRI 95)
Meanwell /Osram driver: 100-240VAC
Constant current/ WT:-30~+70° C
Warranty: 3 years (Optional: 5 years)
POWER: 1X6W Size:100X100Hmm,
POWER: 1X6W/1X15W Size:100X150Hmm
POWER: 1X6W/1X15W Size:100X200Hmm
Finish:Black/Grey/White
