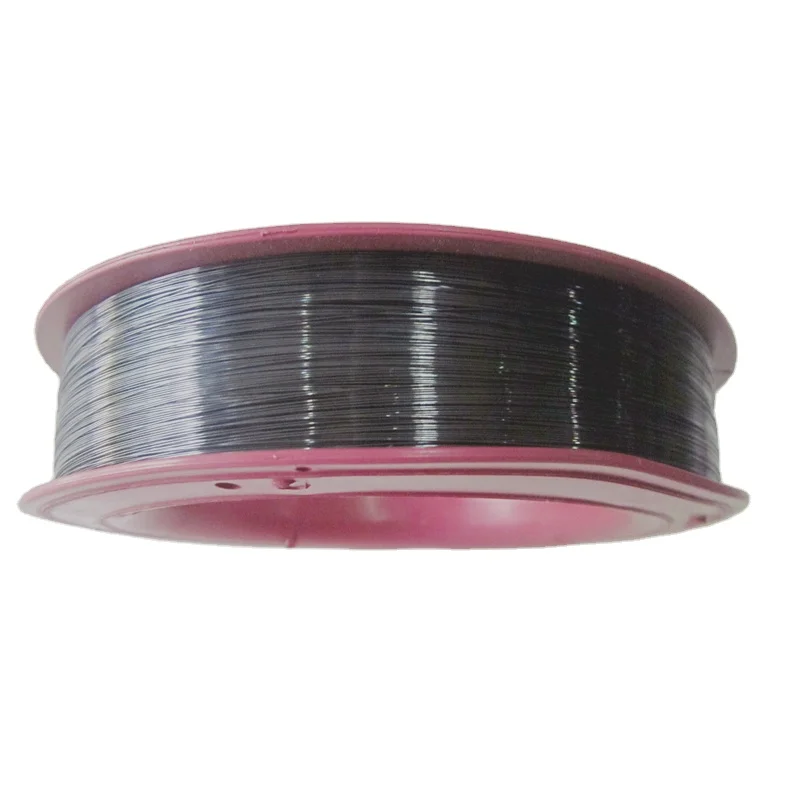

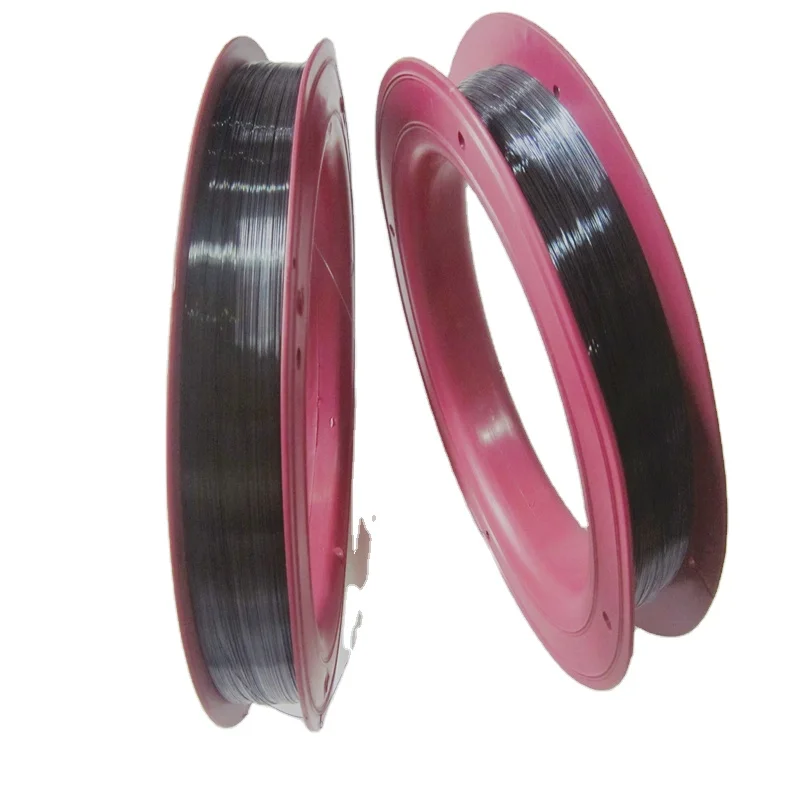

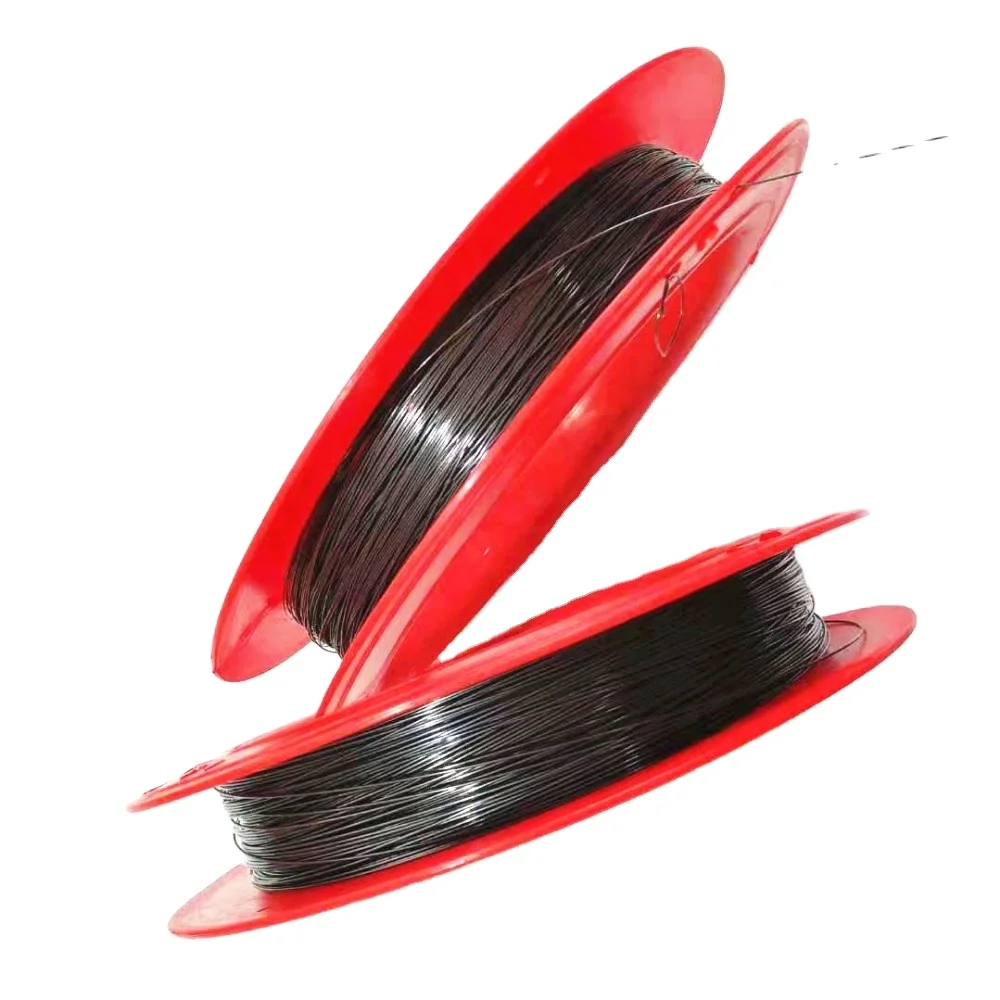

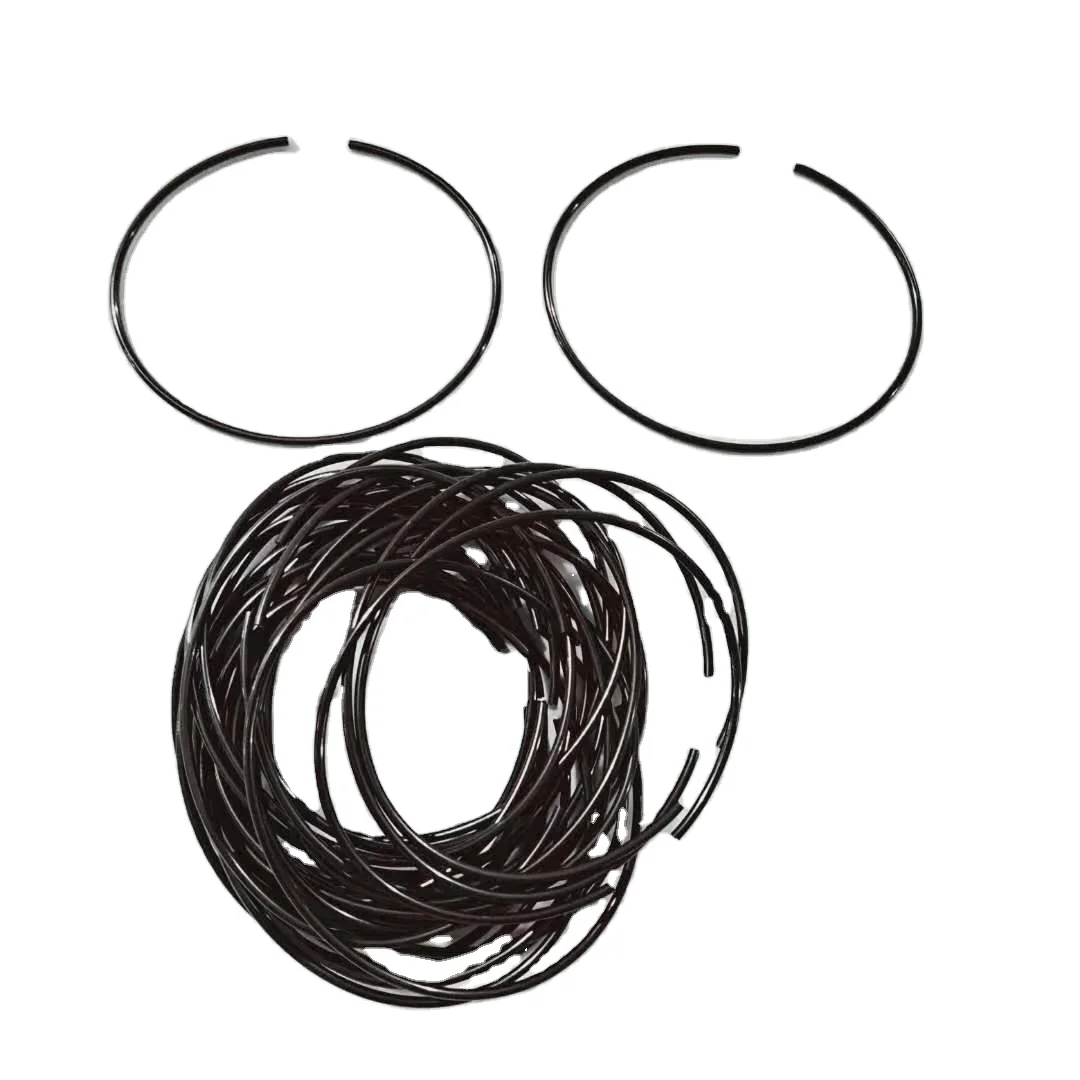

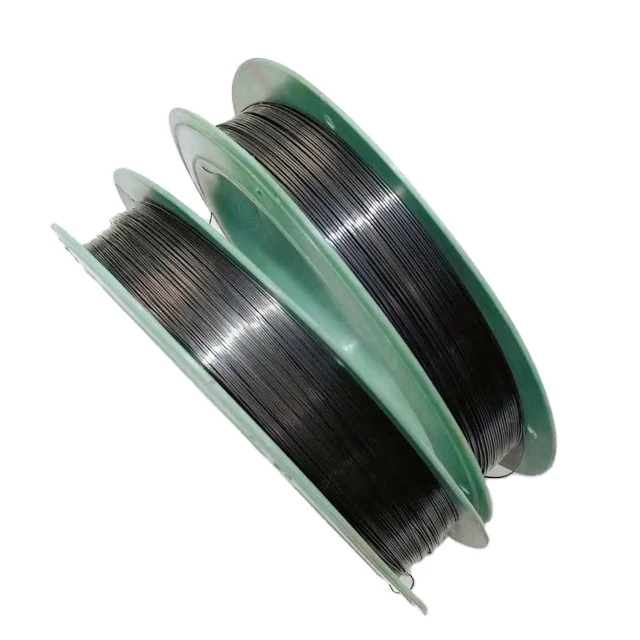

nitinol wire 0.05mm superelastic astm f2063

Product Overview

Description

• Product name:nitinol superelastic round wire


• Size:0.05~3mm


• Af temperature range:  - 20℃~100℃


• Surface:pickling,polished


• Standard: ASTM F 2603

Quality Test

Contract No.	Name	Brand	LotNo.	Condition	Size (mm)	Qty (M)	NW (kg)	Standard
------	Ti-Ni memory alloy rod	Seabird	20160528	annealed	Dia 0.1 mm	1000	/	ASTMF2063
Tensile Test	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation  (%)	reduction of aera	grain size	Bend Test  a>130	ak(J/cm²)	IE  Impact strength (mm)
	950	180	17	/	6	Q	/	/
Chemical Composition	Ti (%)	Fe (%)	C (%)	O  (%)	N (%)	H (%)	Co (%)	Ni (%)
	Remainder	0.008	0.044	0.026	0.00 2	0.001	/	55.76

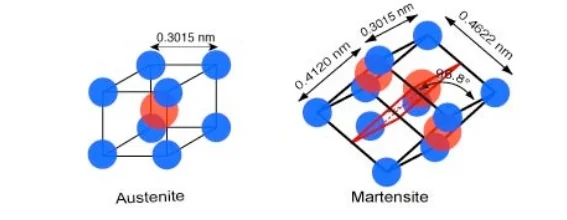

Crystal structures of the anstenitic and martensitic phases of  nickel titanium shape memory alloy wire:

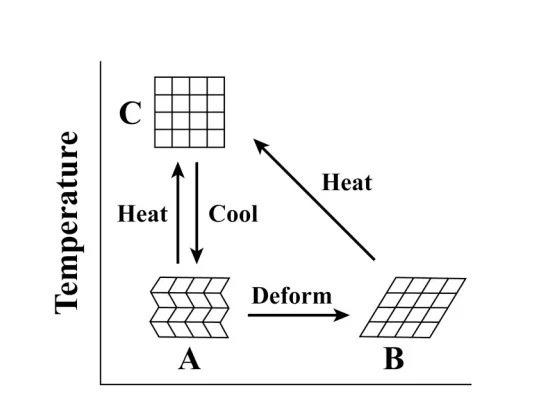

The temperature-dependent solid-state phase transition that occurs between the martensitic and austenitic forms of  nickel titanium shape memory alloy wire.













Q: Are you a trading company or manufacturer ?
A: We are factory.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we can offer the samples for free and freight afforded by buyer.

Q: How can you ensure the products quality?
A: All products are manufactured according to ASTM standard, and we make 100% inspection before shippment also we can prodide the MTC Test Certification.

Q: Can you print our logo on the products?
A: Yes, we make it by laser printing and carving.

Q: What is your terms of payment ?
A: T/T, L/C. negotiable.

Q: How long is your delivery time?
A:2 to 30 days.
