FM custom oem heatsink heat sink copper stamped fin with heatpipe pipe folded zipper sinter for led 600w cooling radiat 500w
- Category: >>>
- Supplier: Dongguan Formal Precision Metal Parts Co. Ltd.
Share on (1600459869224):
Product Overview
Description
Products Description
Stamped fin heat sinks can usually be identified by the zippered fin plates that hold the fins in place, and it is usually easy to see that the heat sink is in two parts - the base and the stamped fins. Stamped fin heat sinks are manufactured using a die stamping process where aluminum or copper metal sheets are stamped into specific configurations depending on the intended application. The zipper fins are manufactured in a stamping process to form the interlocking fins. Zipper fin heat sinks can add extra strength to the heat sink and can allow for stamped fins of different shapes. The stamped die fins are then sanded with abrasive tape, and these stamped fins are then attached to the heatsink base, usually using solder.
For maximum design flexibility, stamped fin heat sinks can be stamped in a variety of geometries and thicknesses. Stamped fin heat sink technology offers a great way to produce high efficiency, high aspect ratio, lightweight heat sinks in a small package size, ideal for medium to high volume production. The technology also offers lower non-recurring engineering expenses, so prototype setup costs are minimal.
Aluminum stamped fin heat sinks can be fabricated using A6063 aluminum alloy, which produces a high thermal conductivity of ~200 W/(m-K). Copper stamped fin heat sinks are typically fabricated using the C1100, which produces very high thermal conductivity of about 400 W/(m-K).
Thermal Analysis

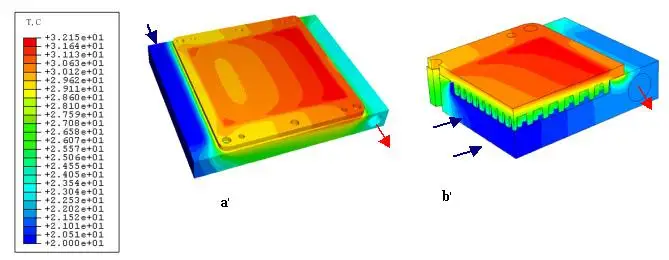

FM provides detailed thermal analysis and validation services using powerful computational fluid dynamics (CFD) and proprietary simulation packages.
With this effective modeling technique, our on-site thermal design engineers can evaluate your design throughout the development cycle - at the component, board and system level. By loading your CAD files directly into our CFD packages, we can perform the analysis you need and deliver results in a fraction of the time.
Through our design simulations, we can effectively pre-determine the heat sink configuration, which significantly simplifies production implementation. Once the optimal heatsink model is reached, FM can prototype the design using our rapid prototyping technology. Real-world testing in your system can be implemented in a timely and cost-effective manner in weeks instead of months.
Our processing capabilities
FM has a smart engineering team that will greatly help our partners simplify product design and reduce manufacturing costs.
FM can finish the most complex die casting tooling within 3 weeks, stamping tooling and extrusion tooling in 2 weeks.
Free samples are available. Sampling time we can short to 3 days. No matter how big volume of the order, our lead time will not exceed 1 month.
Free samples are available. Sampling time we can short to 3 days. No matter how big volume of the order, our lead time will not exceed 1 month.
cnc machined heatsink
copper pipe life: 7 years
max machining size: 2500mm
min machining accuracy: 0.01mm
min surface roughness：0.05mm
max machining size: 2500mm
min machining accuracy: 0.01mm
min surface roughness：0.05mm
stamped fin heatsink
copper pipe life: 7 years
lowest fin tooling invests
different surface treatment option
lowest fin tooling invests
different surface treatment option
skived heatsink
min fin thickness: 0.1mm
max fin height: copper 70mm, aluminum 130mm
max width: 1000mm
max fin height: copper 70mm, aluminum 130mm
max width: 1000mm
extruded heatsink
our extrusion machine size ranges from 450T~9000T,
can meet various size extrusion demands.
can meet various size extrusion demands.
cold forging heatsink
our max cold forging machine is 5000T,
can make various type of heat sink as per demands.
can make various type of heat sink as per demands.
heatpipe heatsink
copper pipe life: 7 years
lowest fin tooling invests
different surface treatment option
lowest fin tooling invests
different surface treatment option
Specification
Item Type | custom heat sink |
Material | Aluminum, Copper |
Size | Standard or customized size |
Colors | silver, black , blue, wood color, RAL powder coating color, and so on |
Shape | Round, Square, Flat, or customized |
Thickness | 0.4mm-20mm or Customized |
Application | LED Lighting, Inverter, Welding Machine, Communication Device, Power Supply Equipment, Electronic Industry, Thermoelectric Coolers/Generator, IGBT/UPS Cooling Systems, etc. |
Production Process | Profiles Extruding—Cutting—CNC Machining(Milling, Drilling, Tapping)—Deburring— Cleaning— Inspecting–Packing |
Finish | Anodizing, Mill finish, Electroplating, Polishing, Sandblasted, Powder coating, Silver plating, Brushed, Painted, PVDF, etc. |
Deep process | CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication |
Tolerance | ±0.01mm |
Length | customized length |
MOQ | Low MOQ |
Packaging | standard export packaging or as discussed |
OEM & ODM | Available. our engineer can check and discuss your design, great help! |
Delivery time | 15-20 days after sample confirmed & down payment, or negotiated |
Our Advantages
If you want to know anything about heatsinks, feel free to contact us!
FM is a high-tech enterprise focusing on high power thermal management solutions for the research and development, production, technical service our main business are manufacture liquid cooled plate, heat-pipe heat sink, LED high power heat sink, skived and stitched fin heat sink, extruded heat sink, cold forged heat sink and so on.
2.Competitive prices offer！We provide competitive prices by taking advantages of China’s low labor cost, simplify the product designs, our price is general 20-40% lower than the international market price.
3.High quality products！We provide customers high quality products by taking the advanced equipment, smart engineering team and well trained staffs in quality control process.
4. The short tooling and production lead time！We can finish the most complex die casting tooling within three weeks, stamping tooling and extrusion tooling in two weeks. Sampling time we can short to 3 days.
5.Excellent service！All our internal sales engineers can speak fluent English and know very well the product technology.
Let us help you to win your project and increase your profit level.
Try to send us an inquiry and you will enjoy the time to do business with us.
Exbition
Company Profile
Dongguan Formal Metal Products Co, LTD founded in the year of 2006. We locate in the world manufacturing center Dongguan. Experiencing 15 years’ grow, we become one of the leading heat sink manufacturers in the world. We are ISO9001 certificated and National High Technology certified manufacturer. We are the very seldom heat sink manufacturers in China who has full industrial chain covered. We have our own tooling making factory, CNC machining factory, Stamping factory, Copper Pipe Factory, Plastic injection (fan) factory, Welding and Assembly Factory, Surface Treatment Factory (plating), RD Division and Marketing Center. Professional RD team and completed manufacturing chain guarantee that we can always provide our customers professional heat sink Designs and Solution, High Volume Supply Capability, Superior Product Quality, Fast Delivery and Competitive Product Prices. At Present Our Key cooperation partners we have ekwb, Great Wall, Panasonic, ZALMAN, HITACHI, Aero Cool, GOLDENSEA etc.
