Factory Direct Sales POE SWITCH 8*POE Port 2 *Uplink PoE Switch ,120W Built in Power,IEEE 802.3 af/at POE for IP Camera
- Category: Network Switches >>>
- Supplier: HUOYI Technology (Shenzhen) Co. Ltd.
Share on (1600459874487):
Product Overview
Description
Product Description
Product performance description：
This is an unmanaged POE switch is an unmanaged 10-Port Power over Ethernet Switch with a total of 120 watts of PoE power. All ports transport at 100Mbps and can provide up to 30W per port through the IEEE 802. 3af/at standard. It has two Ethernet uplink ports to allow for communication without sacrificing any PoE ports.
Product Features ：
1.【poe switch with 802.3af/at compliant】
2.【8 100Mbs poe switch@120W 】
3.【4KV Lightning Protection】
4.【Built-in Power and Fanless design】
5.【Network cable short-circuit protection mechanism】
Certifications
PD Detection:Automatically detect required PoE power for your device and protect your Non-PoE equipment from being damaged.
LED Indicators:Quickly check and troubleshoot Ip ports with data and PoE lights for each.
Built-in Power Supply:Use the built-in industrial power supply to connect directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.
Easy to Use:Requires no configuration, just plug-and-play, automatic connect to device.
Durable Metal Housing:Compact design, sturdy metal case makes it safe to use in various environments.
Fanless Design:Built to high heat tolerances, Bilateral heat dissipation, keeps stable and quiet.
After Sales Service:
We aim to provide buyers with low-priced and high-quality products. All products have been strictly inspected and have various certifications. If it is a quality problem of the product itself, please contact us. We are willing to take all the responsibilities; For questions about how to use the product, please contact us. We have professional staff to answer you.
PoE Standard | IEEE 802.3af/at POE / PSE PD\\POE type: POE pass (pines 1.2 V +, pines 3.6 V-). |
Power Input | 100~220V/AC |
PoE Power Output | Per Port 52V DC, 30 Watts(Max) |
Ports | 8*100Mbps PoE ports, 2*1000Mbps Uplink ports |
Power Consumption | 120Watts(Max) |
power consumption of idle switch | 3W(Max) |
Operating Temperature | 14F – 131F (-10C – 55C) |
Switch Capability | up to 20Gbps |
Dimensions(W x D x H) | 190mm x 131mm x 34mm |
Lightening Protection | Common Mode 4KV; Differential Mode 2KV |
Details Images

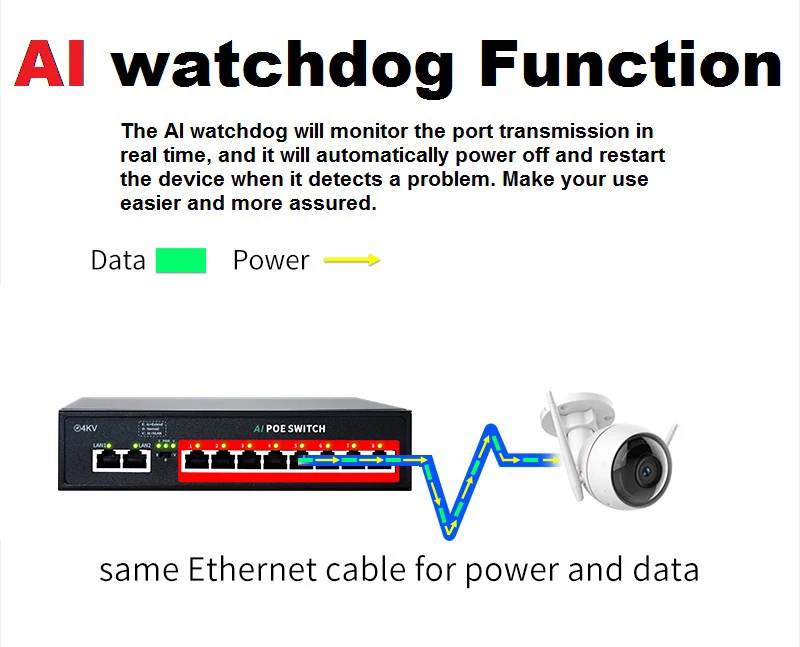

AI Watchdog Function
Poe switches support poe devices and non-poe devices, But when connecting passive poe device or non-poe device,the switch can only transmit data and cannot power your device,so the connected device needs to be separately powered. Or you can use it with active poe splitter.
---------------------------------------------------------------------------------------------------------------------------------------

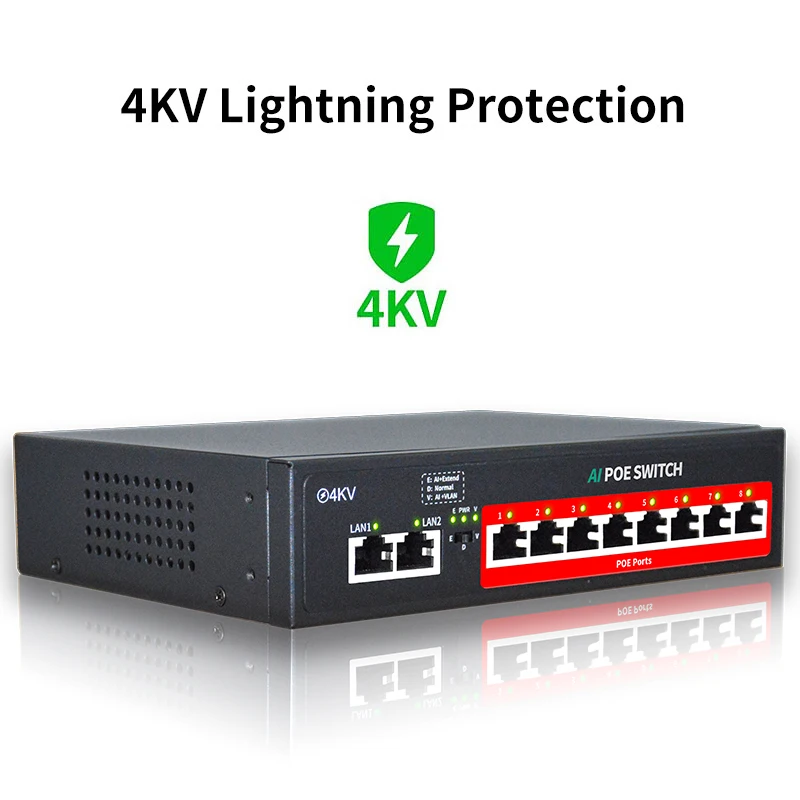

4KV Lightning Protection
PoE switch have professional lightning protection design-up 4KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence.
---------------------------------------------------------------------------------------------------------------------------------------

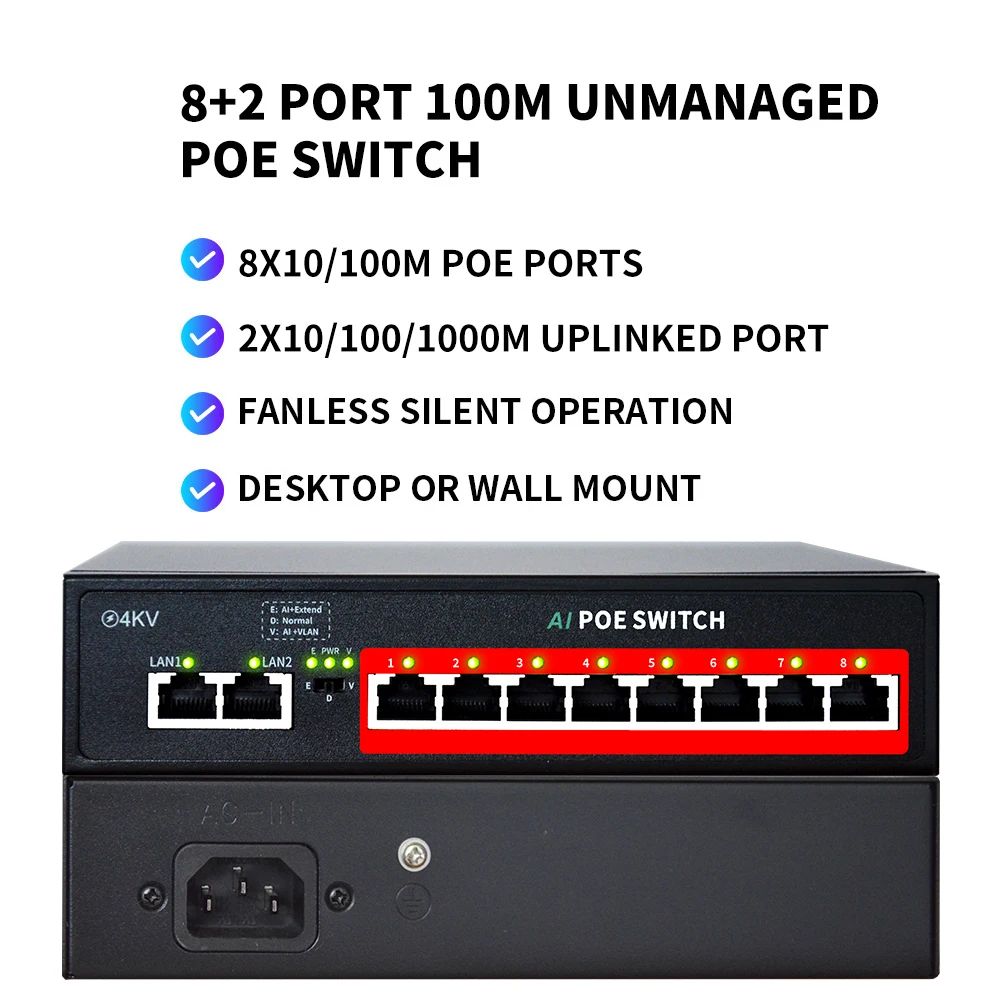

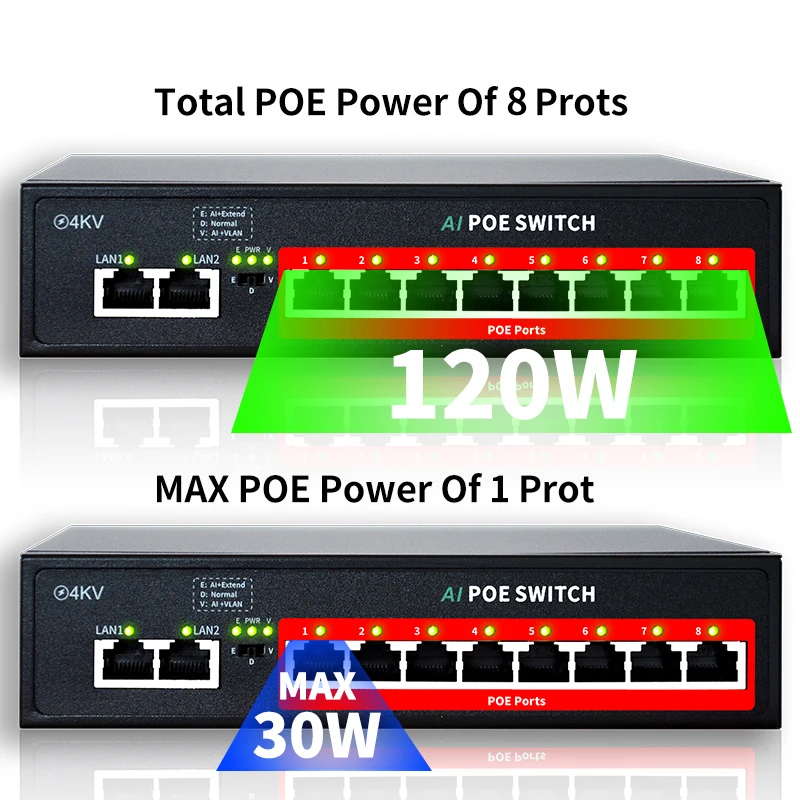

8 100Mbs poe switch@120W
PoE switch with 8 100M PoE port + 2 100M Uplink port,8×PoE ports providing up to 30W per port, total PoE budget 120W.2 gigabit ethernet Uplink Port for connecting NVR and Internet , etc.
----------------------------------------------------------------------------------------------------------------------------------------

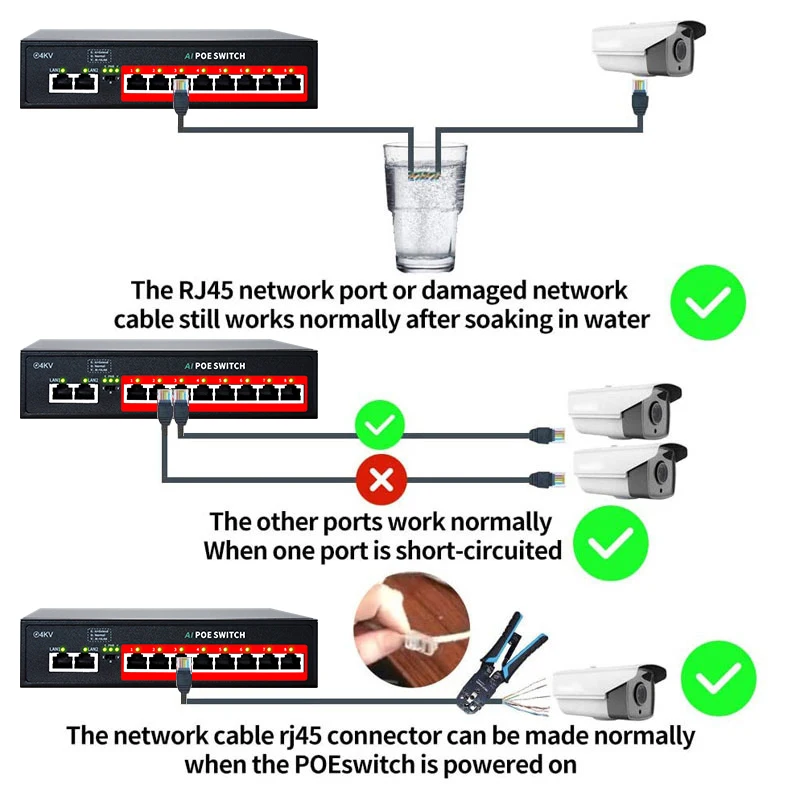

Network cable short-circuit protection mechanism
POE switch is stable and has strong anti-interference ability, protect the fault caused by the short circuit of the network port.Short Circuit, Over Current and Over Voltage Protection.
---------------------------------------------------------------------------------------------------------------------------------------

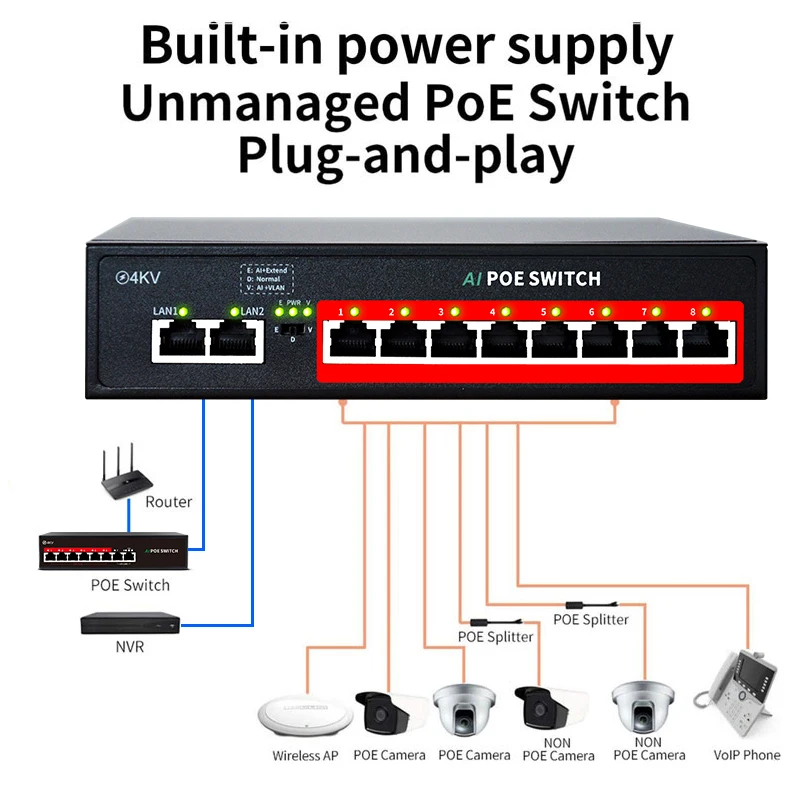

Built-in Power and Fanless design
The POE switch adopts a built-in power supply (the power supply is placed inside the switch) and a fanless design. The product is simple and light, always working there silently.
