Russian Standard recovery Stud Rectifier Diodes D232 80 D232 80X RSD3
- Category: >>>
- Supplier: Zhejiang,Liujing,Rectifier,Co.,Ltd.
Share on:
Product Overview
Description

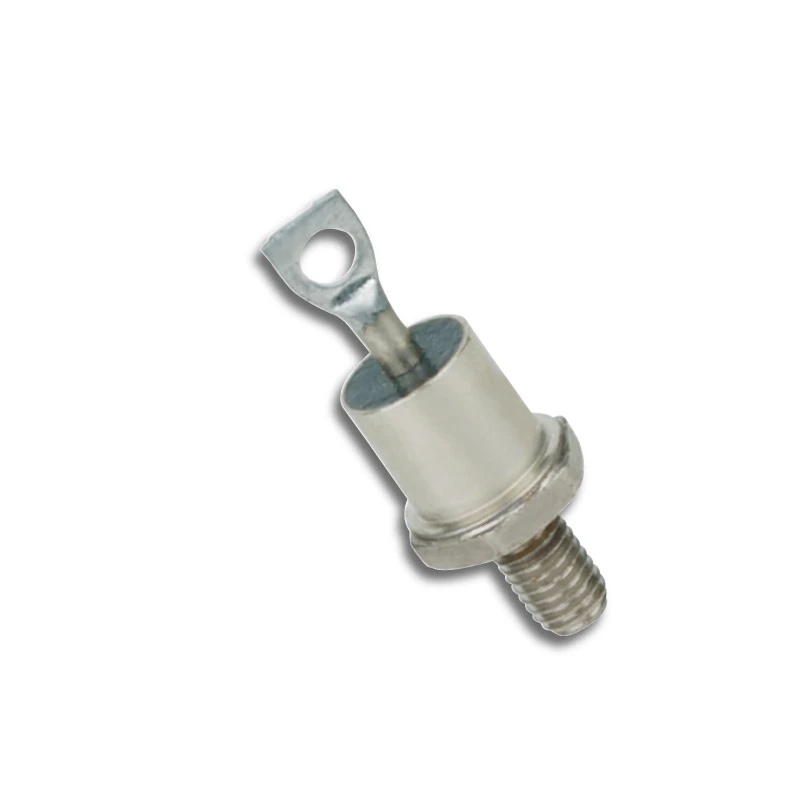

Russian Type Standard Recovery Diodes (Stud Version) D232-80(X) RSD3
Product Details
Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Inch device version available
Typical Applications
Battery charges
Converters
Power supplies
Machine tool controls
Welder
Motor controls
Lighting circuits
CHARACTERISTIC
Type | VRRM | IRRM | IF(AV) Tc55°C | IF(RSM) | IF(SM) 10ms | VFM/IFM 25°C | Tj | Rjc | M² | Wt | Outline |
| V | mA | A | A | kA | V/A | ℃ | ℃/W | N/m | kg | |
D232-50(X) |
100-1600
| 6 | 50 | 76 | 1.20 | 1.35/157 | -40 ~ +150 | 0.600 | 5.0-6.2 | 0.027 | RSD3 |
| D232- 63(X) | 6 | 63 | 96 | 1.40 | 1.35/198 | 0.500 | 5.0-6.2 | 0.027 | RSD3 | ||
D232-80(X) | 5 | 80 | 125 | 1.50 | 1.35/250 | 0.400 | 5.0-6.2 | 0.027 | RSD3 | ||
D141-100(X) | 20 | 100 | 180 | 2.20 | 1.35/314 | 0.400 | 6.0-10.0 | 0.090 | RSD4 |

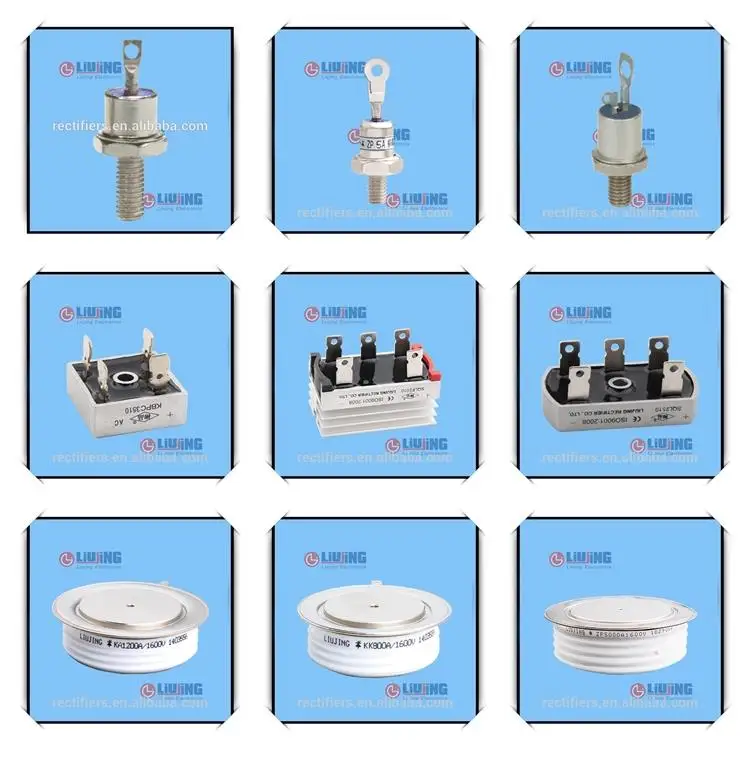

Product Pictures
Hot S
Recommended Products
Company Information
Paymant & Shipment
Paymant & Shipment
| 1) Delivery time is about 7-10 days after we received payment. |
| 2) All the goods will be test before export. |
| 3) Packaging in professional anti-static bag |
4) We can ship to you by DHL/TNT/UPS/EMS/Fedex...Please contact us directly and we will ship as your requirement.  |
Our Service
Certificate
Our Certificate
FAQ
1. Q: Doe Liujing produce power semiconductor or only trading? A: Liujing has own factory, can control the production and quality directly.
2. Q: How does Lujing control the product quality? A: 100% of the products will be tested . Firstly we will test chip parameters . After the chip encapsulation, we test 100% of the thyristors again. Each chip and thyristor should pass all these QC procedures before shipping to customer. And we will deliver goods with all testing parameters wrriten in the paper.
3. Q: Could Liujing provide technology support? A: Liujing is specialized in manufacturing power semiconductor. If there's any problem, we'll provide suggestion from our engineers to help you to solve problem.
4. Q: Which field can Liujing power semiconductor be used on? A: Liujing power semiconductor can be used on Locomotives, industrial transmission, motor soft start, high voltage DC transmission, high voltage reactive power compensation, the motor excitation, induction heating...
