Oil less Portable Refrigerant Recovery Machine for Both Liquid and Vapor Refrigerant
- Category: Other Refrigeration & Heat Exchange Equipment >>>
- Supplier: Wenling,Yangyi,Mechanical,And,Electrical,Products,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
R32 Type Recovery Unit
R410a Recovery Unit
With Oil Separator
Normal Type
Technical Data
Model | RR250, RR250(R32) | RR500,RR500(R32) | |||||||||||
Refrigerants | Category Ⅲ: R12,R134a,R401C,R406A,R500 (refrigerant R32,R1234YF only suitable for R32 model) Category Ⅳ: R22 R401A R401B R402B R407C R407D R408A R409A R411A R411B R412A R502 R509 Category Ⅴ: R402A R404A R407A R407B R410A R507 | ||||||||||||
Power | 220-240V/50~60Hz; 110-120V/60Hz | ||||||||||||
Motor | 3/4HP, Single Cylinder System | 1HP, Twin Cylinder System | |||||||||||
Motor Speed | 1450rpm@50Hz; 1750rpm@60Hz | ||||||||||||
Compressor | Oil-less, Air-cooled, Piston style | ||||||||||||
High Pressure Shut-off | 38.5bar/3850kpa(558psi) | ||||||||||||
Category Ⅲ | Category Ⅳ | Category Ⅴ | Category Ⅲ | Category Ⅳ | Category Ⅴ | ||||||||
Recovery Rate (kg/min) | Vapor | 0.20 | 0.25 | 0.25 | 0.40 | 0.50 | 0.50 | ||||||
Liquid | 1.60 | 1.80 | 2.20 | 3.00 | 3.50 | 3.50 | |||||||
Push/Pull | 4.60 | 5.60 | 6.30 | 7.50 | 8.50 | 9.50 | |||||||
Operating Temperature | 0℃~40℃/32~104℉ | ||||||||||||
Dimensions | 400X250X360mm | ||||||||||||
Net Weight | 13.5kg | 14.5kg | |||||||||||
Key Feature
Precise Pressure Gauge
Low-pressure range 0-500psi, high-pressure range 0-800psi. And the shut-off switch automatically shuts the machine off if the pressure inside rises above 558 psi.
Low-pressure range 0-500psi, high-pressure range 0-800psi. And the shut-off switch automatically shuts the machine off if the pressure inside rises above 558 psi.
Effortless Operation
Easy and convenient to link your HAVC equipment. With self-purge function, you can use it more convenient and secure
Easy and convenient to link your HAVC equipment. With self-purge function, you can use it more convenient and secure
Portable & Easy to Storage
The compact structure is easy to storage. A portable handle is convenient to carry, and the trolley handle with wheels increases
mobility, saving your energy.
The compact structure is easy to storage. A portable handle is convenient to carry, and the trolley handle with wheels increases
mobility, saving your energy.
Why choose us

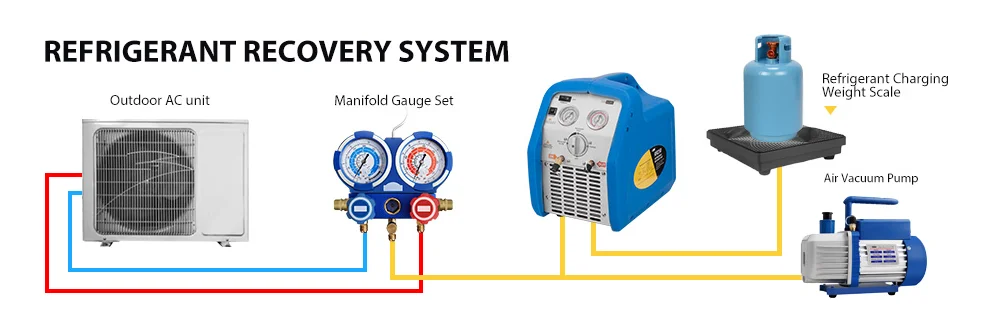

How to use
Packing and Shipping

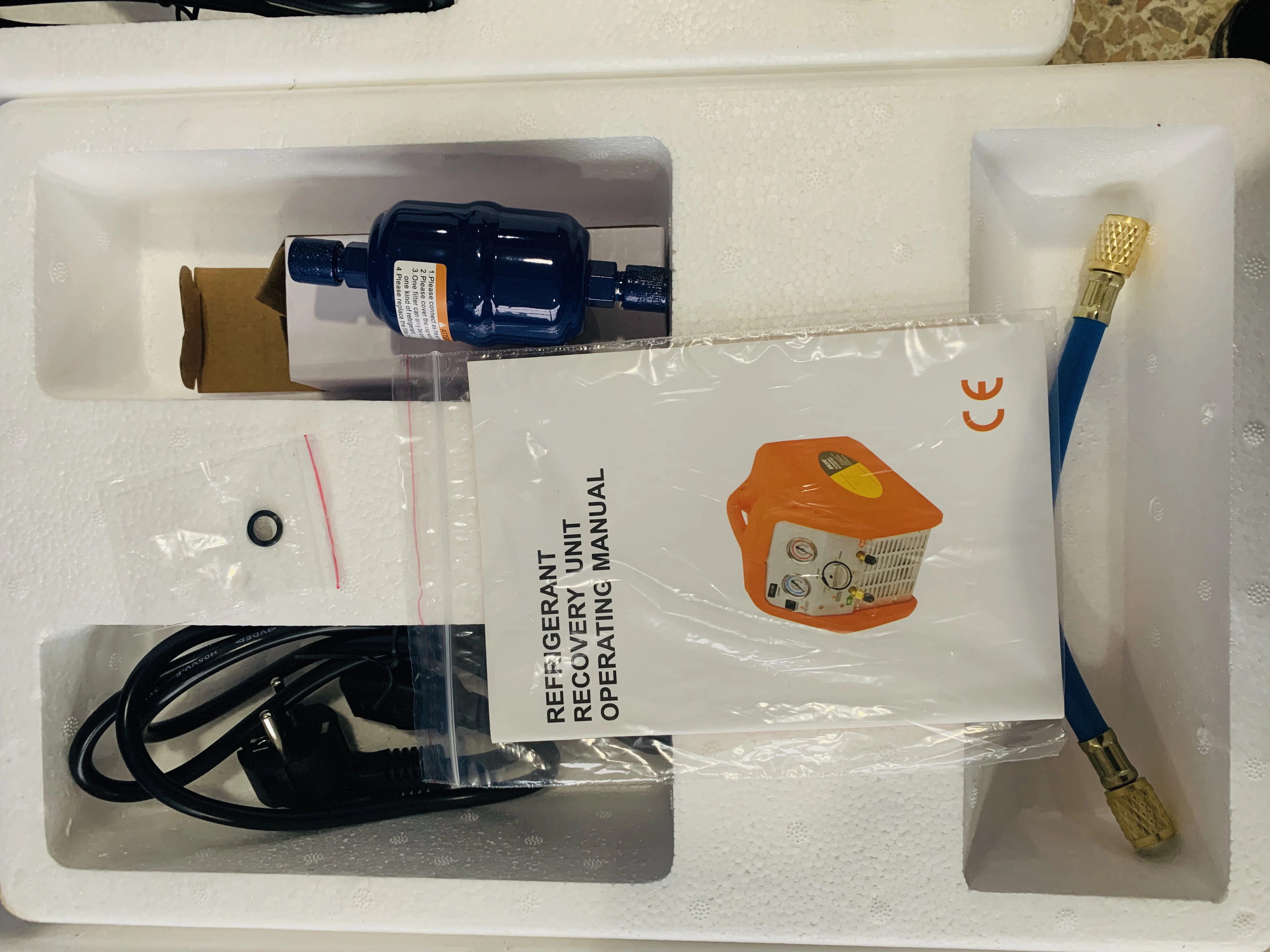

For Packing:
1 x Refrigerant Recovery Machine
1 x Filter
1 x 10 mm Pipe Fitting
Each machine is under carefully packing. 1 x Filter
1 x 10 mm Pipe Fitting
We can pack the goods into quality carton box, pallets or wooden box with shipping mark.
For Shipping:
International Express Shipping
DHL, UPS, FedEx and TNT are widely used in our shipping, it is door-to-door delivery service, transit time is as followed picture.
Air Cargo
Cost-effective for you to ship your goods over at least 100kgs. The transit time is around 3~10 business days. The shipping cost is lower than international express, but you have to pick up the goods nearby your airport and manage the customs clearance all by yourself. Import duties and taxes may be imposed, but unfortunately we have no idea how much they will cost.
Cost-effective for you to ship your goods over at least 100kgs. The transit time is around 3~10 business days. The shipping cost is lower than international express, but you have to pick up the goods nearby your airport and manage the customs clearance all by yourself. Import duties and taxes may be imposed, but unfortunately we have no idea how much they will cost.
Sea Cargo
Ocean shipping is the most cost-effective way to ship your bulky and un-urgent orders. The shipping time varies from
15~25 business days depending on the season and destination you ship to.
15~25 business days depending on the season and destination you ship to.
Southeast Asia | South America | Southern Europe | |||
Port | Ningbo/Shanghai/FOB/CIF/EXW/CFR | ||||
By Sea | 4-5 days | about 30 days | about 25 days | ||
By Air | 1-2 days | 1-2 days | about 4 days | ||
Company Profile
ETL Certification
CE
ISO9001
FAQ
