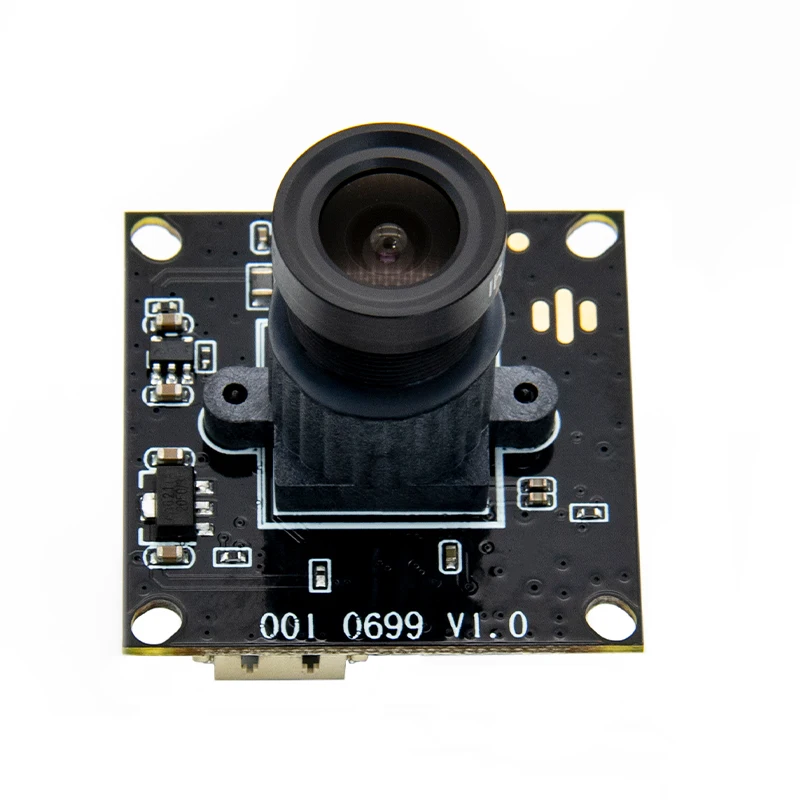

Factory Customized 4g Camera Module Raspberry 720p @60fps High Frame Rate USB Camera in Global Shutter
- Category: >>>
- Supplier: Dongguan Hampo Electronic Technology Co. Ltd.
Share on (1600459932207):
Product Overview
Description
Description:

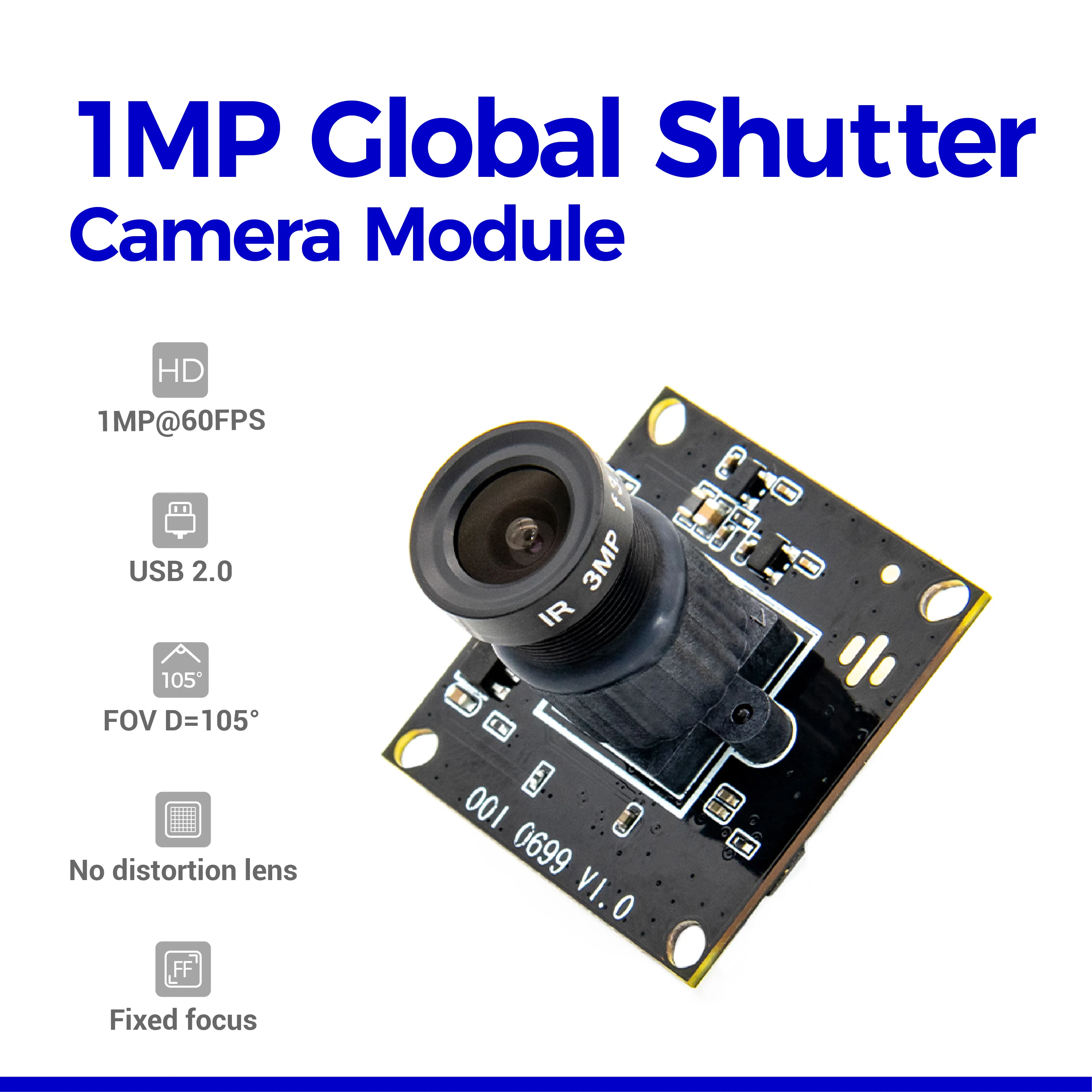

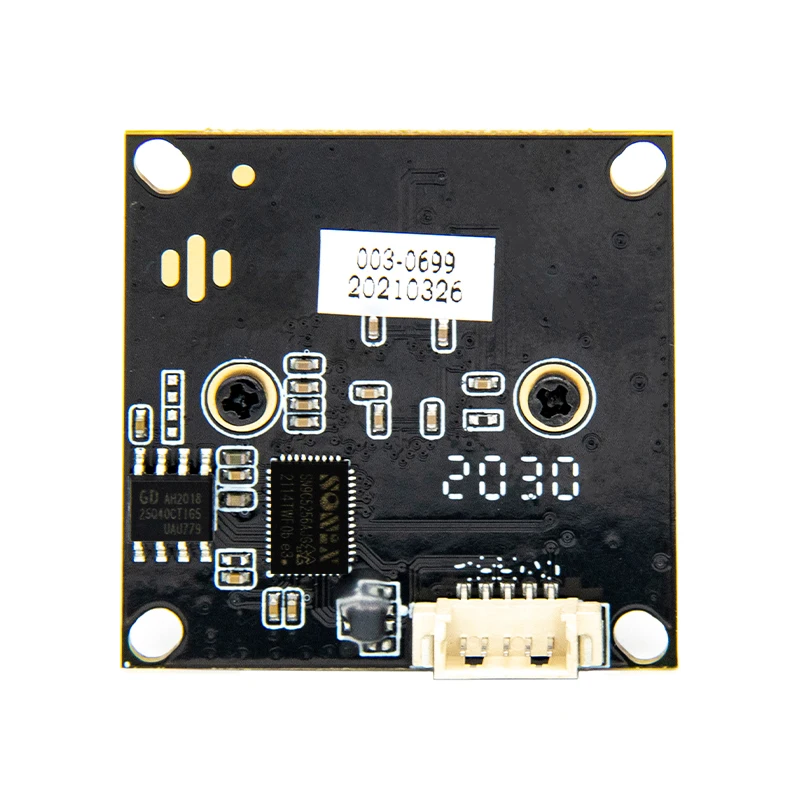

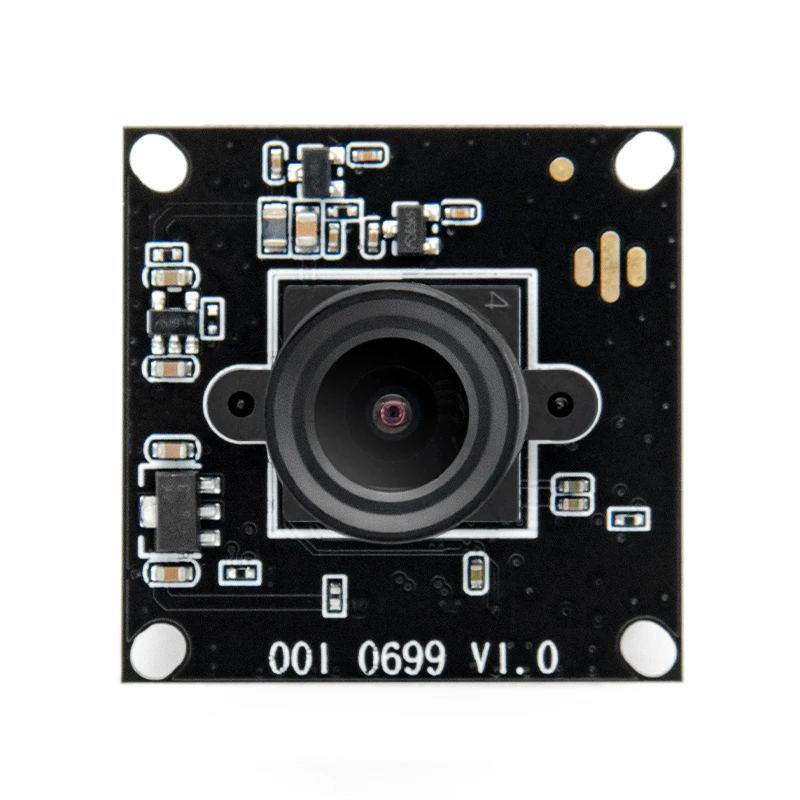

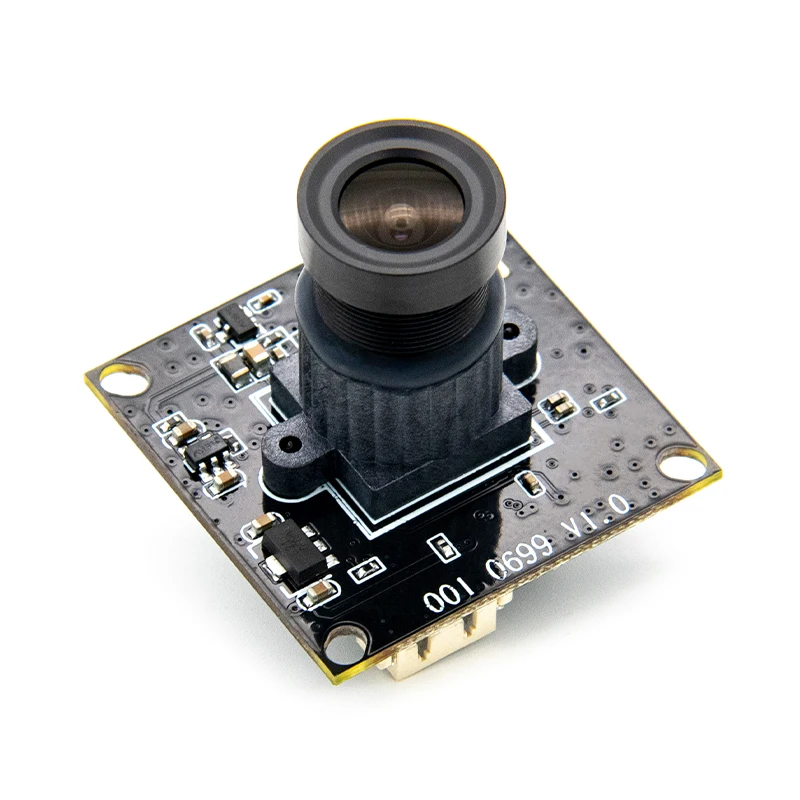

003-0699 is another type of USB 2.0 Camera Module adopts 1MP monochrome (black&white) global shutter sensor OV9281, assembled with a low distortion M12 lens which built-in an 850nm IR pass filter. This is one of our most popular Global Shutter Camera Modules. It's a 1MP, based on the 1/4″ monochrome global shutter OV9281 image sensor, UVC compliant, low distortion USB 2.0 camera.
Key Features:
1. 1/4 inch OV9281 Cmos camera module
2. HD 720P Cmos USB Camera Module
3. USB webcam with UVC, support windows, linux, Mac with UVC and android system.
4. Global Shutter high frame rates USB Camera Module
5. 38*38/32*32mm mini micro usb board camera
SPECS:
| Items | Parameters |
| SENSOR | OV9281 |
| Lens Size | 1/4'' |
| Most effective pixels | 1280*800 |
| Data Format | MJPG/YUY2 |
| Pixel Size | 3µm x 3µm |
| Lens | FOV :D= 185° |
| Optical length :14.5MM | |
| lens construction:6G+IR | |
| mount :M12*P0.5mm | |
| F/NO:2.4 | |
| focusing | Fixed focus |
| Frame rate | 60fps |
| auto control | Saturation, Contrast, acutance, White balance, exposure |
| audio | High quality digital MIC, single or dual channel is optical |
| Voltage | USB 5V |
| working current | MAX 200mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| working Temperature | Change with environmental temperature |
| System compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
APPLICATIONS
Robot Visual: Industrial Equipment
High Speed Motion: Intelligent Traffic, Sport etc.
Security: Monitoring Capture
Dashcam etc.
Company Profile:

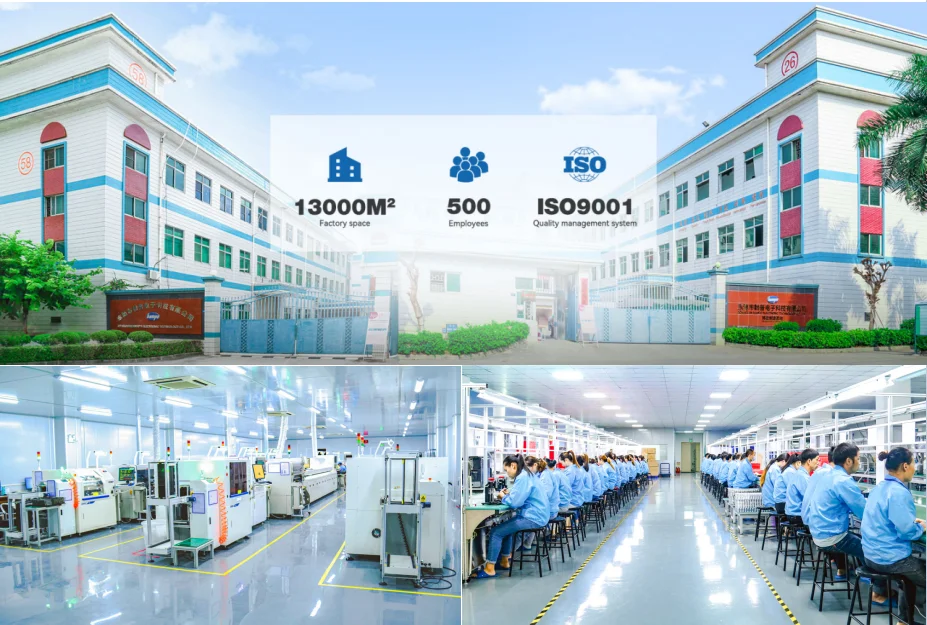

Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58 and 26 as production base, covering 13,000 square meters. We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. Support OEM and ODM service.
Certifications:
FAQ
Q: How long is your delivery time?
A: It depends on the quantity and the difficulty of products. Usually our turnover time is 15-25 days.
Q: What’s your MOQ? Do you make samples?
A: Usually we don’t set MOQ, but the more, the cheaper. Besides, we are happy to make prototype or sample for clients to ensure quality standard.
Q: Do you make customized products based on our design drawing?
A: Yes, we are professional metal fabrication factory with an experienced engineering team making custom products according to client’s drawings.
If you have any questions, please feel free to contact us, thank you!
