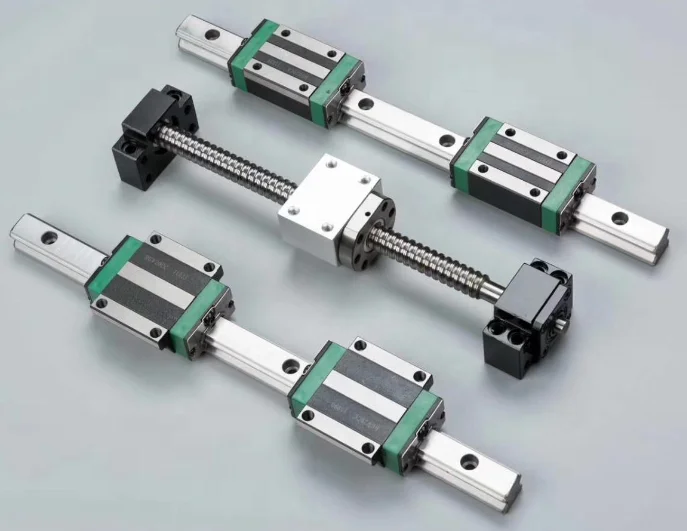

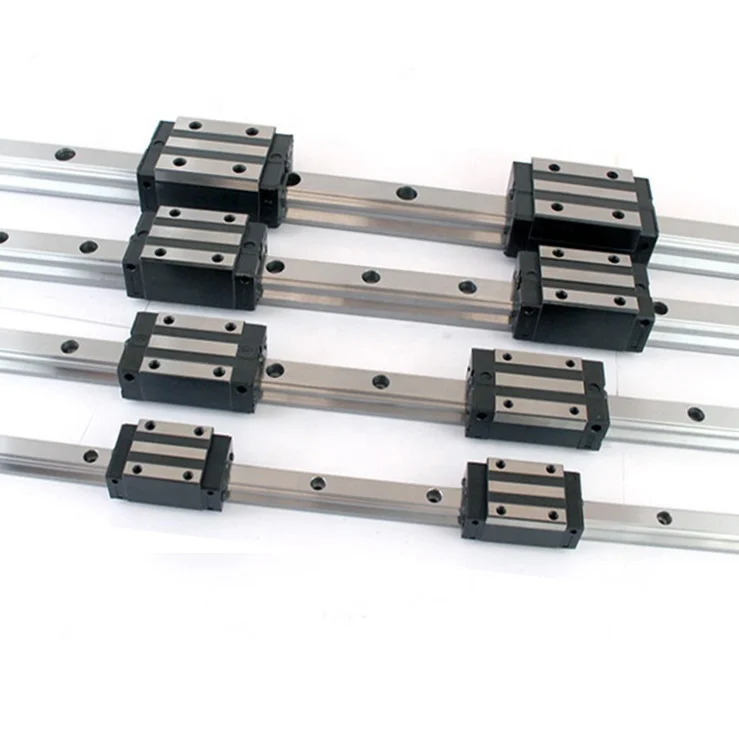

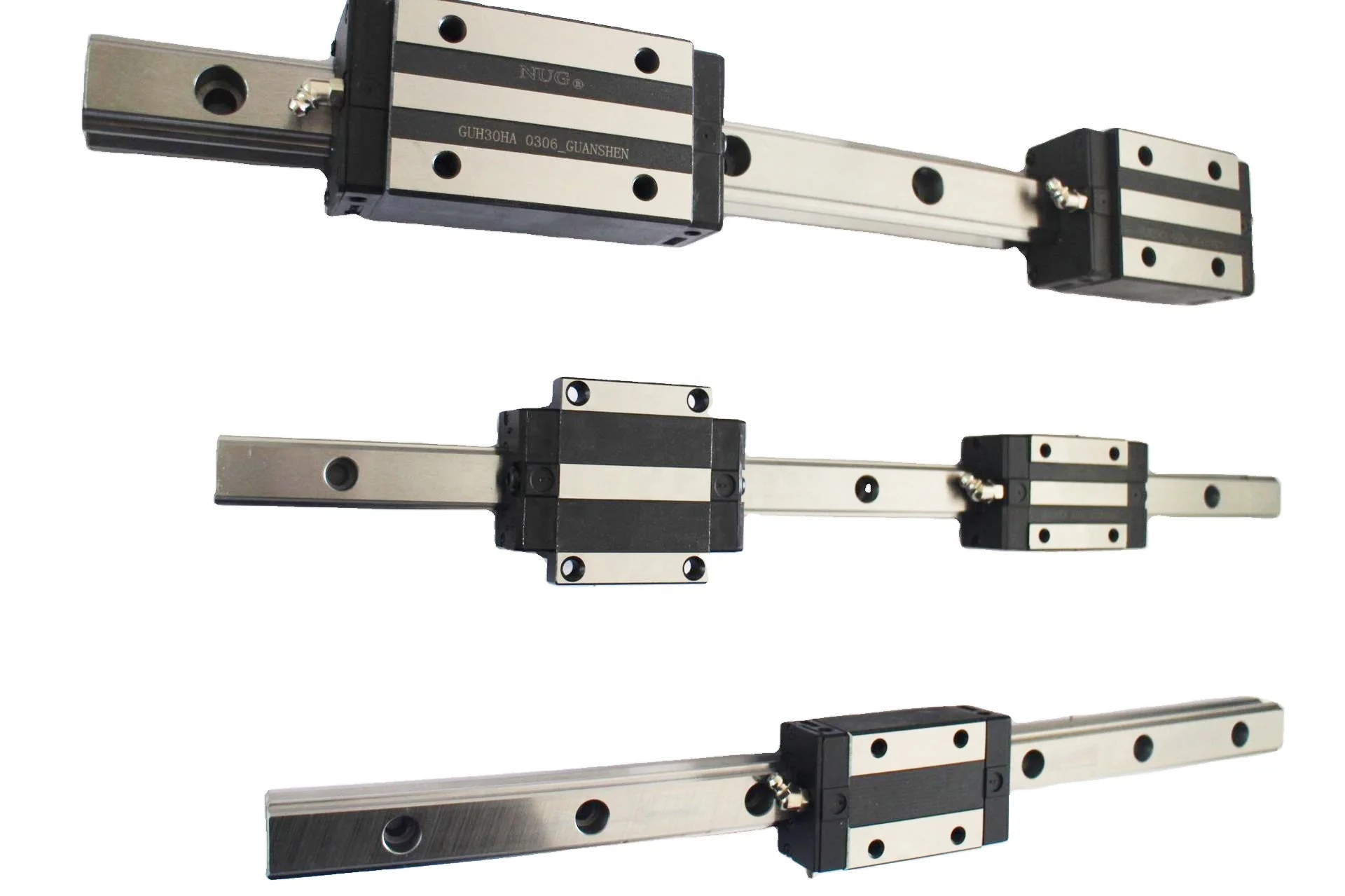

Professional mould design HGH hiwin linear guide linear slide bearing for 3d printer filament

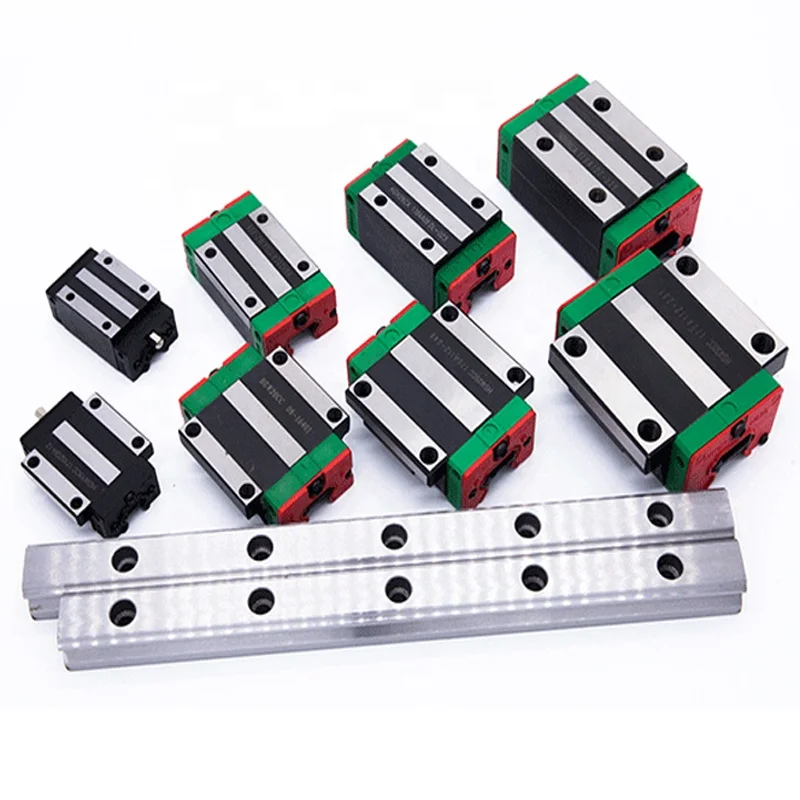

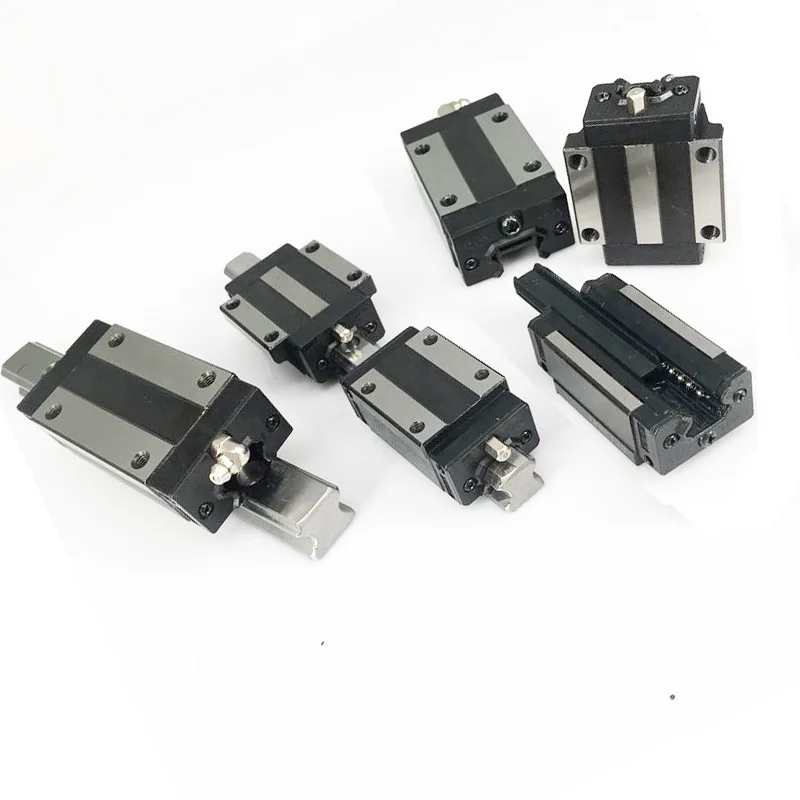

 Linear guide block

(Price is for HGR10-1000mmL only, if u need other size or need the Block, pls contact us for accuracy price. Thanks.)

Linear guide movement by the scroll to realize, not only the sliding friction coefficient reduced to 1/50 of guide rail, dynamic and static friction resistance gap also become small, realize smooth movement, reduce impact and vibration, not easy to generate creep phenomenon, the H,P level can achieve feeding and positioning accuracy,

be beneficial to improving the response speed and sensitivity  of CNC coefficient.

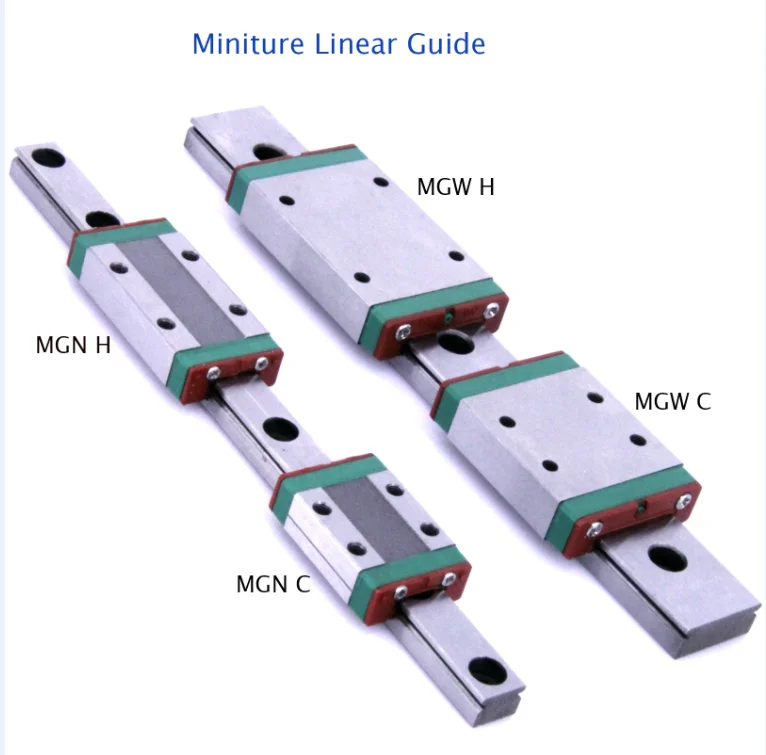

HIWIN exchangable - HGW, HGH, EGW, EGH, MGN,MGW items are available

Features

(1) Self-aligning capability By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surfaceirregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.

(2) Interchangeability Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.

(3) High rigidity in all four directions Because  of  the  four-row  design,  the  HG  series  linear  guideway  has  equal  load  ratings  in  the  radial,  reverse  radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity

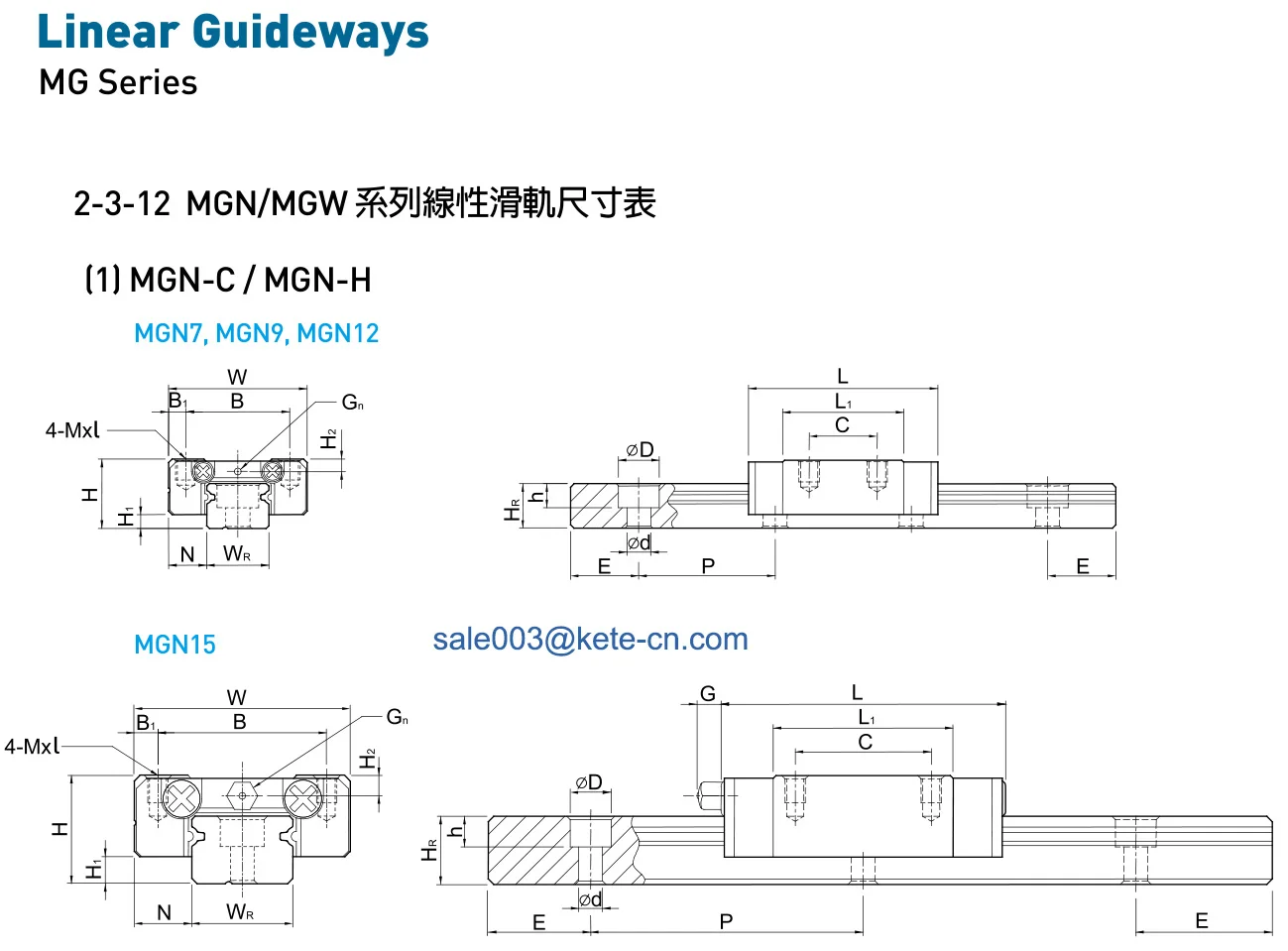

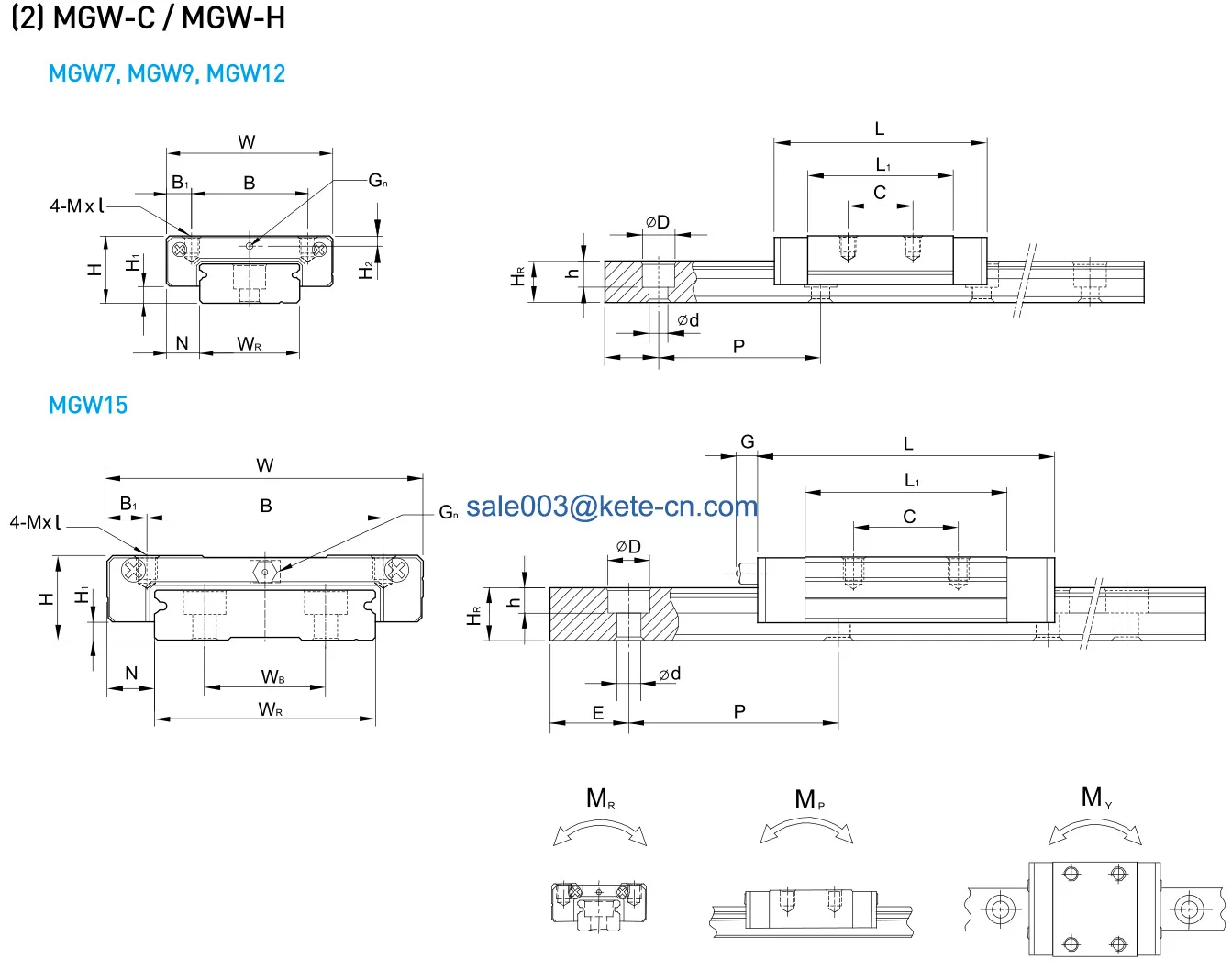

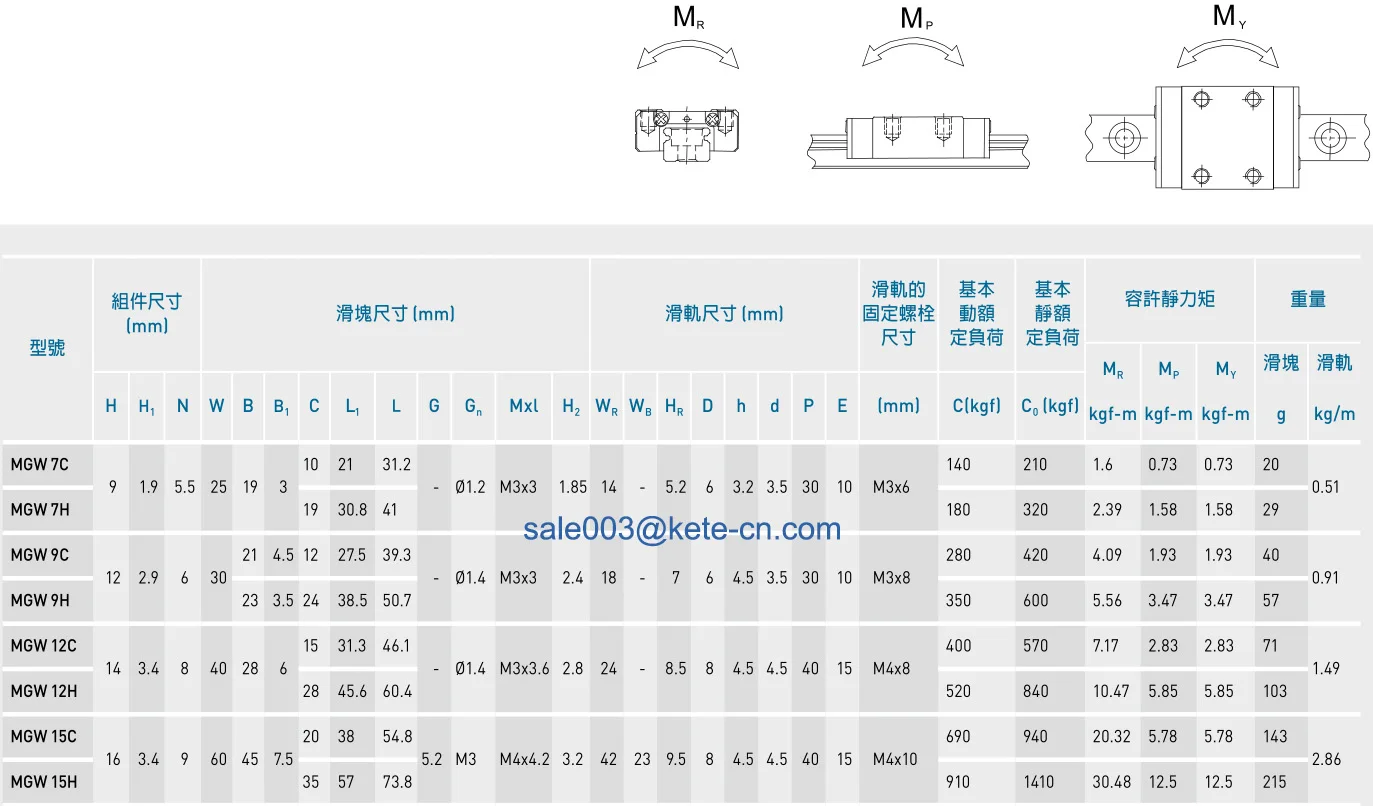

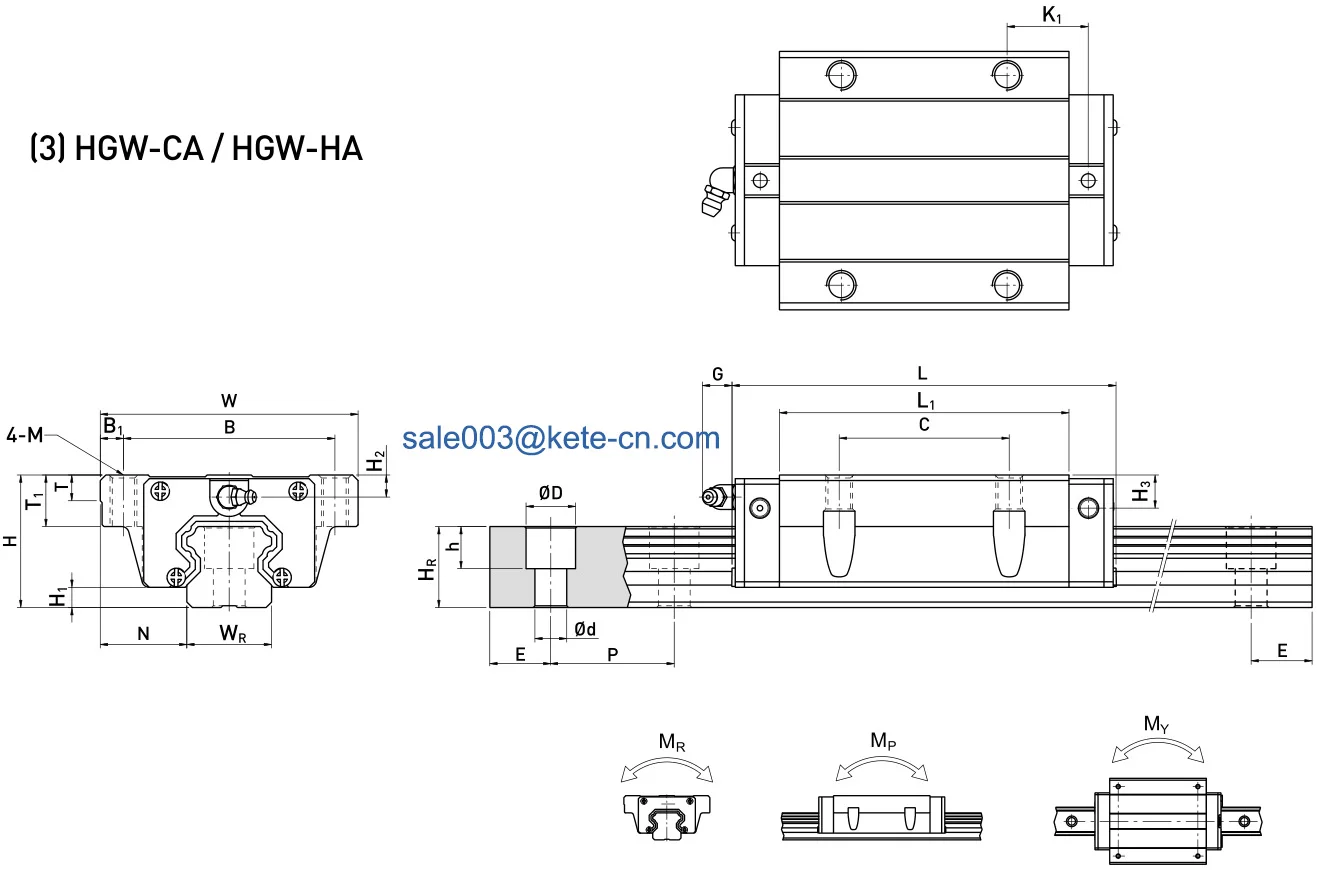

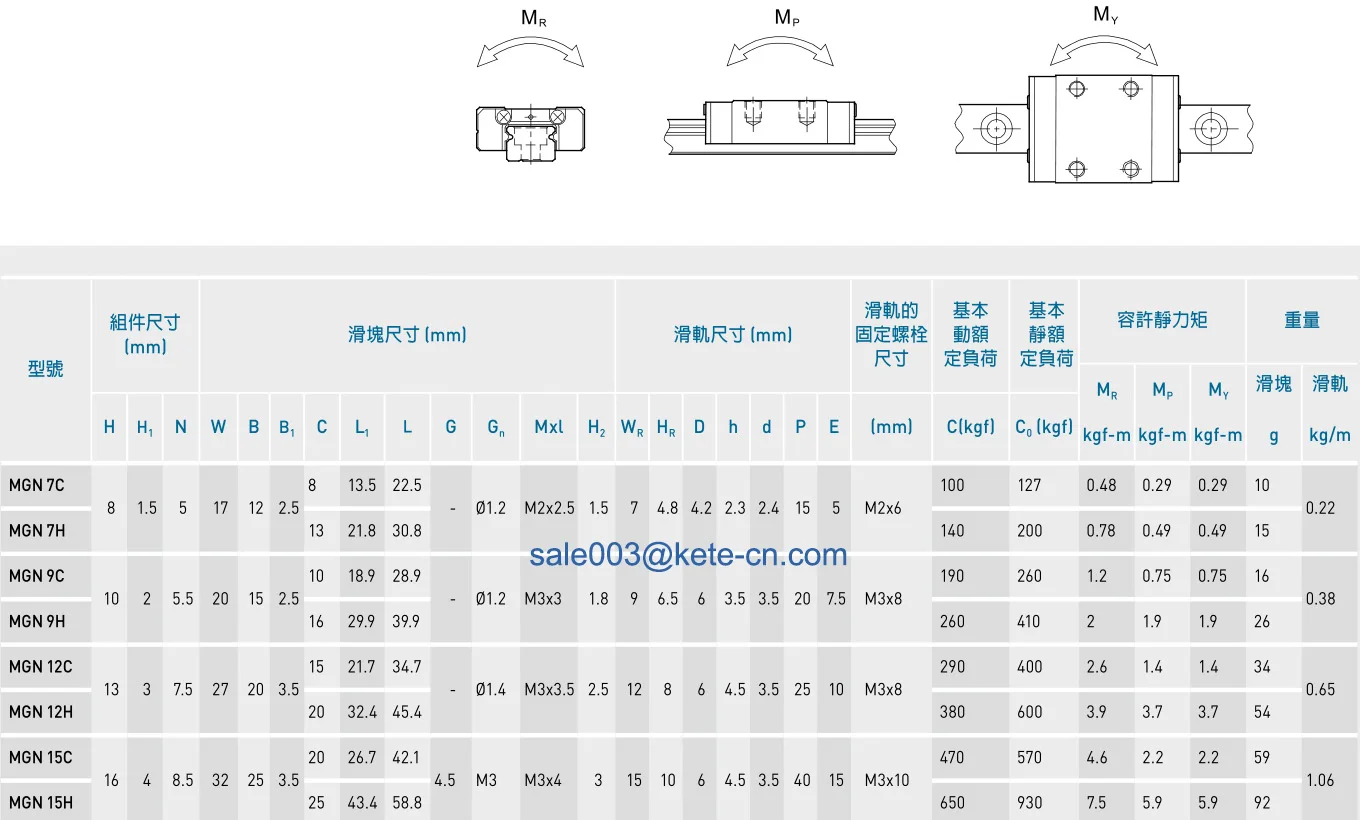

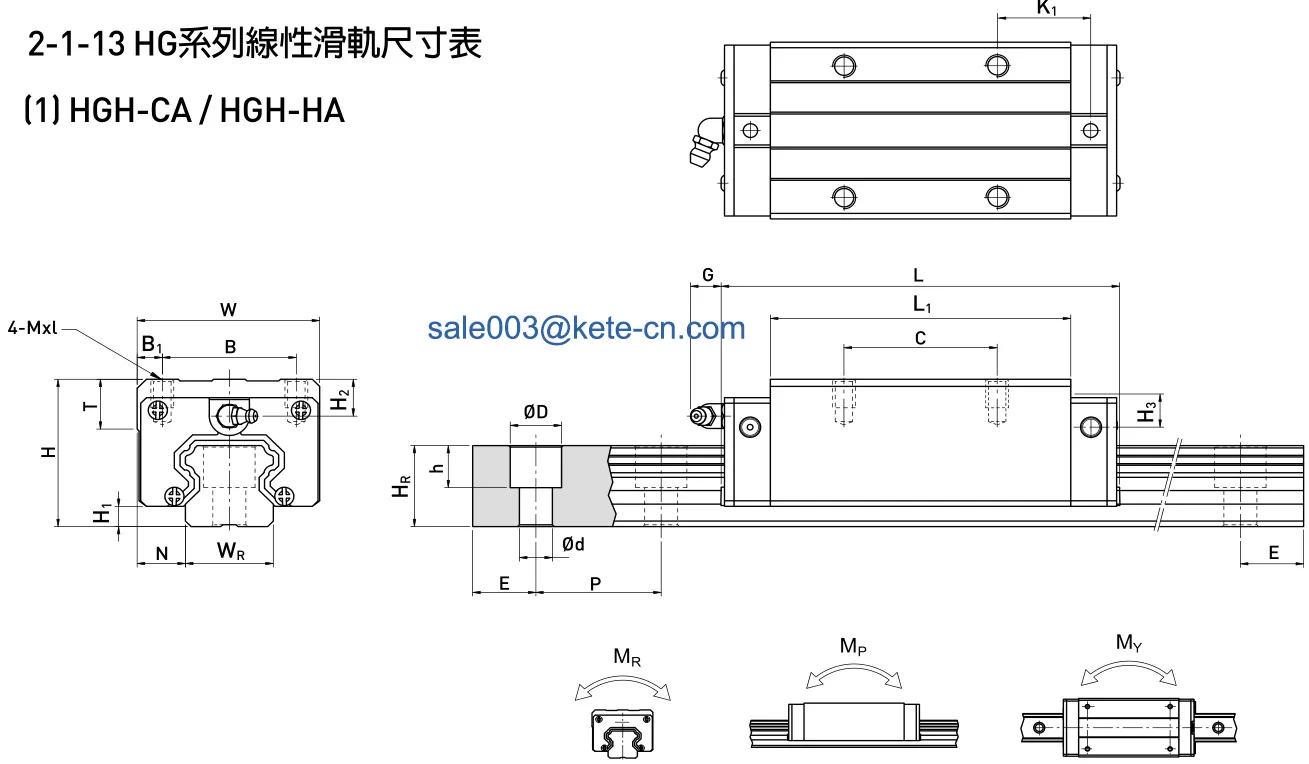

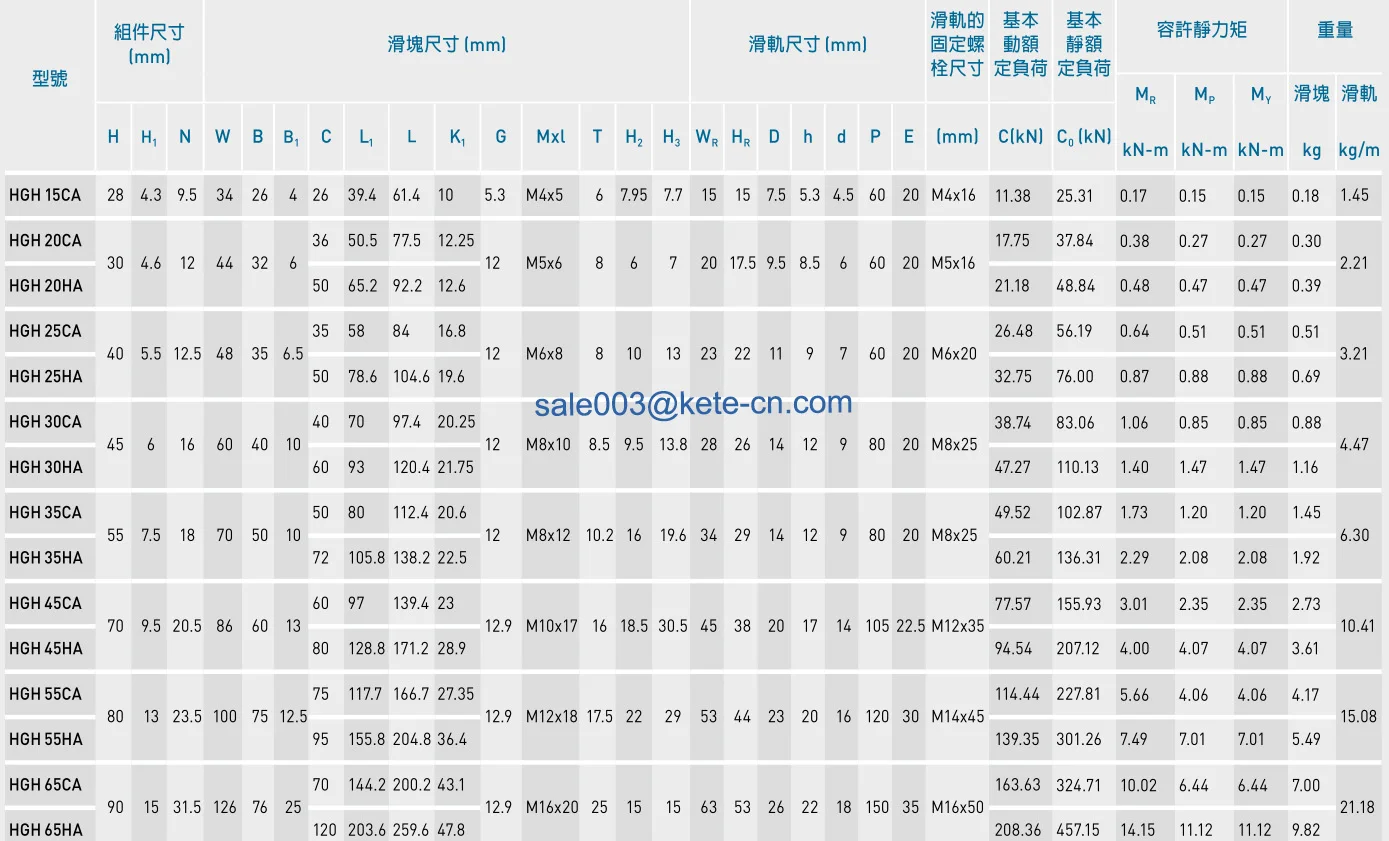

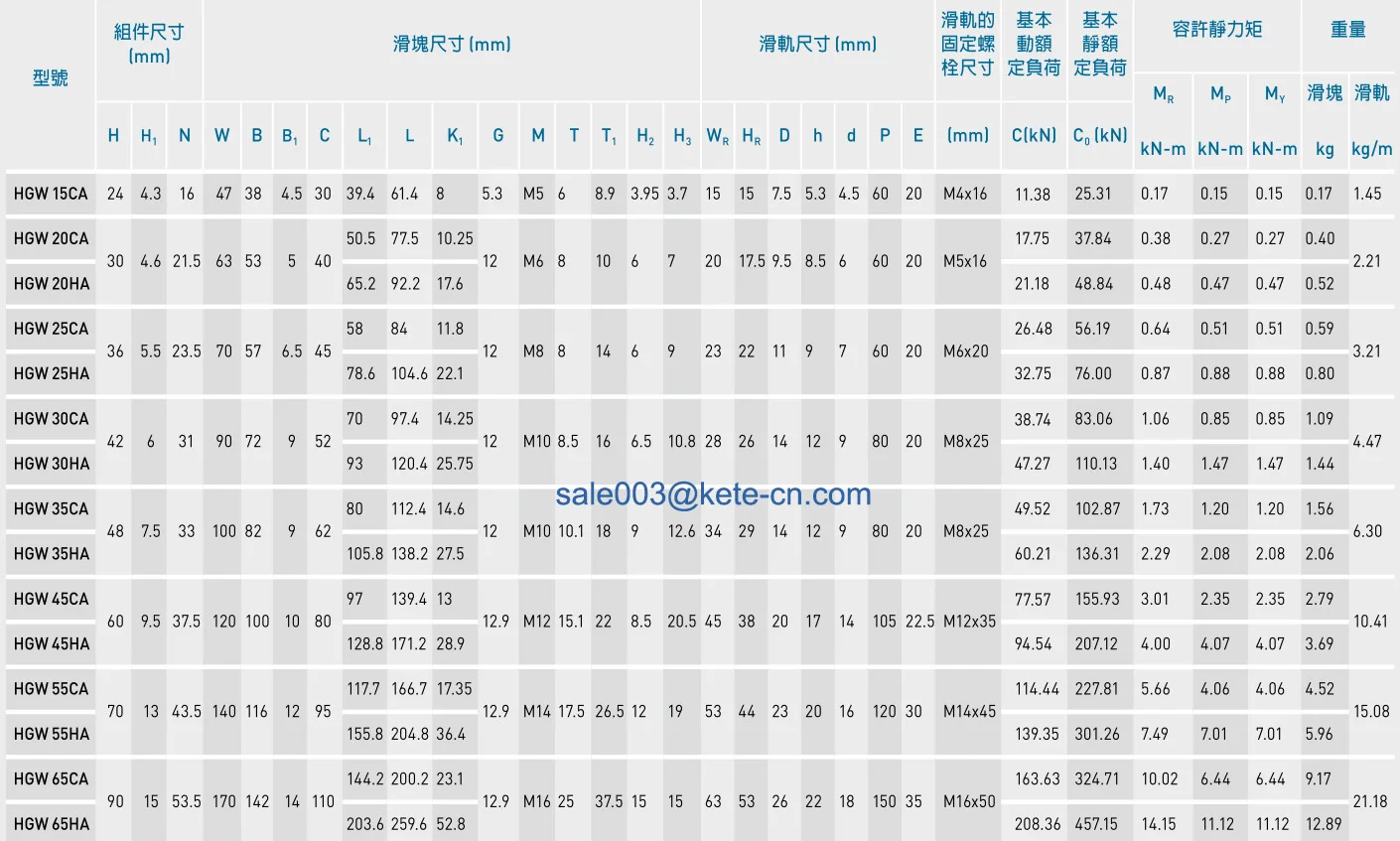

Product Data Sheet

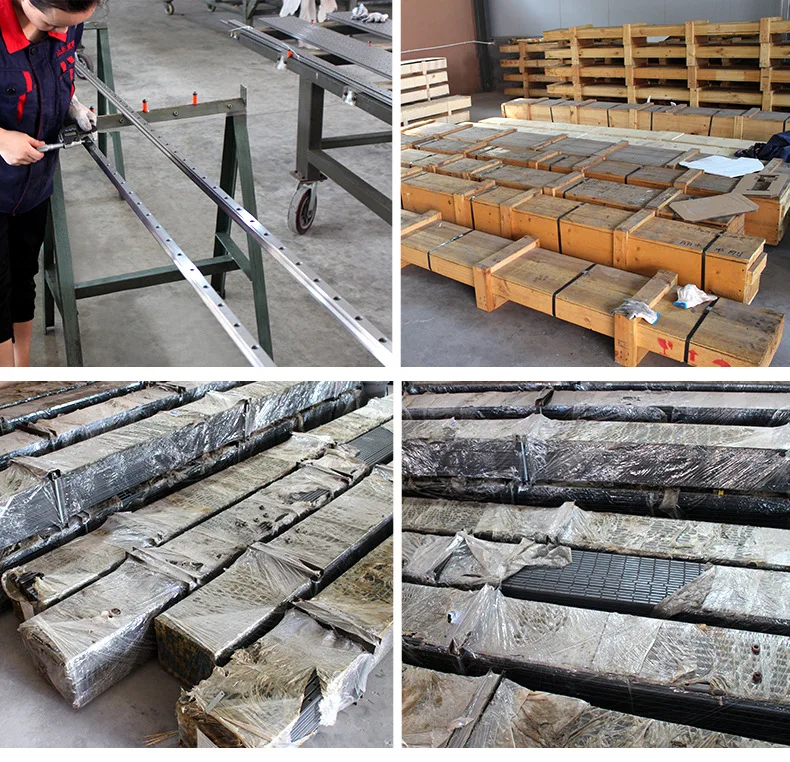

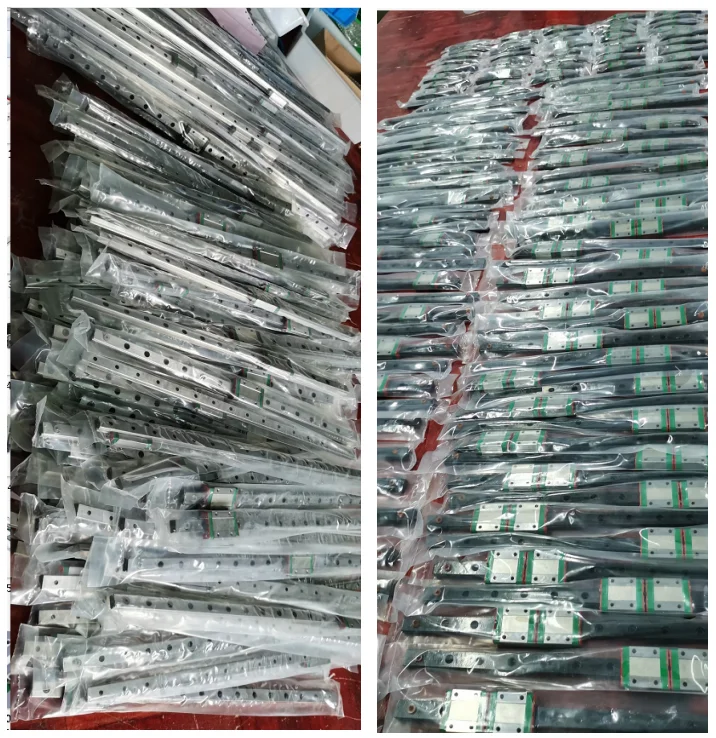

Packing & Shipping

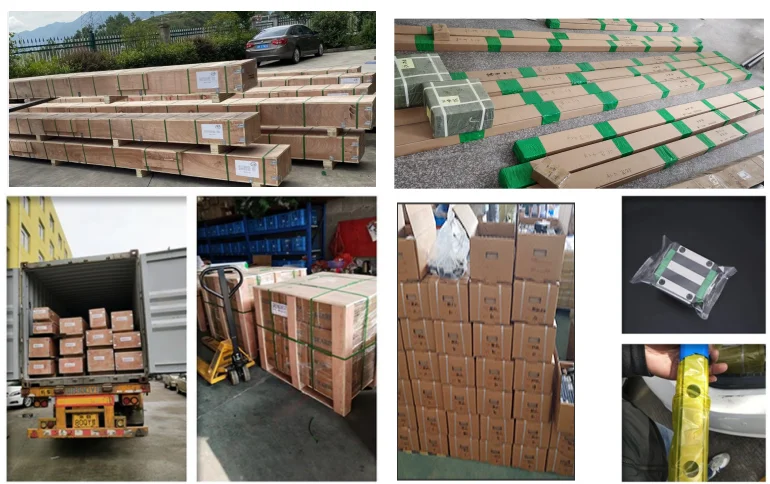

Packaging :
1.Export standard carton, wooden box
2. According to customer's special requirements.

Shipping:
1. Small sample is packed by carton box and it is shipped by international express as FedEx,UPS,DHL,TNT etc.
It will save shipment cost for customers .
2. Samples in stock will be delivered within 3 days and customized samples will be delivered within 30 days. Delivery date for bulk order depends on order quantity.
