High accuracy Good price 3D CNC Engraving Milling Machine 5 axis Engraver For Plastic Wood Aluminium Bubble Foam

Product Overview

Description

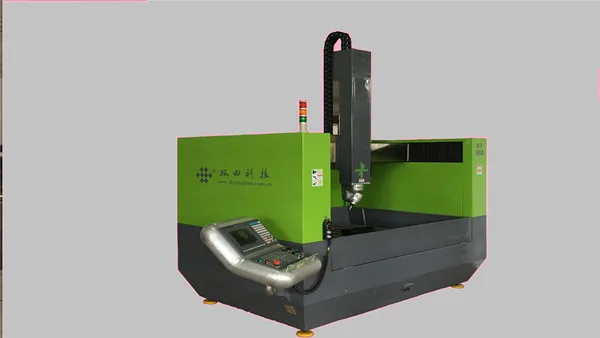

5-Axis CNC Engraving Milling Machine

                                             simlifies Multi-side Fabrication



Model: ST-1510/2015/3020-5X (Customized Size Accepted)



5-axis CNC Engraving Machine Properties



Machine Model	ST-1510-5X	ST-2015-5X	ST-3020-5X
Working Table	1800*1300mm	2400*1900mm	3500*2500mm
Dimension(L*W*H)	2500*1600*2000mm	3500*2100*2400mm	4500*2700*3000mm
Weight	2000KG	2500KG	3000KG
X Axis Stroke	1500mm	2000mm	3000mm
Y Axis Stroke	1000mm	1500mm	2000mm
Z Axis Stroke	600mm	800mm	1000mm

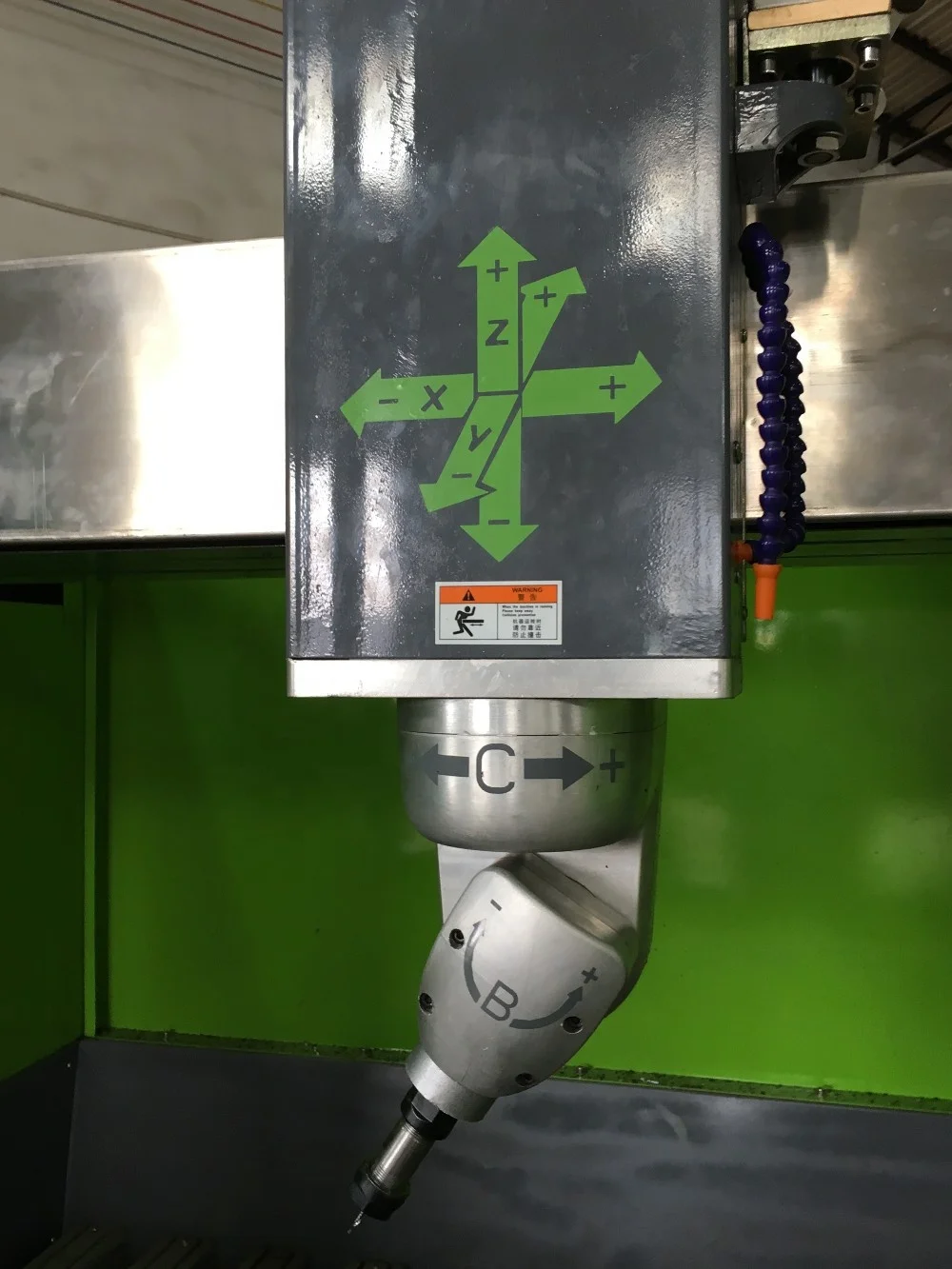

B Axis Stroke	±110°
C Axis Stroke	±720°
Spindle	High-speed air cooling spindle (optional)
Drive Motor	Yaskawa servo motor (optional)
Spindle Speed	1000-18000 RPM
Guide	Taiwan PMI linear guide rail
Screw	Taiwan PMI ball screw
Instruction Format	NC, ENG, G code/ HPGL, PLT (original carving code)
Spindle Tool	φ3mm~φ13 mm
Power	11KW
Voltage	220V/380V 50-60HZ

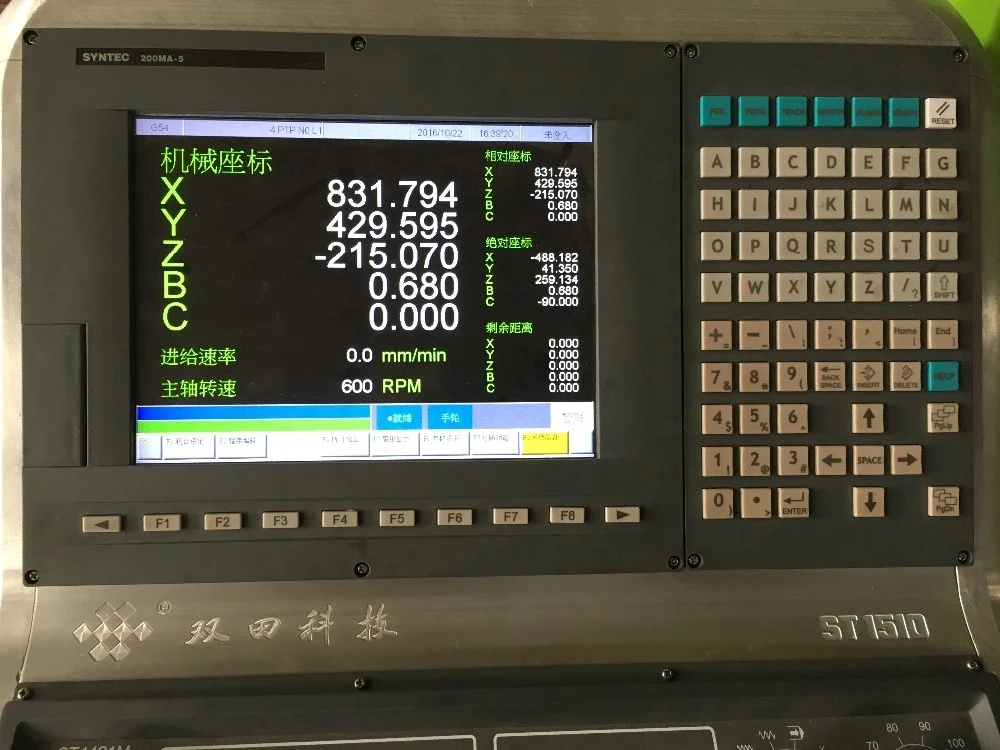

Control System	Taiwan Syntec
Repeat Positioning Accuracy	±0.01mm
System Resolution	0.001 mm







Applications

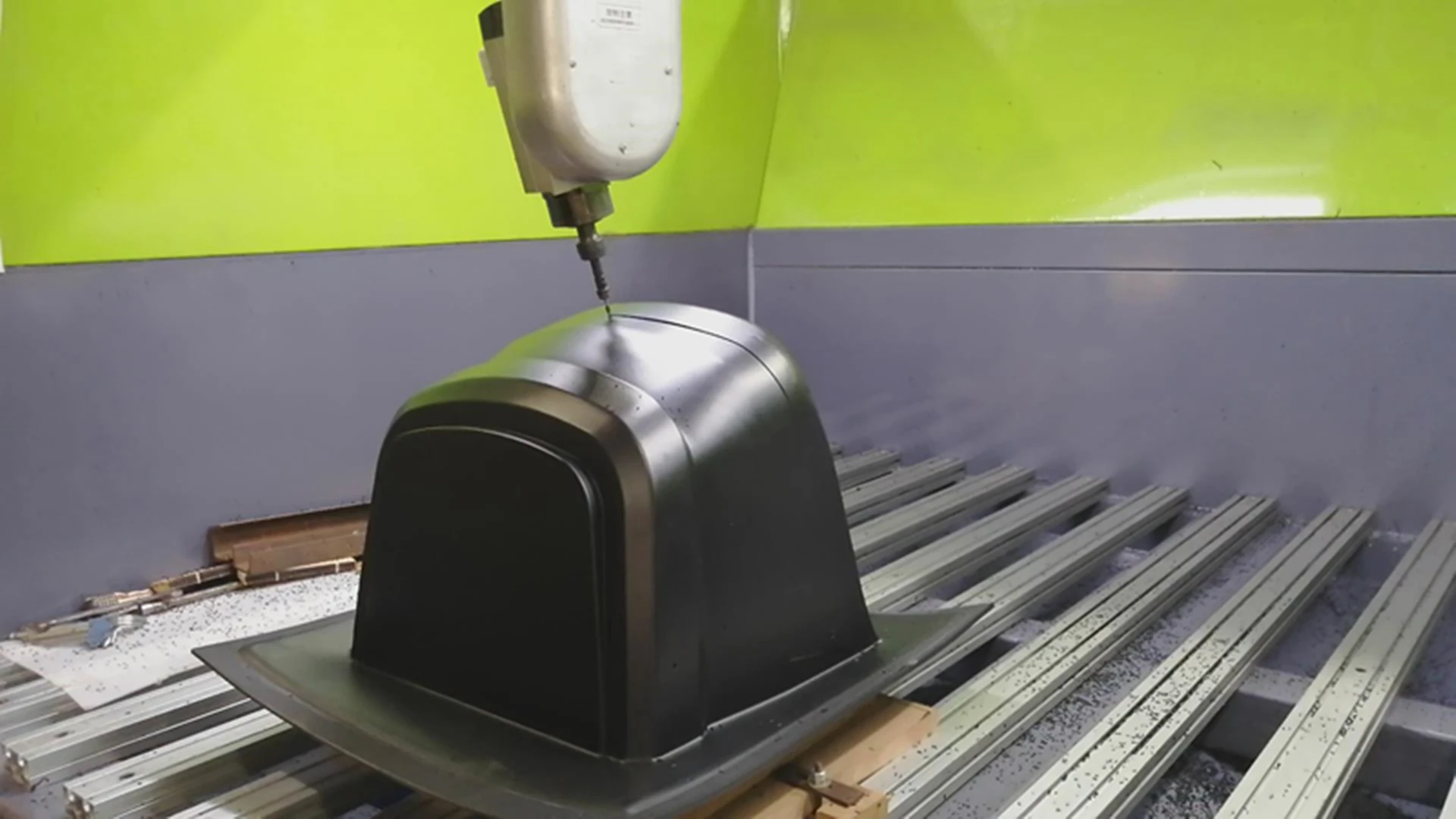

1. Used in industry of tooling, casting, automobile foam molding, ceremic sanitary ware, boat wood molding, yacht, airplane, wood molding, turbine and rail transit to fabricate the workpiece’s 3D surface by 5-axis carving and shaping.

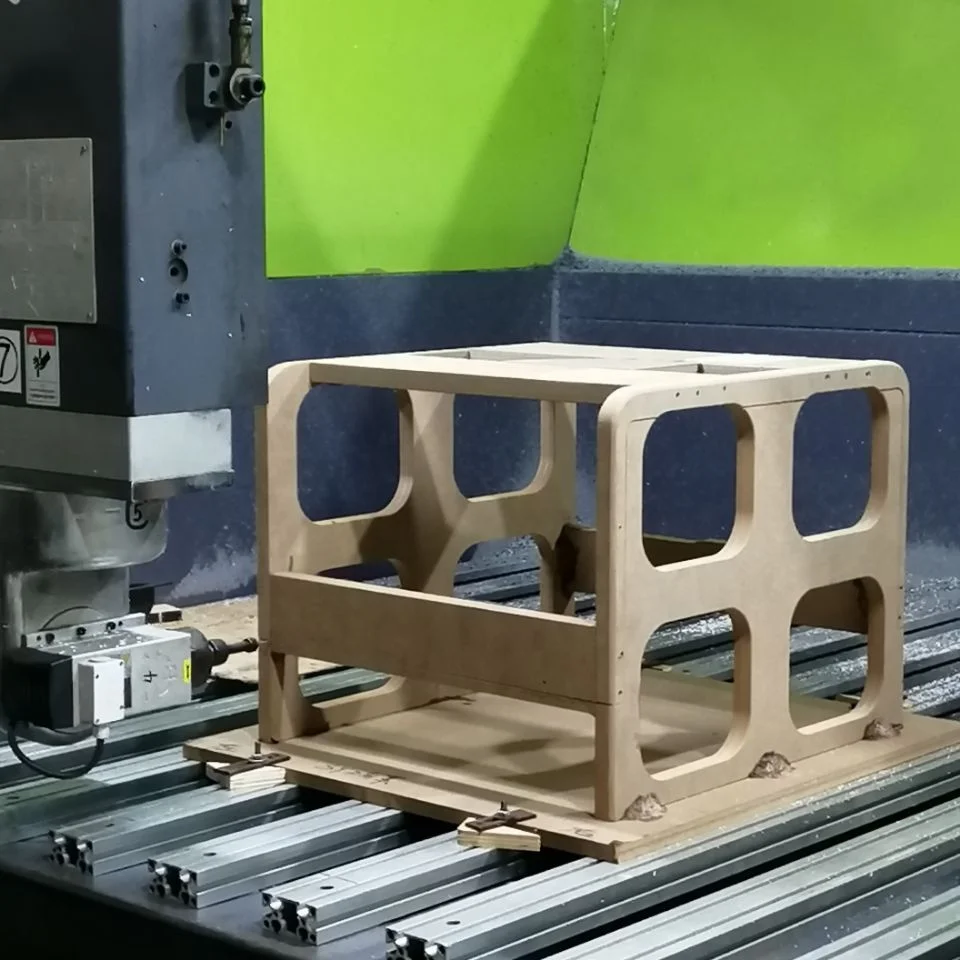

2. Also used in industries of vacuum forming, blowing molding, injection molding, die-casting aluminium , aluminium extrusion, carbon fibre, generation wood, wood, gypsum , polaroid bubble and resin to finish the complicated procedure of cutting, punching, trimming, drilling, tapping and carving in multi sides of the workpiece yet cramping just once.





Features

1.     Principal axis moves, the heavy machine body welded together with super thick steel is excellent in rigidity and stability.

2.     High working precision, complete function, stable performance and good software compatibility, with Taiwan Syntec control system adopted.

3.     With Japanese Yaskawa servo drives, working precision and stability are guaranteed.

4.     Special high precision motorized spindle is used and the axis centre moves little while working, the machine has strong cutting force, long service life and low noise.

5.     Taiwan high-precision PMI roller screw and high precision linear rail are used.
