PV1 F 1x4mm2 6mm2 8mm2 10mm2 DC Solar PV Cable 4mm XLPE Cable
- Category: >>>
- Supplier: Shenzhen Dream-Start Electronics Co. Ltd.
Share on (1600460204006):
Product Overview
Description
Specification

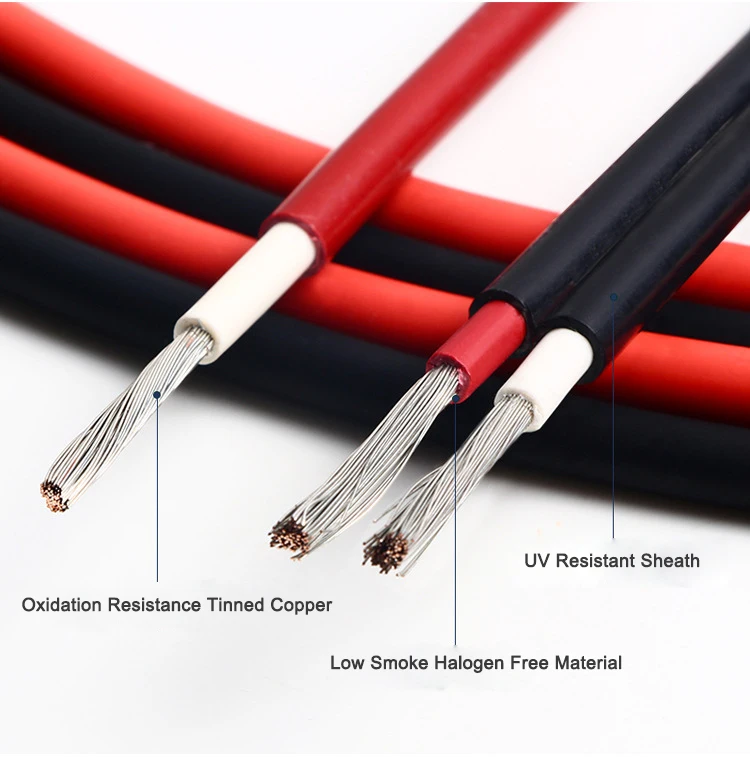

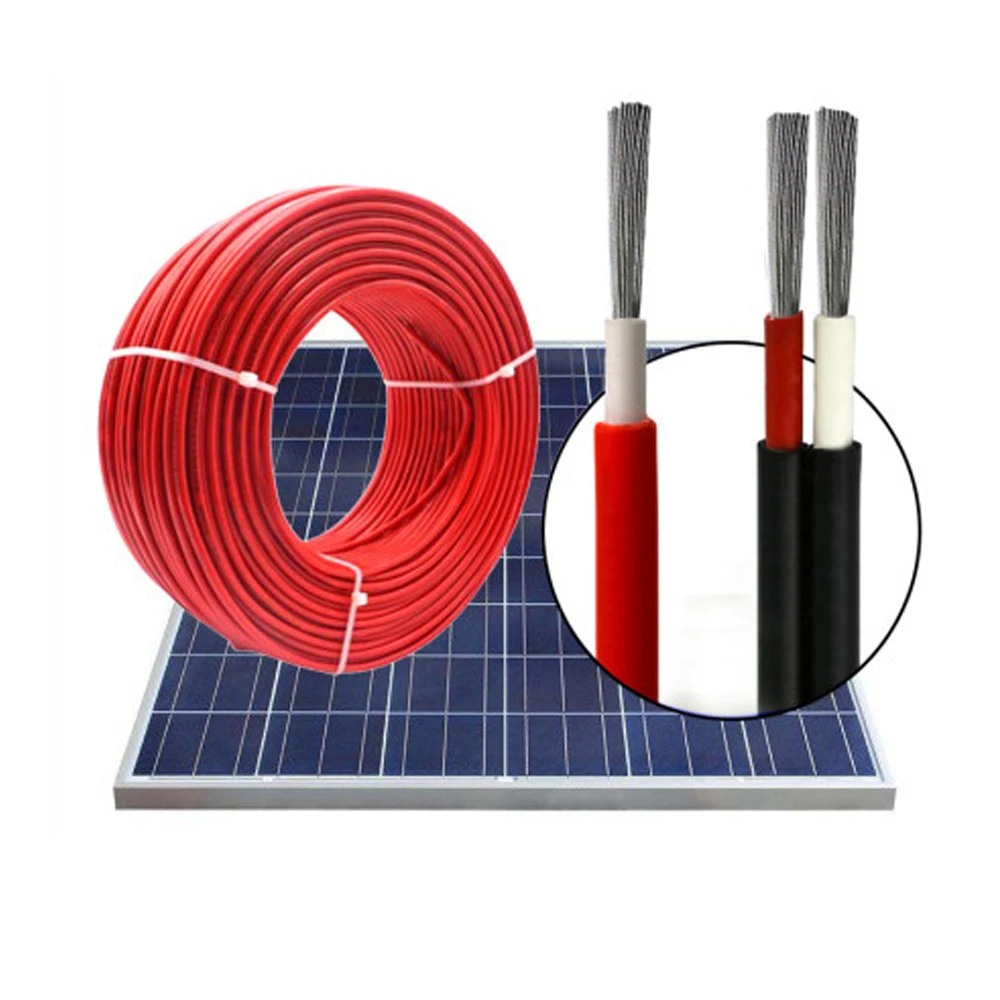

PV1-F 1x4mm2 6mm2 8mm2 10mm2 DC Solar PV Cable 4mm XLPE Cable
Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified
polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer,
eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable
insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure
Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
parameters
Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.
Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified
polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer,
eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable
insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure
Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
parameters
Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.
TYPE | Cross Section | Wire struct | Conductor Diameter | Outer Diameter | Conductor Resistance | Rated Voltage | Rated Current |
mm2 | No.OD(mm) | mm | mm2 | Ω/Km | VAC/DC | A | |
1X2.5MM2 | 2.5 | 48x0.25 | 2.0 | 5.2 | 8.06 | 1000/1800 | 30 |
1X4.0MM2 | 4.0 | 56X0.30 | 2.6 | 6.4 | 4.97 | 1000/1800 | 50 |
1X6.0MM2 | 6.0 | 81X0.30 | 3.3 | 7.2 | 3.52 | 1000/1800 | 70 |
1X10MM2 | 10 | 74X0.40 | 4.4 | 8.3 | 2.12 | 1000/1800 | 95 |
2X2.5MM2 | 2.5 | 48X0.25 | 2.0 | 6.2X9.9 | 8.06 | 1000/1800 | 30 |
2X4.0MM2 | 4 | 56X0.30 | 2.6 | 6.9X11.30 | 4.79 | 1000/1800 | 50 |
2X6.0MM2 | 6.0 | 81X0.30 | 3.3 | 7.1X14.50 | 3.52 | 1000/1800 | 70 |

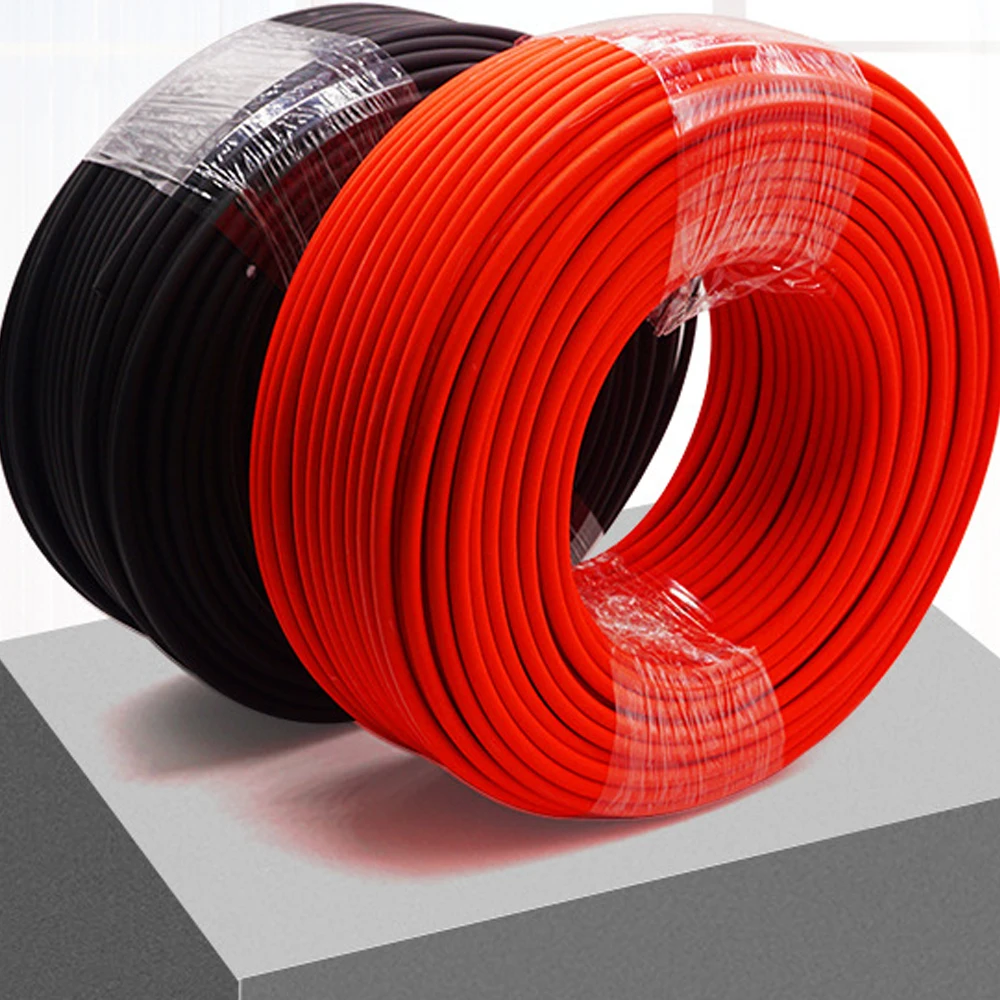

Product Description
Packing & Delivery
Company Profile
