Product Overview
Description
Product Overview

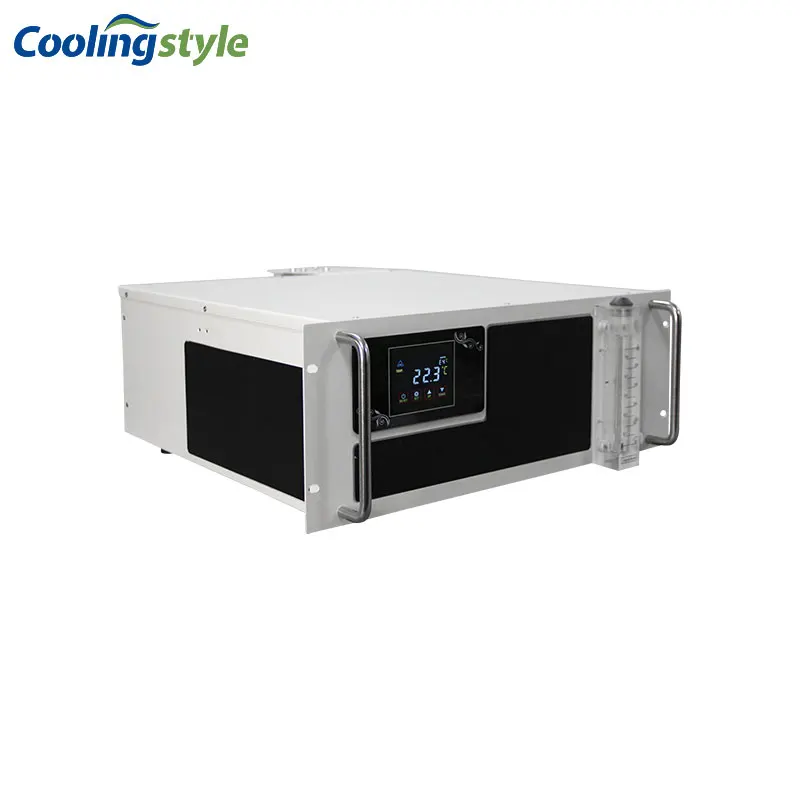

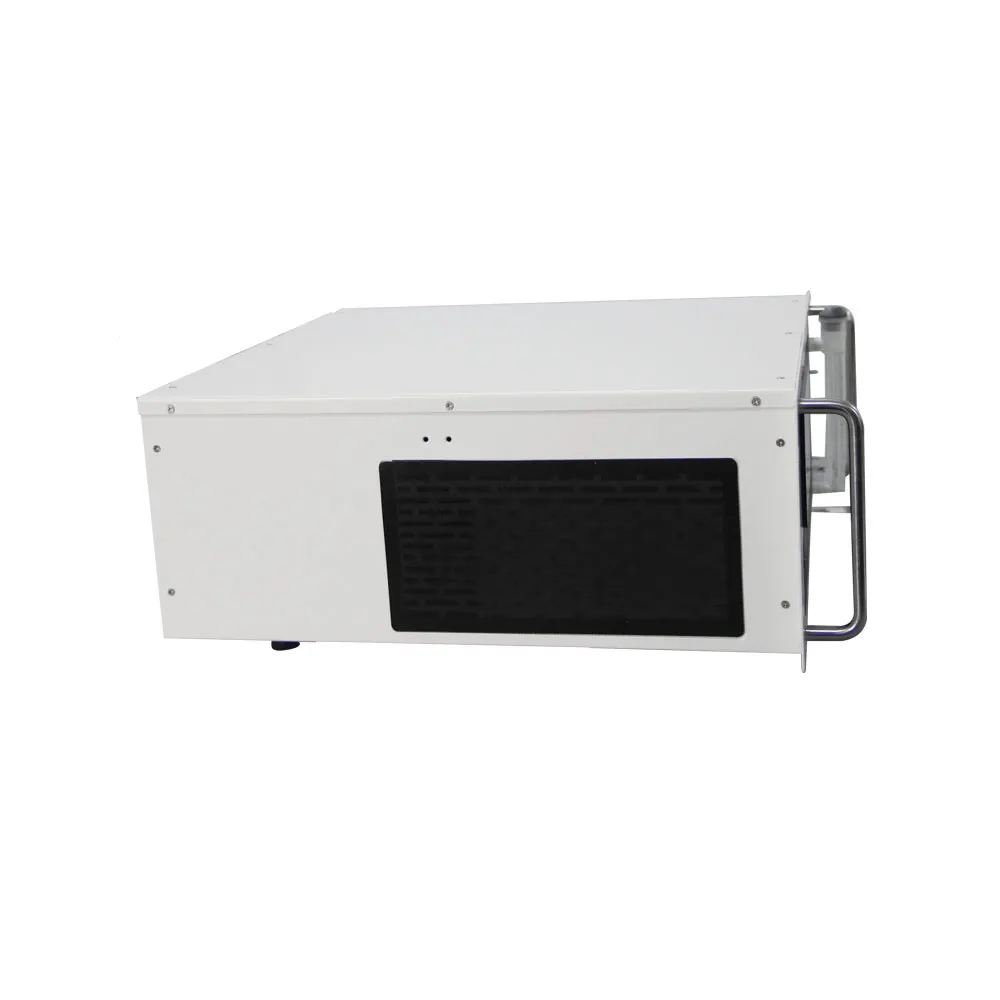

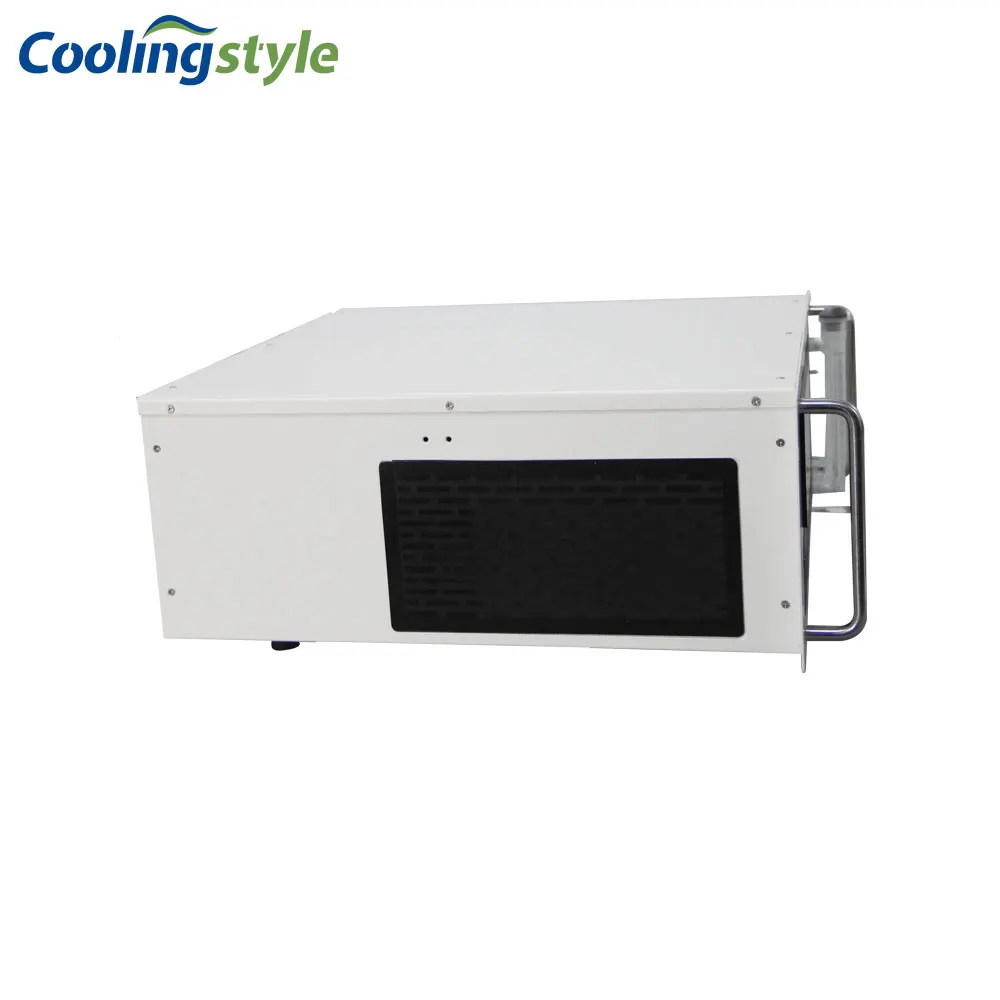

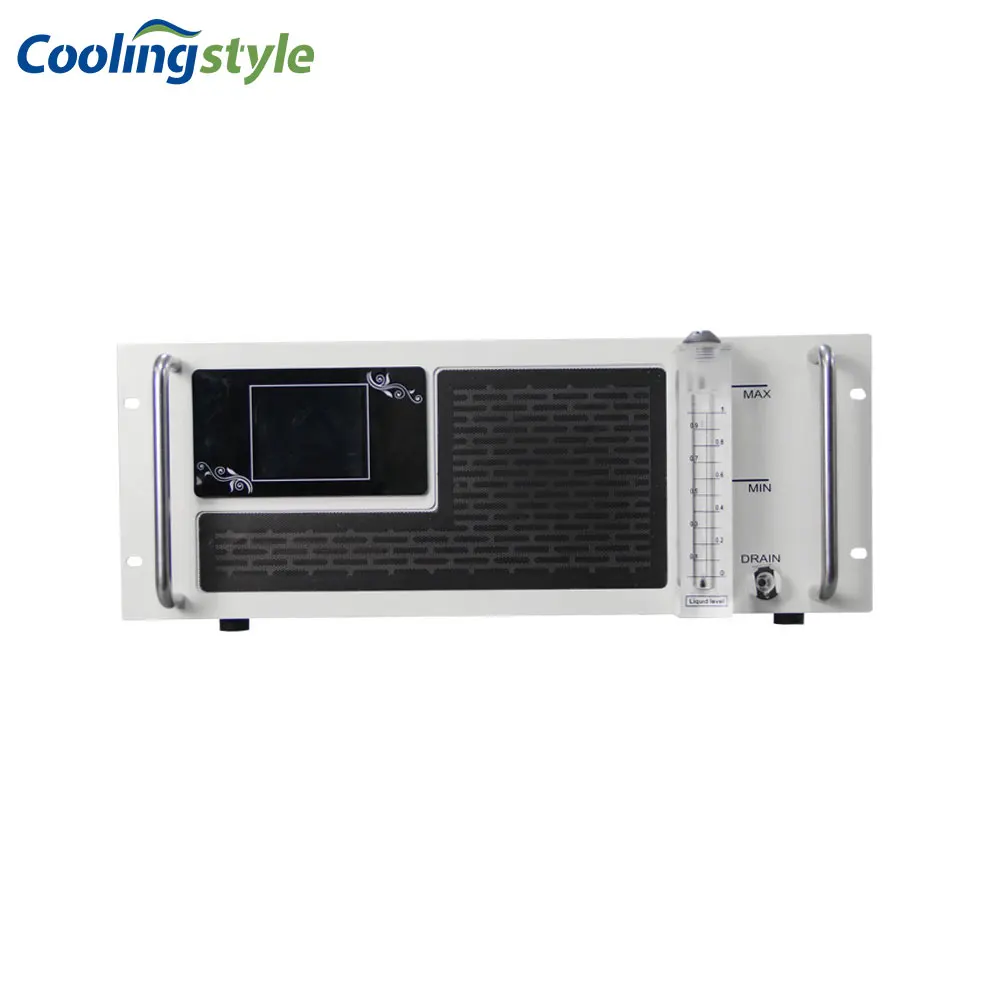

High Quality Rackmount 4U UV Laser Chiller
Featuring precise temperature control, quiet operation and high reliability, our recirculating chillers range from compact thermoelectric chillers with a cooling capacity of 420 W to a multitude of stand-alone and rack-mount devices based on rotary compressor engines all the way to larger powerful chillers capable of dealing with heat loads up to 1600W.
Beyond the standard versions, a variety of options can be provided for different fluids, pumps, low temperatures below freezing, control and monitoring, additional heating and other aspects – all the way to fully customized solutions tailored to your requirements.
Our recirculating chillers are used in applications like laser cooling, laboratory instrumentation, medical and analytical
equipment, scanning electron microscopes, power supplies, printers or tooling machines
Beyond the standard versions, a variety of options can be provided for different fluids, pumps, low temperatures below freezing, control and monitoring, additional heating and other aspects – all the way to fully customized solutions tailored to your requirements.
Our recirculating chillers are used in applications like laser cooling, laboratory instrumentation, medical and analytical
equipment, scanning electron microscopes, power supplies, printers or tooling machines
FEATURES AT A GLANCE
Features
1. Compact size: 4U 17.7"*19"*7"

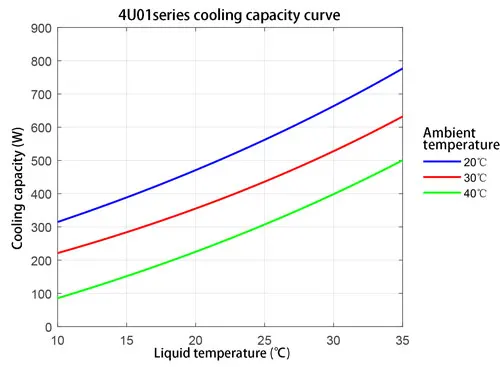

2. Cooling capacities from 420 to 580 watts depending on configuration.
3. ±0.1°C Temperature Stability/repeatability, even at ambient temperature
4. Improves laser performance: improves stability, reduces beam variation
5. HD LCD screen display
6. Intelligent frequency conversion, low energy consumption
7. RS485 is optional
8. Perfect for any application where a rackmount solution is preferred
Product name | Water chiller | Model | CS-RMC-4U01AC02 | CS-RMC-4U02AC02 | |
Item | Unit | Value | Value | ||
Nominal cooling capacity | W | 420@25°C(with 30°C ambient) | 580@25°C (with 30°C ambient) | ||
Rated voltage | V | 220 | 220 | ||
Max power | W | 660 | 660 | ||
Electric heating power | W | 400 | 400 | ||
Compressor speed range | rpm | 2700~6300 | 2700~6300 | ||
Pump | Head | m | 27 | 27 | |

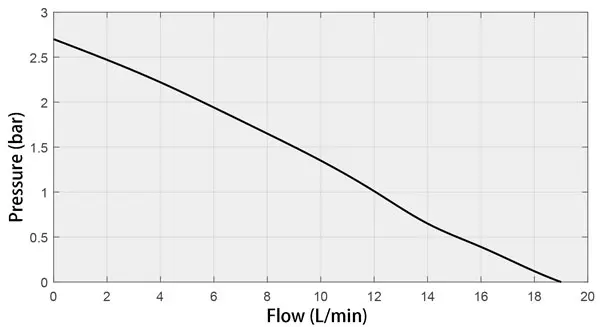

Max flow | L/min | 19 | 19 | ||
Refrigerant | Type | R134a | R134a | ||
Tank | Volume | L | 1.5 | 1.5 | |
Temperature setting range | °C | 10~35 | 10~35 | ||
Temperature control accuracy | °C | ±0.1 | ±0.1 | ||
Working temperature | °C | 0~40 | 0~40 | ||
Storage temperature | °C | -10~60 | -10~60 | ||
Net weight | kg | 17 | 17 | ||
Inlet and outlet | mm | 9.5mm diameter quick connector | 9.5mm diameter quick connector | ||
Color | White | Black | |||

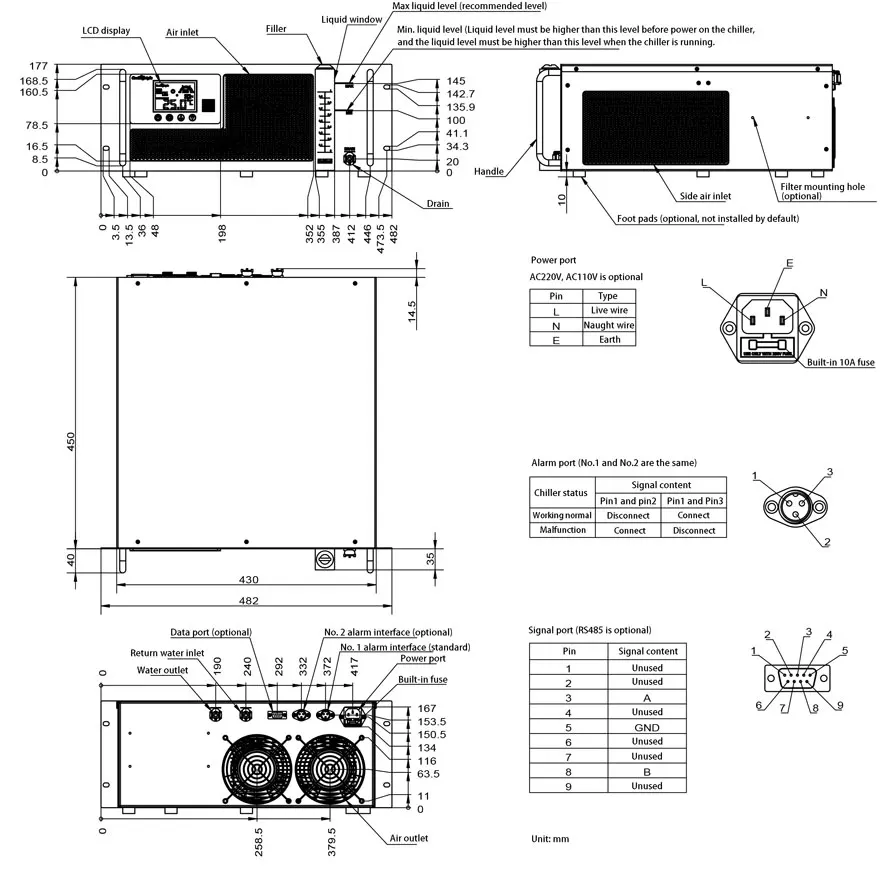

Machine size | mm | 450*482*177 | 450*482*177 | ||
Package size | mm | 560*520*245 | 560*520*245 | ||
SIMILAR PRODUCTS
CS-RMC-M400 CHILLER
CS-RMC-4U CHILLER
CS-RMC-5U CHILLER
CS-MRC-Q420 CHILLER
CS-MRC-Q400 CHILLER
CS-MDC-A200 DIRECT CHILLER
Company Profile
FAQ
1. How to choose a suitable chiller?
Our sales will help you choose a suitable model by communicating with you about the power supply, cooling capacity requirement, application, etc.
2. Do you have the chillers in stock?
Usually, we have the chillers in stock. The lead time is about 3 days. If not, the lead time is depended on the order quantity. Please contact us for details.
3. Are you the factory? Can you customize it?
We are the direct factory. We have a strong R&D team who can provide flexible customized solutions, please feel free to contact us to get your own solutions.
4. What is the MOQ?
We don't have strict MOQ requirements, usually, we have the product in stock to satisfy customers' urgent orders. So small quantities are ok.
5. How about the warranty?
The warranty period is 1 year, and we offer free technical assistance if exceeds the warranty.
Our sales will help you choose a suitable model by communicating with you about the power supply, cooling capacity requirement, application, etc.
2. Do you have the chillers in stock?
Usually, we have the chillers in stock. The lead time is about 3 days. If not, the lead time is depended on the order quantity. Please contact us for details.
3. Are you the factory? Can you customize it?
We are the direct factory. We have a strong R&D team who can provide flexible customized solutions, please feel free to contact us to get your own solutions.
4. What is the MOQ?
We don't have strict MOQ requirements, usually, we have the product in stock to satisfy customers' urgent orders. So small quantities are ok.
5. How about the warranty?
The warranty period is 1 year, and we offer free technical assistance if exceeds the warranty.
