VS 650 Automatic food vacuum preservation machine and vacuum skin machine automatic tray sealer multi function
- Category: >>>
- Supplier: Zhejiang Ruibao Packaging Machine Co. Ltd.
Share on (1600460230487):
Product Overview
Description
Brief instruction
Multi purpose food automatic tray sealer SKIN-550D, support VSP and MAP
Both packing mold for VSP and MAP will be customized as per your actual tray. Change the mold, you can switch the function with same machine.
It will make your food such as fresh meat, fish, cooked food, fruits more attractive, and can extend the shelf life.
It will make your food such as fresh meat, fish, cooked food, fruits more attractive, and can extend the shelf life.
Only need to put tray on the machine, the machine will automatic feed trays into a closed chamber for vacuum skin pack and then output trays with high speed. This way save man labor, and avoid further touch between worker and food.
This machine is suitable to be built with a whole packing line, working together with automatic tray feeder, label machine, weight machine, metal detector. we can offer them all if there is need.
Advantage
This machine is suitable to be built with a whole packing line, working together with automatic tray feeder, label machine, weight machine, metal detector. we can offer them all if there is need.
Advantage
* CE certificated
* Multi purpose for MAP and VSP
* Individually built for your trays
* Installed with German vacuum pump
* Easy for maintain and operate
* Prolong shelf life of food
* Prolong shelf life of food
* Food more attractive on shelf
* Easy open aid

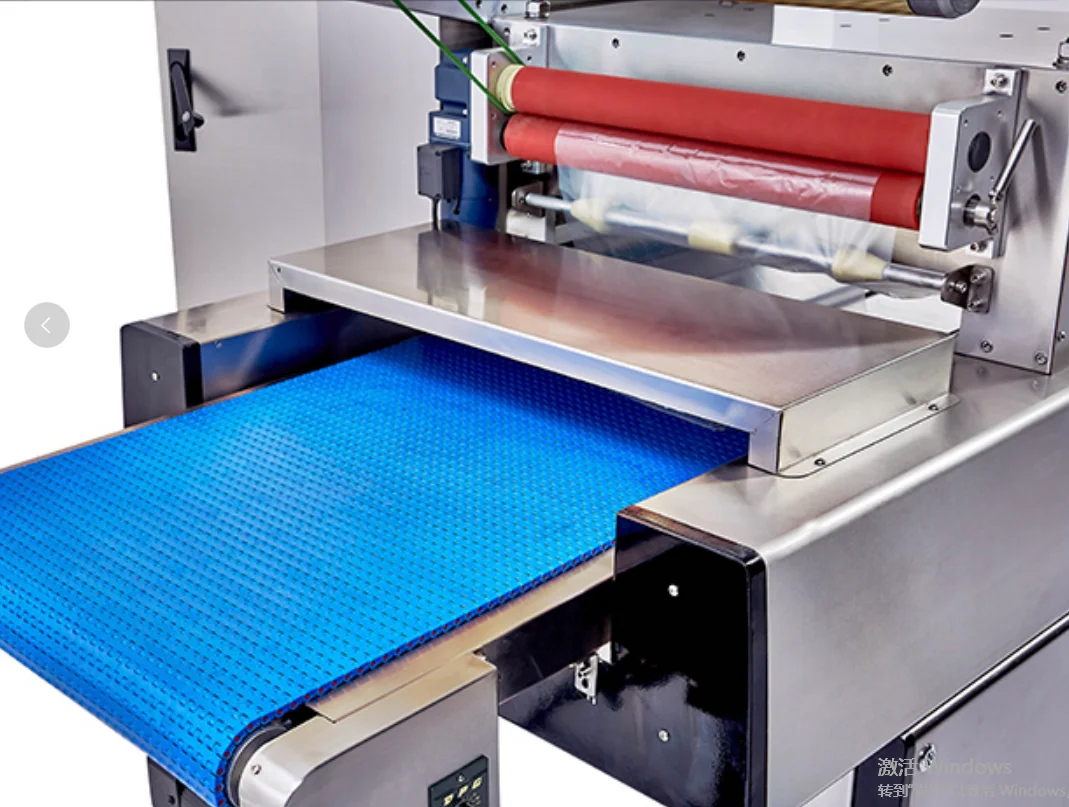

* Automatic film feeding and cut, more sanitary
* Installed with conveyor, enable it work with other machines
* The tray can be heat in microwave oven
* The tray can be heat in microwave oven
* Supply training video
* Support remote access for touch screen
* Able to put your company info in touch screen
* Support remote access for touch screen
* Able to put your company info in touch screen

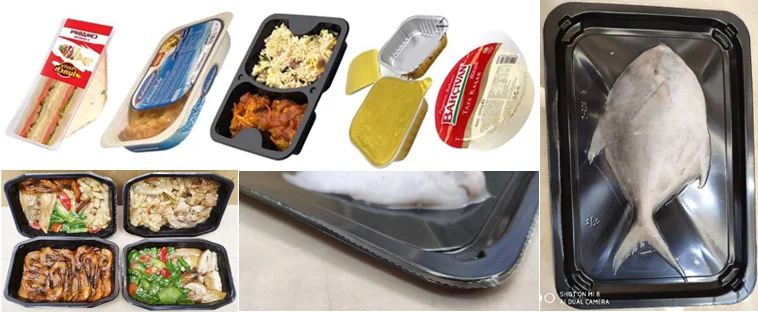

Trays and material
Application
* MAP and VSP are the latest Convenience Foods & Ready Meals innovation. They are widely to be used to pack ready meal, fruit, salmon fish, seafood, meat, beef steak, cheese etc.
* Boosts consumer appeal by preserving food quality and keeping food stationary in the tray.
* Removing the oxygen preserves the food to extend the shelf life of the product.
* Vacuum-sealed technology ensures that the food taste and ingredients are captured at their freshest.
* Removing the oxygen preserves the food to extend the shelf life of the product.
* Vacuum-sealed technology ensures that the food taste and ingredients are captured at their freshest.
Parameter and price
Model | SKIN-550D |
Voltage | 220V/380V/450V 50/60HZ or customized |

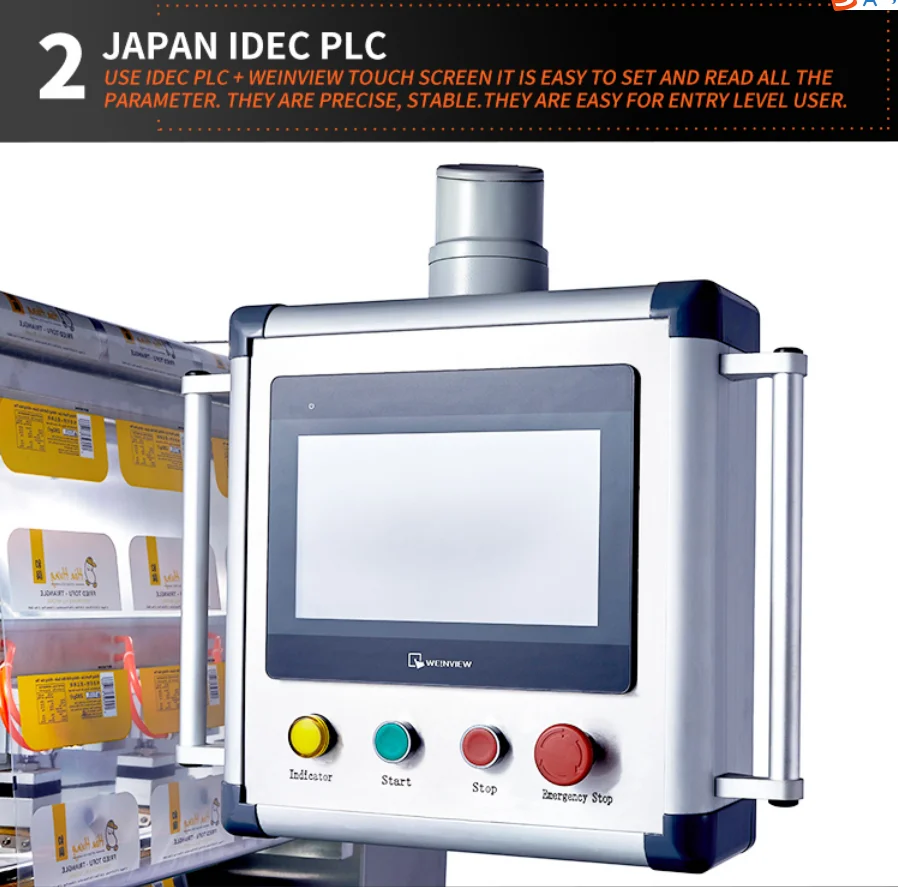

Controller | IDEC PLC + Weinview touch screen |
Vacuum pump | Rietschle brand from German |
Vacuum degree | Maxi 0.1Mba |

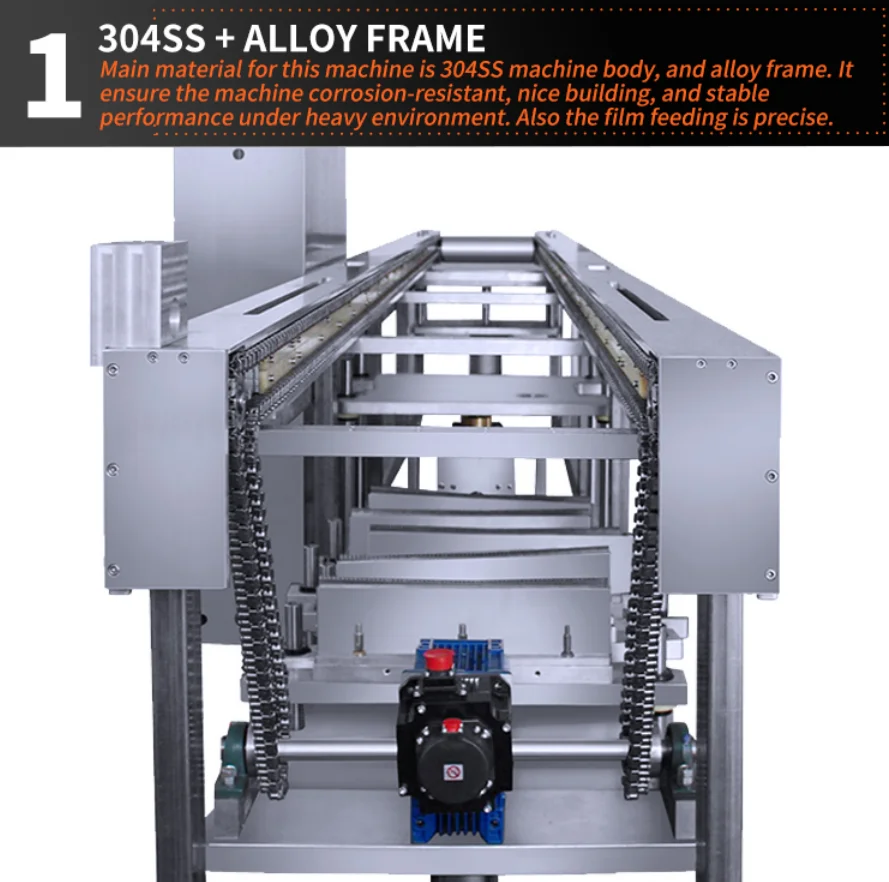

Material | Mainly 304SS |
Multi tooling | Include 1 tooling for VSP, and 1 tooling for MAP |
Packing speed | About 2-3 cycles per minute |
Weight | About 750KG |
Power | About 8KW |
Certificate | CE |
Guarantee | 1 year |
Language | English/Chinese/Spain for option |
Air compressor | Not include in the price. The air pressure shall be about 0.6-0.8Mpa |

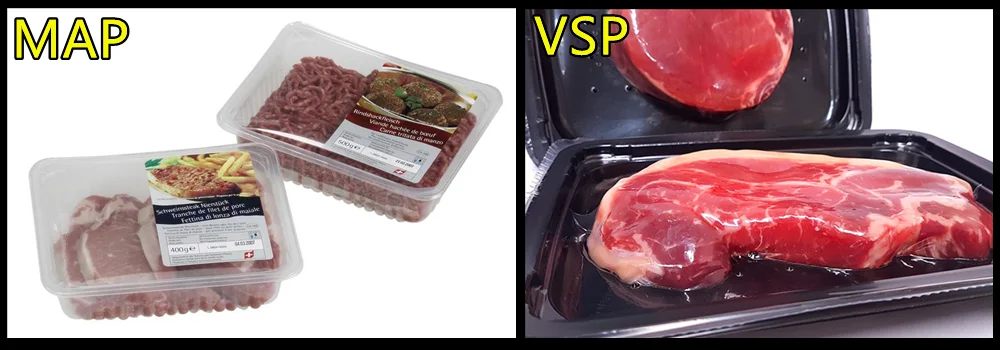

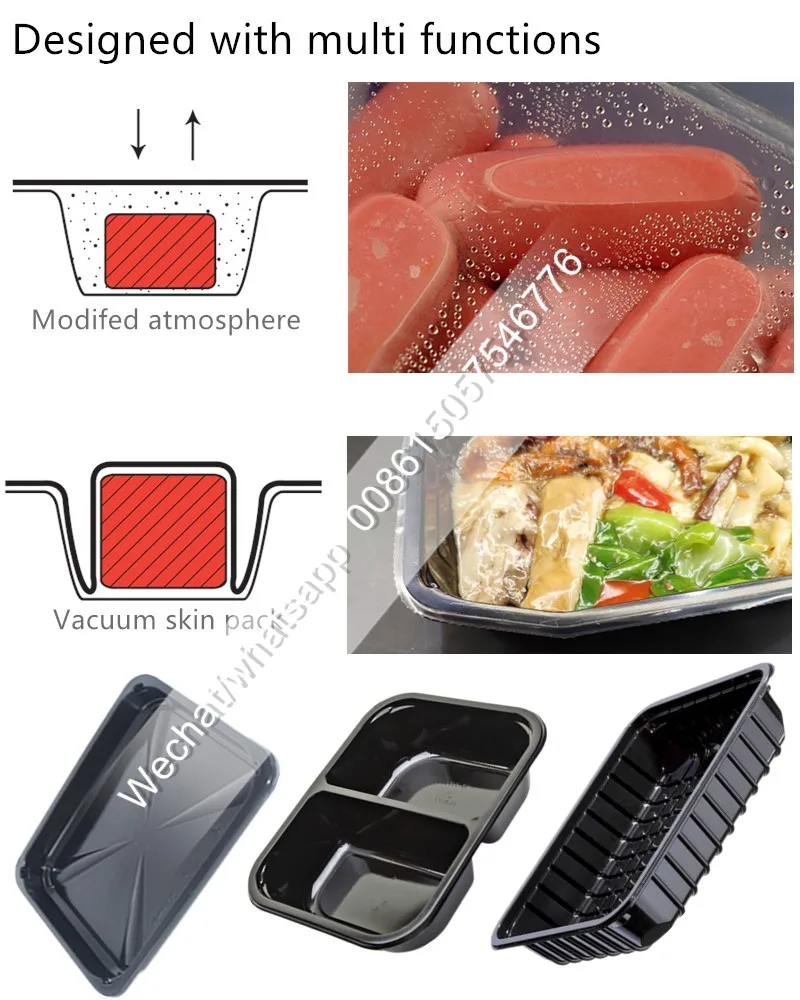

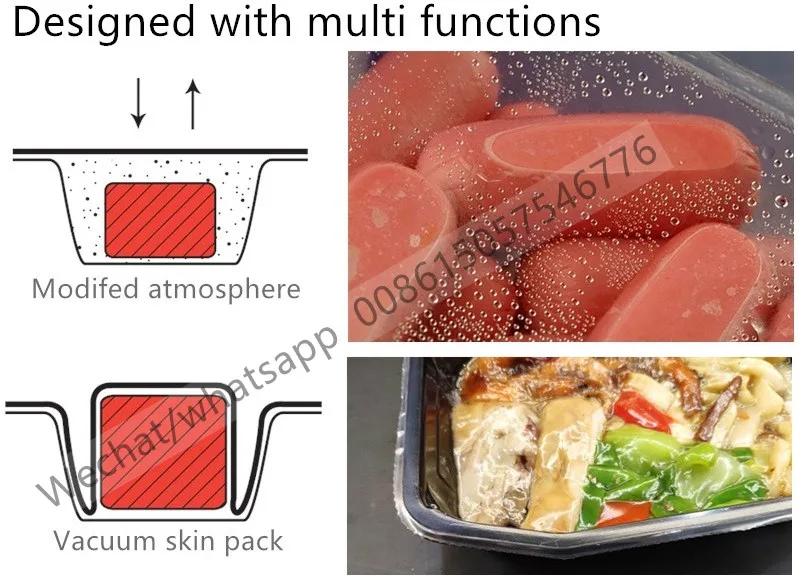

1.One machine can support both modified atmosphere packing(MAP for short) and vacuum skin pack(VSP for short)
MAP only, unit price 17856-25888USD
VSP only, unit price 23760-26100USD
MAP+VSP, unit price 27900-29188USD
2. We can also supply tray and film, if client buy our machine together
3. Shipping terms. CIF price based on the seaport the machine shipped to.
4. The voltage is 380V/50HZ/3phase. We also customize machine with different voltage if client require it.
5. It cost 1000USD for an air compressor, if client buy from us.
6. Remote access. We have another option with local brand touch screen, so that it can support remote access for process monitor, program upgrade, language modify.
7. The packing mold will be customized accordingly to actual tray sample.

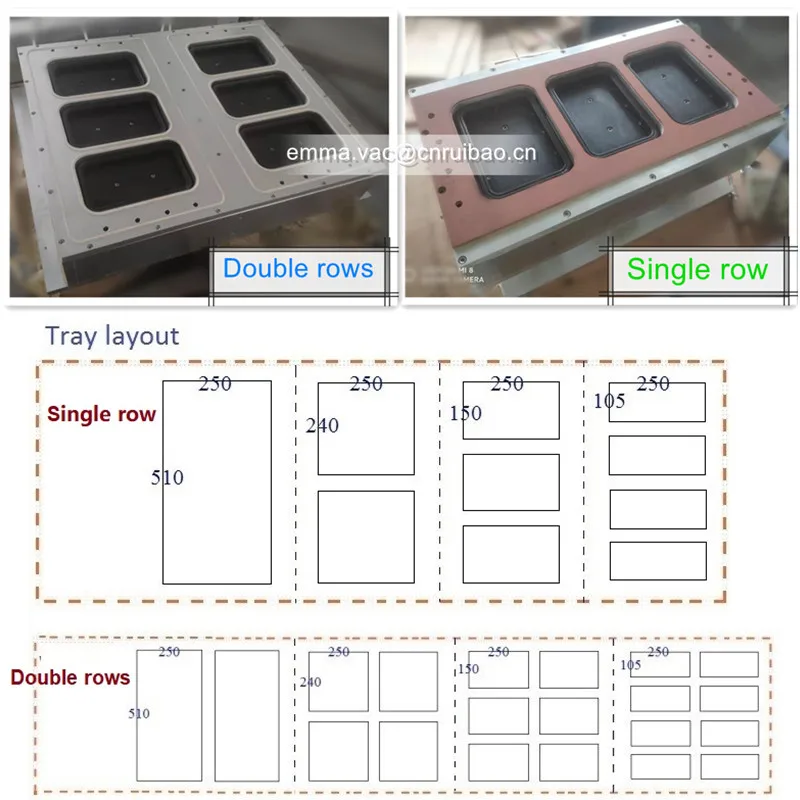

It can pack several trays at the same time. Following layout is just for reference.
VSP only, unit price 23760-26100USD
MAP+VSP, unit price 27900-29188USD
2. We can also supply tray and film, if client buy our machine together
3. Shipping terms. CIF price based on the seaport the machine shipped to.
4. The voltage is 380V/50HZ/3phase. We also customize machine with different voltage if client require it.
5. It cost 1000USD for an air compressor, if client buy from us.
6. Remote access. We have another option with local brand touch screen, so that it can support remote access for process monitor, program upgrade, language modify.
7. The packing mold will be customized accordingly to actual tray sample.
It can pack several trays at the same time. Following layout is just for reference.

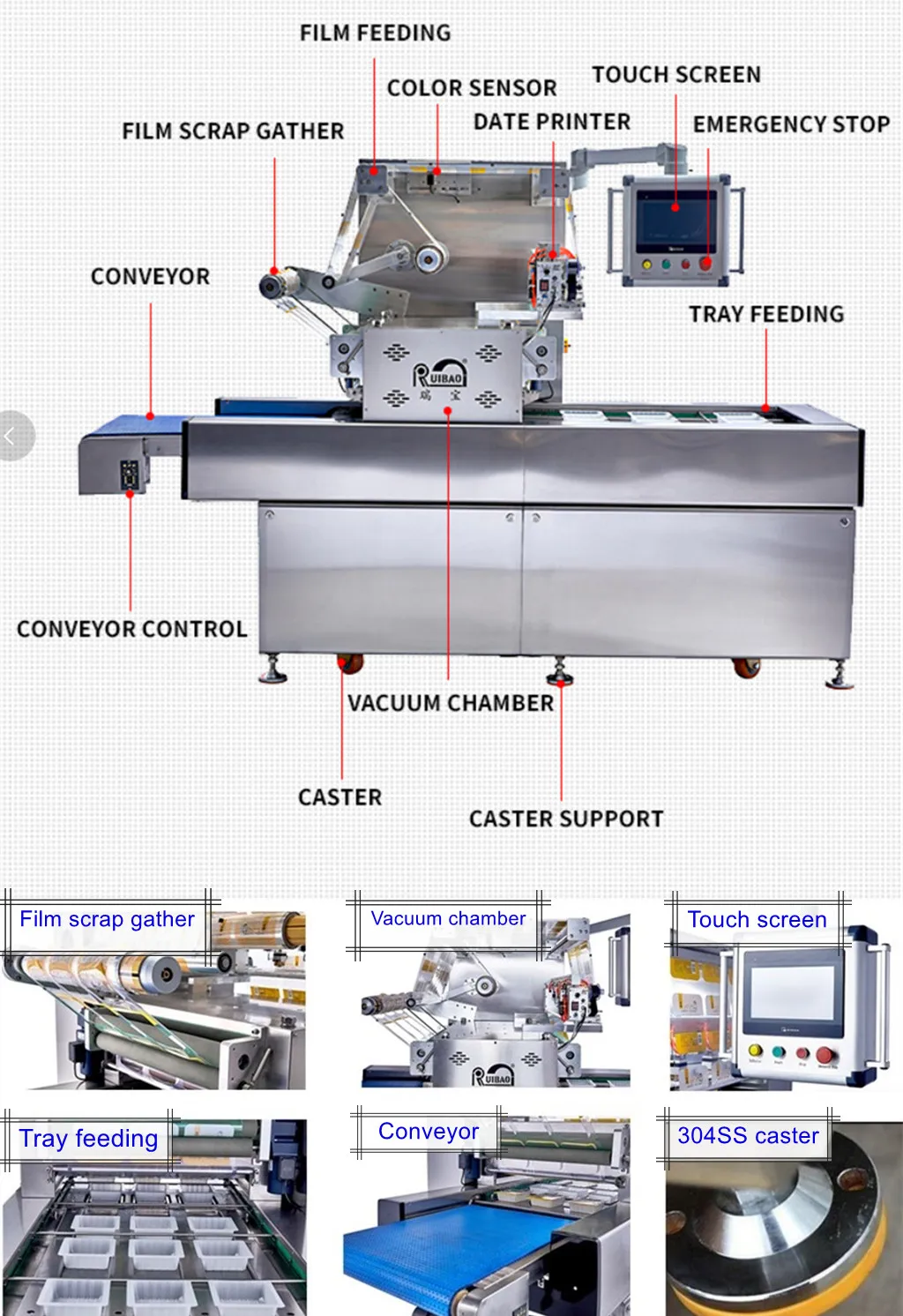

Machine details

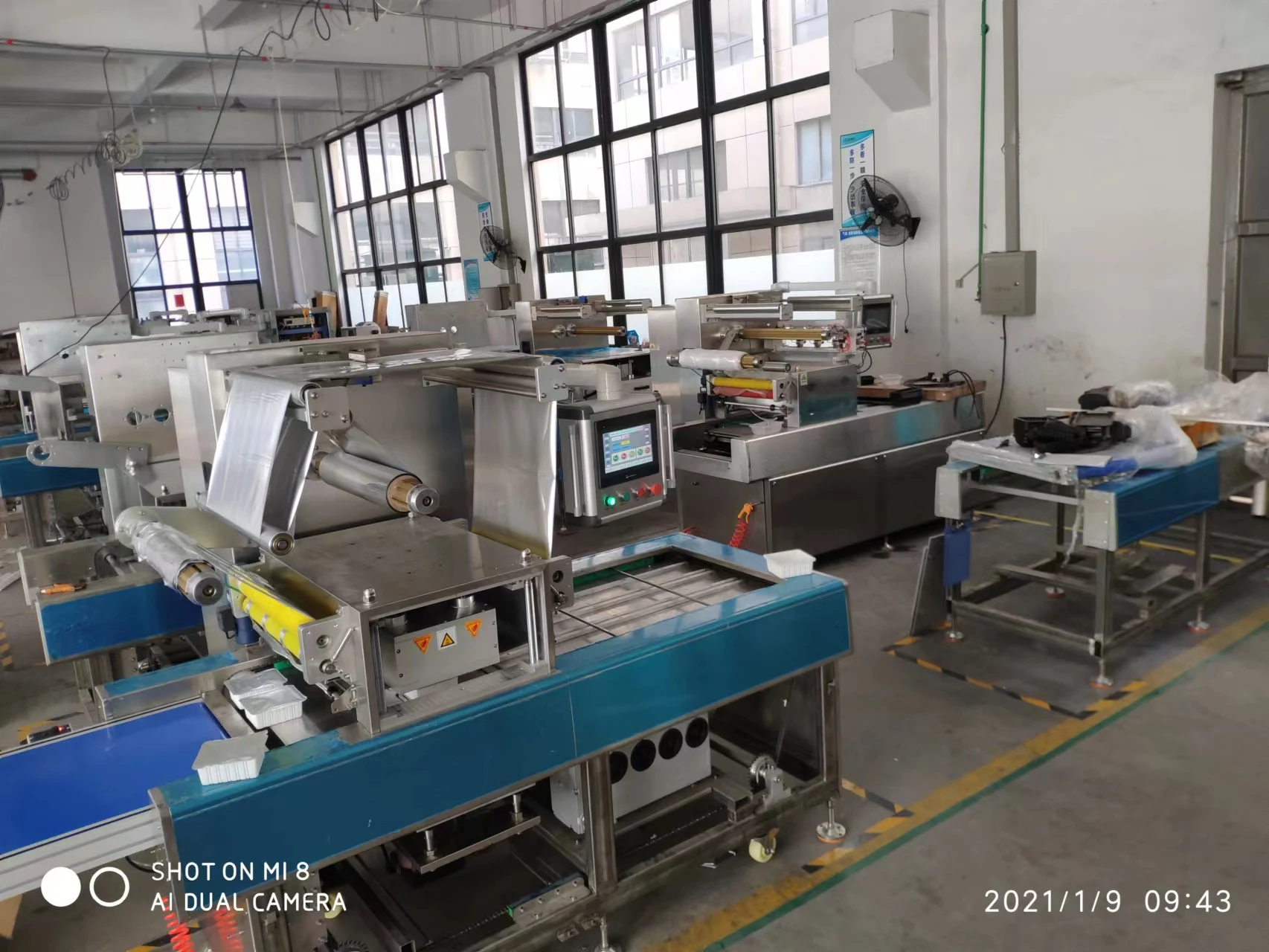

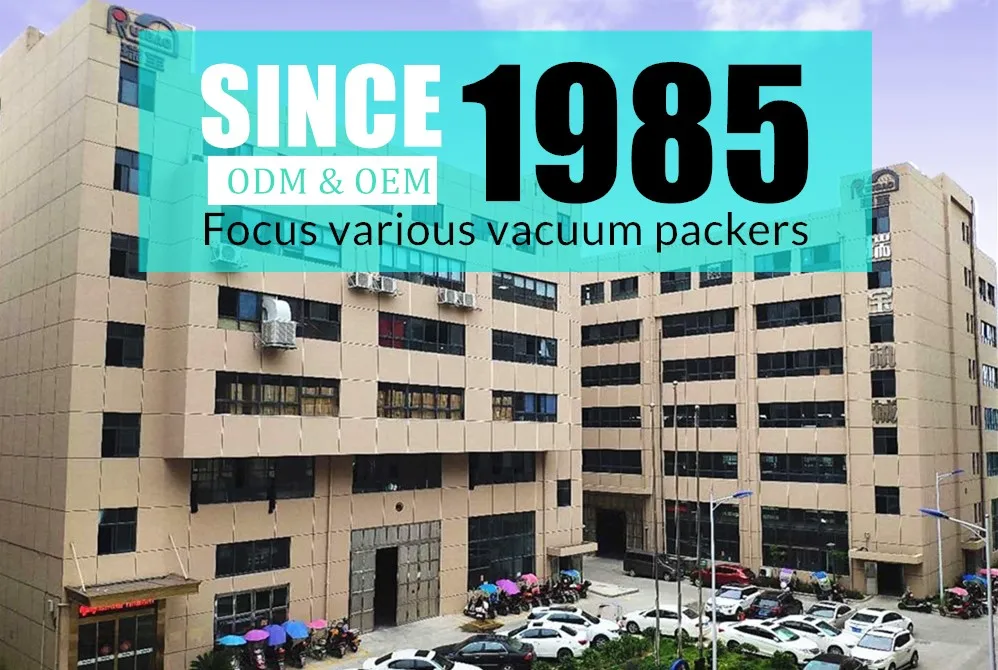

About our factory
Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.
If you have any question to discuss! Please contact us.
Export manager: Emma Xu
We-chat/whats-app: 008615057546776
Email: emma.vac(at)cnruibao.cn
Export manager: Emma Xu
We-chat/whats-app: 008615057546776
Email: emma.vac(at)cnruibao.cn
