high quality Hammer 100W all in one, universal low frequency Howler siren

Share on (1600460257879):


Price:$80.00 - $88.00

Quantity:


Product Overview

Description



Product Description


Specifications

       Hammer 100W Low-Frequency Speaker ASO80LV is an all-in-one, universal low-frequency 100 Watt siren. ASO80LV-1 RUMBLER INTERSECTION
CLEARING system combines a siren, amplifier and speaker within a single unit. Compact and easy to install, mount to any emergency
vehicle for 100 Watts of ultra-clear, powerfully consistent sound waves. The Hammer is capable of penetrating solid objects and
helping to clear intersections quickly and safely.

●The JACKHAMMER is particularly effective for Police and Fire/EMS applications when used in dense urban environments with heavy
vehicle and pedestrian traffic.


Wiring
The all-in-one low frequency Jack Hammer system ASO 80LV combines a siren, amplifier and speaker within a single unit, no need to
connect any other siren or speaker.

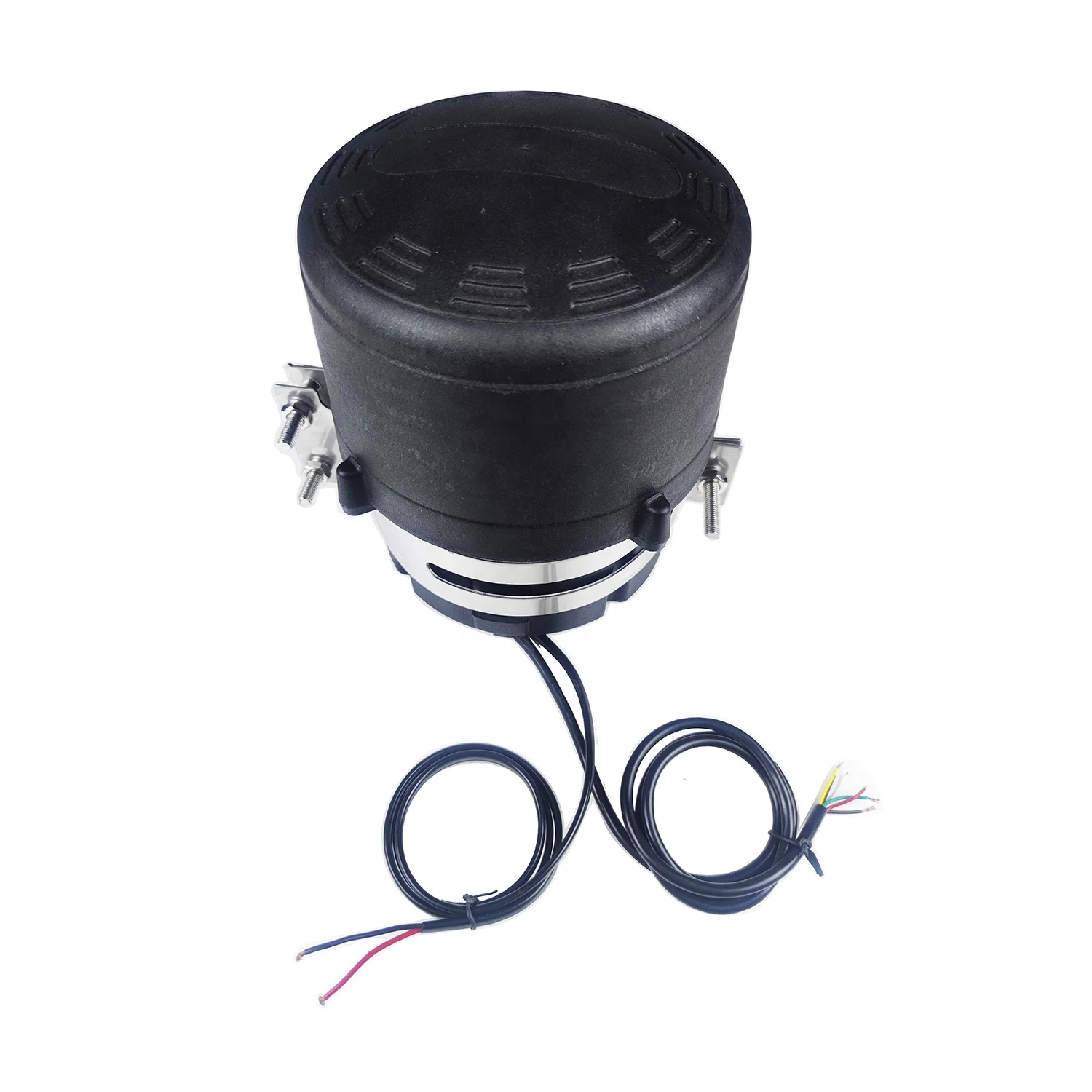

The Howler system include 2 sets cables, one is the power cable and the other is the signal cable.
Power cable include red to battery V+ and black wires to V-.
Signal cable include red, black, white, yellow, green wires.
The red line is the common wire, the other signal wires connected to the red wire to trigger the alarm function.

BLACK wire connect to RED wire for SIREN tone
WHITE wire connect to RED wire AIR HORN tone
YELLOW wire connect to RED wire for YELP tone
GREEN wire connect to RED wire fo WAIL tone



Working Voltage
DC12V/DC24V
Frequency
180HZ-500HZ
Sound Output
110dB
Tones
 4 tones (SIREN、AIR HORN、YELP、WAIL)
WaterProof
IP65
Ambient Temperature
-40℃~60℃
Net weight
2.85kgs(6.3 lbs)
 Impandance
 8Ω
Material
 Howler siren body:Aluminum, Howler Speaker Body:Strengthen Nylon. Bracket: Stainless Steel

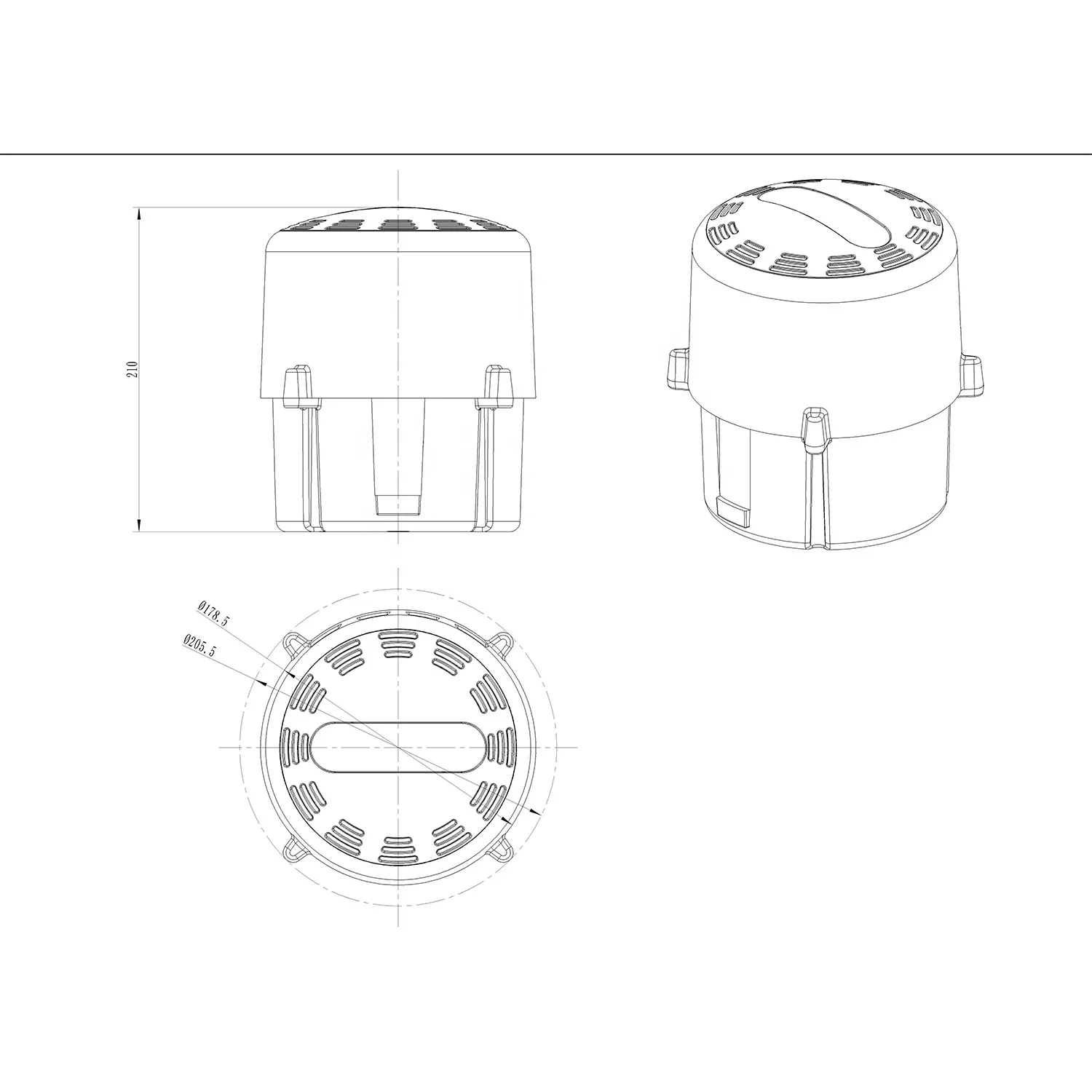

 Dimension
 Speaker without bracket: 8" (205.5mm) Dia. x 8.27" (210mm) L.
Weight: 6.3 lbs. (2.85kg)

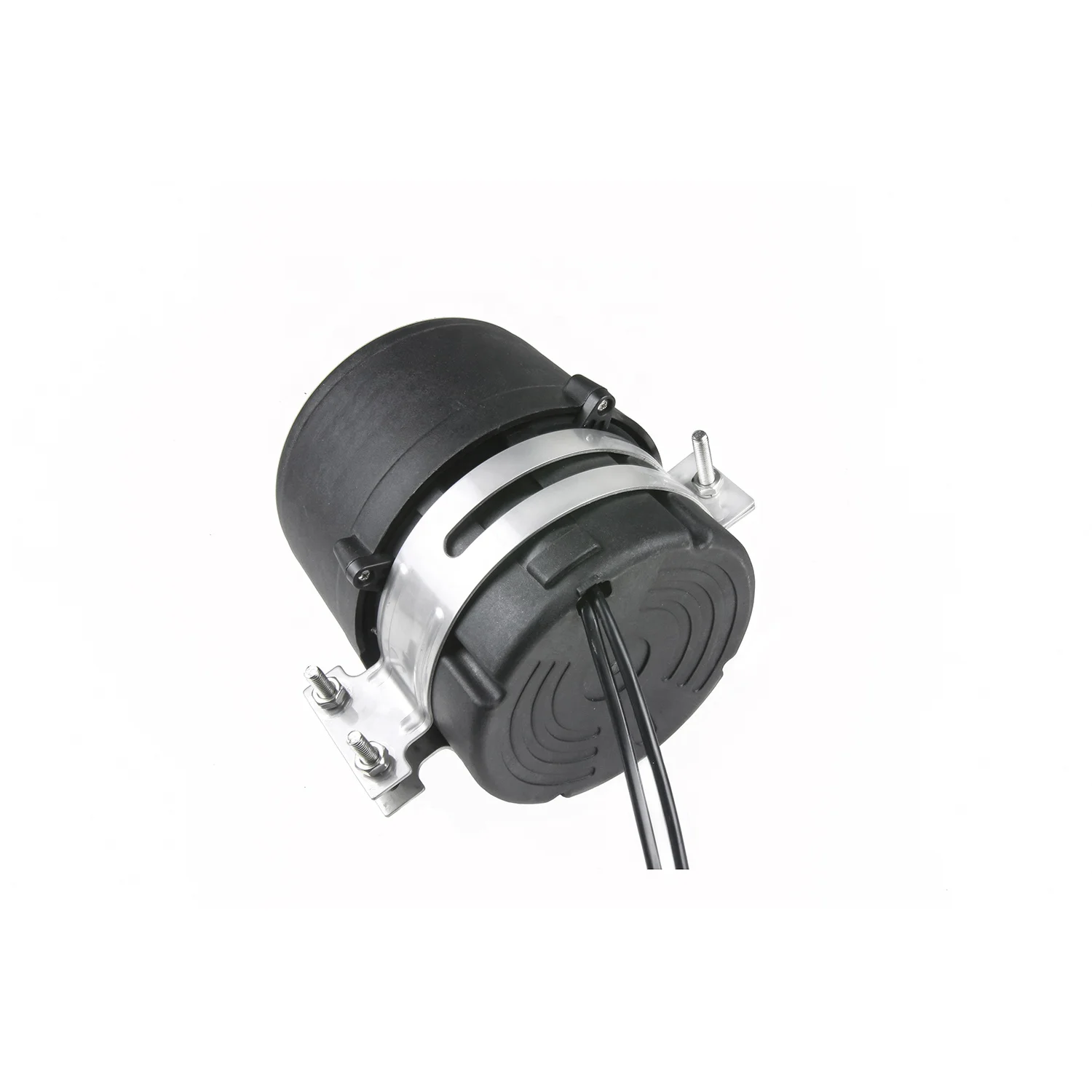

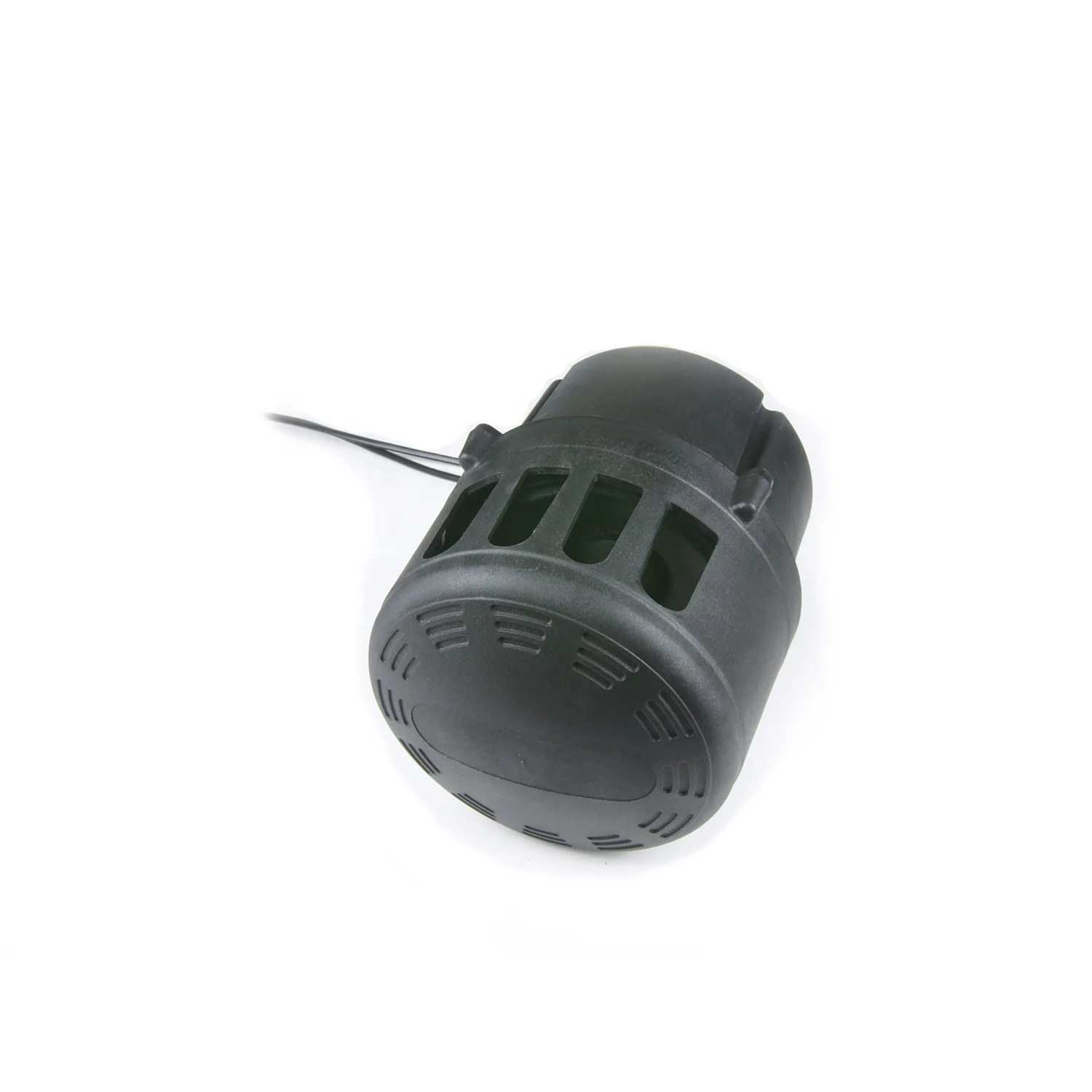

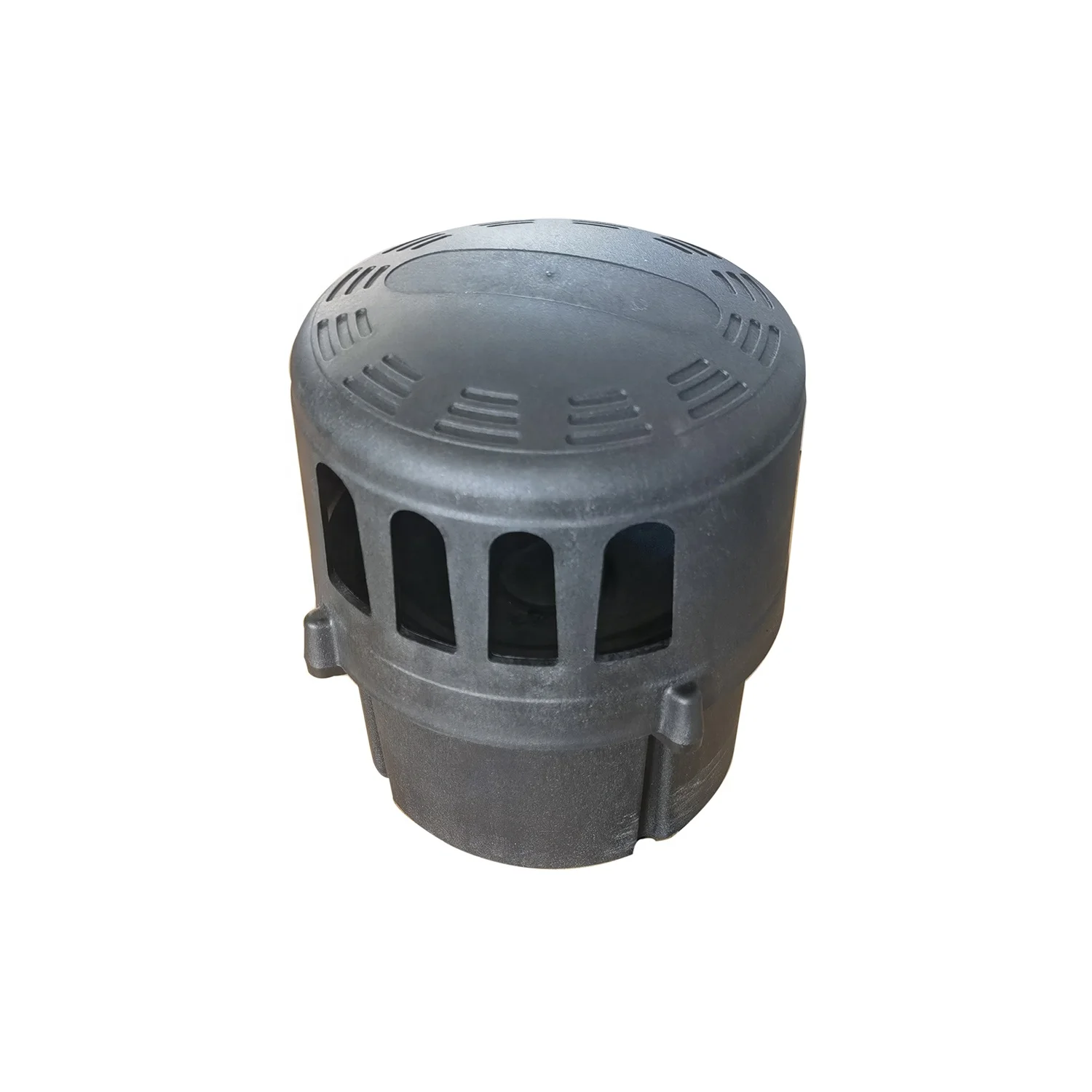

Detailed Images
