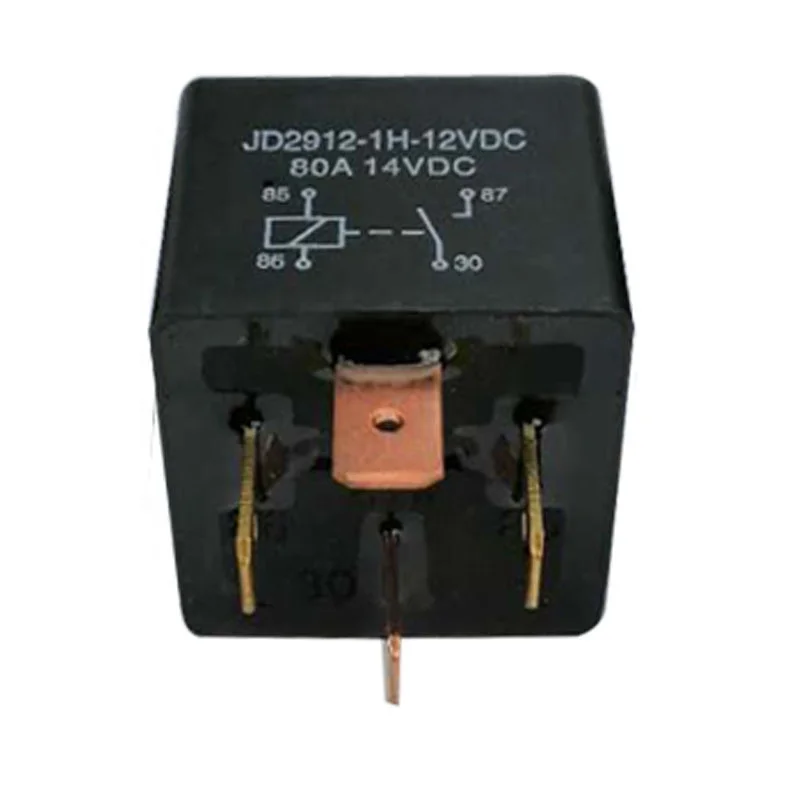

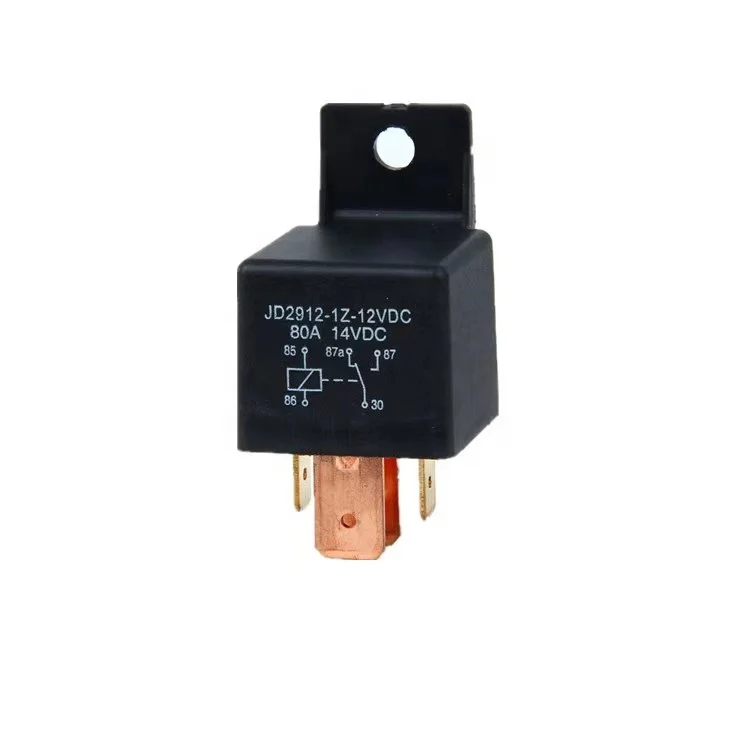

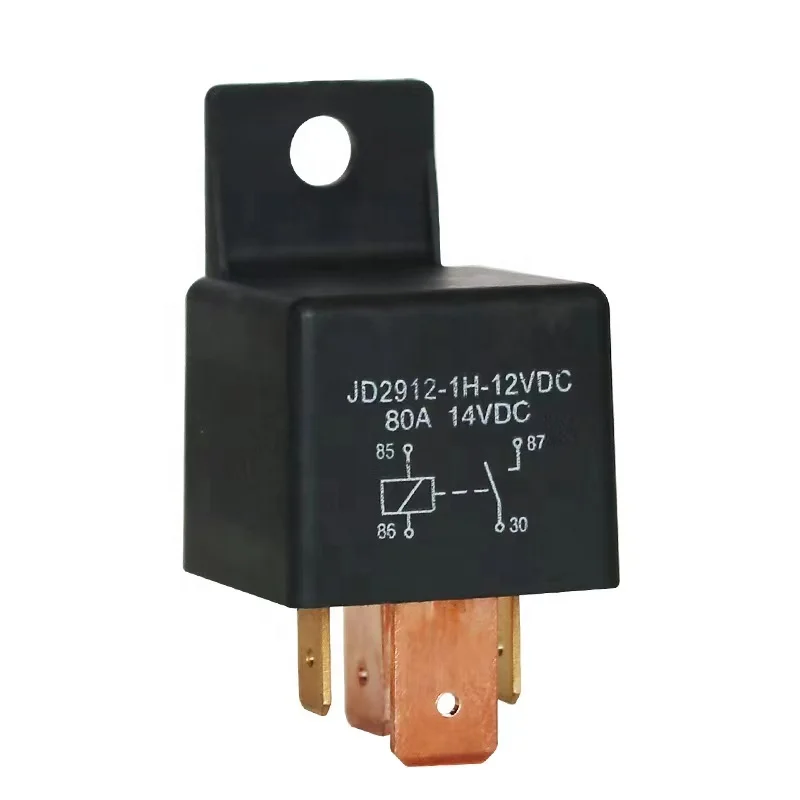

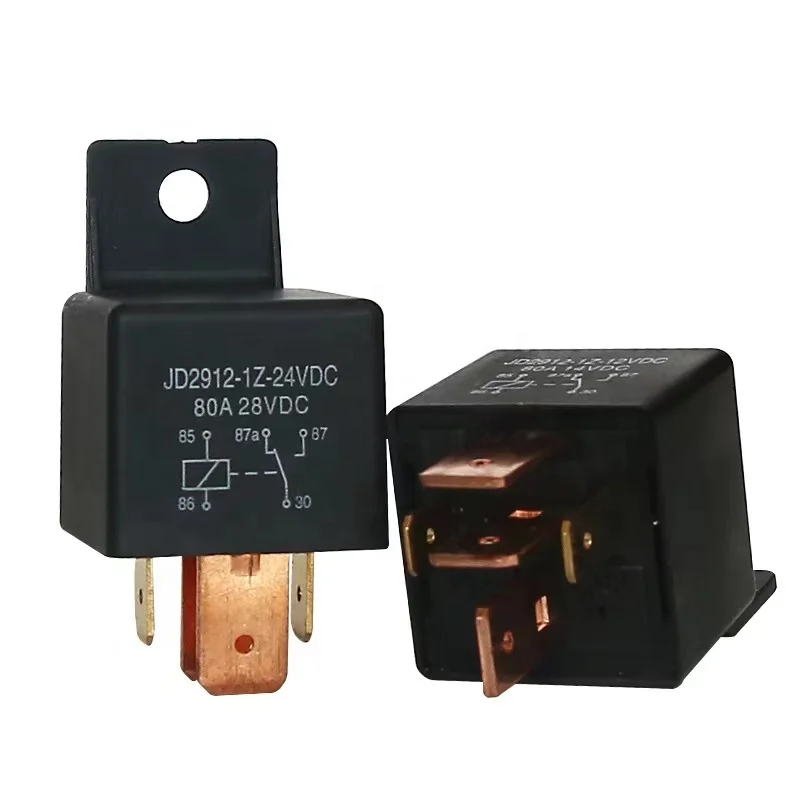

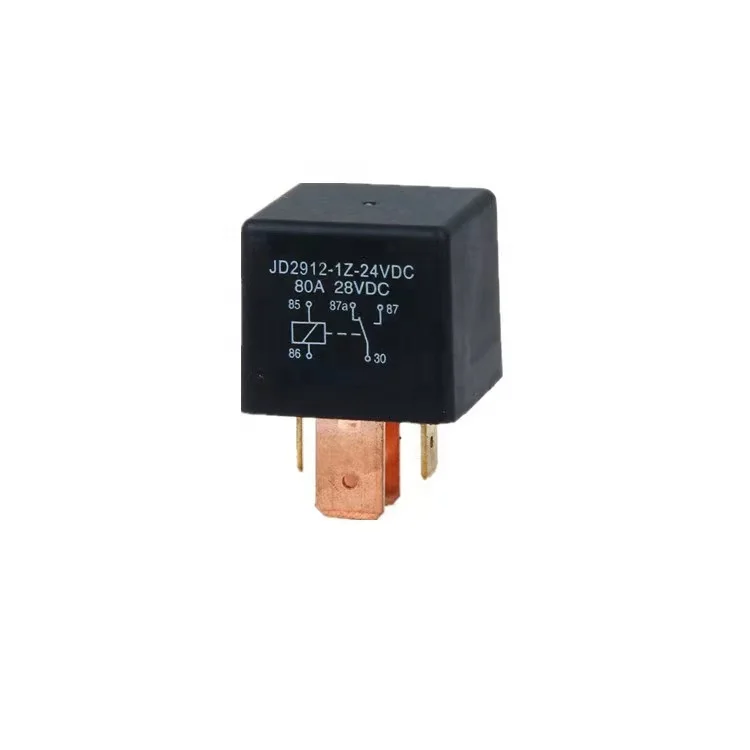

High Current Car Auto Relay 12V 24V 80A Split Charge 5 Pin Car Vehicle Automotive Van Boat Truck Relay
- Category: >>>
- Supplier: Yiwu Gongshang E-Commerce FirmYiwu Firm
Share on (1600460331582):
Product Overview
Description
High Current Car Auto Relay 12V 24V 80A Split Charge 5 Pin Car Vehicle Automotive Van Boat Truck Relay
Product Description
Item Package Quantity:2
Contact Data:
Contact Material: AgSnO12
Contact Form: 1Z(C) / 1H(A)
Contact Ratings: No: 40A 72VDC
Contact Resistance: 100mMax at 6VDC 1A
Max switching Current: 40A
Max Switching Power: 560W
Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
Life Expectancy Mechanical: 10,000,000 Operations
Coil Specification:
Nominal Voltage(VDC): 12V
Coil Resistance (1.8W): 80
Max Operate Voltage (VDC): 6.5~8.0
Mix Release (VDC): 1.2~3.6
Max Applicable Voltage (VDC): 14
High Current Car Auto Relay 12V 24V 80A Split Charge 5 Pin Car Vehicle Automotive Van Boat Truck Relay

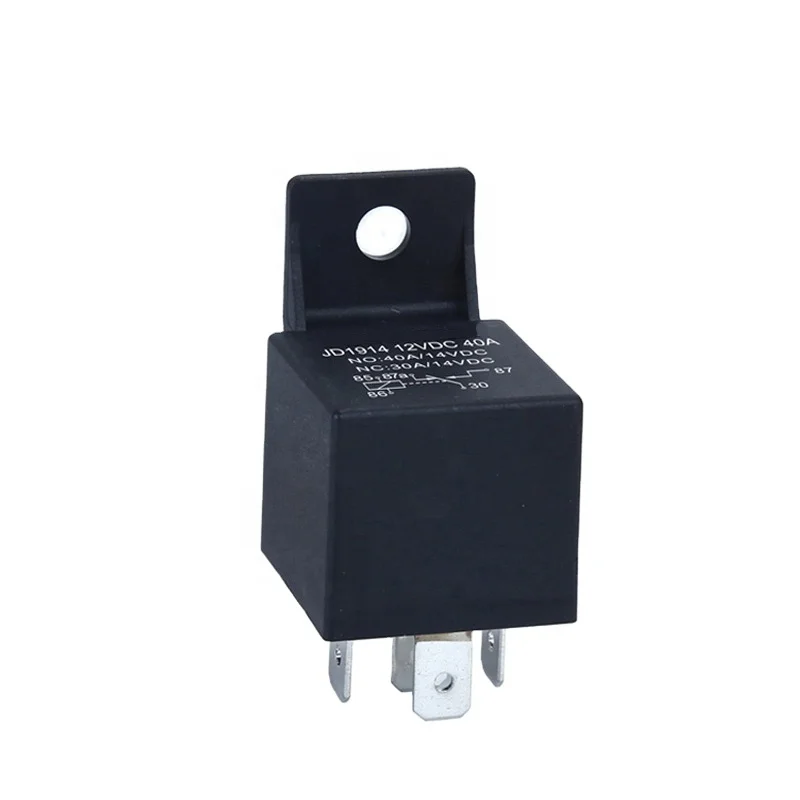

Automobile switches and starters wide 4 pin 5pin 12v 40Amp 80amps DC12V24V48v Car electric horn Relay
Characteristics:
Temperature Range: -30°C ~+80°C
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance:
Operations Extremes: 10g
Damage Limits: 100g
Humidity: 40%~85%
Insulation Resistance: 100m ohm Min at 500VDC
Safety Standard: CCEE
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contact and coil: 750VAC (for one minute/sec)
Operate Time: 7ms
Release Time: 5ms
Weigh: Approx. 35g
Waterproof Integrated 12v dc 80a 5pin Auto Relay Electromagnetic Relay
Waterproof Integrated 12v dc 80a 5pin Auto Relay Electromagnetic Relay
Waterproof Integrated 12v dc 80a 5pin Auto Relay Electromagnetic Relay
High Current Car Auto Relay 12V 24V 80A Split Charge 5 Pin Car Vehicle Automotive Van Boat Truck Relay
