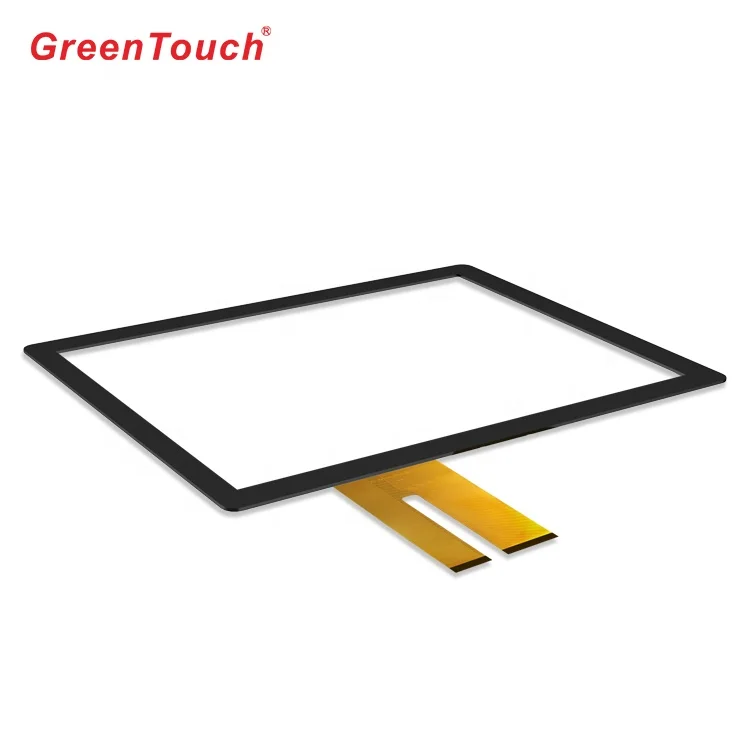

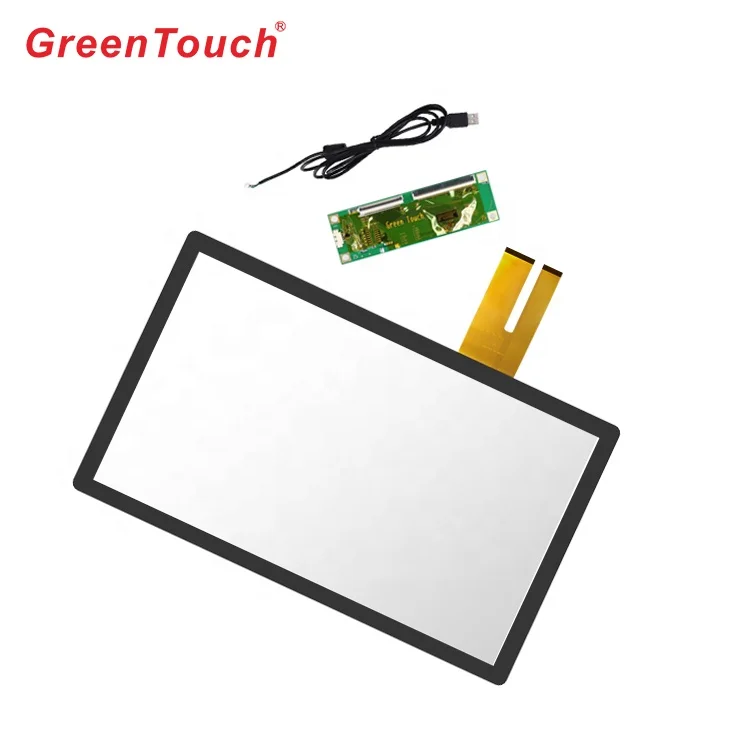

Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit
Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit
Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit
Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit
Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit
Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit
Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit

Capacitive touch panel 18.5 inch multitouch screen lcd monitor overlay kit

Share on (1600460446674):


Price:$35.80 - $37.20

Quantity:


Product Overview

Description





Product Parameters
Product Name:
18.5" Capacitive Touch Screen
Model：
GT-CTP-Y18.5A-1
Outline Size：
456.75 x 277.25（mm）
View Area：
408.7 x 229.0（mm）
Available Size:
10.1"-65"
Touch Points:
10 points
Structure:
Cover glass+Sensor Glass
TP Thickness:
2.0-3.1mm
Chip Solution:
EETI/ILITEK/WEIDA
Controller:
USB 2.0 (full speed)
Ratio:
16:9
Transparency:
≥99%
Surface Hard:
7H
Power Supply:
USB 5V
Operating System:
Windows XP/7/8/10, Linux and Android,Mac system
Response Time:
<10ms
Working Environment:
-20℃~+60℃,≤90%RH
Stroage Environment:
-30℃~+70℃,≤90%RH
Driver:
No need(usb plug and play)
Warranty:
1 year


Product Description

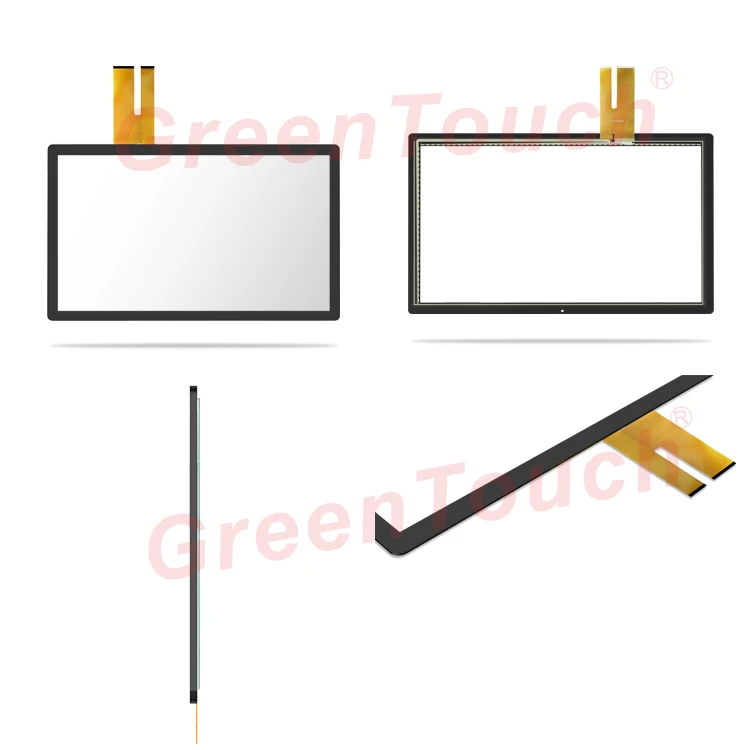

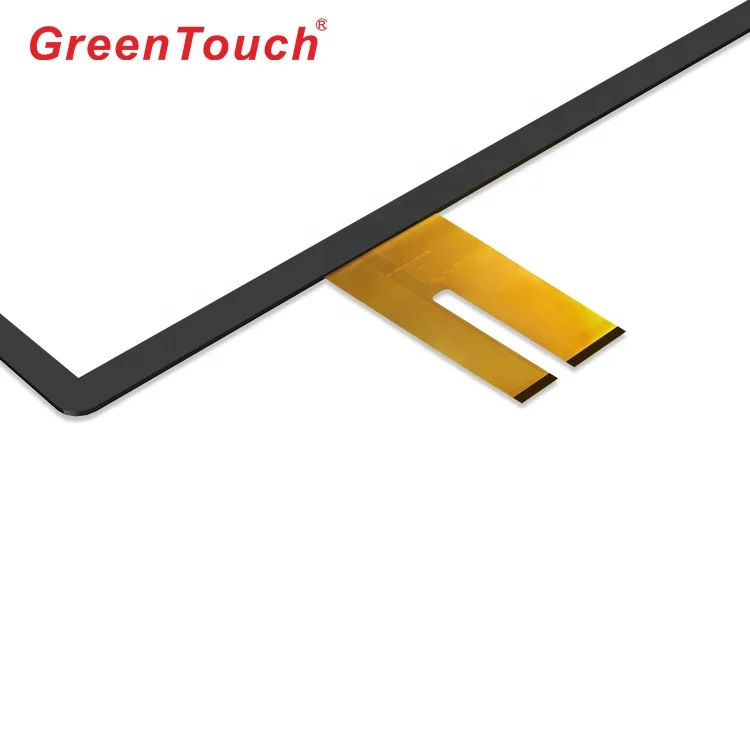

Product Show GT-CTP-Y18.5A-1

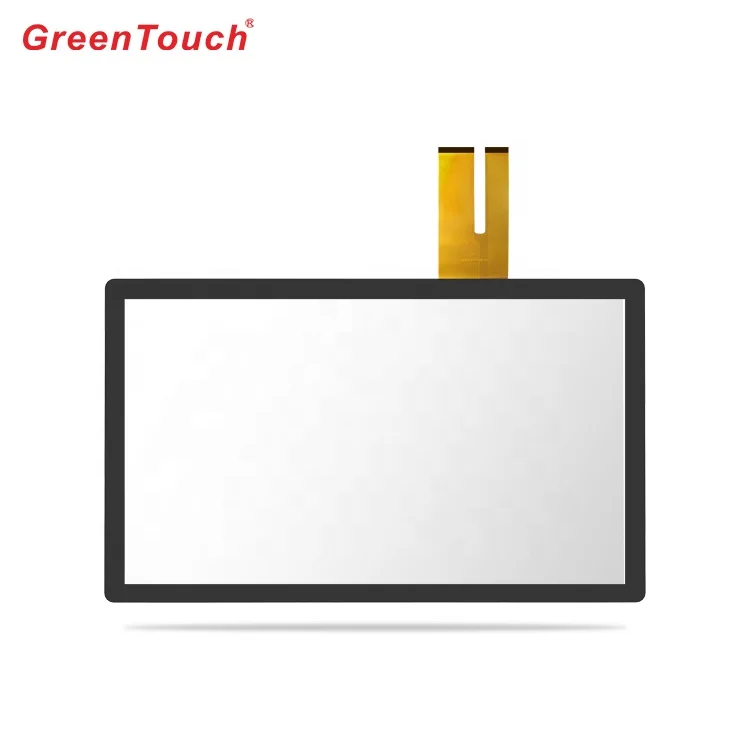

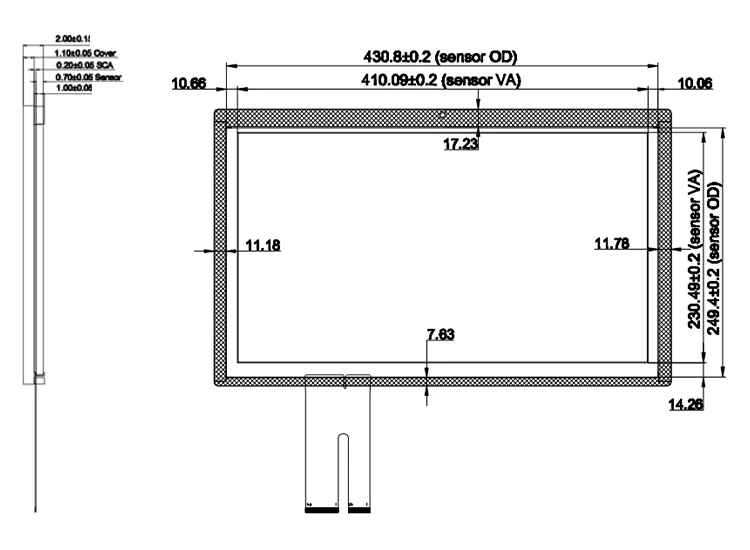

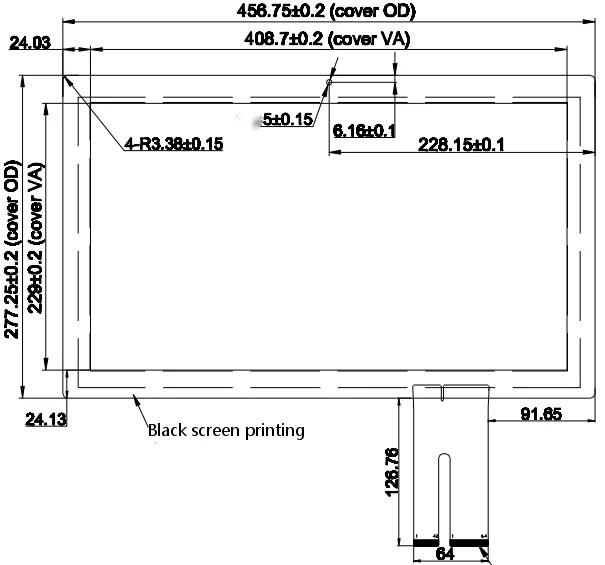

Engineering Drawing，Front View

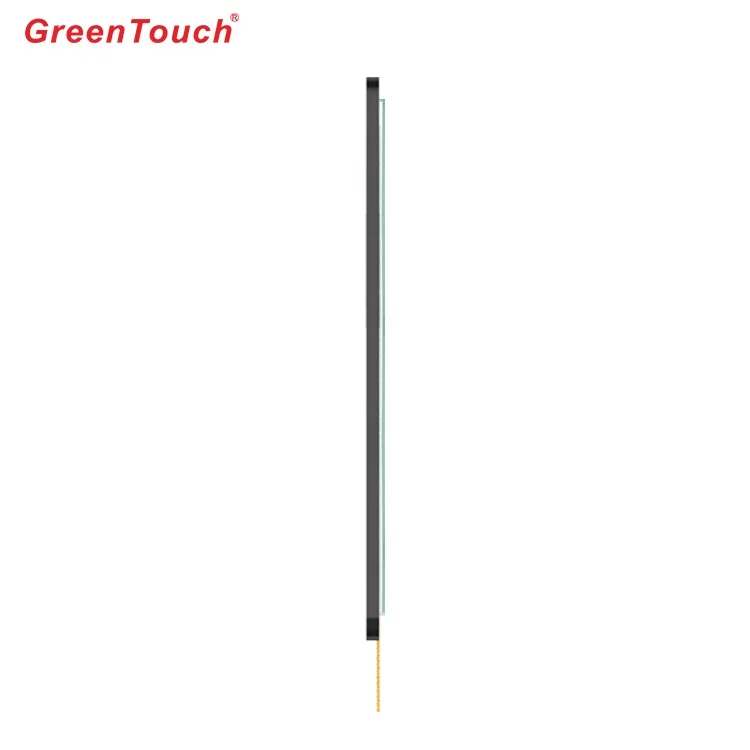

Side View，Black View
