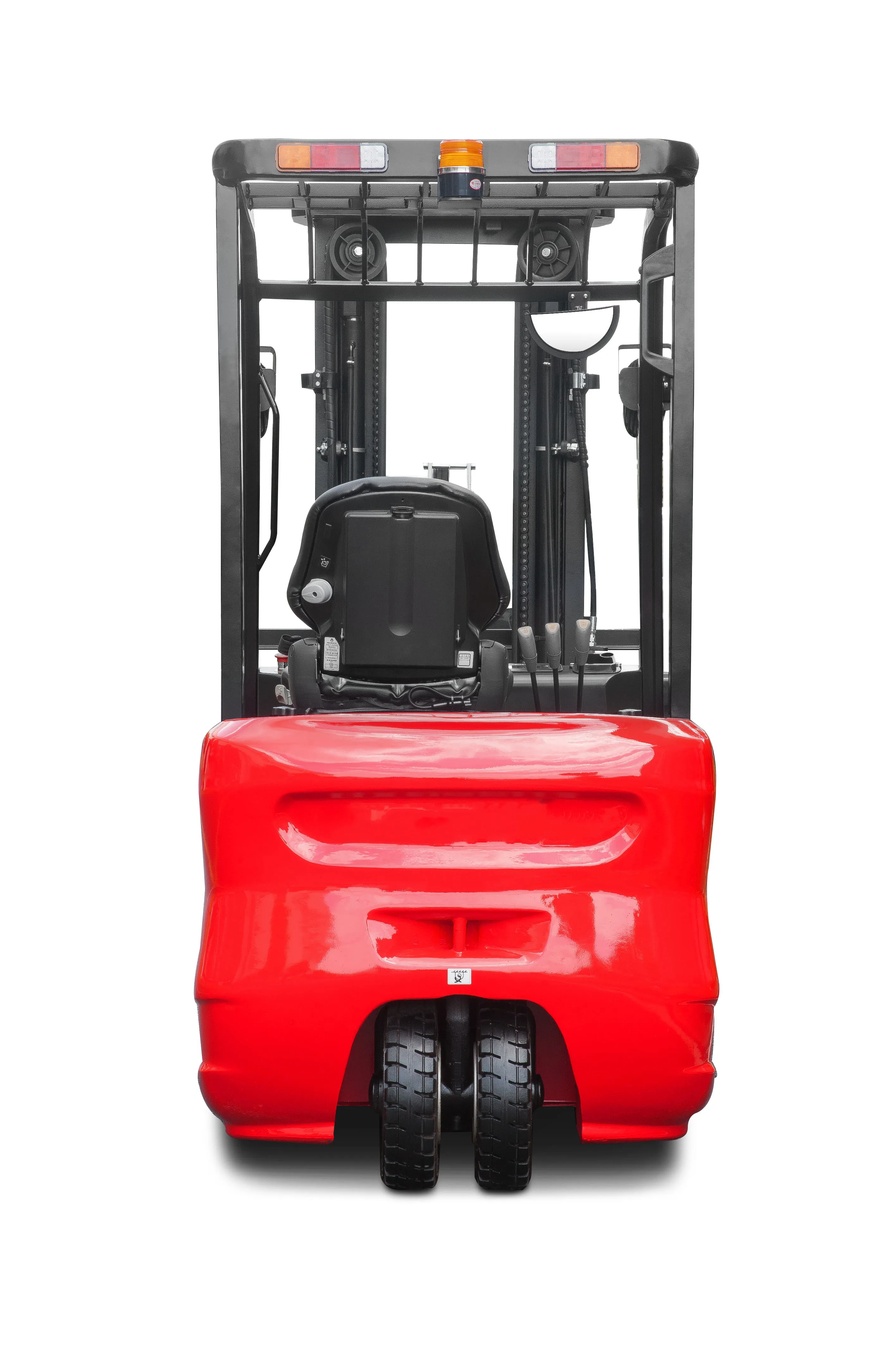

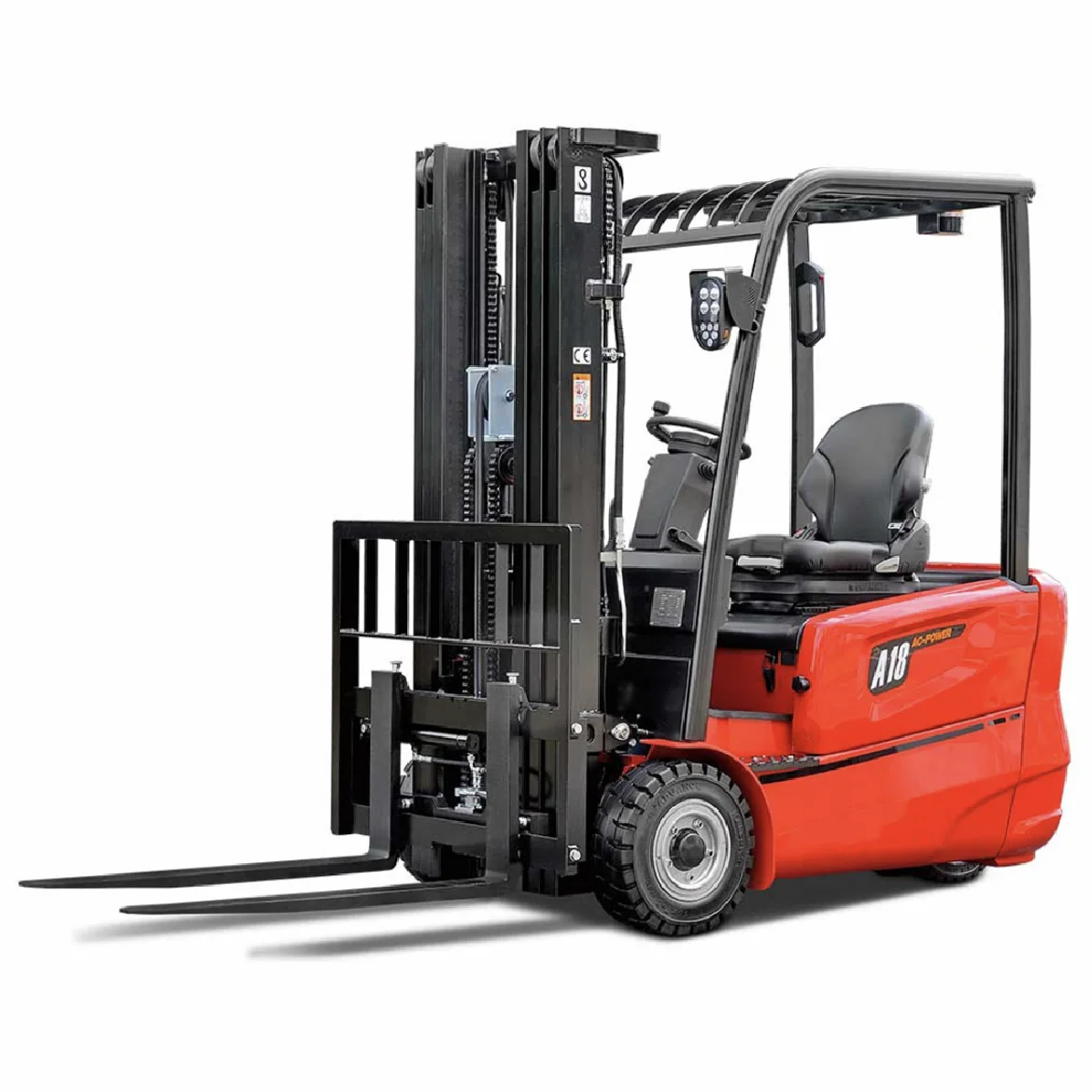

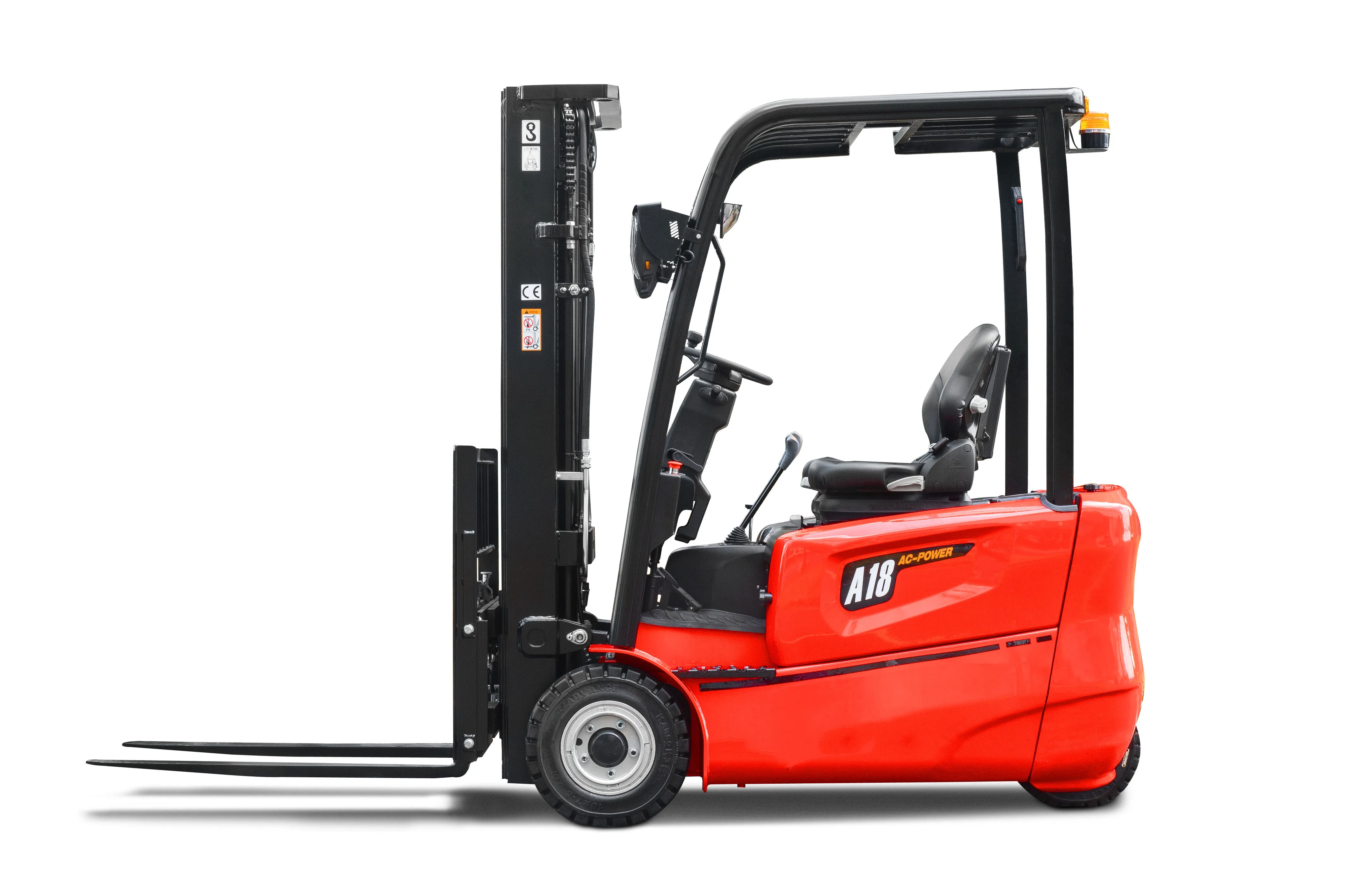

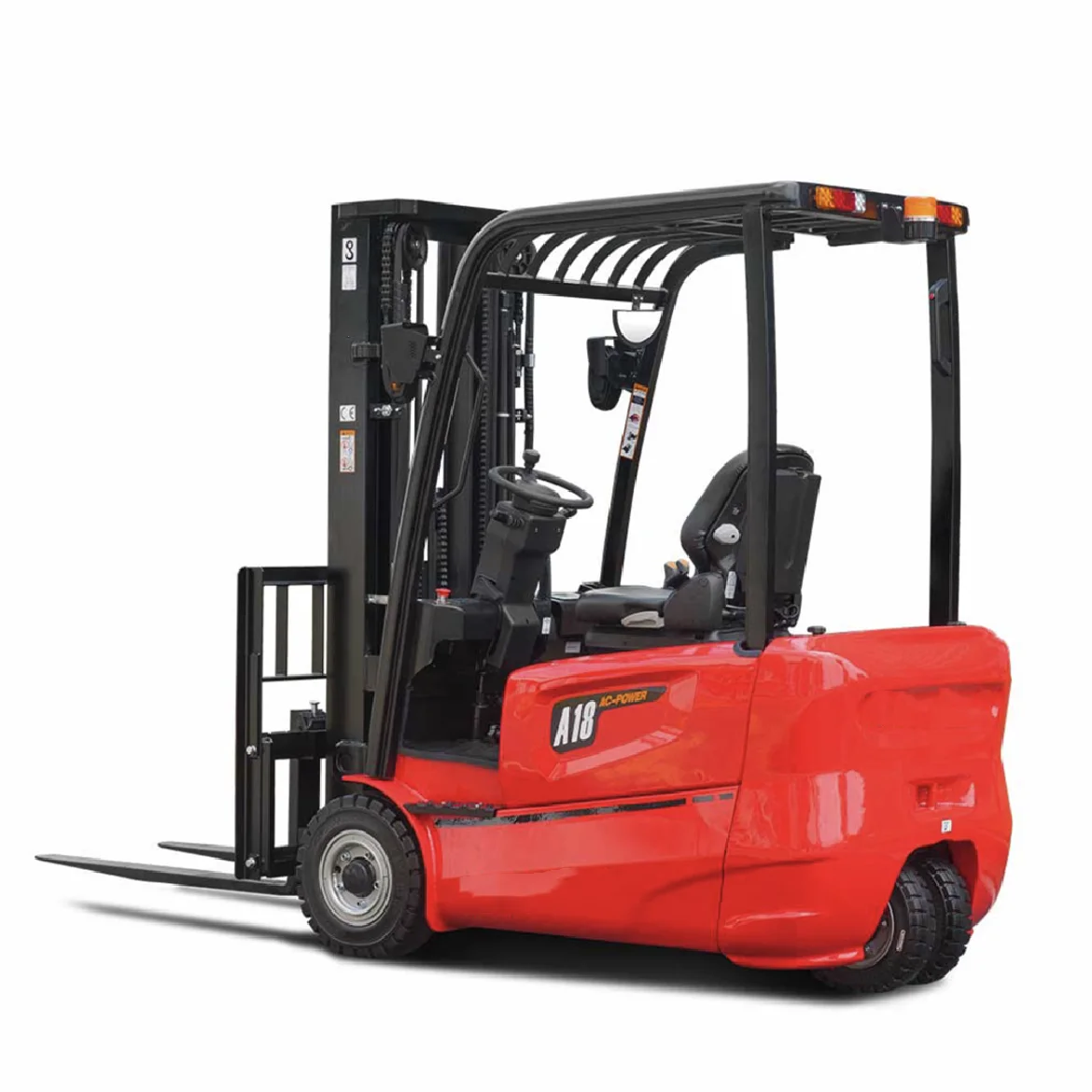

RED LIFT 3wheel battery forklift operated lead acid battery forklift Inmotion controller

Product Overview

Description

1.Company information



2.Product description

Model		CPDS13-AD	CPDS15-AD	CPDS18-AD	CPDS20-AD
Rated capacity	kg	1300	1500	1800	2000
Load center	mm	500	500	500	500
Height,mast lowered	mm	1995	1995	1995	1995
Lifting height	mm	3000	3000	3000	3000
Height,mast extended	mm	3945	3945	3945	3945
Height of overhead guard	mm	2080	2080	2080	2100
Overall length	mm	2710	2710	2818	2818
length to face of forks	mm	1790	1790	1818	1818
Overall width	mm	1086	1086	1086	1086
Turning radius	mm	1452	1452	1452	1452
Battery boltage		48/400AH	48/400AH	48/500AH	48/500AH
Type of drive unit		AC	AC	AC	AC
Service weight	kg	2630	2910	3150	3230
