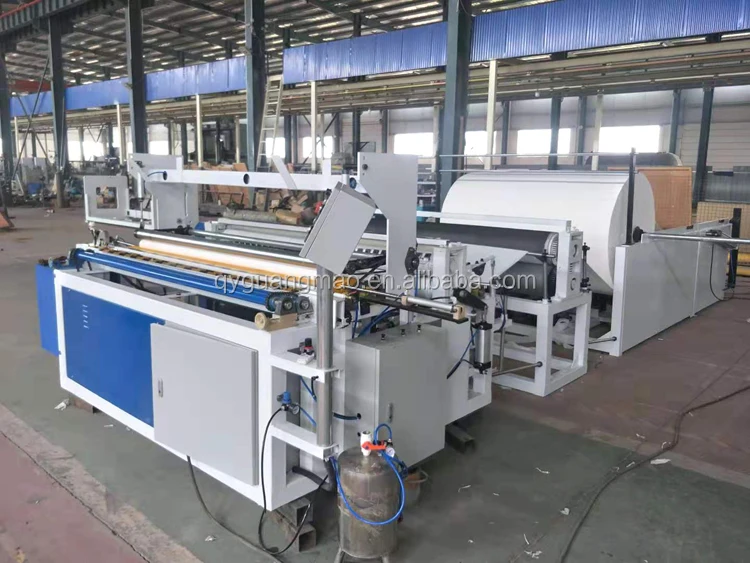

High quality automatic big jumbo roll paper rewinding machine 1880 type toliet paper making line
- Category: >>>
- Supplier: Qinyang Guangmao Paper Machinery Co. Ltd.
Share on (1600460468408):
Product Overview
Description
China supply paper napkin production line toilet roll making machine
Product Description
Brief Introduction of Small Toilet Paper Roll Production Line:
This toilet tissue paper processing line includes tissue paper rewinding machine, bandsaw toilet toll cutter and sealing machine. It is used to make well packed small toilet tissue roll from jumbo paper roll.
toilet tissue paper rewinding machine | the toilet tissue paper rewinding machine can rewind jumbo paper roll into various small diameters without changing its width. | |||||
toilet paper bandsaw cutter | the bandsaw toilet roll cutter can cut the rewinded toilet toll into various widths. the output paper roll is ready for plastic sealing machine. | |||||
toilet paper roll packaging sealing machine | the toilet paper packing sealing machine can seal the plastic package of small toilet tissue roll. the finished product is well packaged and ready for sale. | |||||

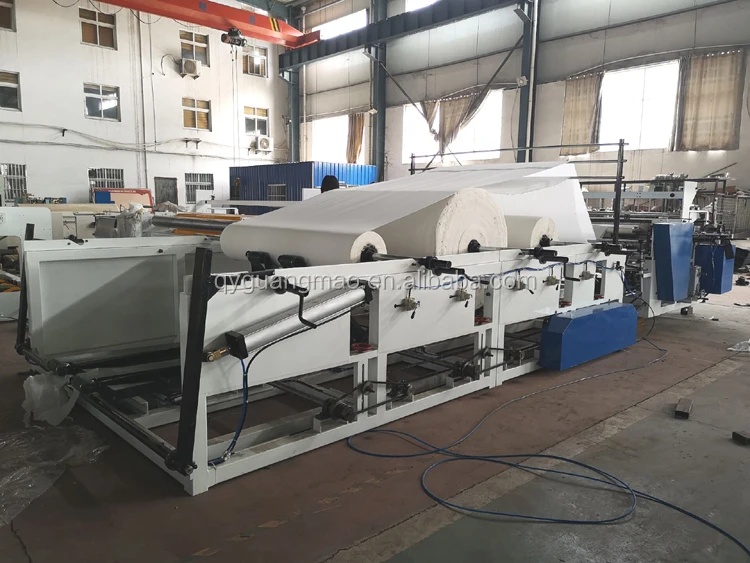

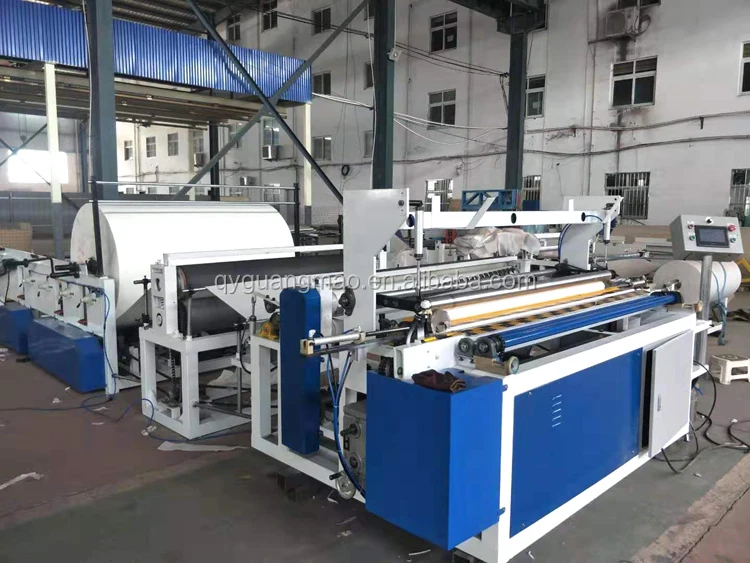

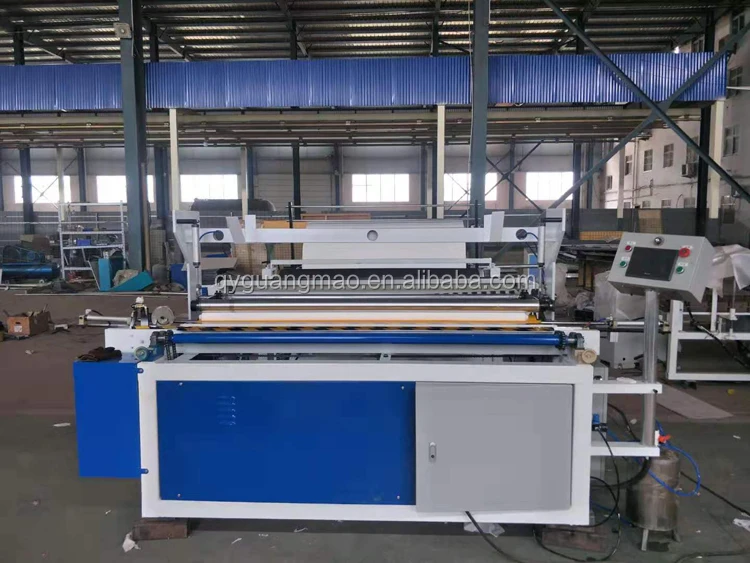

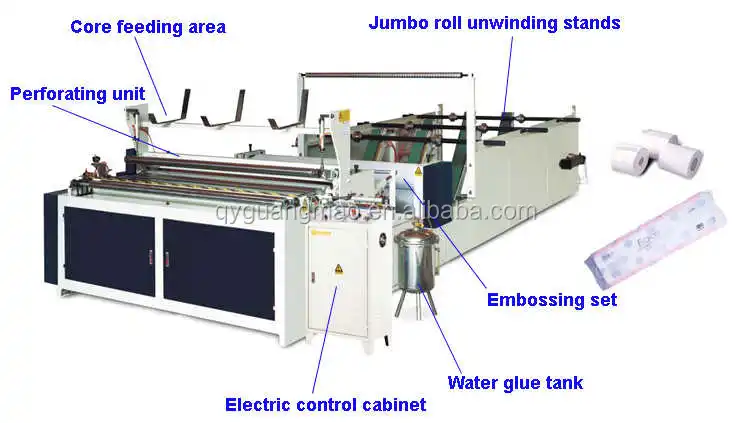

Toilet Paper Rewinding Machine:
this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 120-200m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.

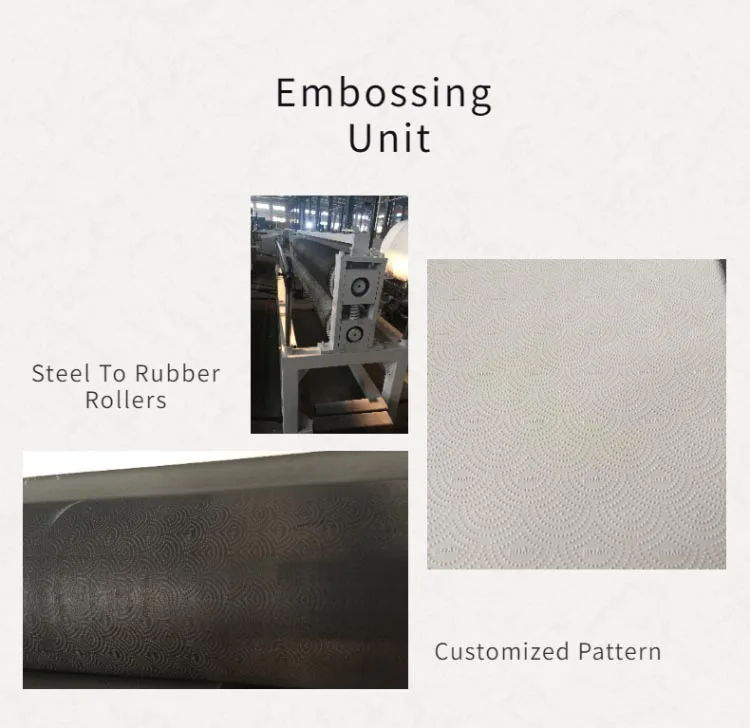

Customized Embossing Roller Patterns:

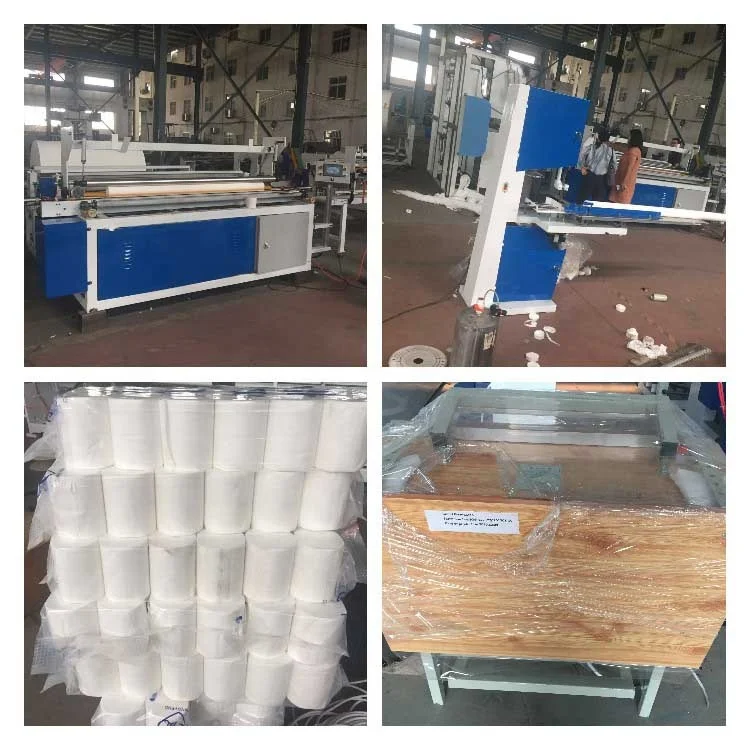

Band Saw Cutter And Vertical Sealing Machine:

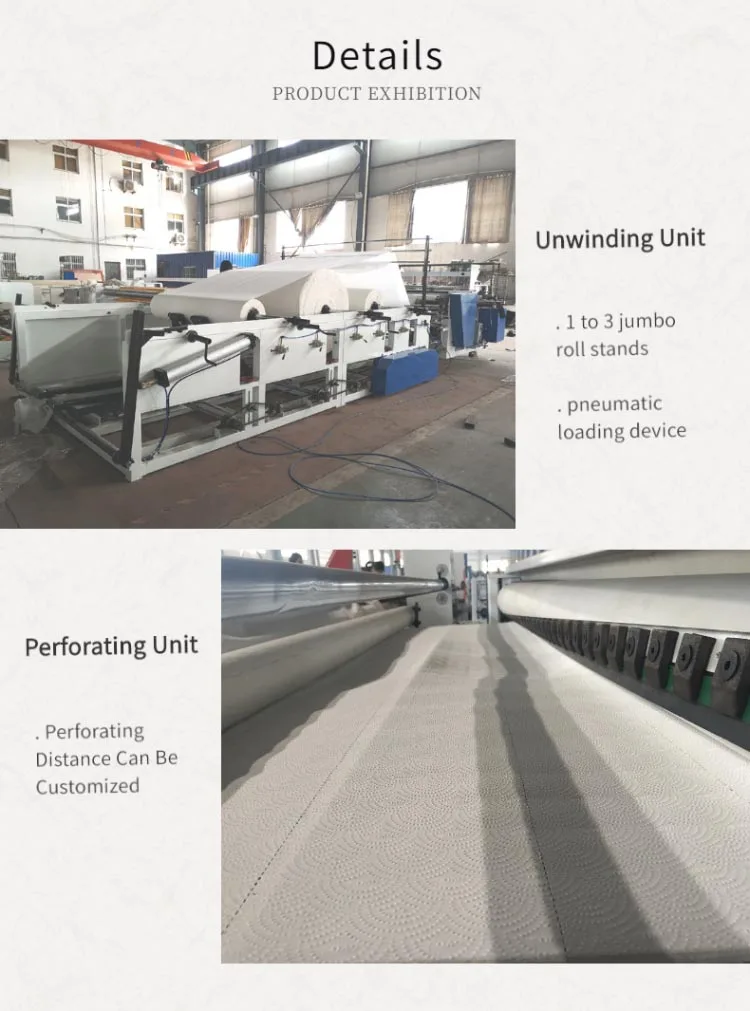

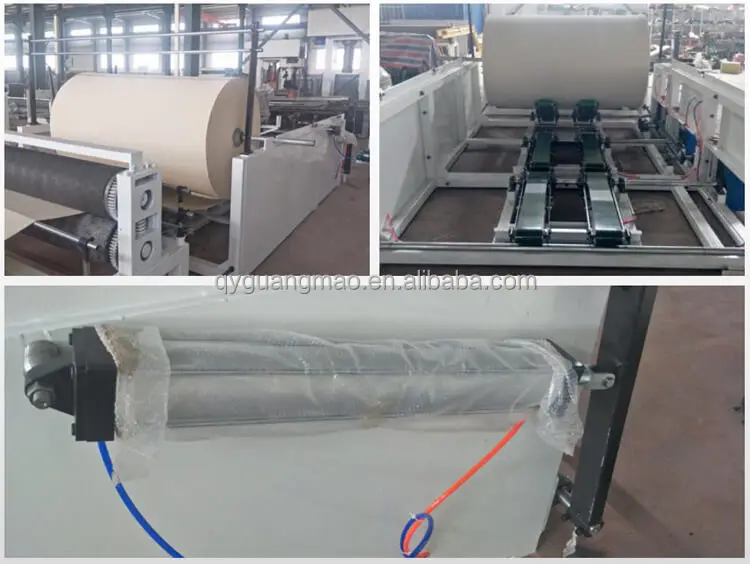

Details Images
Machine Model | 1575 | 2000 | 2200 | 2600 | 2800 | 2900 | 3000 | |||||||
Raw Material Width(mm) | 1750 | 1950 | 2150 | 2550 | 2750 | 2850 | 2950 | |||||||
Finished Products Diameter | 70-150mm (Tightness adjustable) | |||||||||||||
Finished Roll Core Diameter | 32-50mm | |||||||||||||
Raw Material Diameter(mm) | 1100(other size depends on requirement) | |||||||||||||
Core Size Of Jumbo Roll | 76mm(other size depends on requirement) | |||||||||||||
Perforation Distance(mm) | 4 blade, 110mm; 2 blade, 220mm; | |||||||||||||
Production Speed | 200m/min | |||||||||||||
Parameter Set | Touching-screen, Multi-menu Man-Machine Interface Operating System | |||||||||||||
Controller | PLC Program | |||||||||||||
Air Pneumatic System | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa | |||||||||||||
Power | Frequency conversion, speed regulator, 7.5-15kw | |||||||||||||
Embossing Unit | Single ply embossing, double ply embossing, steel to steel embossing | |||||||||||||
Unwinding Unit | 1-3 ply 15-30gsm (ply can be specified) | |||||||||||||
Finished Roll Rewinding | Core/Coreless rewinding system | |||||||||||||
Customized Items | ||||||||||||||
Embossing Unit | steel to rubber, steel to wool, steel to steel | |||||||||||||
Unwinding Unit | 1-3ply | |||||||||||||

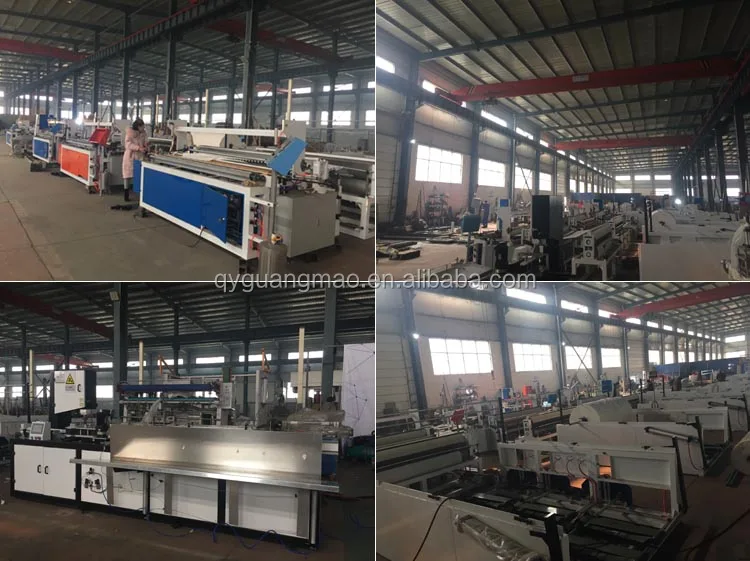

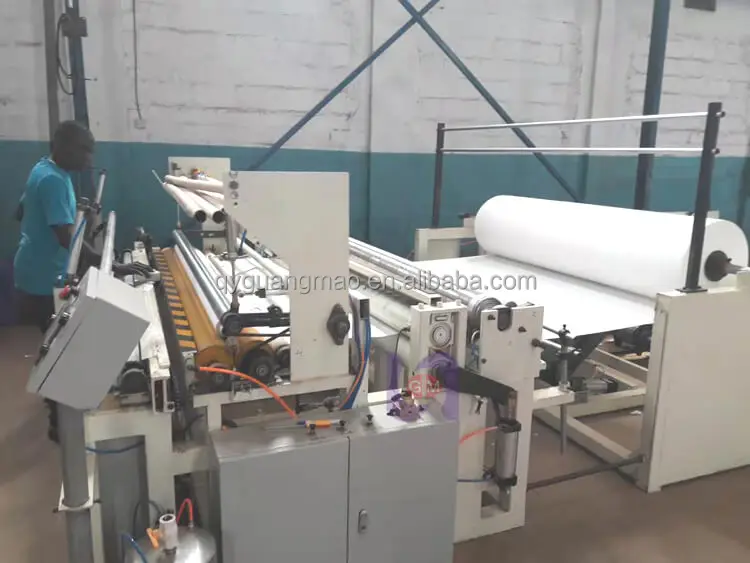

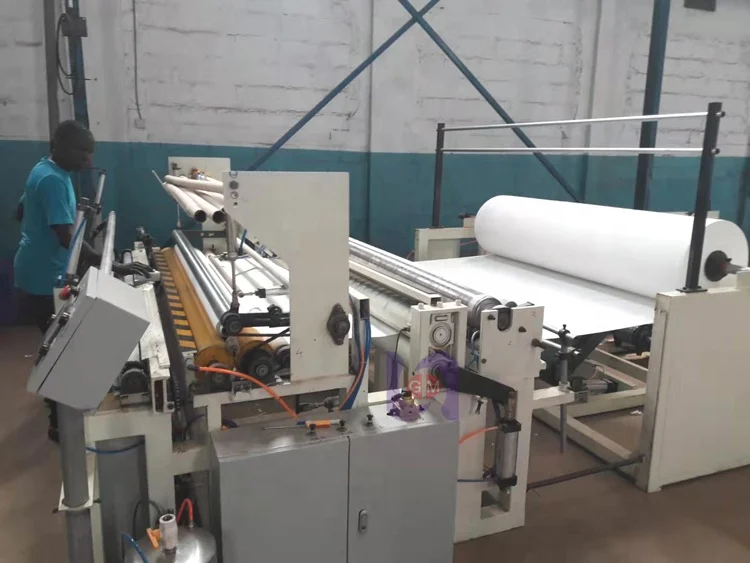

Installation Sites

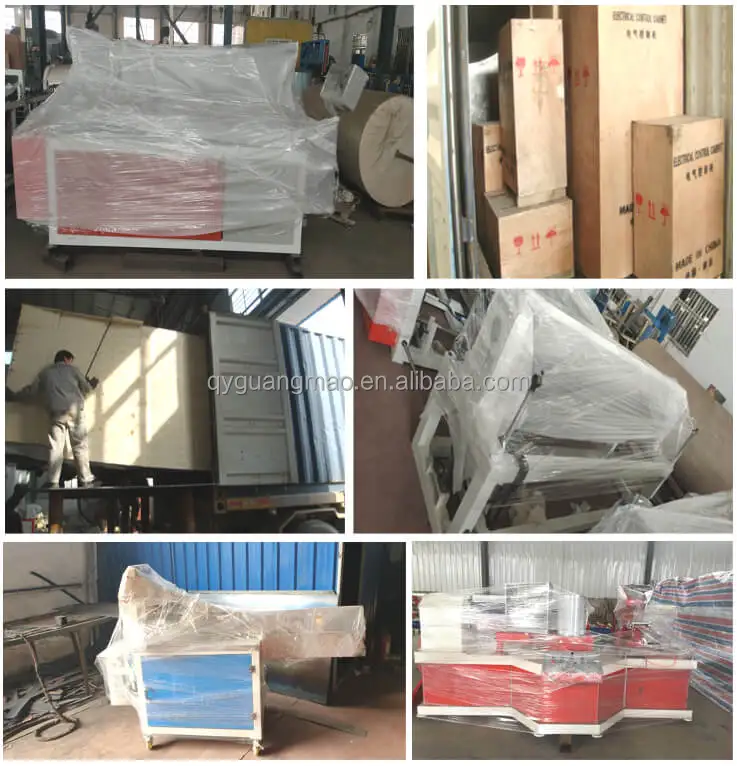

Product packaging
(1) Packaging:
Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
(2) Delivery:
1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
(2) Delivery:
1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.

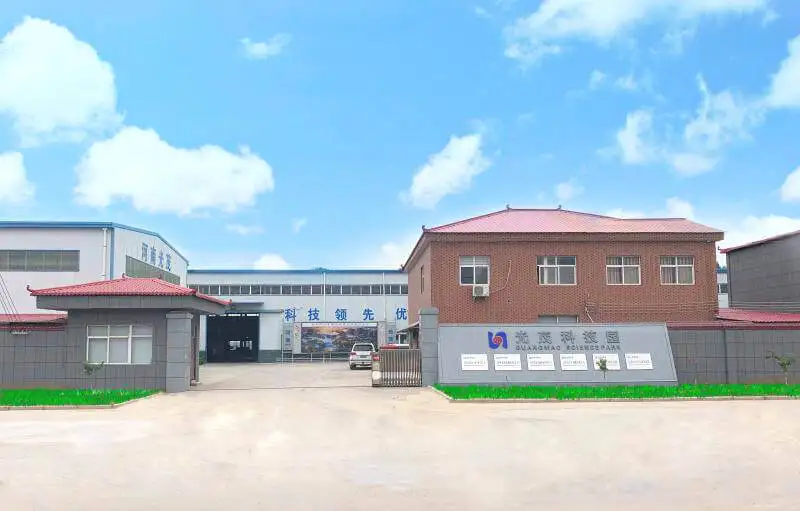

Company Profile
Brief introduction to Zhengzhou Guangmao Machinery Co. Ltd. (OEM):
Founded in 1982, Zhengzhou Guangmao Machinery Co. Ltd. is a professional paper machinery manufacturer that specialized in manufacturing and exporting paper machine over the past 30 years.
Our products are all ISO9001:2000 and CE qualified, and have been exported to more than 30 countries. Our high quality products and perfect service have won customers' praise and more and more orders.
Founded in 1982, Zhengzhou Guangmao Machinery Co. Ltd. is a professional paper machinery manufacturer that specialized in manufacturing and exporting paper machine over the past 30 years.
Our products are all ISO9001:2000 and CE qualified, and have been exported to more than 30 countries. Our high quality products and perfect service have won customers' praise and more and more orders.
FAQ
1.Why we choose your company?
(1)more than 30 years experience of manufacture paper machine and pulp making machine;
(2)professional engineer team ensure latest and best design;
(3)professional project manager ensure perfect service for whole procedure,such as quotation preparation,arrange shipment,customs clearance;
(2)professional engineer team ensure latest and best design;
(3)professional project manager ensure perfect service for whole procedure,such as quotation preparation,arrange shipment,customs clearance;
2.How to visit your factory and what is visiting schedule?
(1)Our company located in ZHENGZHOU city, HeNan province, From Beijing to our city,it will take 1.5hours by flight or 3 hours by high speed train; From Guangzhou to our city,it will take 2 hours and 20minutes by flight or 6.5hours by high speed train; From Shanghai to our city,it will take 2hours by flight or 7hours by high speed train;
(2)after you confirm visiting plan,please inform us,we will arrange picking up and also booking hotel for you;
(3)welcome to visit our factory,you can check our factory facility,machine manufacturing ability,machine quality,we will also show you same working machine,you can check working performance and get necessary information of whole project,this can help you know well about this project;
(2)after you confirm visiting plan,please inform us,we will arrange picking up and also booking hotel for you;
(3)welcome to visit our factory,you can check our factory facility,machine manufacturing ability,machine quality,we will also show you same working machine,you can check working performance and get necessary information of whole project,this can help you know well about this project;
3.How about technical service?
(1)we will send engineer to check your land condition and make precise design of whole factory;
(2)we will send engineers to make installation for you,after installation,they will teach your workers how to operation,maintain machine and also how to make paper;
(3)if you need,we can also keep some engineer working for you until you completely know well about machine;
(2)we will send engineers to make installation for you,after installation,they will teach your workers how to operation,maintain machine and also how to make paper;
(3)if you need,we can also keep some engineer working for you until you completely know well about machine;
