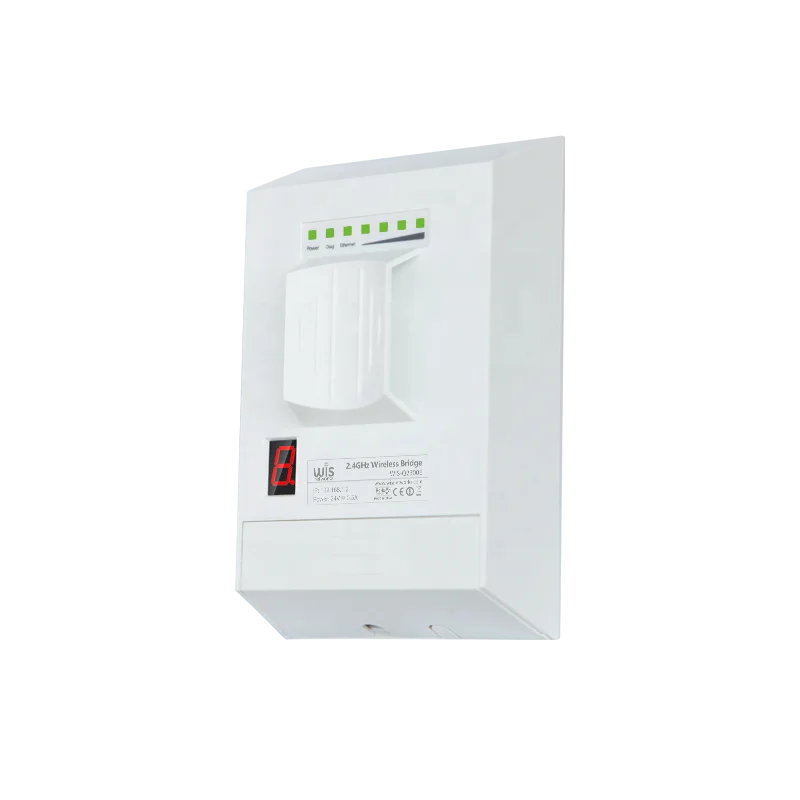

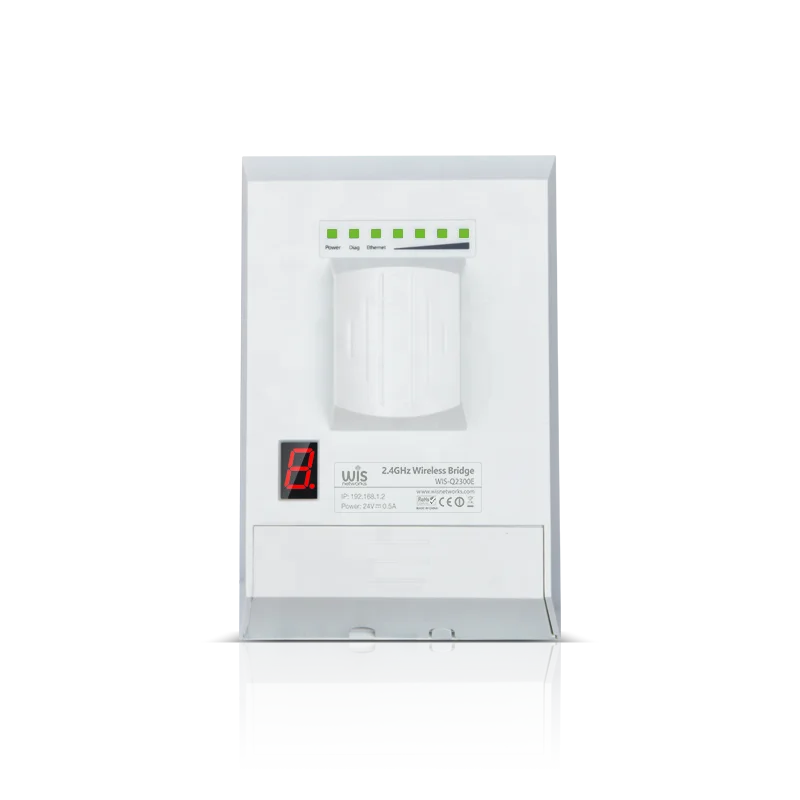

WIS 2.4GHz Wireless Outdoor CPE wifi airmax for hikvision
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600460469925):
Product Overview
Description
Products Description
WIS-Q2300E is a 300Mbps 2*2 MIMO outdoor wireless CPE based on 802.11b/g/n technology. It is industry
design with high performance, cost-effective and dedicated to long distance wireless network solutions.
design with high performance, cost-effective and dedicated to long distance wireless network solutions.
Features
LED Display
● AP/CPE Mode indicator
● Channel display
● AP/CPE Mode indicator

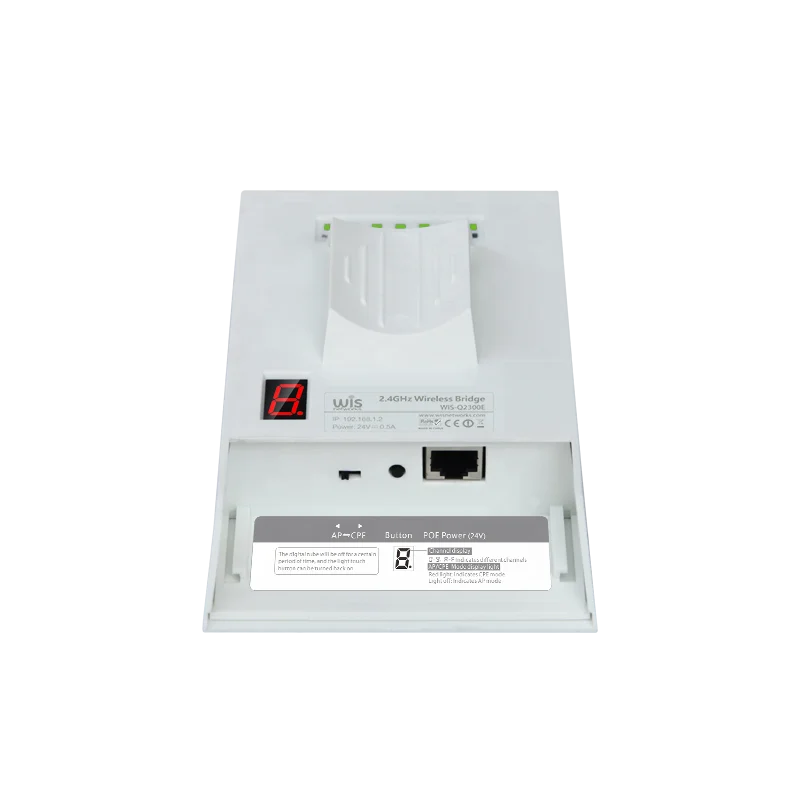

LED,Dial key,Button Description
● Channels Controller
● AP/CPE Controller
● Multiple mounting methods
● Extremely Amazing Performance
● AP/CPE Controller
● Multiple mounting methods
● Extremely Amazing Performance
PTP Setting
1. Set one wireless bridge to AP and another to CPE
2. Set the paired bridge to the same number to match successfully
PTMP Setting
1. Set one wireless bridge to AP and another to CPE
2. Set the paired bridge to the same number to match successfully
Product Paramenters
Radio | - 802.11b/g/n radio (Atheros 600MHz) - Speed up to 300 Mbps - Frequency Range: 2.4-2.4835GHz - Tx Power up to 18dBm -Rx Sensitivity 300M: -73dBm@10% PER 54M: -78dBm@10% PER |
Antenna | - 8dBi panel antenna - Beamwidth(HPBW) Horizontal:60°，Vertical:45° - Open space 500m |
Physical Parameters | - Dimension: 160*108*52mm - Wight: 0.6kg -Enclosure: PC - ESD Protection: 2kV - Working Temp: -20 ~ 60°C - Storage Temp: -30 ~70°C - Working Humidity: 10%〜95% non-condensing |
Interfaces | 1x 10/100 Base-T Ethernet (LAN with Passive PoE) |
Security | Integrated Firewall - WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP; |
LED | - Power：On/Off - LAN:On/Off/Flashing - RSSI Signal:1,2,3 |
Power | - 24VDC, 0.75A - Power Consuption: 6W |
Certifification | - CE, RoHS |
Package content | - WIS-Q2300E Radio - Quick Setup Guide - Power Adapter with Passive PoE - Mounting bracket & kits |
