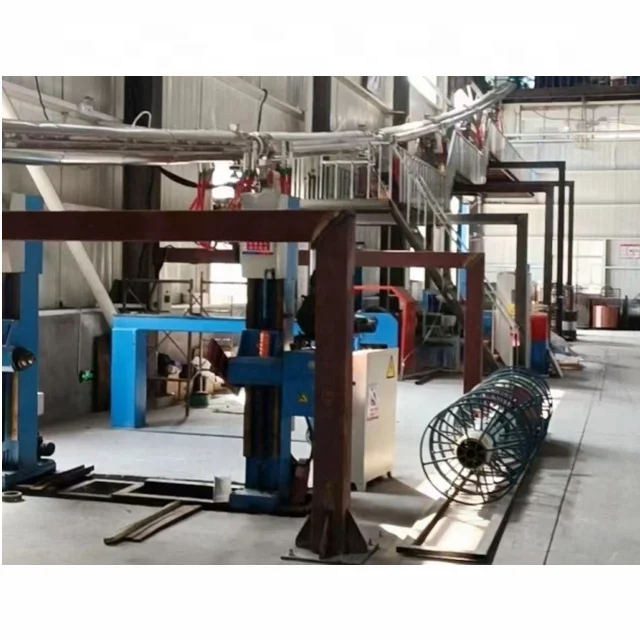

Professional Factory Customized Rubber Continuous Vulcanizing Line/ CCV Extruder Extruding Machine
- Category: >>>
- Supplier: Eastmac Machinery Inc.
Share on (1600460472657):
Product Overview
Description
Product Description
Application:
Rubber Continuous Vulcanizing Line is a special machine for the purpose of insulating, sheathing and continuous vulcanizing rubber wire and cable. The rubber materials include natural rubber, EPR, EPDM, EVA, CPE, EPOM,CR, Silicone Rubber and so on. The cable which is made by this machine can be used in mining, marine, shipboard etc.
Main Technical Data:
| ITEM | XJ-90/16 | XJ-120/16 | XJ-150/16 | XJ-65/14+XJ-90/16 | XJ-90/16+XJ-120/16 | XJ-65/16+XJ-120/16+XJ-90/16 | XJ-90/16+XJ-150/16+XJ-120/16 |
| Dia. before extruding (mm) | Φ5~Φ20 | Φ12~Φ50 | Φ20~Φ8 | Φ5~Φ30 | Φ15~Φ80 | Φ15~Φ80 | Φ20~Φ90 |
| Dia. after extruding (mm) | Φ30 | Φ60 | Φ90 | Φ40 | Φ90 | Φ90 | Φ110 |
| Max.extruding speed (m/min) | 30 | 30 | 20 | 30 | 20 | 20 | 20 |
| Max. output (kg/h) | 150 | 380 | 550 | 70+150 | 150+380 | 70+150+380 | 150+550+380 |
| Heating area | 5 | 6 | 6 | 5+5 | 5+6 | 5+5+6 | 5+6+6 |
| P/O reel | Φ1600 | Φ2500 | Φ2500 | Φ2000 | Φ2500 | Φ2500 | Φ2500 |
| T/U reel | Φ2500 | Φ3150 | Φ3150 | Φ2500 | Φ3150 | Φ3150 | Φ3150 |
| Capstan type | TQDV2000 | TQDV2500 | TQDV3000 | TQDV2000 | TQDV3000 | TQDV3000 | TQDV3000 |
Main Parts:

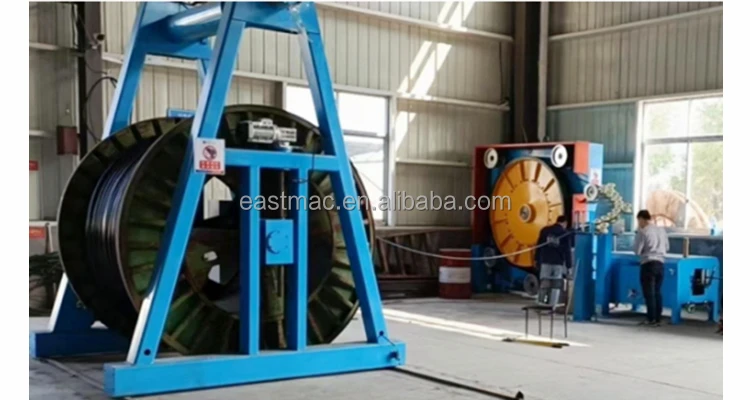

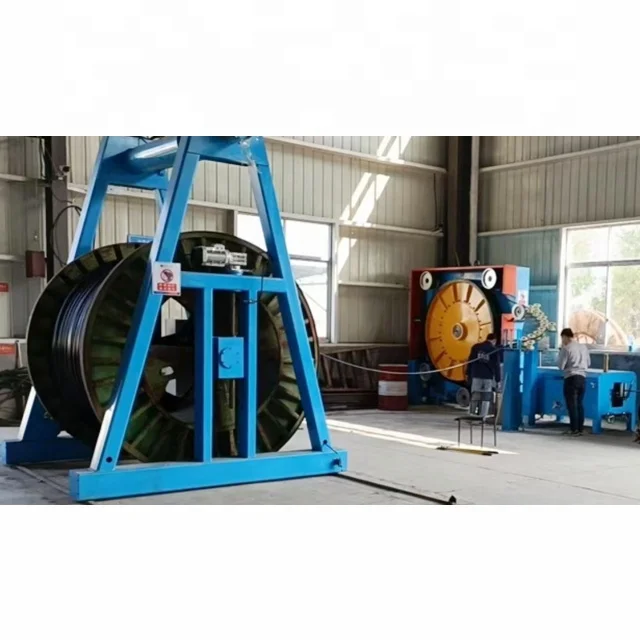

| (1) | Φ800~φ2000 Portal Type Pay off | 1set |
| (2) | Φ800 Horizontal type accumulator | 1set |
| (3) | Cable catcher (with guiding roller) | 1set |
| (4) | P/O length counter (dual-wheel type) | 1set |
| (5) | 2000 caterpillar (6 pairs of cylinder) | 1set |
| (6) | Φ300 position dancer (guiding roller) | 1set |

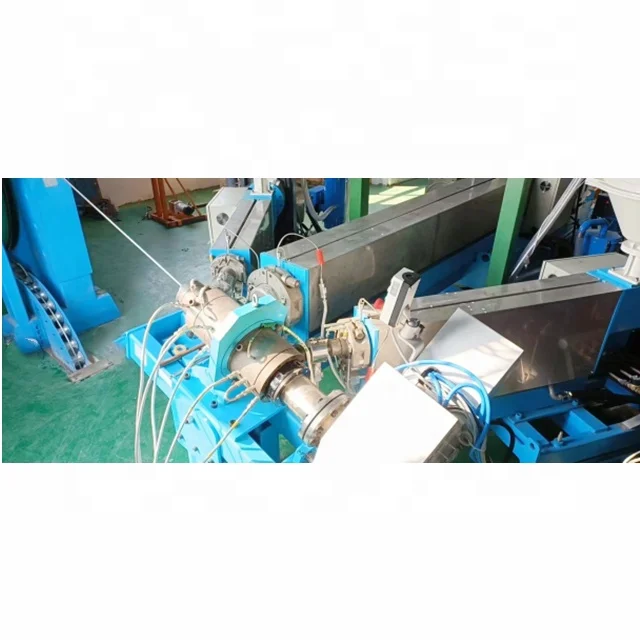

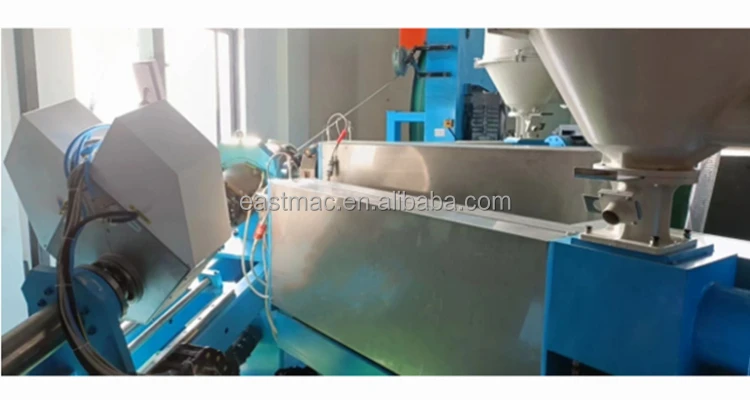

| (7) | XJ-90/16 Extruder (compelling feeding material) | 1set |
| (8) | XJ-60/14 Extruder (compelling feeding material) | 1set |
| (9) | Cross head (Single layer, Dual Layer, Dual color) | 1 set |
| (10) | Temperature controlling unit | 7 sets |
| (11) | Splice box (driven by hydraulic) | 1set t |
| (12) | Vulcanizing pipe and supporter | 1set |
| (13) | Position controller | 1set |
| (14) | Water/Steam balance control system | 1set |
| (15) | End seal box (driven by hydraulic) | 1set |
| (16) | Air blower | 1set |
| (17) | 2000 caterpillar (6 pairs of cylinder) | 1set |
| (18) | Φ1000 Horizontal type accumulator | 1set |
| (19) | 1600 helper caterpillar (4 pairs of cylinder) | 1set |
| (20) | Diameter Gauge (Online/50mm) | 1set |
| (21) | Spark tester (15KV, chain type) | 1set |
| (22) | T/U length counter (dual-wheel type) | 1set |
| (23) | Φ1250~Φ2500 portal type take up | 2sets |
| (24) | Electrical control system | 1set |

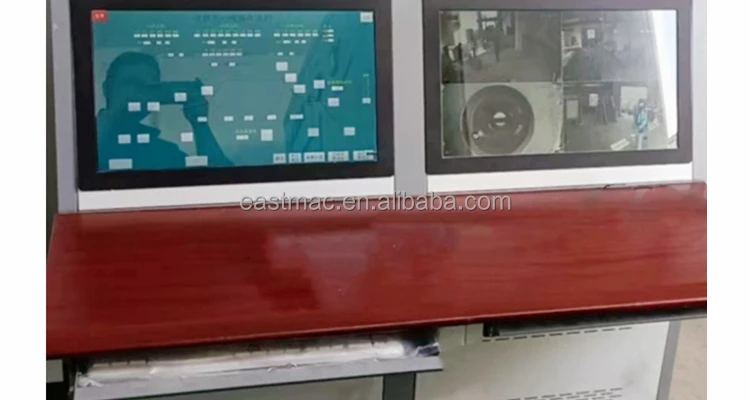

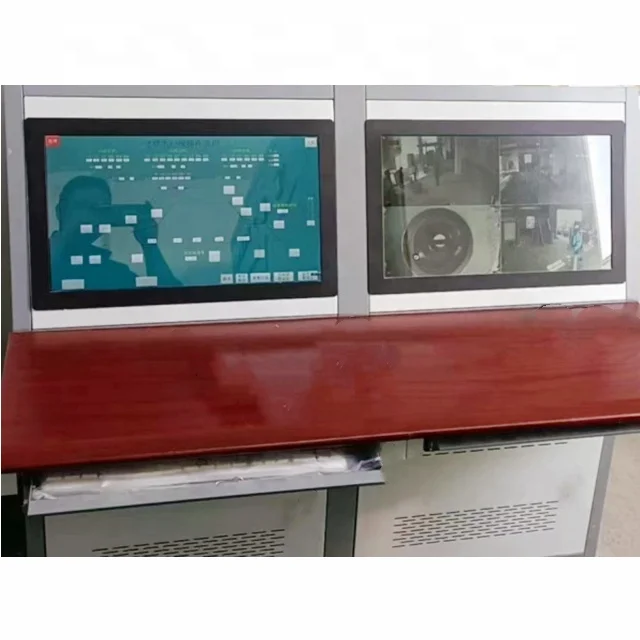

| (25) | Operating panel | 1 set |
Packaging & Shipping
Pallet Packing, Wooden Packing, Vaccum Packing are all avaible as per your request.
Our Services
Longer Warranty Period - 18 Months:
Complete After Service Support:
Factory Visit Available:
Strongger commissioning:
we understand that onsite support for commissioning is a crucial activity and hence we provide a skillful team of experienced engineers to ensure that the start-up and commissioning of our system at your plant is smooth.
Our start-up team is capable to manage and reduce unforeseen risks of performance problems and equipment failures. Our team follows standard processes to ensure that the necessary electrical, mechanical and environmental criteria have been met before commissioning.
During special period, our team can provide powerful Remote Commissioning.
Company Information
FAQ
Q: What can you offer me?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
Q:Could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical successful commissioning at the buyer's factory)
Q: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are Alibaba legitimate certification company (VIP),and we support payment L/C,T/T and so on to ensure your safety.
Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the area of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
