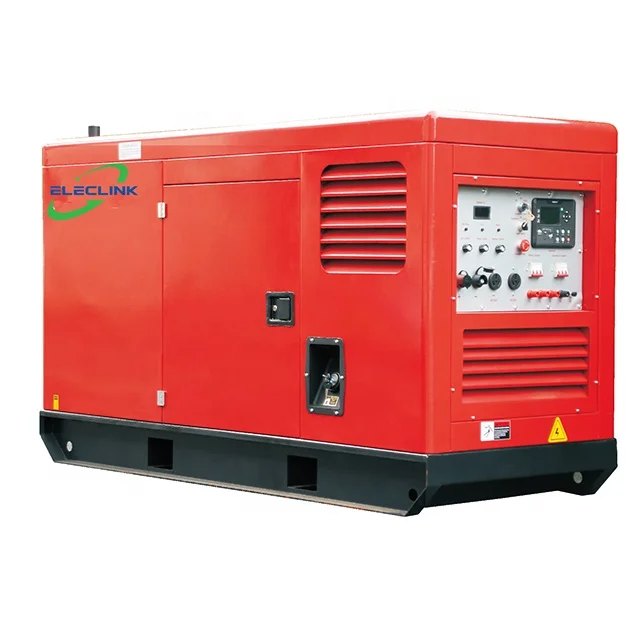

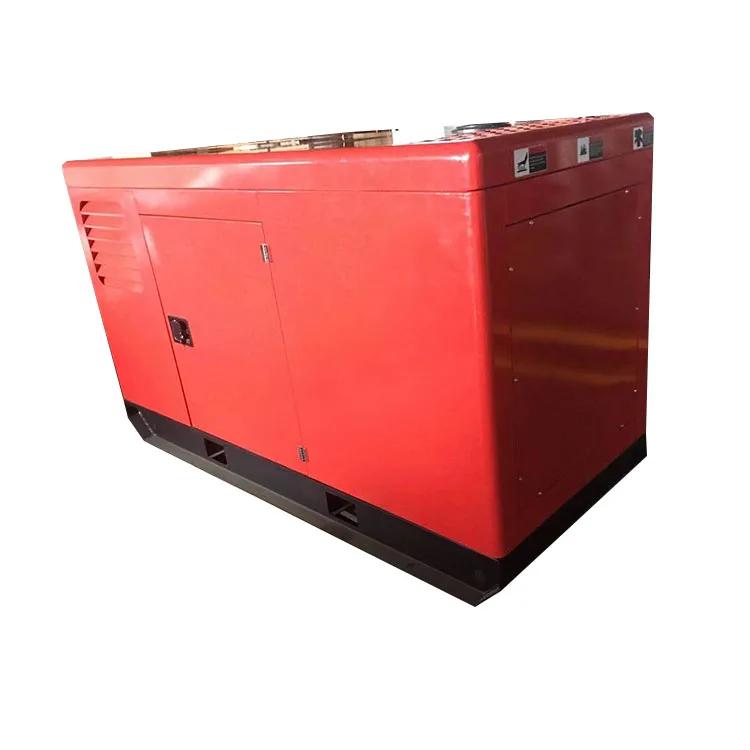

30kw 500A Silent Welding Diesel Generator Air Carbon Arc Cutting and Gouging Welder Generator Sales
- Category: >>>
- Supplier: Taizhou Eleclink Power Equipment Co. Ltd.
Share on (1600460497282):
Product Overview
Description
Details Pics
Specification
Feature：
1.LCD control panel display, easy operation
2.Anticorrosion, cold rolled steel canopy with acoustic foam, low noise, durability
3.Over load protection, breaker protection
4.Arc welding, welding line can extend to 30m
5.Output current 500A,welding thickness 0.8-15mm
1.LCD control panel display, easy operation
2.Anticorrosion, cold rolled steel canopy with acoustic foam, low noise, durability
3.Over load protection, breaker protection
4.Arc welding, welding line can extend to 30m
5.Output current 500A,welding thickness 0.8-15mm
Model | Voltage | HZ | P.F （COS￠） | Prime power |
ELC-W30GF | 110、230、400V | 50/60Hz | 0.8 | 30kw |
Welding mode | Manual metal -arc welding |
Welding A/V | 315A/32.6V |
Welding volt | 20-28V |
Welding current | 500A |
load continuous rate | 80% |
Auxiliary power | DC220V/30kw |
Engine | WP2.3D33E200 |
Engine type | Inline,twin cylinder ,4 stroke, water cooled, direct injection |
Output power | 30kw |
Bore x stroke | 110×155mm |
displacement | 2.3L |
Fuel consumption | 312g/KW.h |
Ignition mode | Compression ignition |
startup | electric |
Fuel | diesel：0#(summer)-10#(winter)-35#(severe cold) |
Fuel tank capacity | 80L |
Battery | 12V-45AH |
Oil alarm system | yes |
wheels | yes |
noise | 68dBA/7m |
Size mm | 1300x800x1030mm |
Net weight kg | 500kg |
Generator Set | Fuel System | Control system | Alternator | Low environment temperature |
8h/12h/24hours fuel tank | AMF function | PMG excitation | Water heater | |
Dual wall base fuel tank | ATS | Space heater | Oil heater | |
Outside fuel tank | Multiple generator automatic synchrorising | Battery heater |
