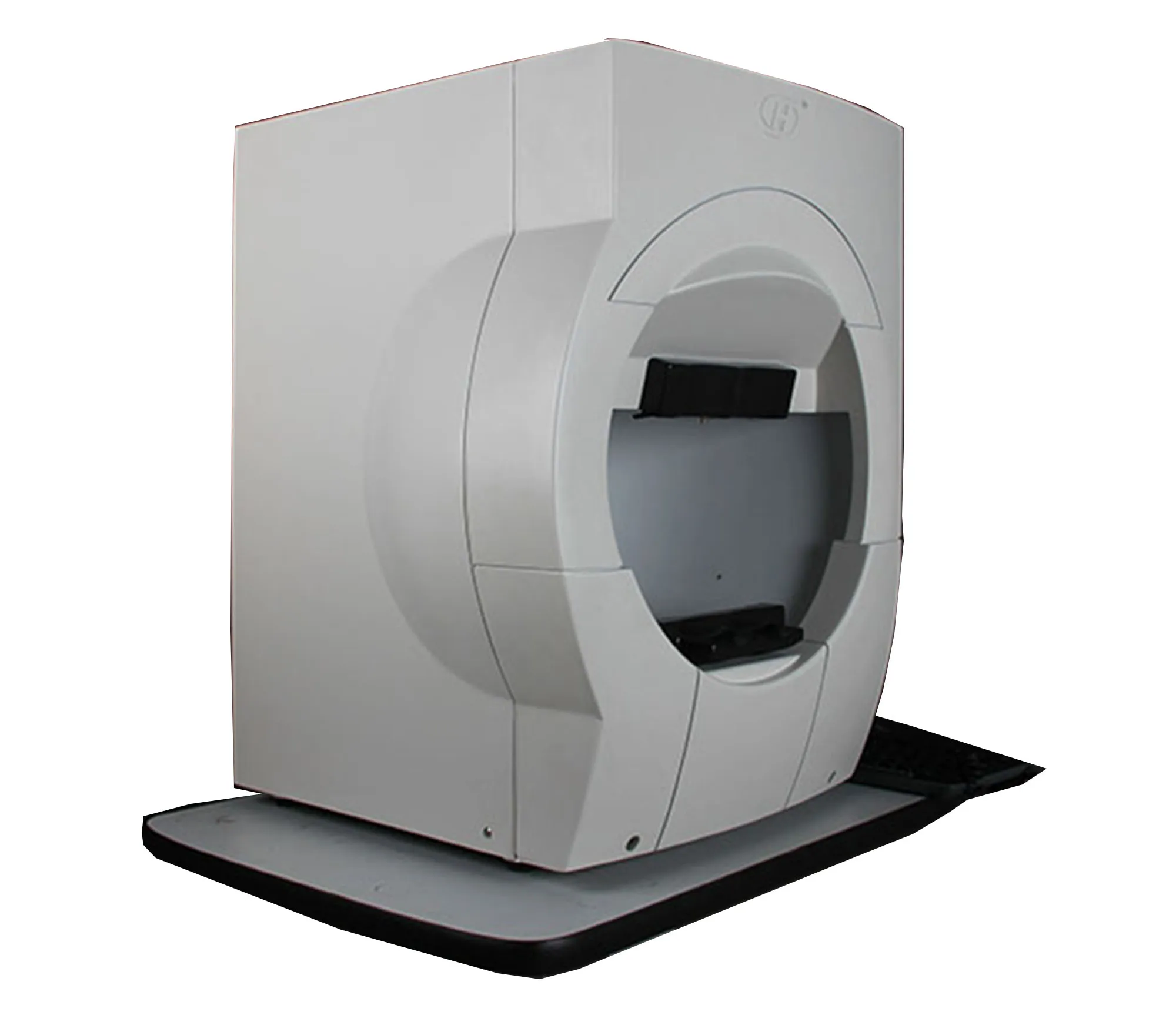

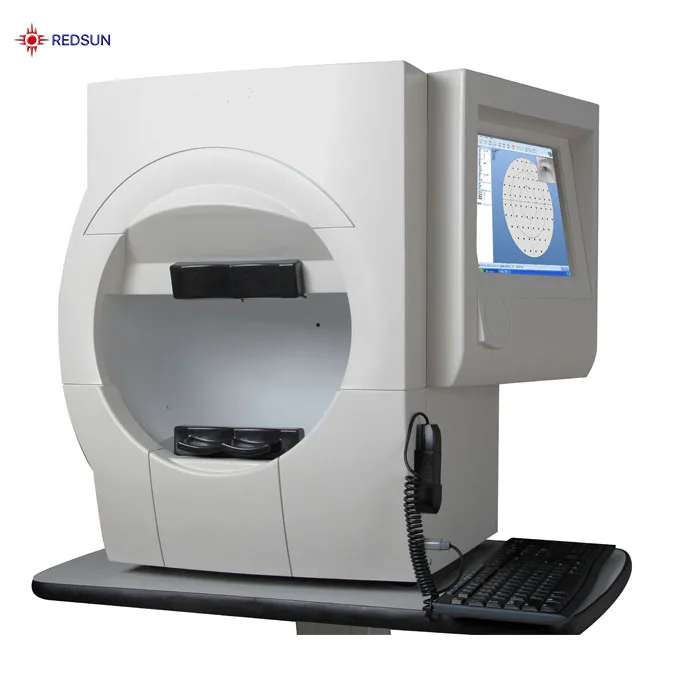

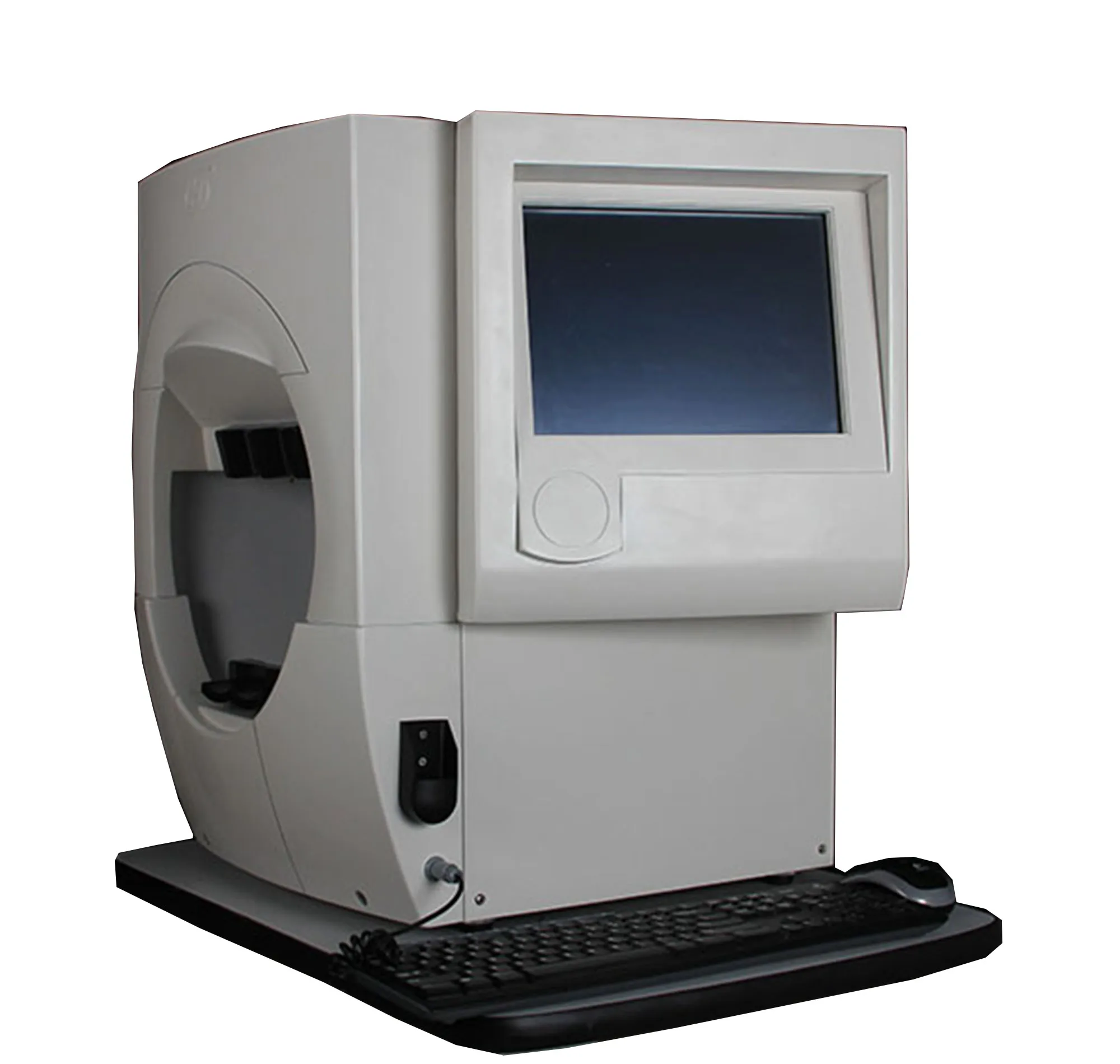

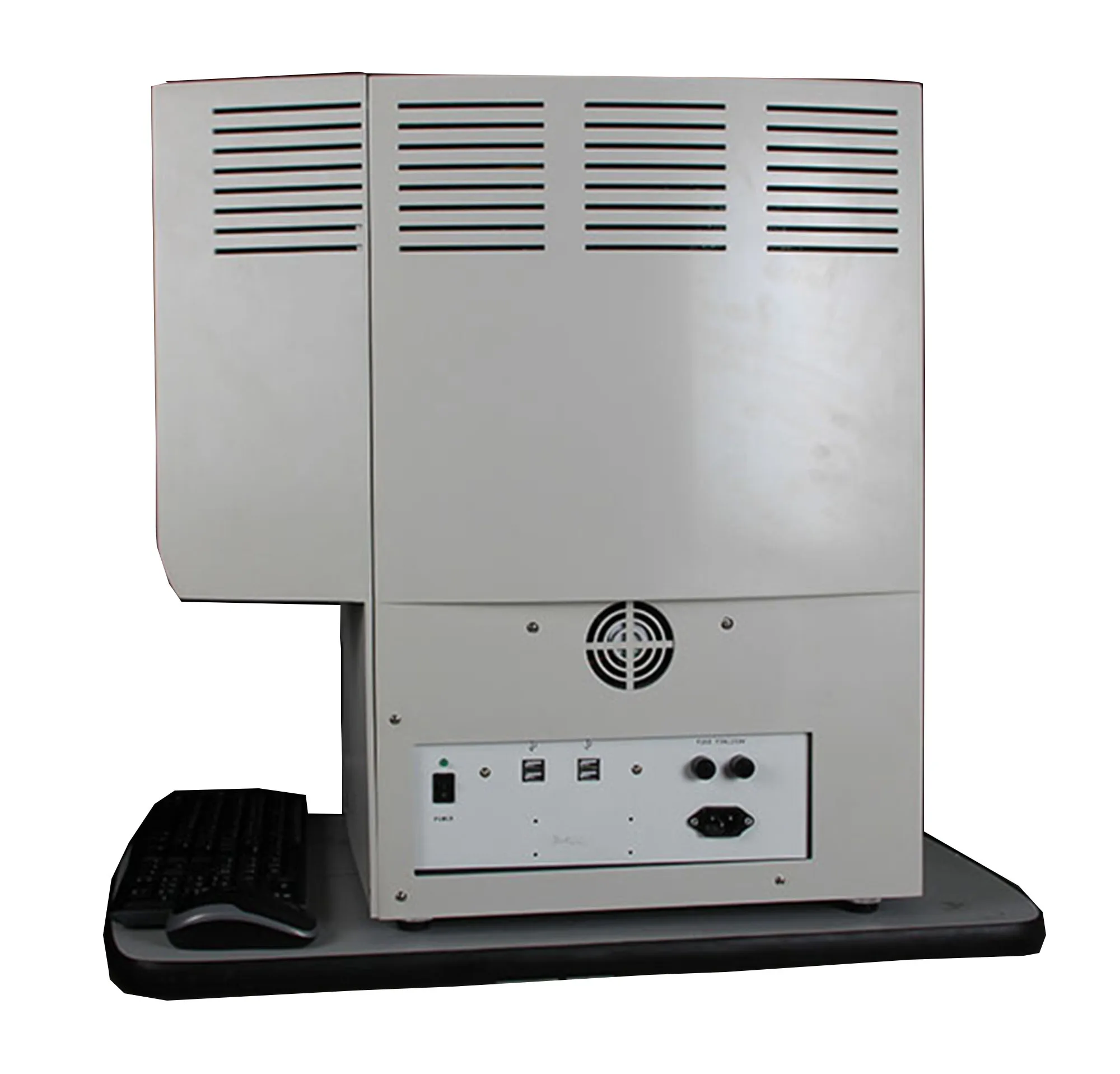

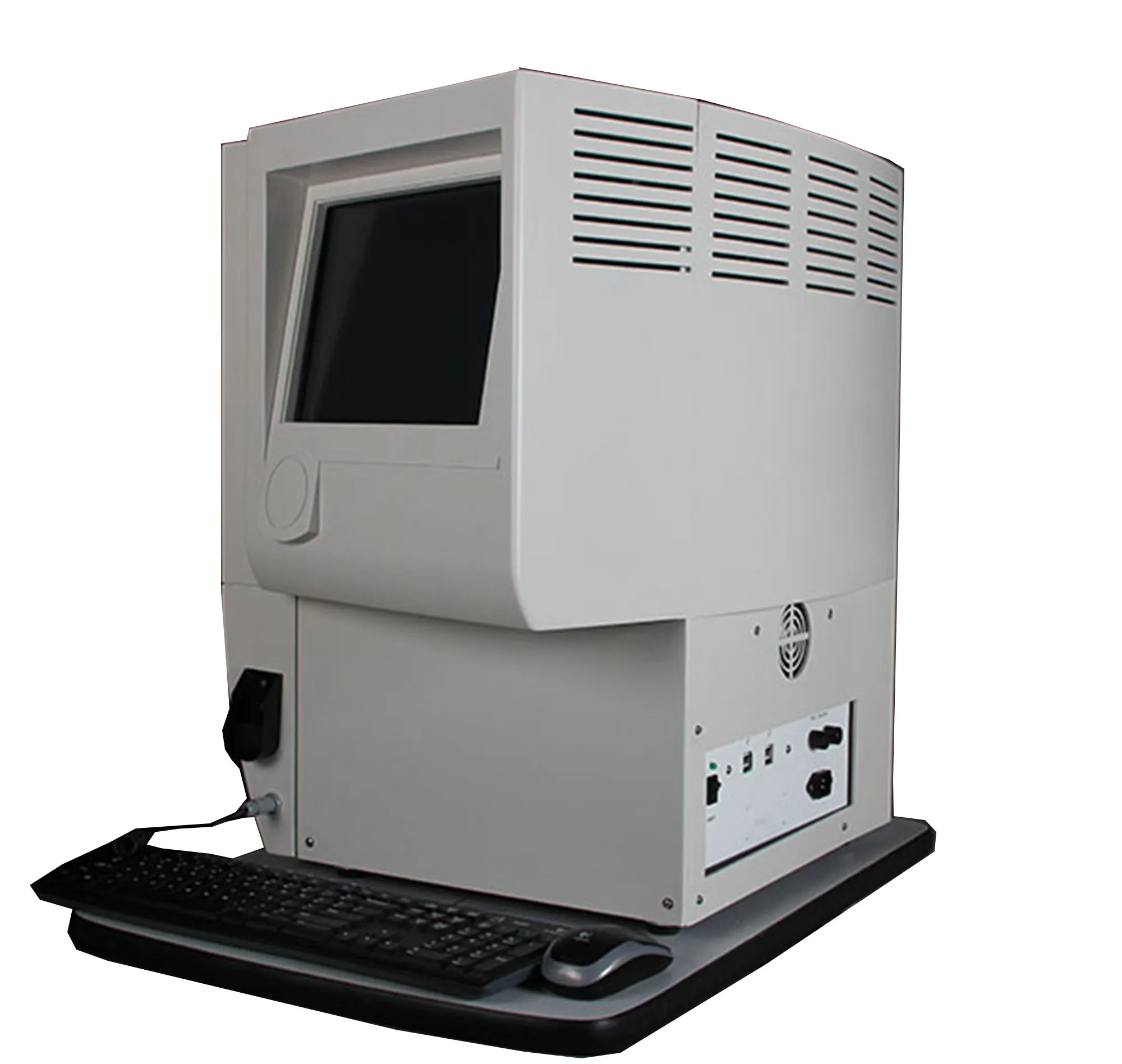

APS T00 china ophthalmic equipment auto perimeter visual field analyzer ophthalmology
- Category: >>>
- Supplier: Nanjing Redsun Optical Co. Ltd.
Share on (1600460505112):
Product Overview
Description
visual field analyzer ophthalmology
(APS-TOO)
China’s first full-field projection perimeter
Software and hardware design is fully in line with international standards.
Automated,user-friendly design,easier operation
Automatic pupil measurement, monitoring nd correction of eye position
3 minutes to complete the threshold perimetry
Report analysis is consistent with the international mainstream.
Technical Specification:
Model | APS-TOO |
Device Type | Integrated Type |
Stimulate point appearing way | Optical projection |
Detection method | Static perimetry |
Detection range | 0-90 degree |
Background light | Yellow , white |
Background brightness | White:31.5asb Yellow:315asb |
Visual Target color | Red,blue,white |
Visual Target Brightness | Oasb-10000asb |
Vision Target intervaltime | ≥200ms(customizable,no limit) |
Visual target holding time | ≥200ms(customizable,no limit) |
Brightness level | 0-51db |
Visual Target Size(Goldman) | I Grade II Grade III Grade V Grade |
Detection strategy | Full-threshold, fast threshold, custom, Two notation, three notation, quantify defects |
Threshold Policy | Intelligent dynamic, fast intelligent dynamic, age-related, The threshold, a single strength |
Threshold Test Mode | Center 10-2, Center 24-2, Center 30-2, Center 60-4, Nasal step, macula |
Fixation monitoring | Dynamic real-time video monitoring, physiological blind spot monitoring, Eye tracking curve, eye position offset alarm |

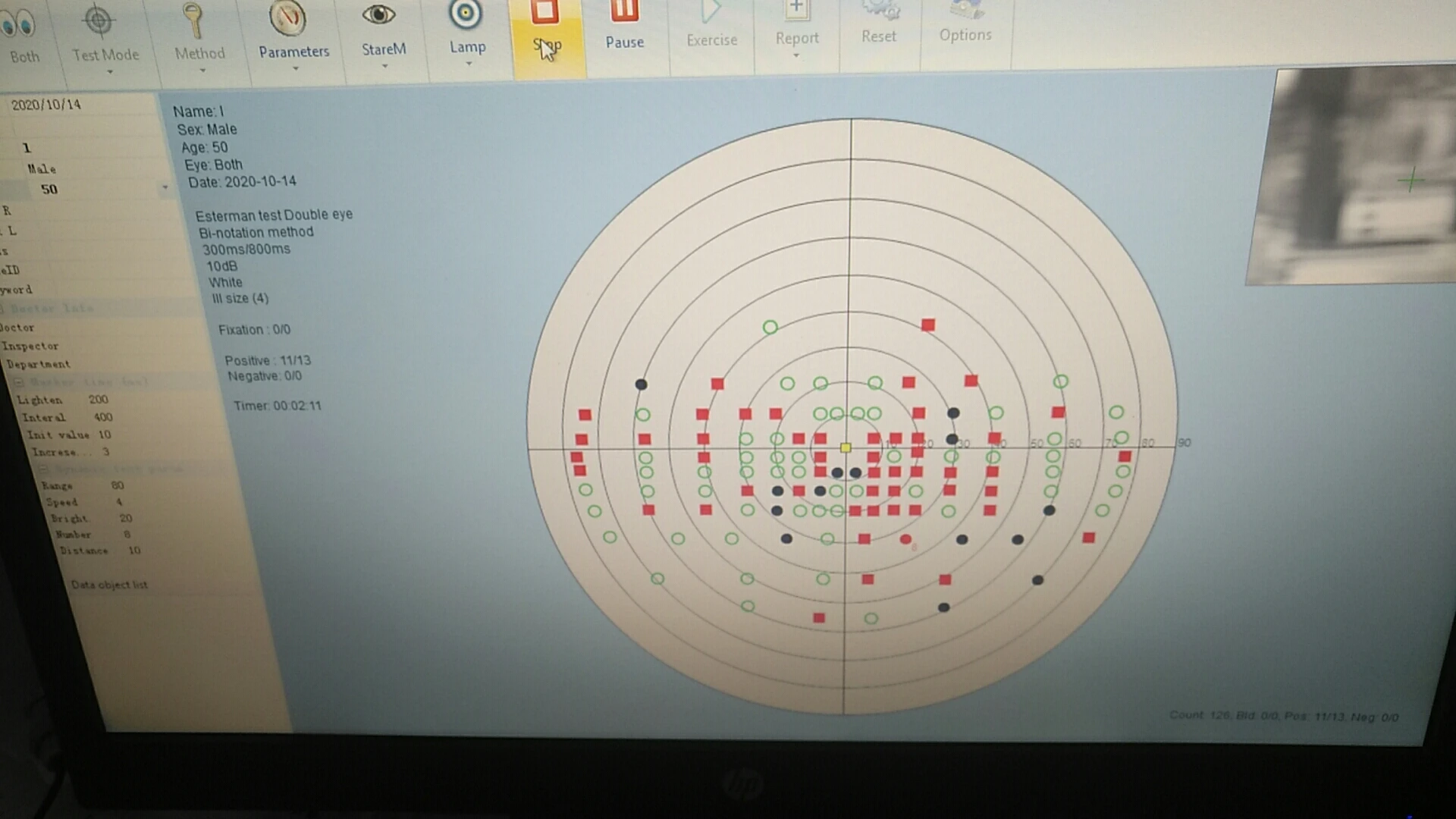

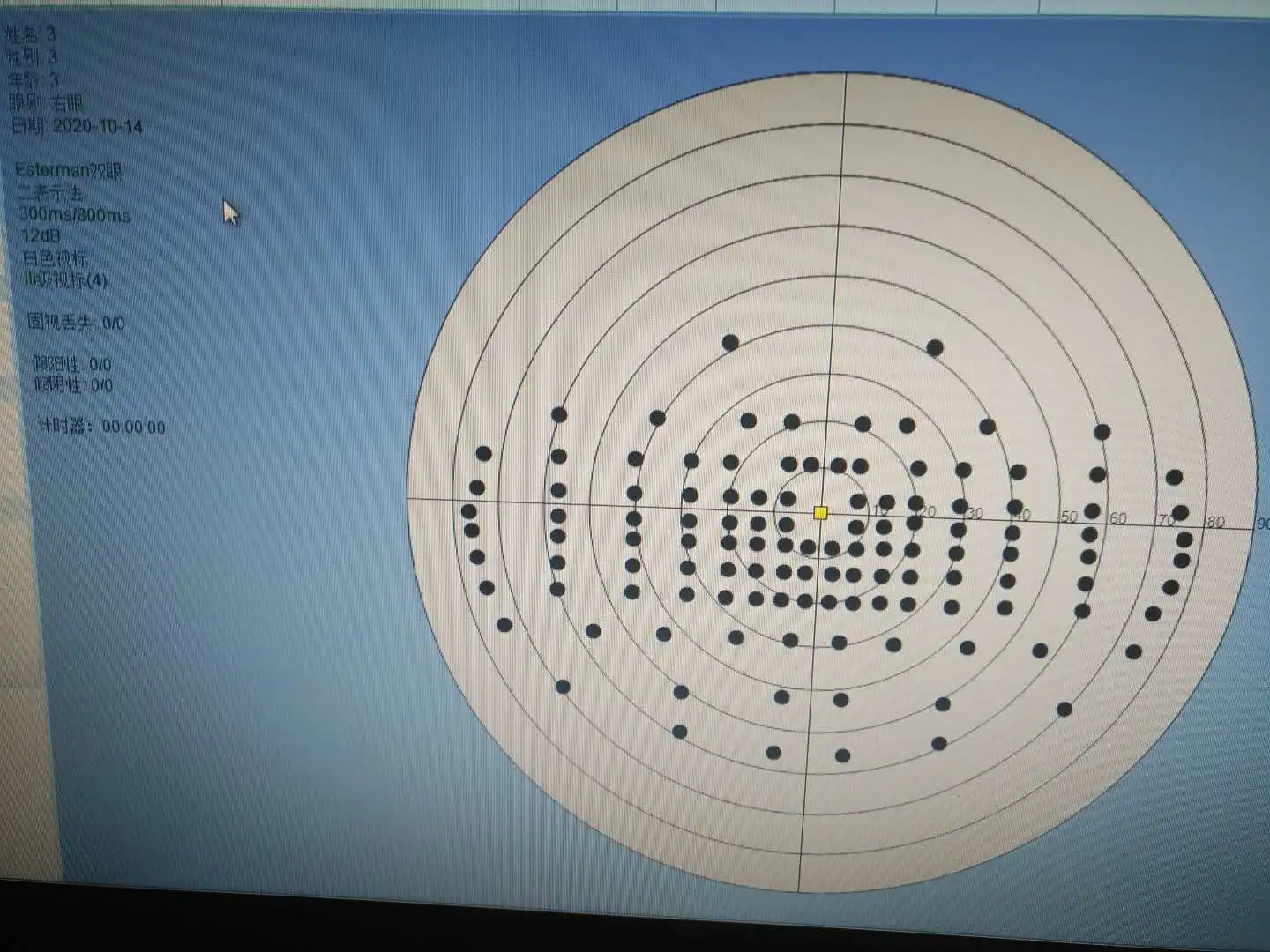

Analysis Software | Reliability analysis, analysis of a single vision, triple report analyzes |

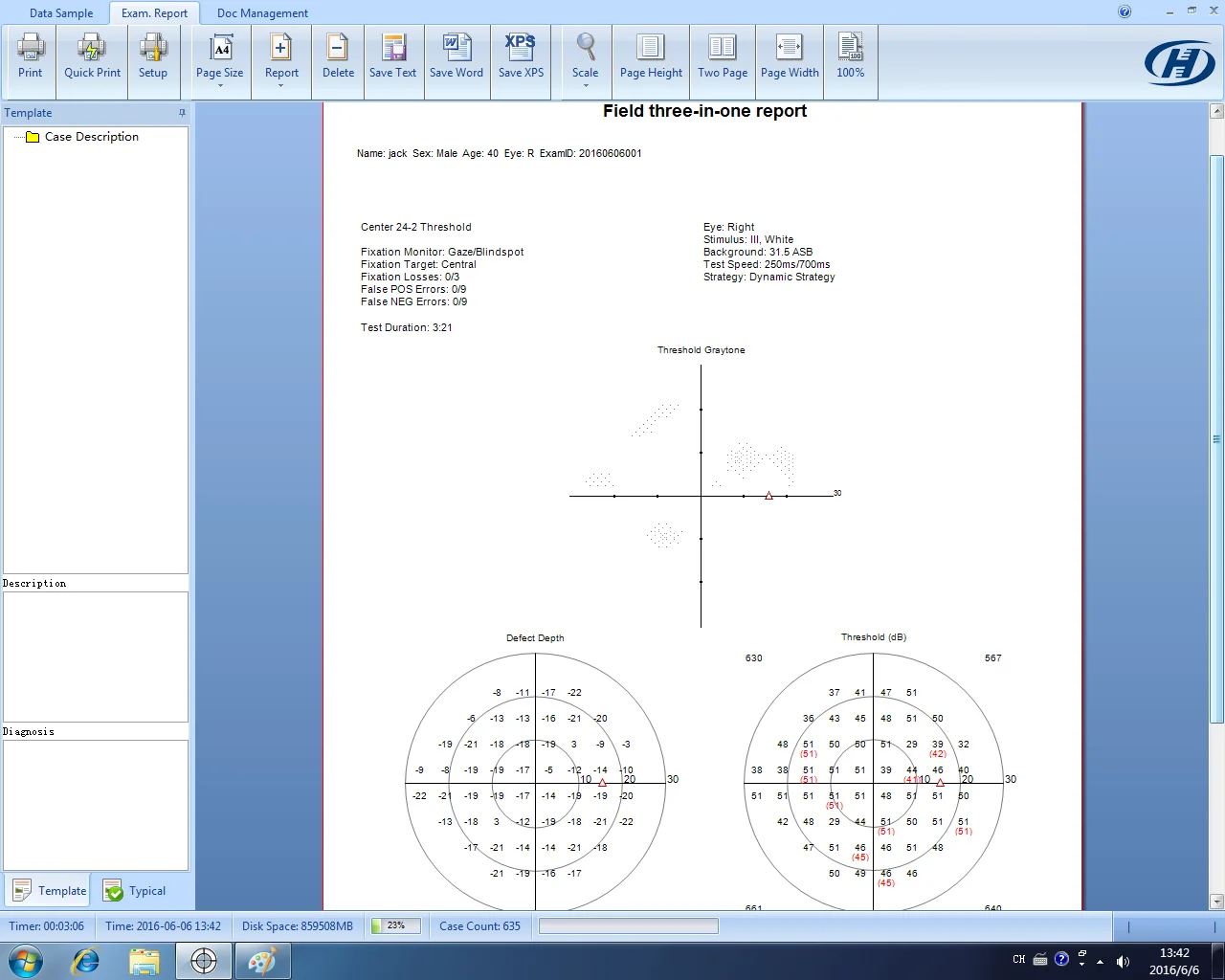

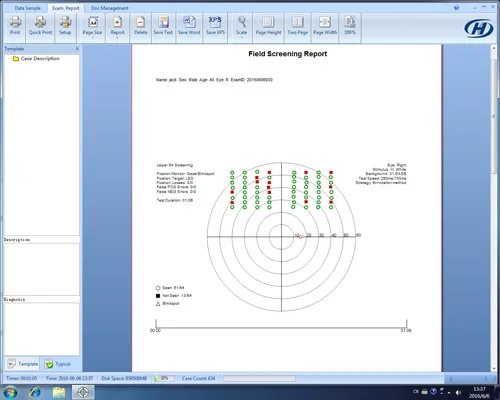

Report Figure | Value, grayscale, the overall bias decibel chart, The overall deviation probability map, chart pattern deviation decibels, Pattern deviation probability plot, staring Figure |
