Product Overview
Description
New Top CE Automatic Test Precise Biomedical Equipment Manufacturers Health Analysis Device
SONKA Best Patient Portable 12 Leads ECG Machine Blood Hemoglobin Meter Urine Analysis Professional Medical DevicesFull range examination that caters to you
Highly integrated Blood pressure, blood glucose, uric acid, total cholesterol, ECG, body temperature, blood oxygen, urinalysis, hemoglobin, etc.
Rich examination capabilities to assist family doctor follow ups
Home doctor visits, packaged service
Family doctor workstation that assists home doctors;
Easier health file management, health guidance, etc. in one package
Broad services supported by data
More than 10,000 pieces of data stored locally (in offline state)
Public health services enter communities at ease

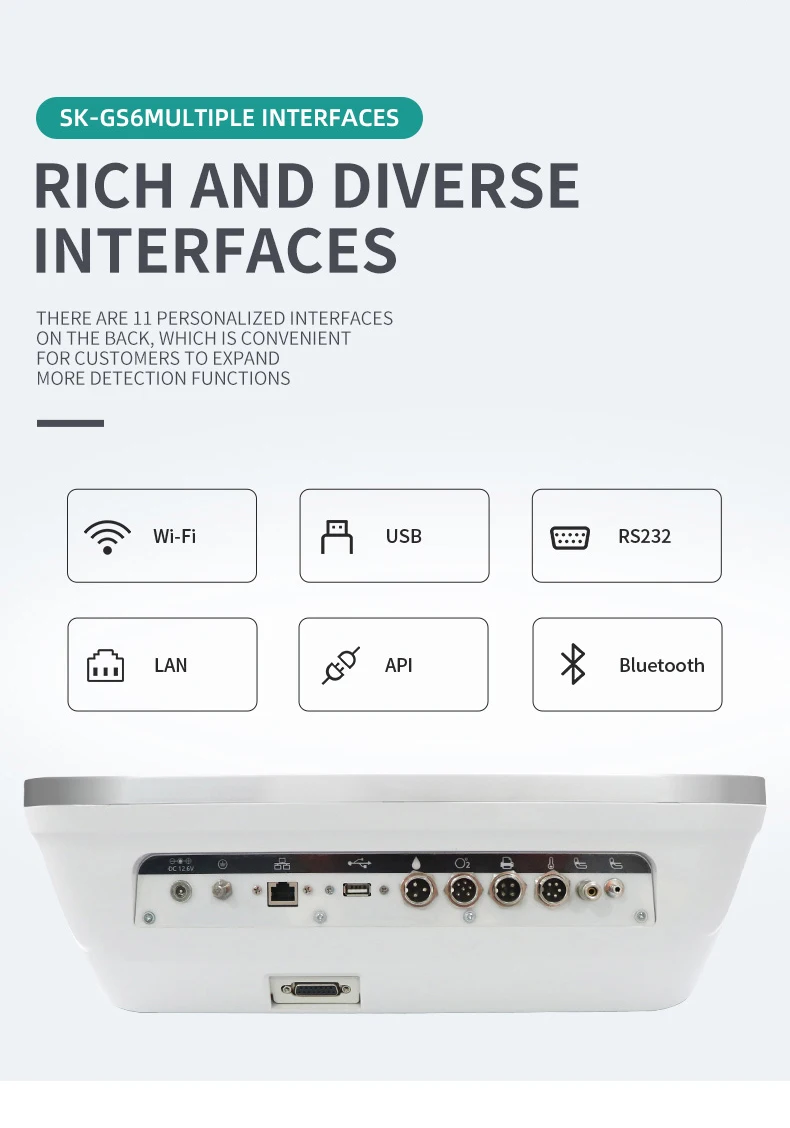

Data uploaded to local public health systems; HIS system uploaded, etc., with powerful data interface through various data docking methods such as Wi-Fi and Ethernet
Small, light, and portable
Net weight: 4.8kg
Highly integrated Blood pressure, blood glucose, uric acid, total cholesterol, ECG, body temperature, blood oxygen, urinalysis, hemoglobin, etc.
Rich examination capabilities to assist family doctor follow ups
Home doctor visits, packaged service
Family doctor workstation that assists home doctors;
Easier health file management, health guidance, etc. in one package
Broad services supported by data
More than 10,000 pieces of data stored locally (in offline state)
Public health services enter communities at ease
Data uploaded to local public health systems; HIS system uploaded, etc., with powerful data interface through various data docking methods such as Wi-Fi and Ethernet
Small, light, and portable
Net weight: 4.8kg
G.W:8.2KG
Easy portability for doctors’ follow-up visits
Residents can now complete physical examinations without leaving their homes.
Easy portability for doctors’ follow-up visits
Residents can now complete physical examinations without leaving their homes.
Products Description

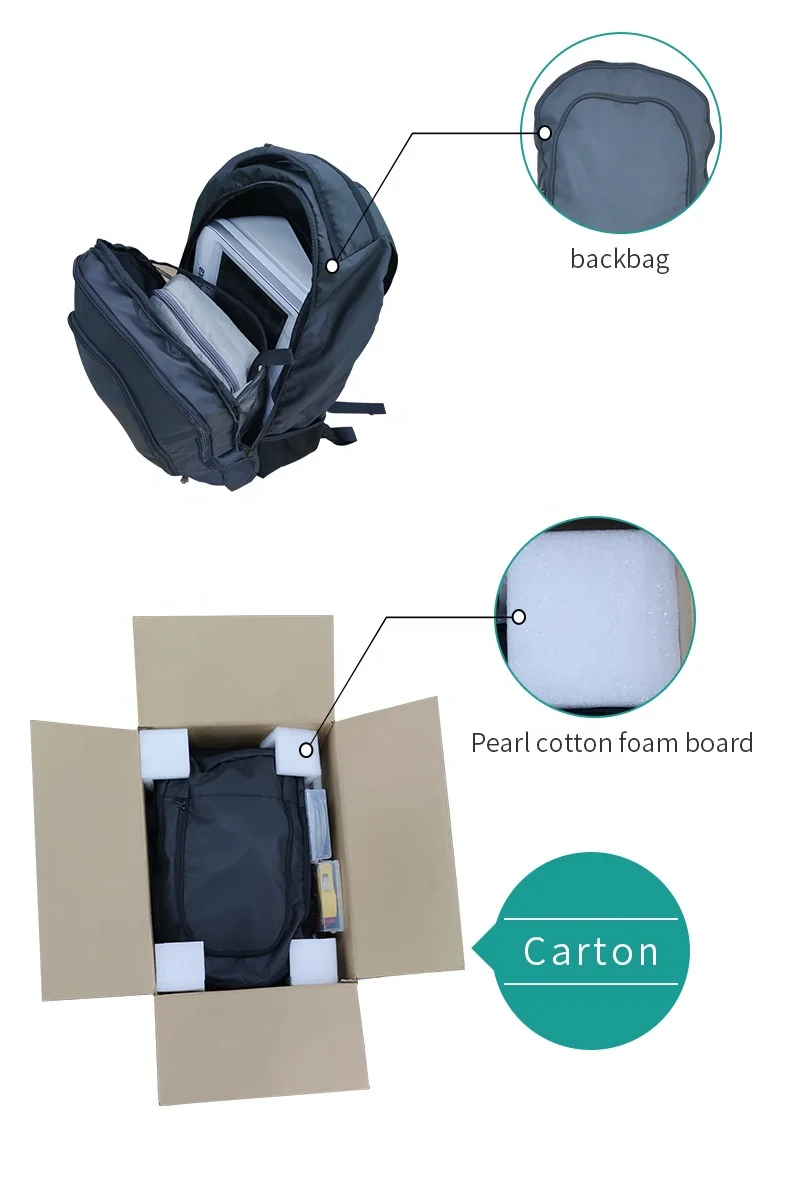

Product Packaging
Product Paramenters
Product Type | SK-GS6 | |
Project name | Parameter | Specification |
Body Temperature | Display precise digits | 0.1 ℃ |
Human body temperature measurement mode | 32.0～42.5℃ | |
Object temperature measurement mode | 0～100℃ | |
Accuracy | ≤±0.3℃ | |
Measuring distance | 5 to 8 cm | |
Automatic shut-down | About 15 seconds | |
Blood Pressure | Measuring range | Pressure (0～270)mmHg [(0～36)kpa] |
Pulse rate 40 times/per minute～180 times/minute | ||
Measurement accuracy | Pressure within ±3mmHg (±0.4kpa) | |
Pulse rate within ±5% | ||
Applicable circumference range of cuff | 15cm～42cm | |
12-lead ECG | Collection method | 12-lead synchronous ECG Wilson |
Sampling frequency | 500Hz | |
Gain setting and accuracy | Should provide 5 mm/mV (x0.5), 10 mm/mV (x1), 20 mm/mV (x2) | |
Blood Oxygen | Measuring range | 35%~ 100%; |
Maximum average optical output power | ≤2mW | |
Measurement error | In the range of 70%～100%, the measurement error is ±2% | |
Pulse rate measurement error | 30～250bpm The monitoring error is ±2bpm or ±%2, whichever is the largest | |
Blood Sugar, Uric Acid, Total Cholesterol | Specimen | Fingertip microvascular whole blood |
Detection time | Blood sugar: within 10 seconds Uric acid: within 15 seconds Total cholesterol: within 26 seconds | |
examination range | Blood sugar: 20-600mg/dL (1.1-33.3mmol/L) Uric acid: 3-20mg/dL (0.18-1.19mmol/L) Total cholesterol: 100-400mg/dL (2.59-10.35mmol/L) | |
Urinalysis | Detection principle | RGB three primary color detection principle |
interface | Micro USB interface, Bluetooth wireless communication (Bluetooth version machine) | |
Relative humidity | ≤80% | |
Dimensions | 126mm(L)*74mm(W)*30mm(H) | |
Hemoglobin | measure time | ≤10 seconds |
Equipment detection range | 7.0-26.0g/dL (4.3-161.1mmol/L); 20-75% blood cell volume (converted) | |
Power Adapter | Standard operating voltage range | 100～240Vac, typical 220Vac |
Motherboard | CPU | Super quad-core Cortex-A17, frequency up to 1.8GHz |
GPU | ARM Mali-T764 GPU, support TE, ASTC, AFBC memory compression technology |
