High speed automatic plastic thermoforming ops clear food box making machine
High speed automatic plastic thermoforming ops clear food box making machine
High speed automatic plastic thermoforming ops clear food box making machine
High speed automatic plastic thermoforming ops clear food box making machine
High speed automatic plastic thermoforming ops clear food box making machine
High speed automatic plastic thermoforming ops clear food box making machine
High speed automatic plastic thermoforming ops clear food box making machine

High speed automatic plastic thermoforming ops clear food box making machine

Share on (1600460530255):


Price:$47,000.00 - $48,000.00

Quantity:


Product Overview

Description





Application:
This machine is suitable for forming HIPS, PS, BOPS, PVC, PET sheets. It can produces boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.

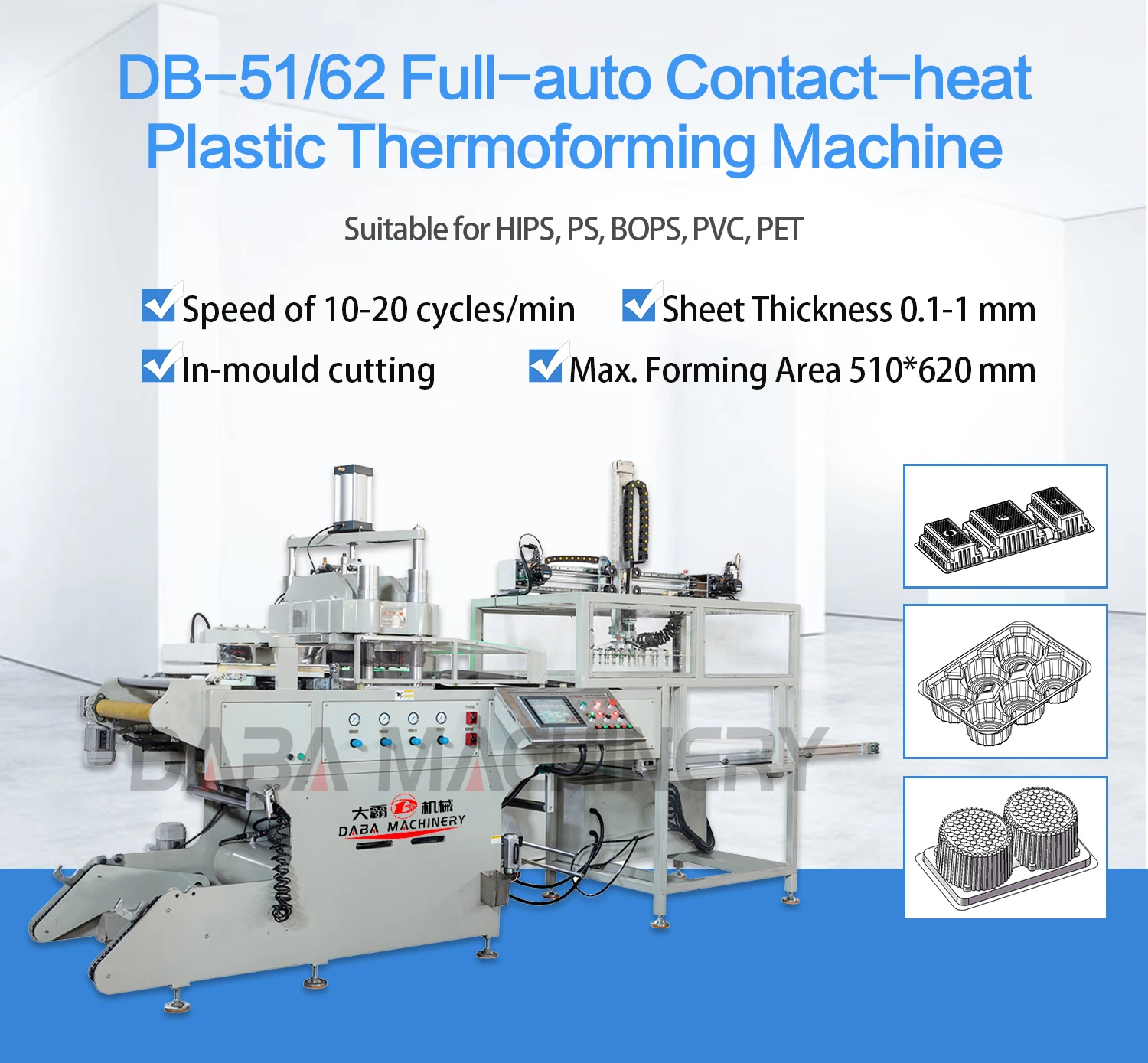

DB-51/62 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components, and the whole machine is controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting into one process.


Features:
1. Use for forming BOPS/HIPS/PS/PVC/PET plastic sheets into various of boxes, dishes, trays, bowls and lids.

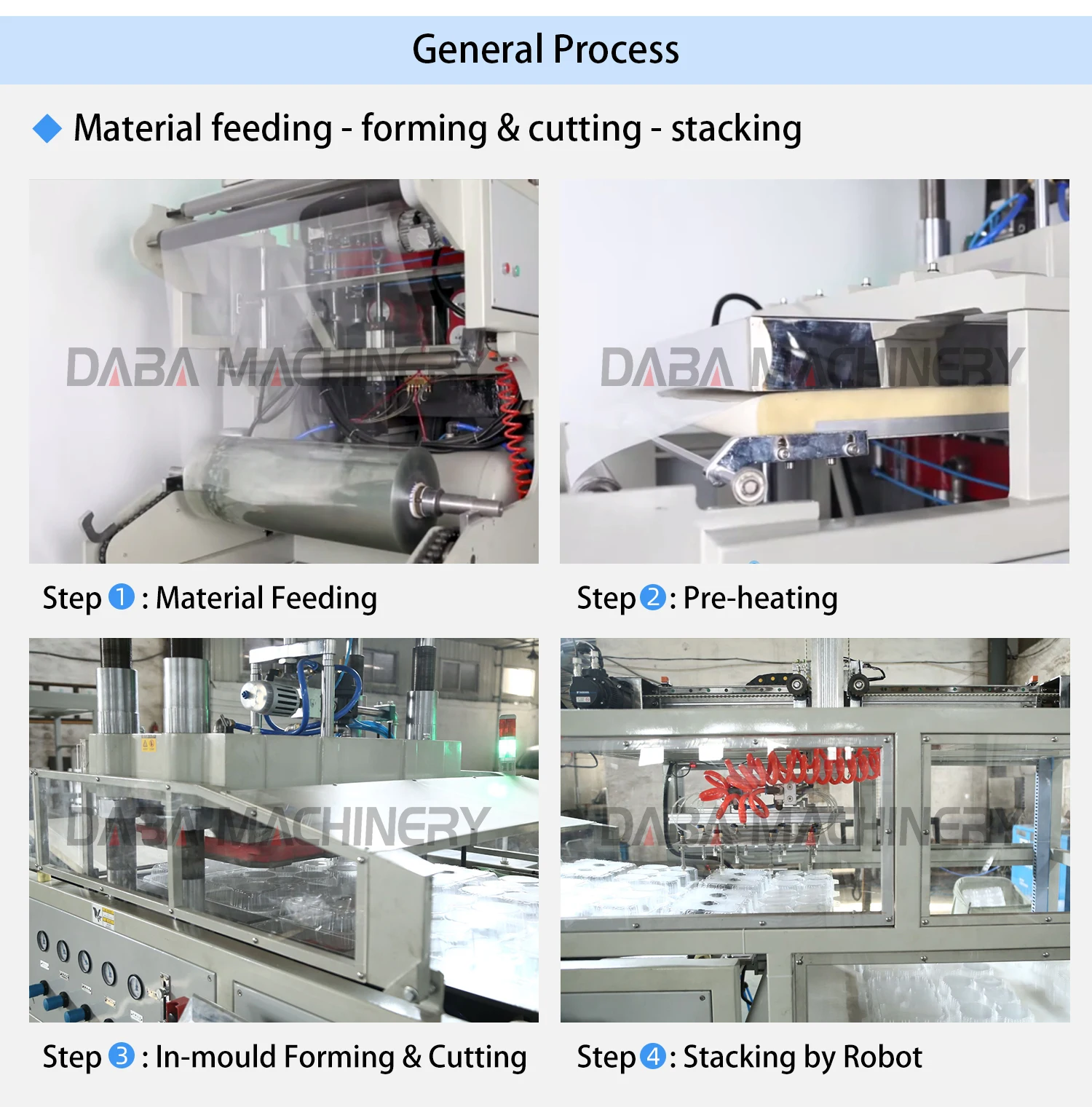

2. Combination of mechanical, electrical and pneumatic components, and it combines the material sending, heating, forming and cutting into one process. The final products already cut one by one.
3. The whole system is controlled a micro PLC, which can be operated in man-interface. And it is capability reliable, safe and jarless, less error.
4. Has three operation models: manual, semi-automatic and full-automatic.
5. Servo motor drives the sheet transport system.
6. Has quickly production capacity, highly utilization ratios of plastic sheet, Low air consumption and maintenance, beautiful final products, so it is a new generation ideal package equipment.
7. Telecommuting and memory reserve functions.






Specification


Model
DB-51/62
Suitable materials
BOPS/ HIPS/ PS/PVC/PET
Forming area
510*620 mm
Forming depth
100 mm
Sheet thickness range
0.1-1 mm
Sheet roller diameter
710 mm
Control System
Servo driven platen
Air pressure
0.7 Mpa
Water consumption
10 Liters/min (15-20℃)
Air consumption
2200 Liters/min
Production Speed
600-1200 recycles/hr.
Voltage
AC380V±15V, 50HZ
Preheating power
4 kw
Mould plate heating power
6 kw
Heating plate power
15 kw
Weight
2500 kg

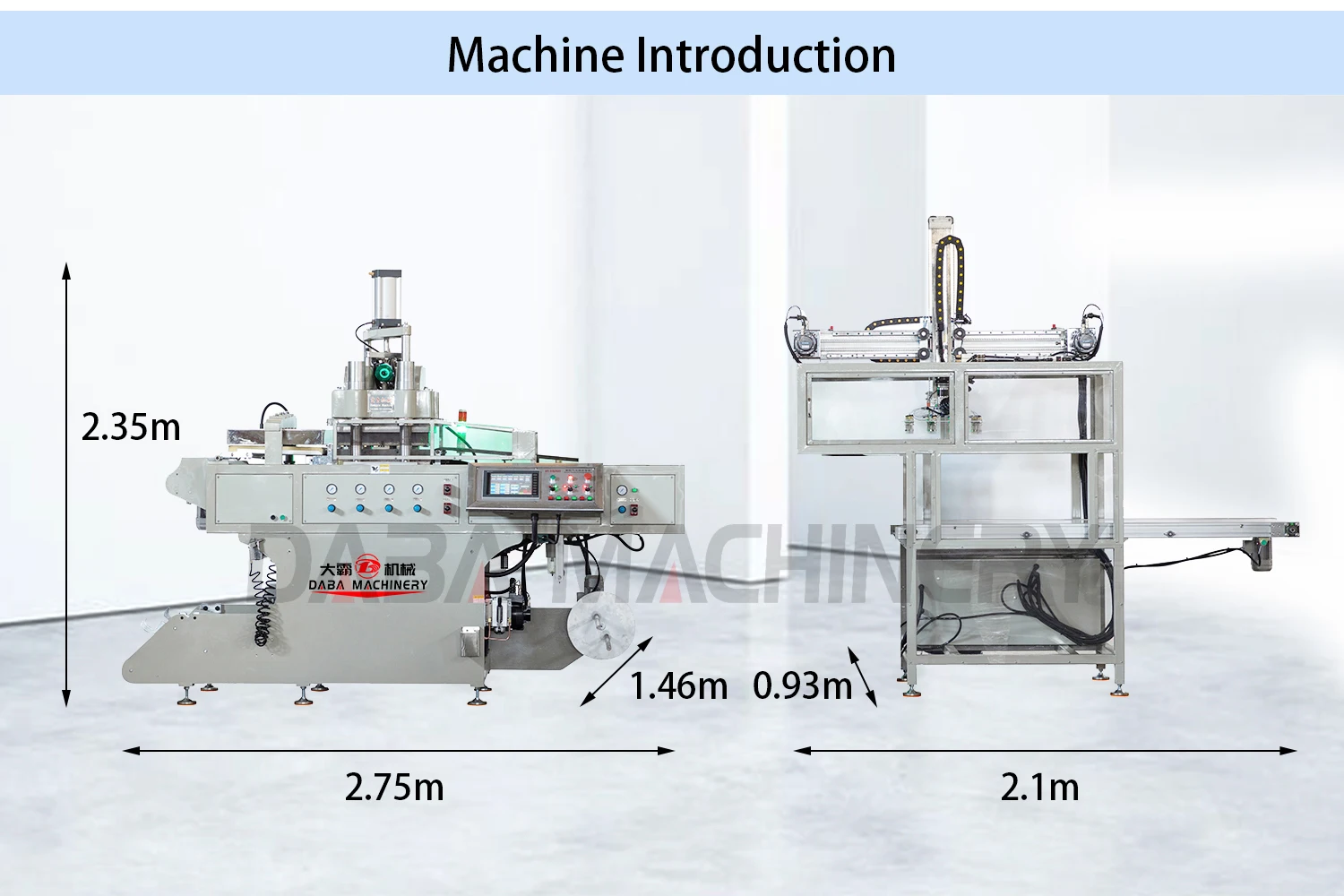

Dimension of main machine
2750*1460*2350 mm
Dimension of stacker
2100*930*2350 mm




About Wenzhou DABA machinery company
1. Pre-sales Service
DABA MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to
give you specialized suggestion of the whole work.

2. Shipping Service
DABA MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents
so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the
destination.

3. Installation Services
Installation Services are available with all DABA Company machines. We could dispatch technician to the Buyer's factory for
installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.

4. Clients Training Services
The buyer could also send your own technician come to DABA factory to learn how to operate machines. Our technician will teach and
train the learners hand by hand till he can operate machine by himself.

5. After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.

If you are interested in our machine, please feel free and contact me.
