silicone sleeve for plasma treater
US $1200-$1400

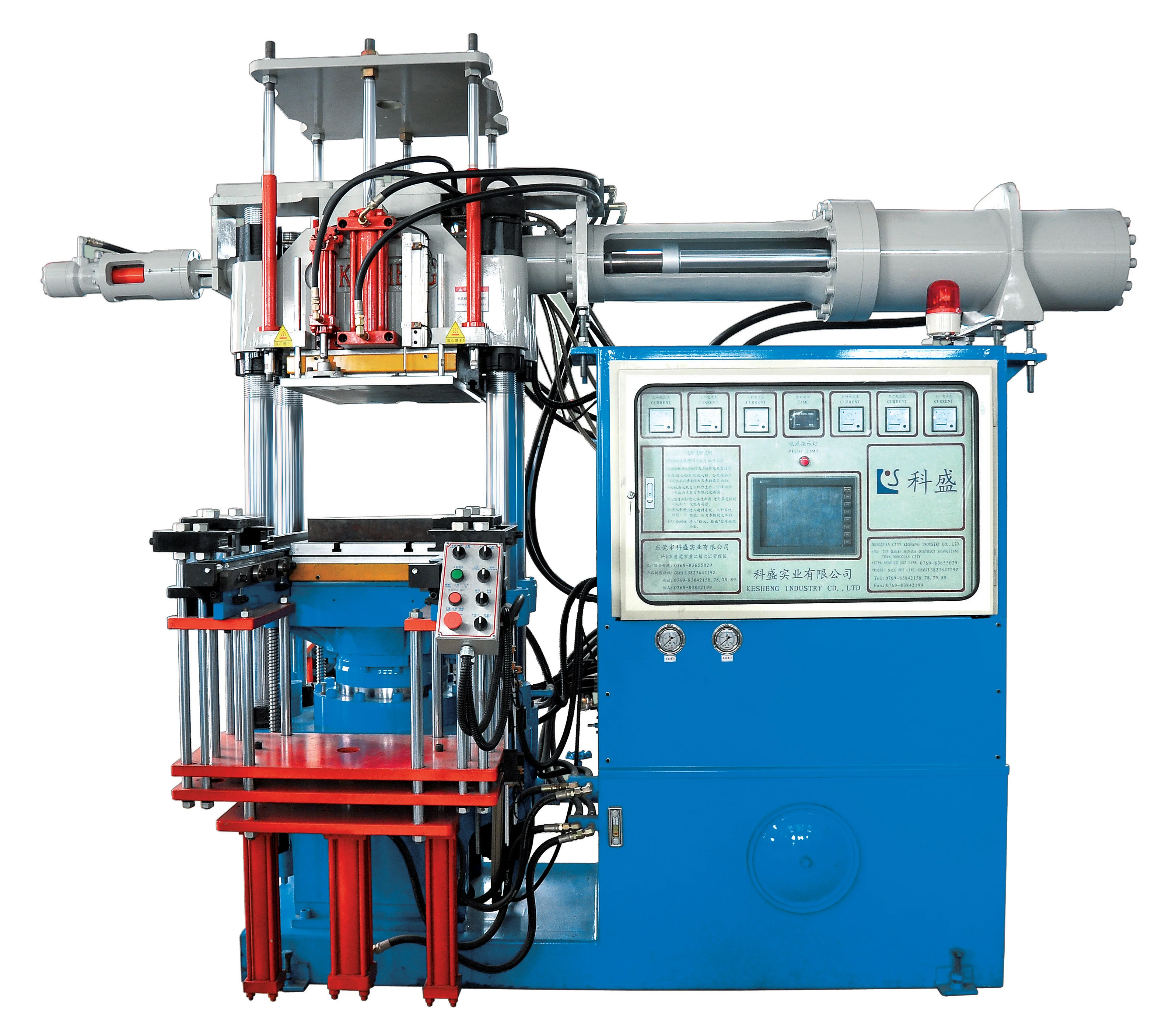

Horizontal Rubber Plate Pressure Machinery for rubber machinery parts injection molding machine
- Category: Other Plastic & Rubber Machinery >>>
- Supplier: Dongguan Kesheng Intelligent Equipment Technology Co. Ltd.
Share on (1600460533508):
Product Overview
Description
Product Description
200Ton First in last out silicon injection molding machine, full automatic, hign precision, front open mould style injection machinery.
Applied to silicone craft products, electrical insulation products, sex products, medical products, sporting products, cookware.
Machine main feature:
1. Full-scale oil system
2. Streamlined no dead material back check valve design
3. A full range of computer display control system
4. Precision optical ruler control injection quantity, matching with three-stage injection control
5. With Japan made high-tech infrared safety electric eye
6. Double helical loop temperature control system
7. Multi-stage design to eliminate bubbles during feeding material
8. Can match with cold and hot runner for run material model
9. Silicone large capacity feeding barrel, can feed material 20kg-25kg one-time
Applicable products:
Applied to silicone craft products, electrical insulation products, sex products, medical products, sporting products, cookware.

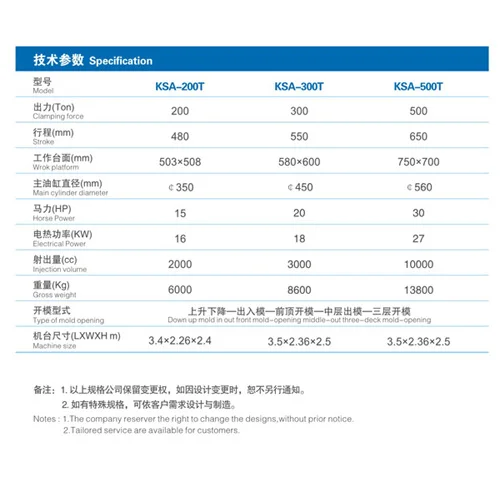

Specification and parameter:
Main parts instruction:
| Model | KSA-200T | KSA-300T | KSA-500T |
| Clamping force(Ton) | 200 | 300 | 500 |
| Stroke(mm) | 480 | 550 | 650 |
| Heating plate size(mm) | 503*508 | 580*600 | 750*700 |
| Main cylinder diameter(mm) | 350 | 450 | 560 |
| Injection volume | 2000 | 3000 | 10000 |
| Electrical power(KW) | 16 | 18 | 27 |
| Horse power(HP) | 15 | 20 | 30 |
| Gross weigt(KG) | 6000 | 86000 | 13800 |
| Machine size(L*W*H mm) | 3400*2260*2400 | 3500*2360*2500 | 4900*2900*3100 |
Main parts instruction:
| NO. | Item | Branch/Material | Remarks |
| 1 | Motor | Taiwan Tatung | Large torque type, quiet and silent |
| 2 | Oil Pump | Japan YUKEN | Collective style circuit design |
| 3 | PLC | Germany's Siemens | Independent written, easy to operate |
| 4 | LCD touch screen | Germany's Siemens | Clear and intuitive, convenient, easy to operate |
| 5 | Heating pipes | Taiwan branch | Nickel-chromium alloy wire, never rust |
| 6 | Oil seal | Japan NOK | Wear-resistant, durable, no leakage |
| 7 | Solenoid valve | Northman | Controlled fast, long life |
| 8 | Other electrical configuration | Germany's Siemens | Performance and stability |
| 9 | Thermocouple Module | Germany's Siemens | Using PID correction, temperature uniform distribution, the error value at ± 3 ºC |
| 10 | Pressure sensor | Denmark TRAFAG | Conduction pressure accurate, unbiased, and easy to use |
| 11 | Heating control system | Taiwan Solid State Relays | temperature uniform distribution, the error value at ± 3 ºC |
| 12 | Machine body casting | FCD50 Ductile Iron | Aging passivation, high tensile strength |
| 13 | Column | Carbon Steel | Hardness up to HRC55--58 |
| 14 | Screw barrel | Zhejiang Huaye | |
| 15 | Proportional flow pressure valve | Japan YUKEN | Specific pressure ratio flow control system, precise control of flow and pressure |
| 16 | Digital modules Analog Modules | Germany's Siemens | Can accurately input and output |
Certifications
Company Information
Any inquiry please feel free to contact with us, thank you for your attantion.
Our Services
Packaging & Shipping
Naked Pack / Wooden Case / Customer Request
FAQ
1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(35.00%),North America(20.00%),Africa(10.00%).
It is a professional manufacturer of silicone rubber machinery and equipment, integrating product development, design, production, sales and after-sales service as one of the high-tech enterprises.
The company fully implements ISO9001 quality management system and ERP management system, and its products have passed CE certification and are in line with EU standards.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
hydraulic molding machine,press molding machine,vacuum molding machine,injection molding machine
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDU;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Japanese,Russian,Korean
5. Which model should we choose?
Whe have many models for your choice. Bofore suitable model is recommended, please tell us the application, materials, output and pressure you want.
6. Can we have customized model?
Yes. We can make the customized machine according to your actual requirements.
7. Do I need to know technical skill to operate this machine?
No. This machine has no professional requirements for the operator.
However, we provide technical instruction for your backup.
8. What should we do if there are some problems with the machine?
You can refores to the Operate Instruction or cantact us for online instruction.
Also, our engineers are available to service overseas.
9. What is the lead time?
Within a month
10. How about the package?
We have wooden case to protect the machine from damage during the long-distance delivery.
11. How should Ipay for you if I place this order?
Generally, TT, 30% deposit 70% before shipment.
