Product Overview
Description
Product Description

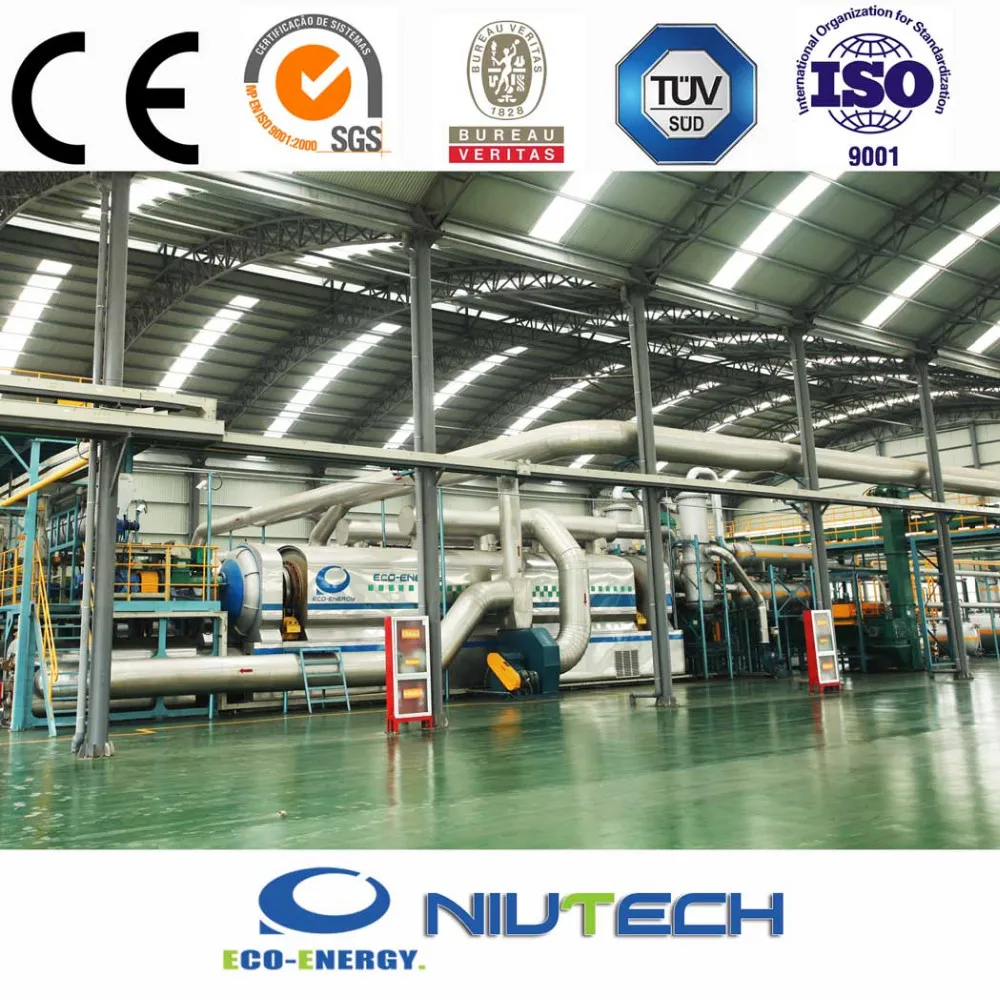

Fully continuous plastic waste pyrolysis production line can process all kinds of waste plastic, such as PP/PE/PS, single or mixed plastics.
Waste plastics will convert to high-added value products such as pyro oil and solid fuel through pyrolysis, and the pyro oil is able to produce new plastics as raw material by chemical recycling. Technical Parameters
No. | Item | Technical Parameter |
1 | Suitable Raw Material | All kinds of waste plastics |
2 | Operation Mode | Fully continuous operation |
3 | Structure | Horizontal type |
4 | Loading and Discharging | Fully automatic feeding and discharging |
5 | Capacity(24h) | >=30Mt/Day (customized) |
6 | Work Pressure | Normal pressure(slightly negative) |
7 | Oil Yield | 43~48% |
8 | Power | 50~60kw/h |
9 | Cooling System | cycle water |
10 | Heating System | Hot air |
11 | Noise | <=85(dB) |
12 | Main Reactor Weight | 40Mt |
13 | Installation Space Required | 48mx20m |
Main Parts of System
Feeding System
The raw material is automatically transported to the transitional hopper through the feeding conveyor. This system can also
realize on-line weighing, conveying, feeding seal and other functions.

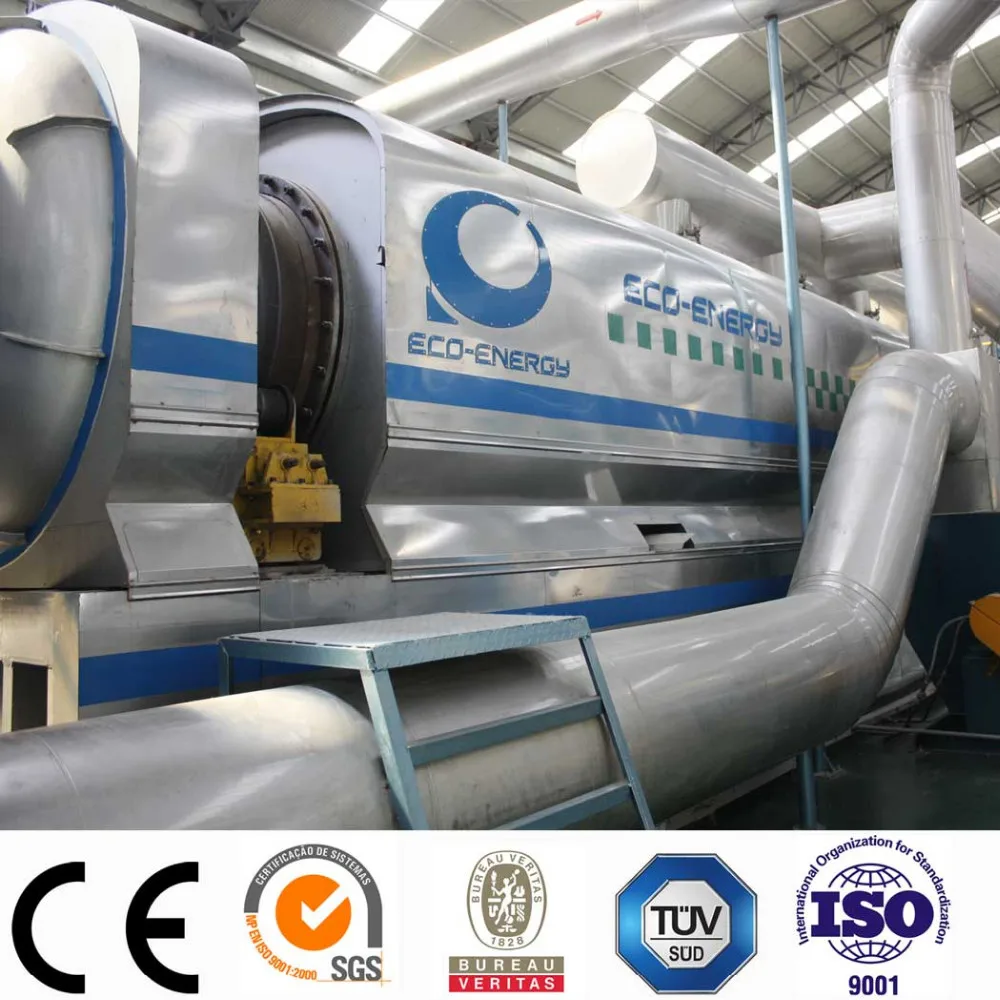

Pyrolysis System
In the oxygen-free or oxygen-poor environment, the pyrolysis system function is to complete the pyrolysis reaction of organic waste or hazardous waste and convert the raw material into pyro oil, NCG and solid output under normal pressure, low pyrolysis temperature or catalyst action.
Non-condensable combustible (NCG) gas scrubbing system
While to remove the acid components in NCG, such as hydrogen sulfide, the pressure is also maintained within a reasonable range through the NCG scrubbing system and further supply energy to downstream.
Oil Gas Cooling and Separating System
This system is to cool the gas phase output from pyrolysis reactor to the safe temperature and separate them according to the different boiling points.
Discharging System
The main function of discharging system is to complete the discharge seal, cool and convey the solid output.
Electrical control system
Electrical control system adapts PLC/DCS control system to automatically control the control points. It also has the functions of date collection, calculation, record, printing record, safety alarming etc.
Niutech Environment Core Technology Advantages
1)Anti-coking Technology
Through a series of patent technologies and special designs, Niutech technology improve the raw material heating condition and movement pattern, achieving anti-coking continuous stable operation.
2)Hot Air Tight Technology
Production line achieves stable dynamic seal under continuous feeding and discharging.
3)Anti-Polymerization Technology
Applied the gas-liquid mixed flow process to achieving the rapid separation of gas and liquid, mitigate polymerization possibility and improve oil yield.
4)Low-temperature Catalytic Pyrolysis Technology
With the strong adaptability, high activity, low cost and the function of shape selective catalysis, the catalyst developed by Niutech can avoid over-pyrolysis.
5)Fully Enclosed Handling Technology
The material pyrolysis, oil gas collection and Non-condensable combustible gas transportation are all completed in the closed equipment and pipelines in order to avoid leakage.
6)Dedicated Control Technology
The whole equipment adopts PLC/DCS automatic intelligent control system.
Through a series of patent technologies and special designs, Niutech technology improve the raw material heating condition and movement pattern, achieving anti-coking continuous stable operation.
2)Hot Air Tight Technology
Production line achieves stable dynamic seal under continuous feeding and discharging.
3)Anti-Polymerization Technology
Applied the gas-liquid mixed flow process to achieving the rapid separation of gas and liquid, mitigate polymerization possibility and improve oil yield.
4)Low-temperature Catalytic Pyrolysis Technology
With the strong adaptability, high activity, low cost and the function of shape selective catalysis, the catalyst developed by Niutech can avoid over-pyrolysis.
5)Fully Enclosed Handling Technology
The material pyrolysis, oil gas collection and Non-condensable combustible gas transportation are all completed in the closed equipment and pipelines in order to avoid leakage.
6)Dedicated Control Technology
The whole equipment adopts PLC/DCS automatic intelligent control system.
End Product
Oil
Oil Output Rate : 43%- 48%
Solid Feul
End products | Content percentage | Application |
Pyro oil | it depends | To be burnt as fuel oil directly |
Solid fuel | it depends | To be used as fuel |
Certifications
CE/UKCA/ATEX certified.
Emission comply with EEA standard in EU and EPA standard in USA.
Emission comply with EEA standard in EU and EPA standard in USA.
Partial of our patents and awards.
Invention Patents authorized in China, US, Canada Australia, Korea, India, Taiwan, Japan and many orher countries and areas.
National Invention Patents Certificates.
National Patents Certificates.
Packing & Delivery
\t\t\t\t\t\t\t\t\tCase Show \t\t\t\t\t\t\t
This project was delivered successfully marks Niutech environmental pyrolysis equipment already met EU and Germany strict requirement on environment and technology performance
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Profile
Niutech Environment Technology Corporation is the world leading and professional service provider of waste polymer resource utilization. It is the only IPO listed company in pyrolysis industry.
Integrity-based and customer-oriented, Niutech has adhered to the business philosophy of innovation and quality, and developed the team of high-level scientific research strength, internationalized manufacturing capacity and professional engineering and sales service to facilitate diversified commercial cooperation models.
Integrity-based and customer-oriented, Niutech has adhered to the business philosophy of innovation and quality, and developed the team of high-level scientific research strength, internationalized manufacturing capacity and professional engineering and sales service to facilitate diversified commercial cooperation models.
Niutech pyrolysis technology and facilities have the advantages of low operation cost and intelligent automation to offer the customers with the integrated solutions for the reductive, harmless and recycling treatment of polymer wastes.
So far, Niutech technical solutions have not only been applied in China, but also overseas projects in Germany, Denmark, Brazil, Hungary, Turkey, Estonia, India, Thailand and Iraq etc.
So far, Niutech technical solutions have not only been applied in China, but also overseas projects in Germany, Denmark, Brazil, Hungary, Turkey, Estonia, India, Thailand and Iraq etc.
FAQ
Q: What is pyrolysis technology ?
A: Pyrolysis is one of the leading edge technologies in the field of polymer energy study. The technology can use continuous process and industrial production to convert high-molecular-weight polymers (Scrap tyres, waste plastics, oil sludge and biomass) into high value added energy products with quality and high energy density, which are easy to store, transport and use. Pyrolysis technology can be uesd in a wide range. Please fell free to contact us if any cooperation is needed.
Q: What key problems are conquered in pyrolysis industrial ?
A: Conquer many problems such as the coking in pyrolysis system, incondesable gas emissions, the quipment cannot be of a long-time continuous operation, the carbonization generated in the process, and hydrochloric acid produced by PV C in waste plastic treatment.
Q: How to insist "Scientific and technological innovation is the driving force of enterprise development" ?
A: Working on the pyrolysis field for 30 years, Niutech constantly achieves technological innovation by virtue of the most professional R & D team in the world, and deepens production and research cooperation with Tsinghua University, Nankai University, Qingdao University of Science and Technology and other famous universities, closely joining the scientific research with industrial production, in order to achieve technology, capital, talent and other innovative elements of the intensive agglomeration and optimal allocation, so as to speed up the industrialization of scientific and technological achievements, and continuously enhance our independent development and innovation capabilities, promote industrial technology development.
