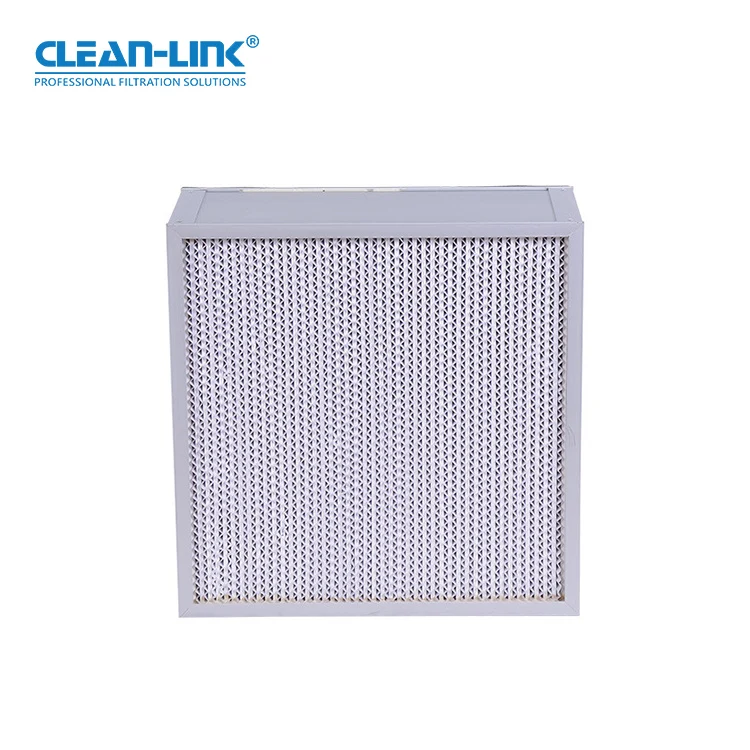

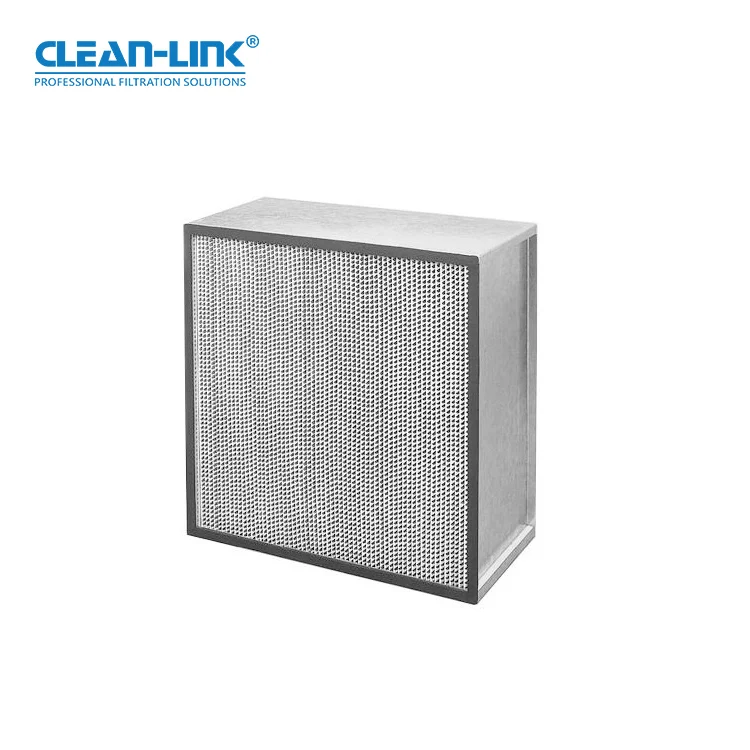

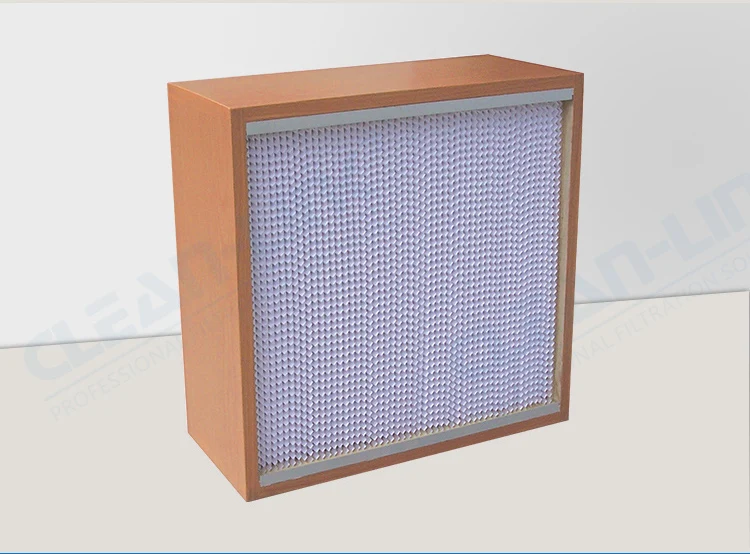

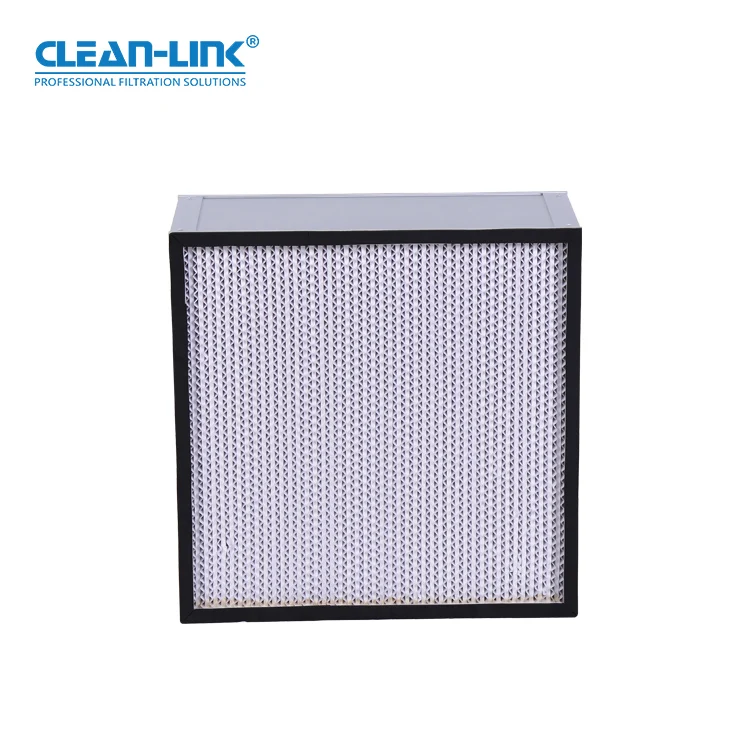

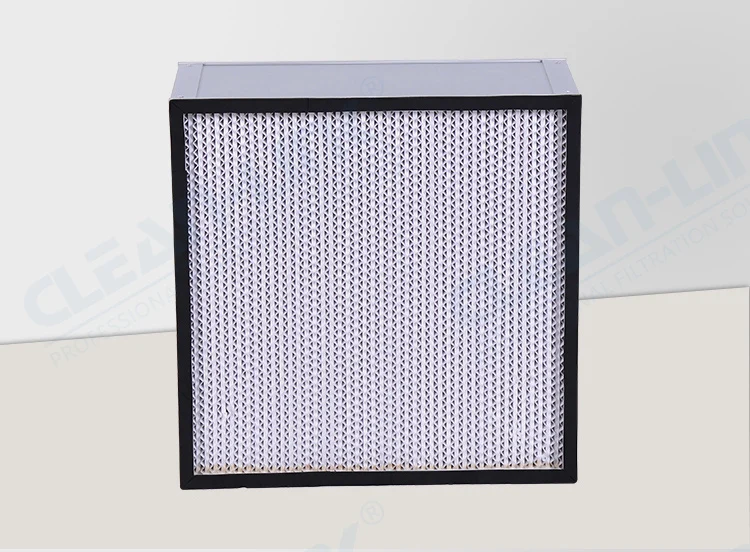

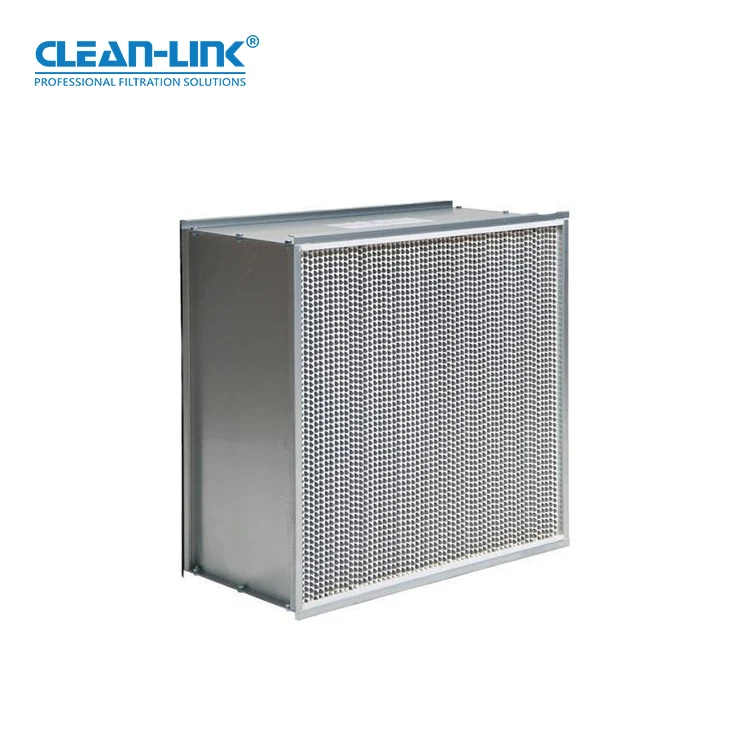

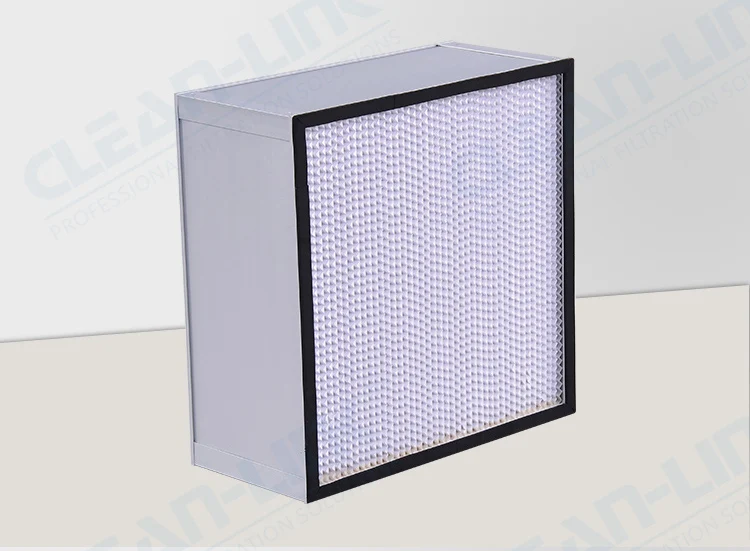

Deep Pleated Separator Laminar Flow Hood H13 H14 Hepa Filter For Ventilation System
- Category: >>>
- Supplier: Guangzhou Clean-Link Filtration Technology Co. Ltd.Guangzhou Ltd.
Share on (1600460553358):
Product Overview
Description
Product Description

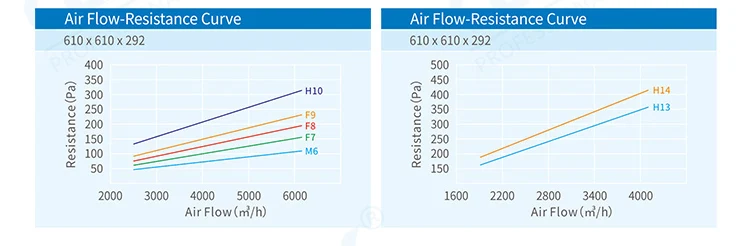

Filtration Grade | Dimensions ((W*H*D) | Filter Area | Rated Air Flow | Wind Velocity Test | Initial Resistance | Final Resistance | ||||||
M6 | 320*320*150mm | 2.59 ㎡ | 450 ㎡/h | 1.2 m/s | 90 Pa | 300 Pa | ||||||
305*610*292mm | 10.52 ㎡ | 1700 ㎡/h | 2.5 m/s | |||||||||
F7 | 484*484*220mm | 9.46 ㎡ | 1700 ㎡/h | 2.0 m/s | 130 Pa | |||||||
610*610*292mm | 21.25 ㎡ | 3400 ㎡/h | 2.5 m/s | |||||||||
F8 | 320*320*150mm | 2.59 ㎡ | 450 ㎡/h | 1.2 m/s | 140 Pa | |||||||
305*610*292mm | 10.52 ㎡ | 1700 ㎡/h | 2.5 m/s | |||||||||
F9 | 484*484*220mm | 9.46 ㎡ | 1700 ㎡/h | 2.0 m/s | 150 Pa | |||||||
610*610*292mm | 21.25 ㎡ | 3400 ㎡/h | 2.5 m/s | |||||||||
H10 | 320*320*150mm | 2.59 ㎡ | 450 ㎡/h | 1.2 m/s | 180 Pa | 400 Pa | ||||||
484*484*220mm | 9.46 ㎡ | 1700 ㎡/h | 2.0 m/s | |||||||||
305*610*292mm | 10.52 ㎡ | 1700 ㎡/h | 2.5 m/s | |||||||||
610*610*292mm | 21.25 ㎡ | 3400 ㎡/h | 2.5 m/s | |||||||||
H13 | 320*320*150mm | 2.59 ㎡ | 450 ㎡/h | 1.2 m/s | 250 Pa | 500 Pa | ||||||
484*484*220mm | 9.46 ㎡ | 1700 ㎡/h | 2.0 m/s | |||||||||
305*610*292mm | 10.52 ㎡ | 1700 ㎡/h | 2.5 m/s | |||||||||
610*610*292mm | 21.25 ㎡ | 3400 ㎡/h | 2.5 m/s | |||||||||
H14 | 320*320*150mm | 2.59 ㎡ | 450 ㎡/h | 1.2 m/s | 280 Pa | |||||||
484*484*220mm | 9.46 ㎡ | 1700 ㎡/h | 2.0 m/s | |||||||||
305*610*292mm | 10.52 ㎡ | 1700 ㎡/h | 2.5 m/s | |||||||||
610*610*292mm | 21.25 ㎡ | 3400 ㎡/h | 2.5 m/s | |||||||||
*To make customized sizes and thicknesses is available. | ||||||||||||

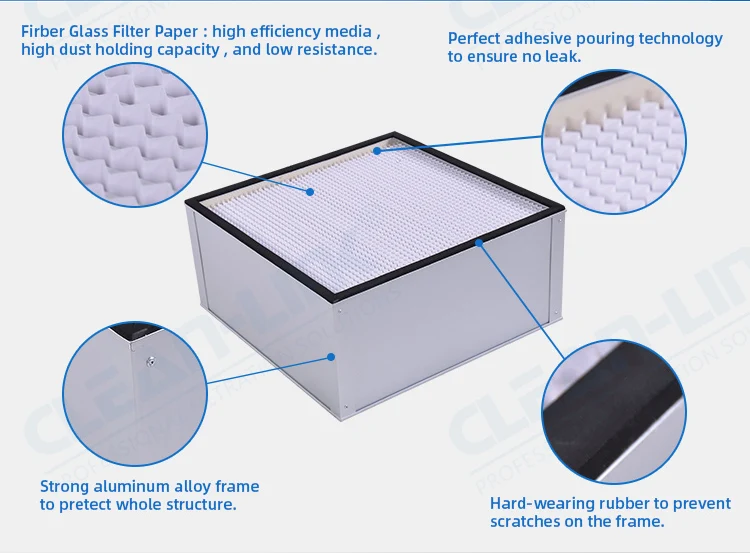

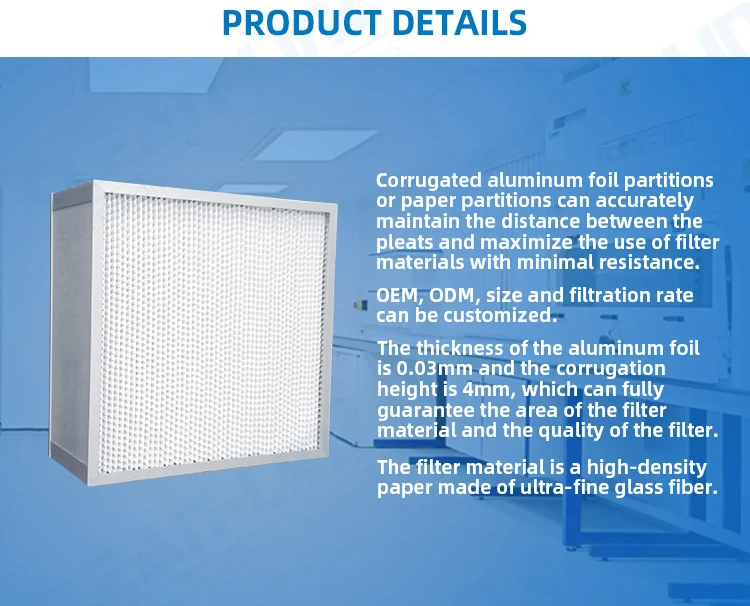

Products Details
Production Application
Our Advantages

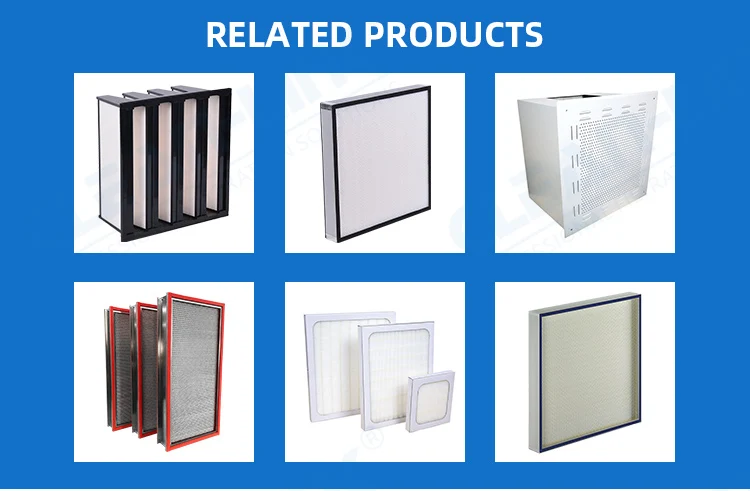

Related Products
Company Information
Exhibition & Certificate
FAQ
1. We have specialized in the export of air filters for over 11years.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand
4. The dimension can be customized.
5. The products have passed ISO9001,UL and SGS certification.
6. With independent R&D and design capablities.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand
4. The dimension can be customized.
5. The products have passed ISO9001,UL and SGS certification.
6. With independent R&D and design capablities.
