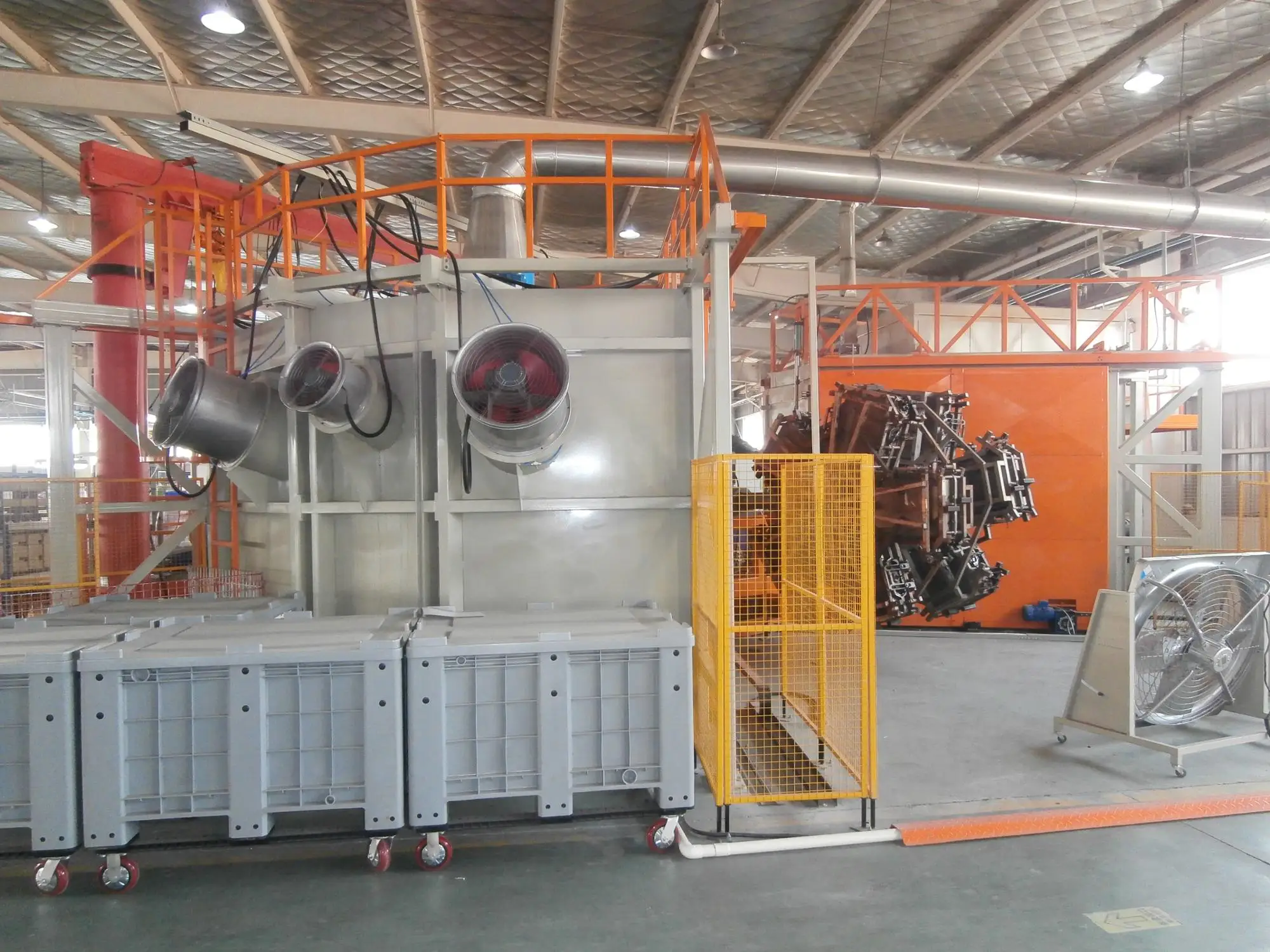

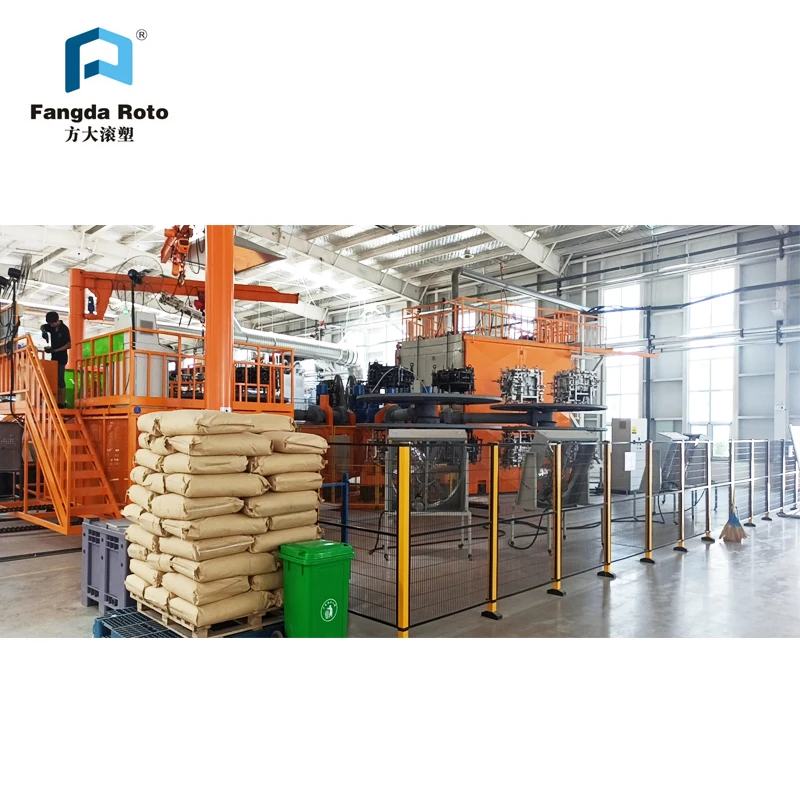

Rotomolding Machine Rotational molding Insulated Plastic Ice Cooler Box Making Machine
- Category: >>>
- Supplier: Yantai Fangda Rotational Molding Co. Ltd.
Share on (1600460555221):
Product Overview
Description
Product Description

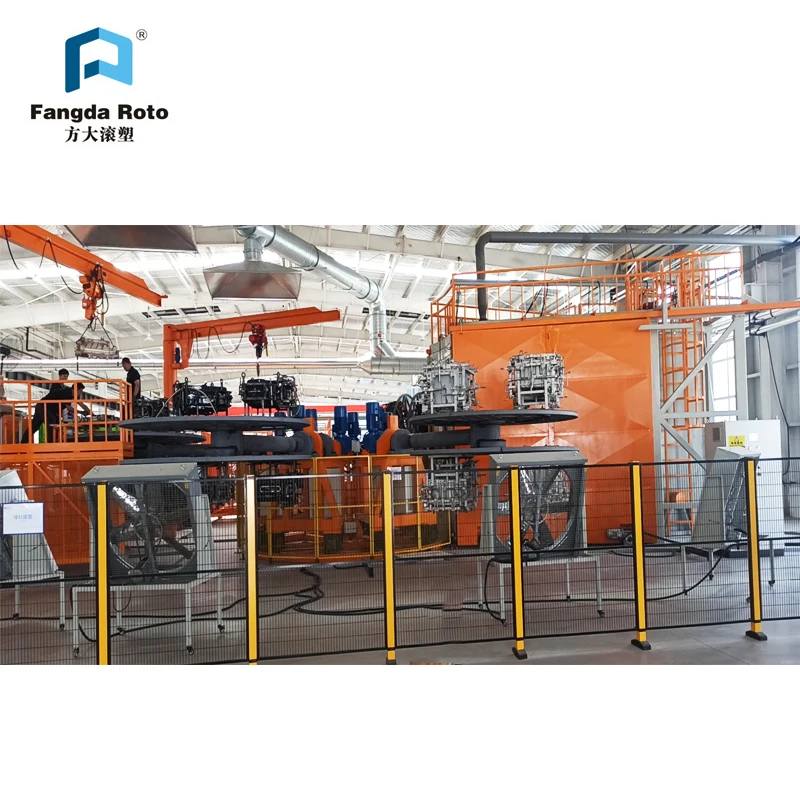

Fangda Roto's Carousel Rotomolding Machine has 3-Arm with 5-Station and 4-Arm with 6-Station,which is suitable for producing relatively large products with different sizes but same of similar output frequency.
1. Application:Water Tank,Oil Tank,Cooler Box,Furniture,Urea Tank,Road blocks, Float,Auto Parts,Kayak,Boat and so on.
2.3 Kinds of workarm for choice: Straight-arm,L style offset arm or C style offset arm to choose.
3.3 Kinds of heat source for choice:Natural Gas,Liquefied Gas or Diesel Oil.
4.High effective and thermal insulated of heating chamber to low energy consumption and save cost.
5.Real-time monitoring the temperature of heating chamber to bring high quality products.
6.Remote fault diagnosis can be realized.
2.3 Kinds of workarm for choice: Straight-arm,L style offset arm or C style offset arm to choose.
3.3 Kinds of heat source for choice:Natural Gas,Liquefied Gas or Diesel Oil.
4.High effective and thermal insulated of heating chamber to low energy consumption and save cost.
5.Real-time monitoring the temperature of heating chamber to bring high quality products.
6.Remote fault diagnosis can be realized.
Technical Data Sheet

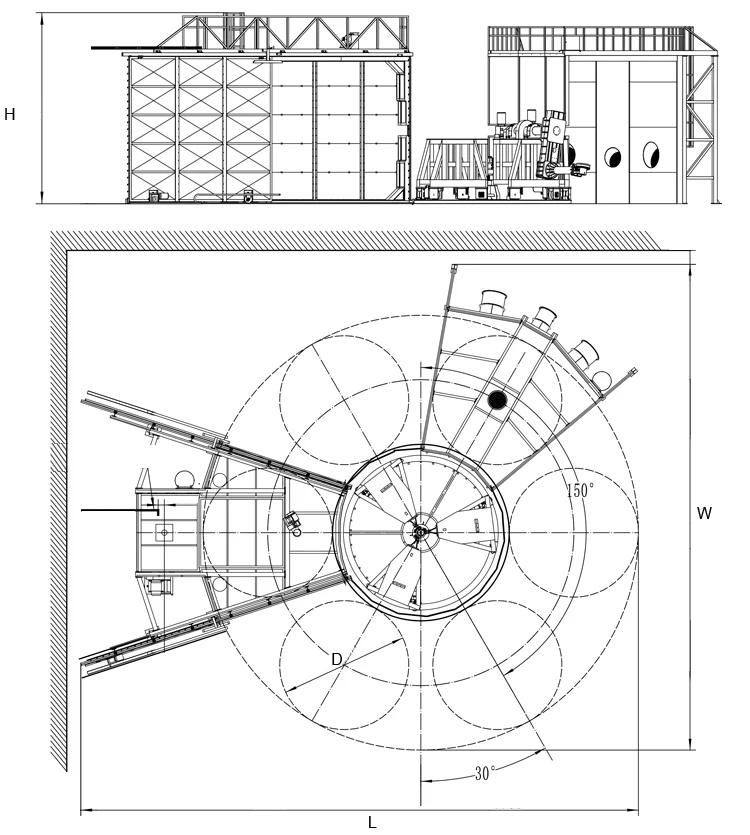

Model No. | Machine Dimension(m) | Oven Inner Dimension(m) | ||||||
3 arms 5 stations | 4 arm 6 stations | L(m) | W(m) | H(m) | ||||
FD3-2600 | FD4-2600 | 12.7 | 11.1 | 4.0 | 2.6*2.6*2.6 | |||
FD3-3100 | FD4-3100 | 14.8 | 13.1 | 4.5 | 3.1*3.1*3.1 | |||
FD3-3600 | FD4-3600 | 16.3 | 14.0 | 5.0 | 3.6*3.6*3.6 | |||
FD3-4100 | FD4-4100 | 18.7 | 16.5 | 5.6 | 4.1*4.1*4.1 | |||
FD3-4600 | FD4-4600 | 20.7 | 17.6 | 6.1 | 4.6*4.6*4.6 | |||
FD3-5100 | FD4-5100 | 21.7 | 18.6 | 6.6 | 5.1*5.1*5.1 | |||
Working Arm Paramenters | Max.Load | ||||||||||||||||
A | B | C | D | E | F | G | Straight Arm | L offset Arm | C offset Arm | ||||||||
R1200 | 350 | Φ1900 | Φ1800 | 600 | / | / | 900 | 700 | / | ||||||||
R1400 | 360 | Φ2300 | Φ2100 | 800 | / | / | 1300 | 900 | / | ||||||||
R1700 | 360 | Φ2800 | Φ2600 | 910 | / | / | 1500 | 1000 | / | ||||||||
R1900 | 400 | Φ3160 | Φ3000 | 1100 | / | / | 2000 | 1200 | / | ||||||||
R2150 | 420 | Φ3500 | Φ3200 | 1300 | / | / | 2500 | / | 1600 | ||||||||
R2400 | 420 | Φ3900 | Φ3500 | 1530 | 3750 | 2750 | 3000 | / | 2000 | ||||||||

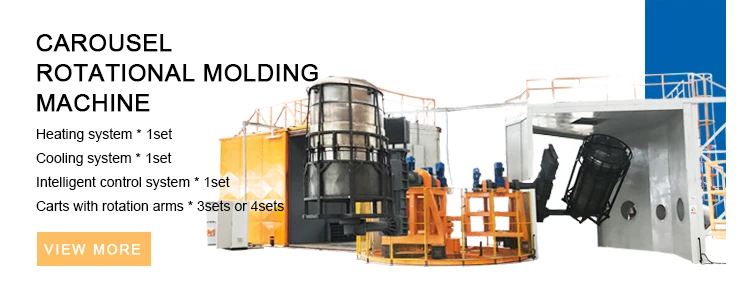

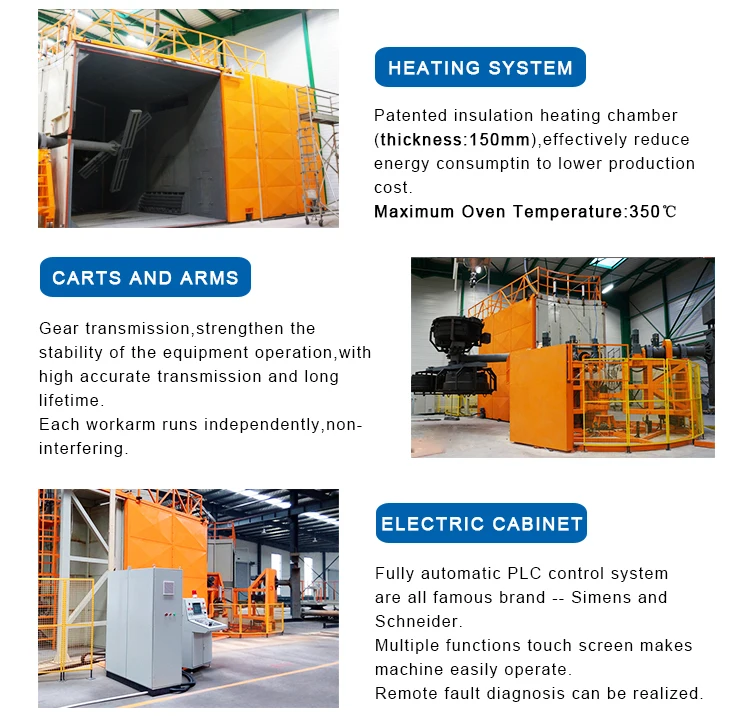

Fangda Carousel Rotational Molding Machine Advantages

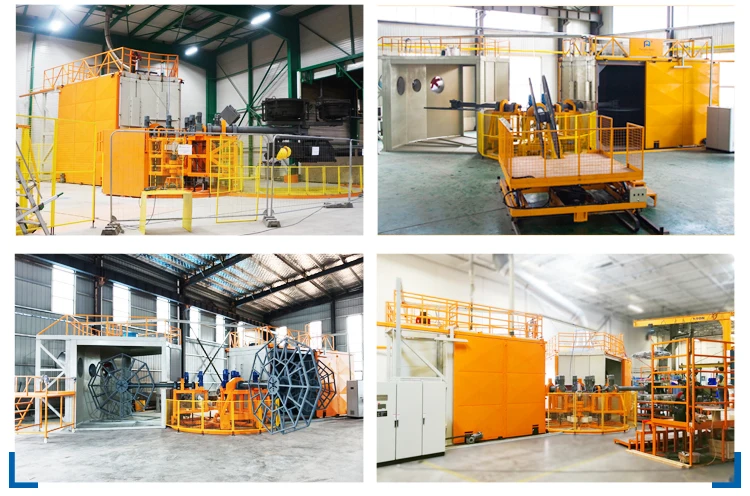

Application

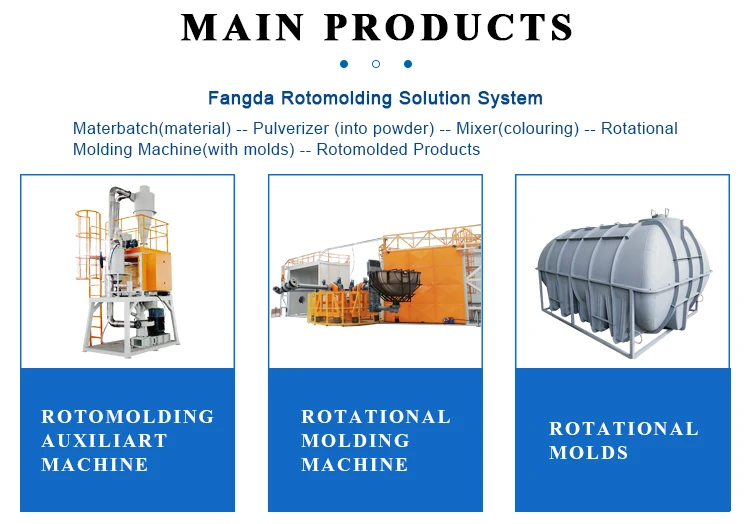

Main Products
packing & Shipping

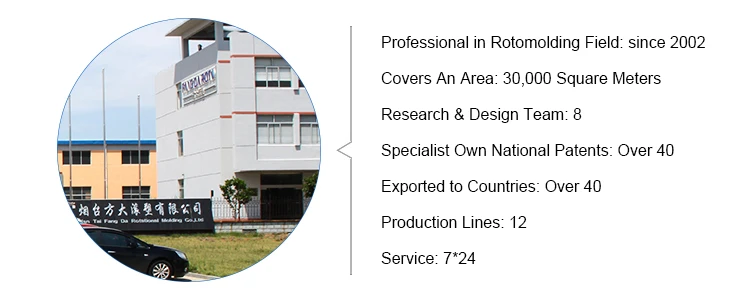

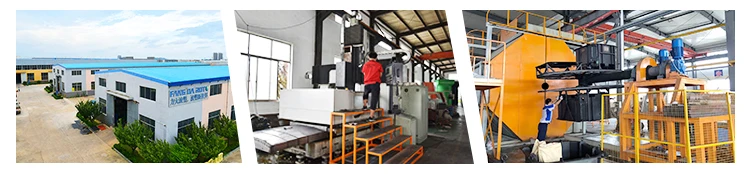

Company Profile
FAQ
Welcome to contact with me for more details
Phoebe Du
Mobile / WhatsApp:+86 188 6562 2305
Website:www.fangdaroto.com
Tel:0086 - 535 -675 3165
