Высокочастотный и высоковольтный однополярный Импульсный блок питания, адаптер, стабилизатор переключения

No

Item

Data

1

Product  type

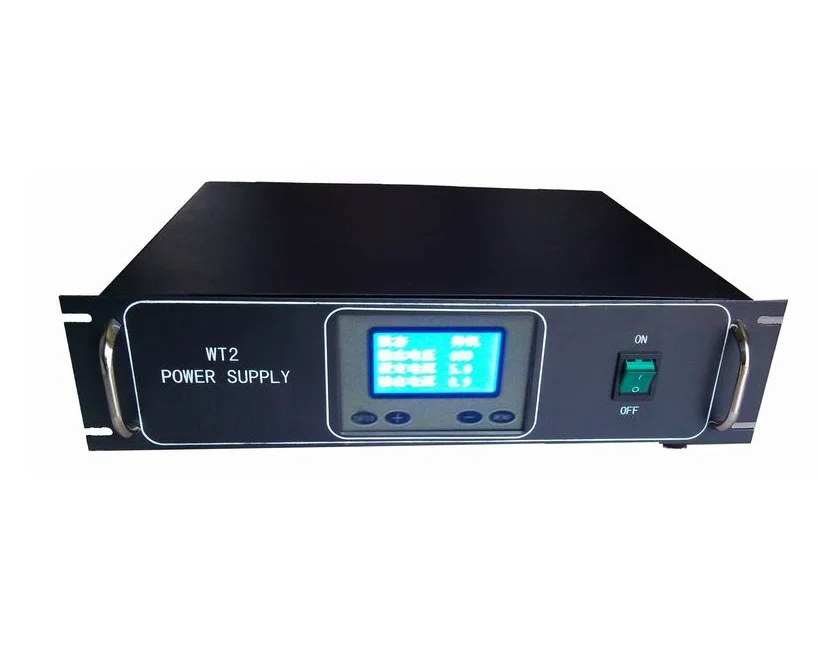

WT2 high frequency and high voltage unipolar pulse

2

Product model

WT2

3

Input voltage

AC220V±10%

4

Output power

1000W

5

Output current

1A ~ 20mA (series parameters)

6

Output voltage

1kV ~ 50kV (series parameters)

7

Output frequency

20khz-100khz (customizable)

8

Output wave form and  mode

Quasi square wave or quasi sine wave (related to load).Custom constant voltage, constant current and constant power

9

Adjustment accuracy

≤1%

10

Efficiency

≥90%

11

Energy storage capacitance:

cosΦ≥0.9

12

Display mode

En +Cn

13

Ambient temperature

-35～+45℃

14

Ambient humidity

≤85%

15

Cooling mode

Air cooling

16

Overall dimension

400*95*370（mm ）

17

Installation dimension

18

Applicable fields

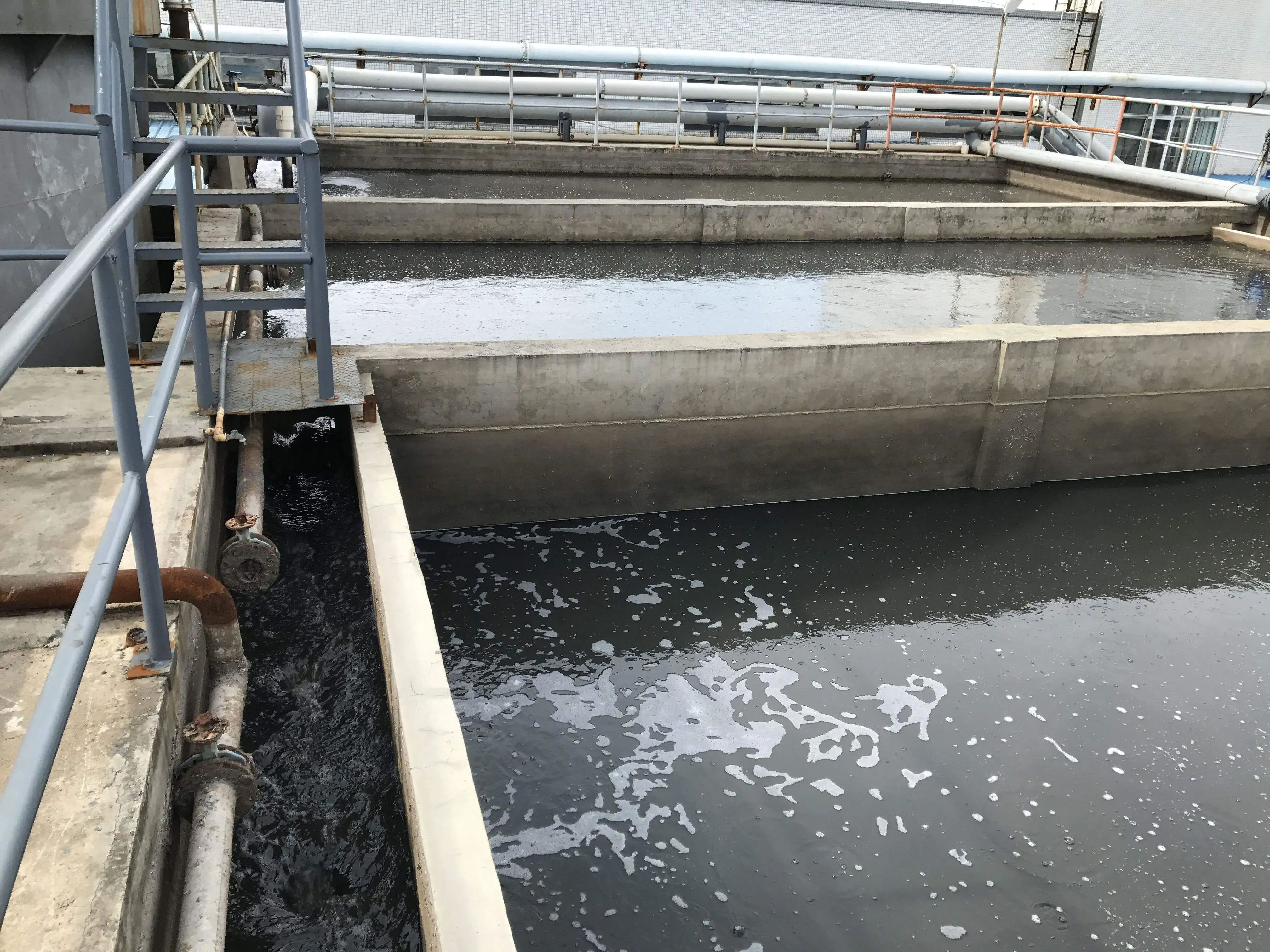

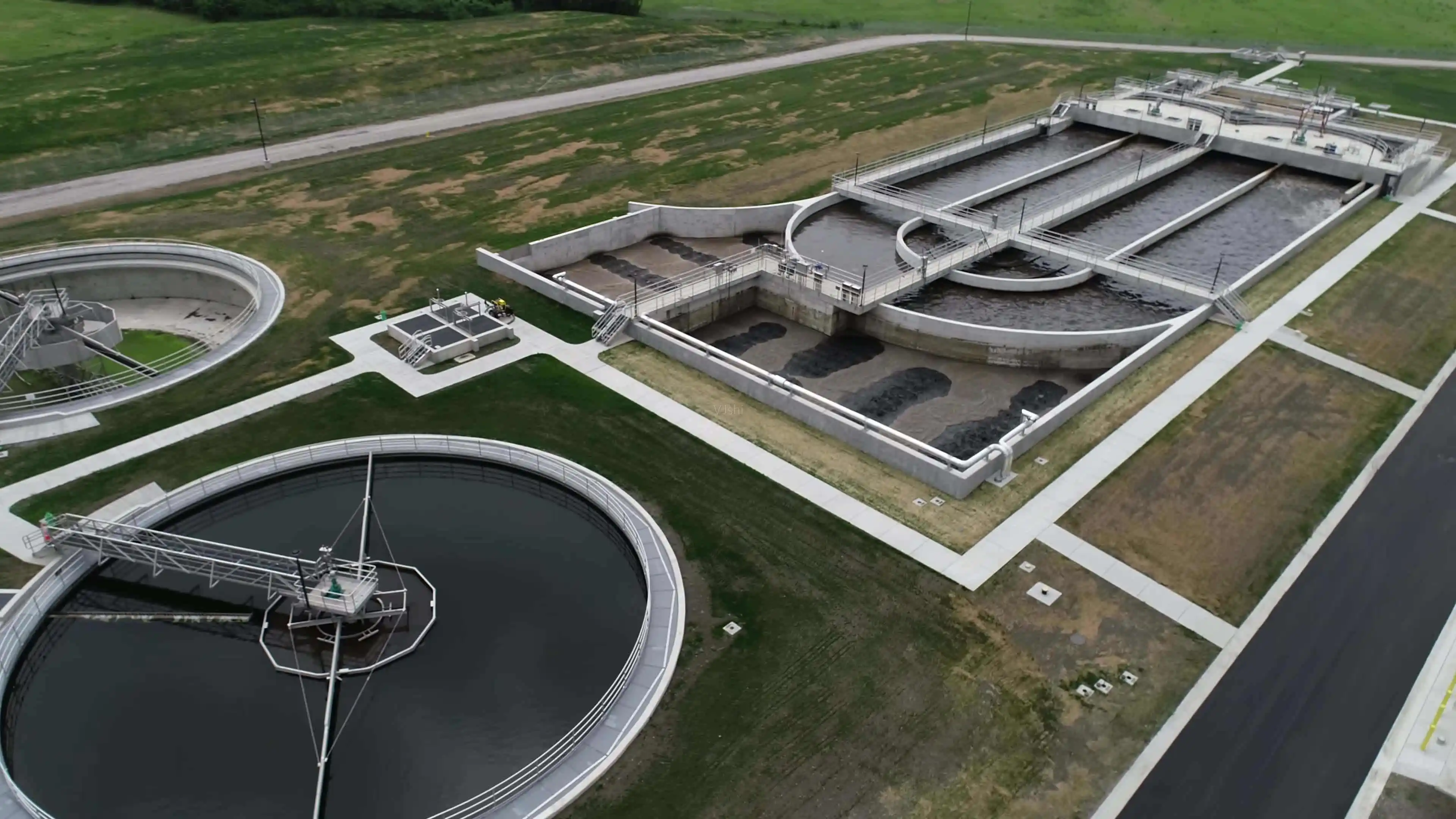

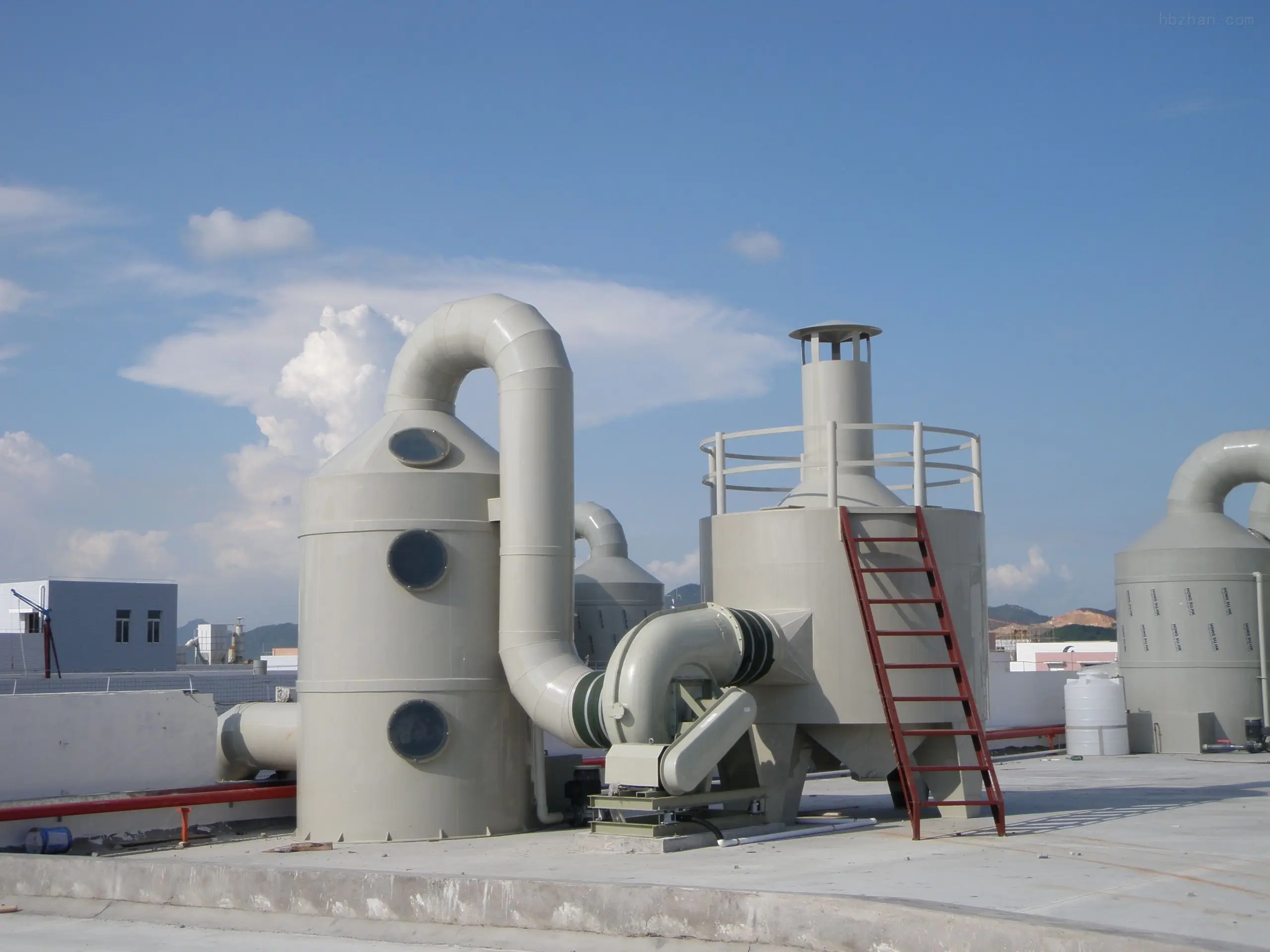

It is used in scientific experiments, sewage treatment, atmospheric treatment, disinfection and sterilization, plasma generator and other occasions requiring high-frequency and high-voltage unipolar pulse signals

19

Product features

Flexible adjustment, pulse current, pulse voltage and other parameters can be adjusted, and the pulse frequency can be customized.Small volume, light weight, simple structure, simple operation, stability and reliability The circuit adopts modular design, which
is convenient for debugging and maintenance. The protection design of the circuit enables the power supply to work in various complex environments. The prompt function in Chinese and English makes the problem clear and accurate
