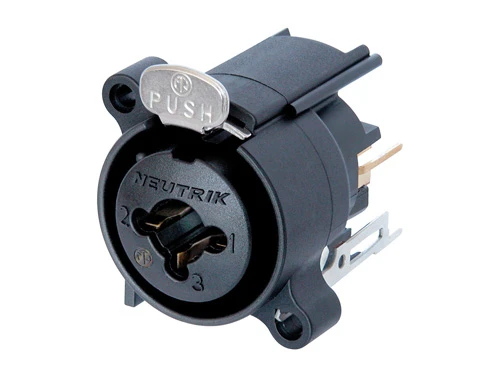

Neutrik NCJ6FA V 3 pin female XLR 3 pole female XLR combined with stereo TRS jack, vertical PCB mount
- Category: >>>
- Supplier: Shenzhen Pawpaw Electronic Technology Co. Ltd.
Share on (1600460587238):
Product Overview
Description
Products Description
Neutrik NCJ6FA-V 3 pin female XLR 3 pole female XLR combined with stereo TRS jack
Specification | ||
Title | NCJ6FA-V | |
Connection type | Combo | |
Rated current per contact | 3 A (XLR) | |
Rated current per contact | 3 A (Jack) | |
Insertion force | ≤ 20 N | |
Withdrawal force | ≤ 20 N | |
Lifetime | omplies with IEC 68-2-20 | |
Contact plating | gal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP | |
Contacts | Bronze (CuSn6) | |
Insert | Polyamide (PA66) | |
Locking element | Steel Ck67 | |
Flammability | UL 94 V-0 | |
Solderability | Complies with IEC 68-2-20 | |
Temperature range | -30 °C to +80 °C | |

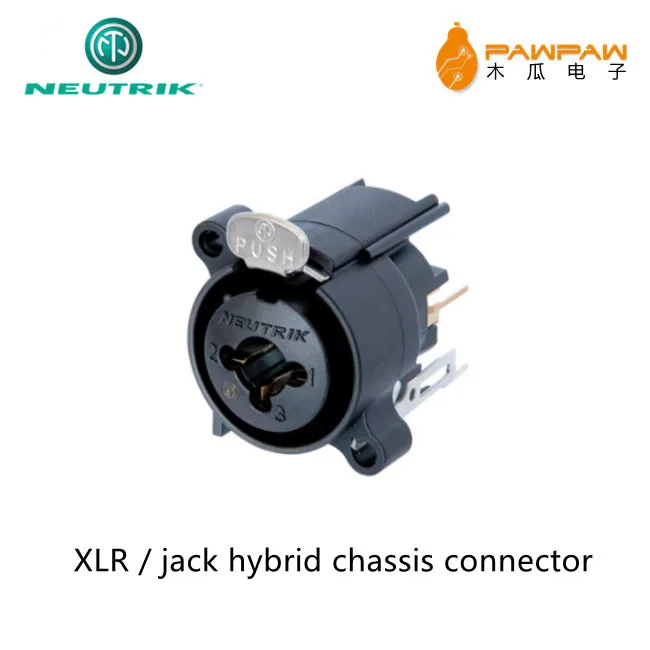

XLR / Jack conbinatoin 3 pole female connector
Features & Performance
1. Combined 3 pole XLR receptacle and 1/4''
TRS phone jack for balanced mic and line or
instrument inputs in one XLR housing.
2. Two connectors in one housing - substantial
cost, material and labour saving.
3. Front panel cut-out compatible with Neutrik
XLR A Series.
1. Dramatic space saving - 15% over the
predecessor Combo.
2. Very low conductor capacitance - ideal for
digital audio.
3. Branded with unique hologram - guarantees
genuine and authentic Neutrik product.
