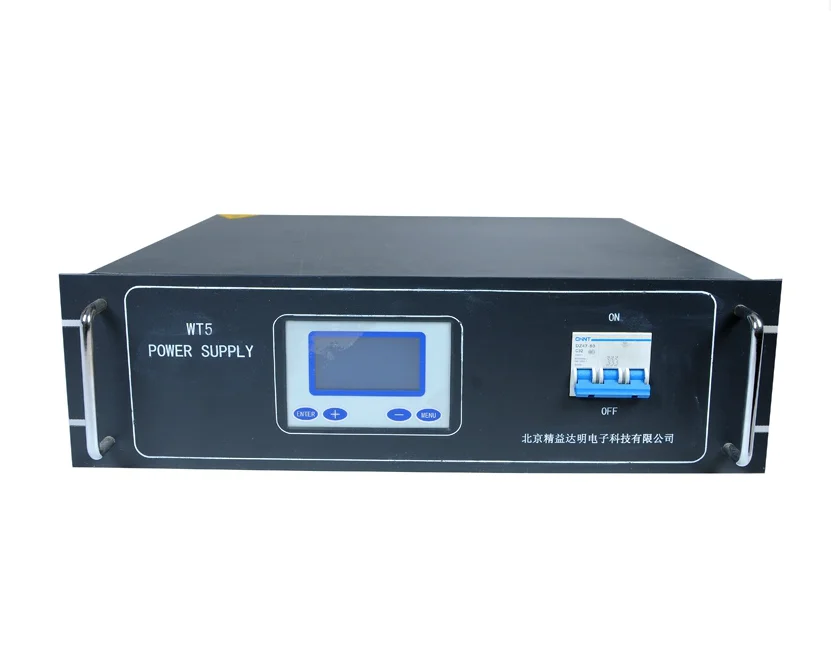

10kw unipolar low frequency DC pulse power supply High voltage power supply

No

Item

Data

1

Product  type

Unipolar low frequency DC pulse power supply

2

Product model

WT10-10KW

3

Input voltage

AC380V±10%

4

Output power

10KW

5

Output current

1 ~ 100A (series products)

6

Output voltage

100V ~ 10kV (series products)

7

Output frequency

1~255hz

8

Output duty cycle

1~99%

9

Output wave form

Square wave, trapezoidal wave, triangular wave, etc

10

Efficiency

≥90%

11

Energy storage capacitance:

cosΦ≥0.9

12

Display mode

En +Cn

13

Ambient temperature

-35～+45℃

14

Ambient humidity

≤85%

15

Cooling mode

Air cooling

16

Overall dimension

480*135*380（mm ）

17

Adjustment accuracy

≤1%

18

Applicable fields

It is used in sewage treatment, plasma, and other occasions requiring pulse signal

19

Product features

Flexible adjustment, pulse frequency, pulse current, pulse waveform, duty cycle and other parameters can be adjusted Small volume,light weight, simple structure, simple operation, stability and reliability The circuit adopts modular design, which is convenient
for debugging and maintenance.
