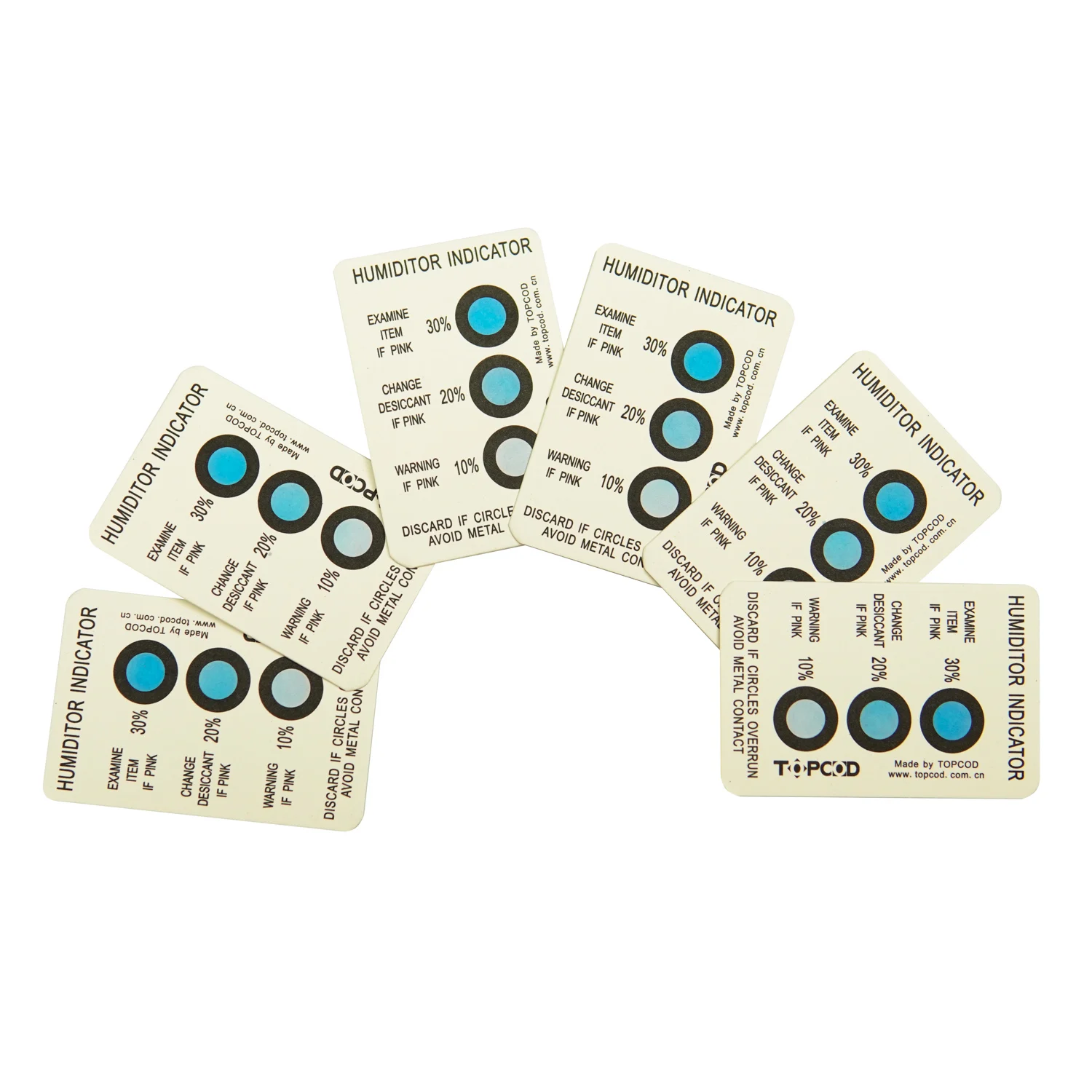

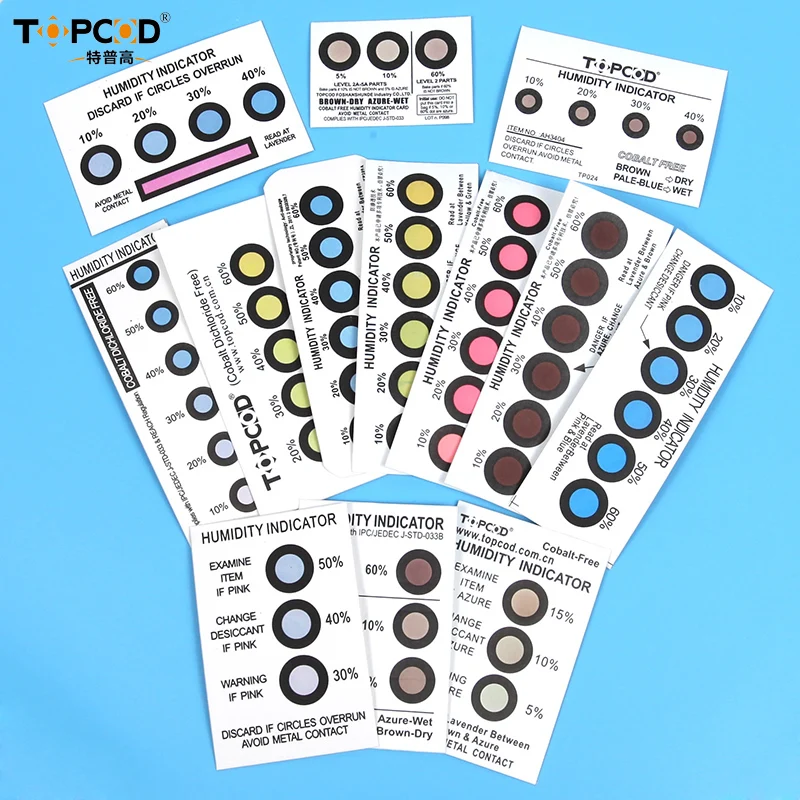

RoHS Approved 3 Dots Humidity Indicator Card for PCB Packing
- Category: >>>
- Supplier: Foshan Shunde Topcod Industry Co. Ltd.
Share on (1600460591060):
Product Overview
Description
TOPCOD Humidity Indicator Card (HIC)
Humidity Indicating Cards are the most accurate cards available in the market today. They are often used in conjunction with a desiccant and a moisture barrier bag when shipping electronic components.To provide a simple, reliable, visual indication of the relative humidity within a sealed package or any given environment.
Humidity Indicating Cards are the most accurate cards available in the market today. They are often used in conjunction with a desiccant and a moisture barrier bag when shipping electronic components.To provide a simple, reliable, visual indication of the relative humidity within a sealed package or any given environment.
What are they?
Humidity Indicator Cards are small, paper instruments designed to monitor relative humidity levels. Available in numerous configurations, cards indicate relative humidities as low as 5 percent and as high as 95 percent, depending on the application and need.
There are two main types of humidity indicator cards: reversible and irreversible. Reversible humidity indicator cards work much like a thermometer, fluctuating to indicate the current relative humidity level. Maximum, or irreversible cards are designed to indicate the highest relative humidity level to which goods have been exposed.
There are two main types of humidity indicator cards: reversible and irreversible. Reversible humidity indicator cards work much like a thermometer, fluctuating to indicate the current relative humidity level. Maximum, or irreversible cards are designed to indicate the highest relative humidity level to which goods have been exposed.
Why use them?
High relative humidity levels can cause irreparable damage to sensitive equipment, supplies, products and cargo. While many shippers and manufacturers might take the proper steps to protect their products from moisture damage, such as using desiccants,it is sometimes difficult to know how effective those steps are. Some products, such as electronic goods, often show no visual sign of moisture damage, while desiccants may reach their absorption capacity before users realize they need to be replaced.
Humidity indicator cards help provide visual proof of the relative humidity level within a given environment. If the card
indicates high levels of humidity, users know to replace their desiccant bags and check their products for possible damage.
Humidity indicator cards help provide visual proof of the relative humidity level within a given environment. If the card
indicates high levels of humidity, users know to replace their desiccant bags and check their products for possible damage.

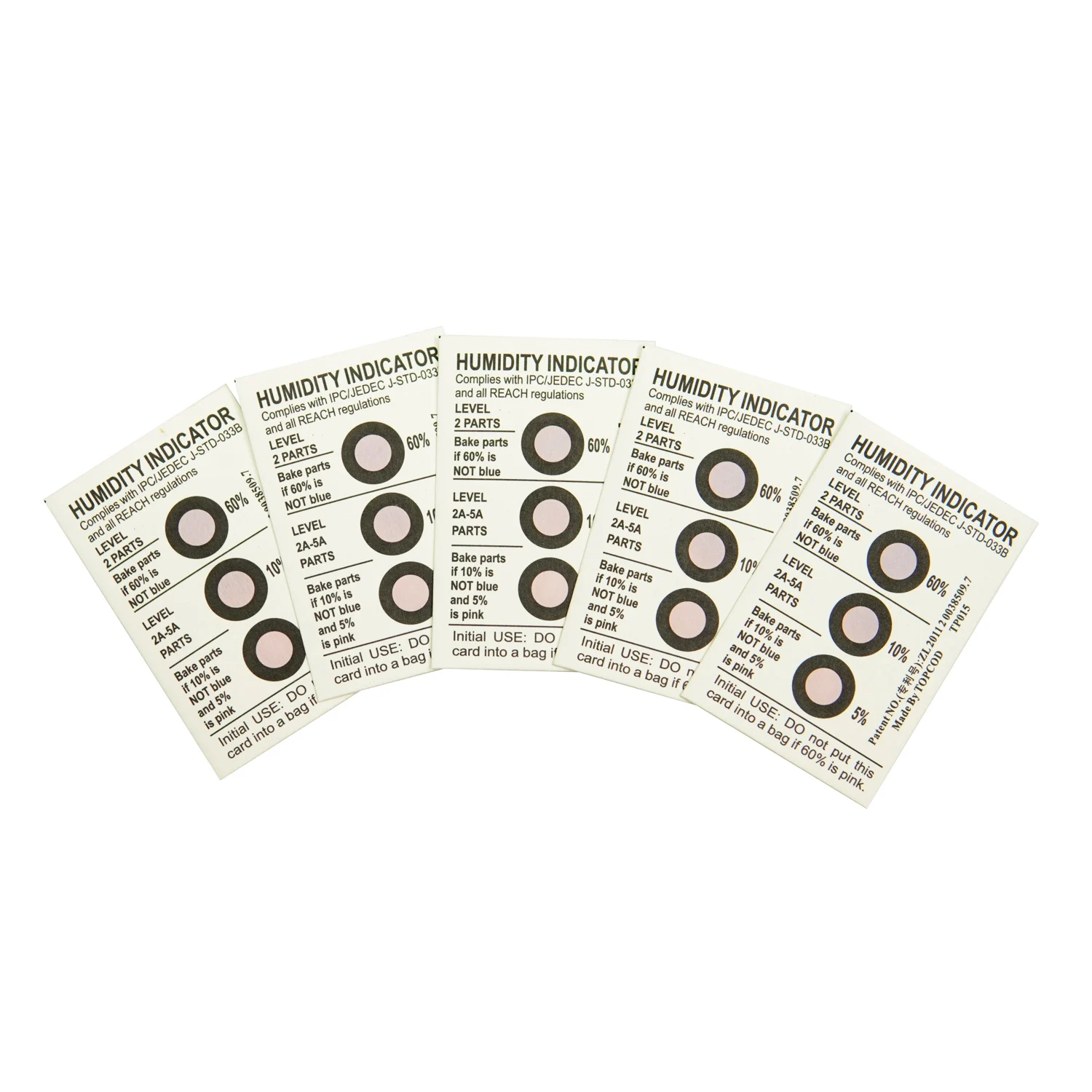

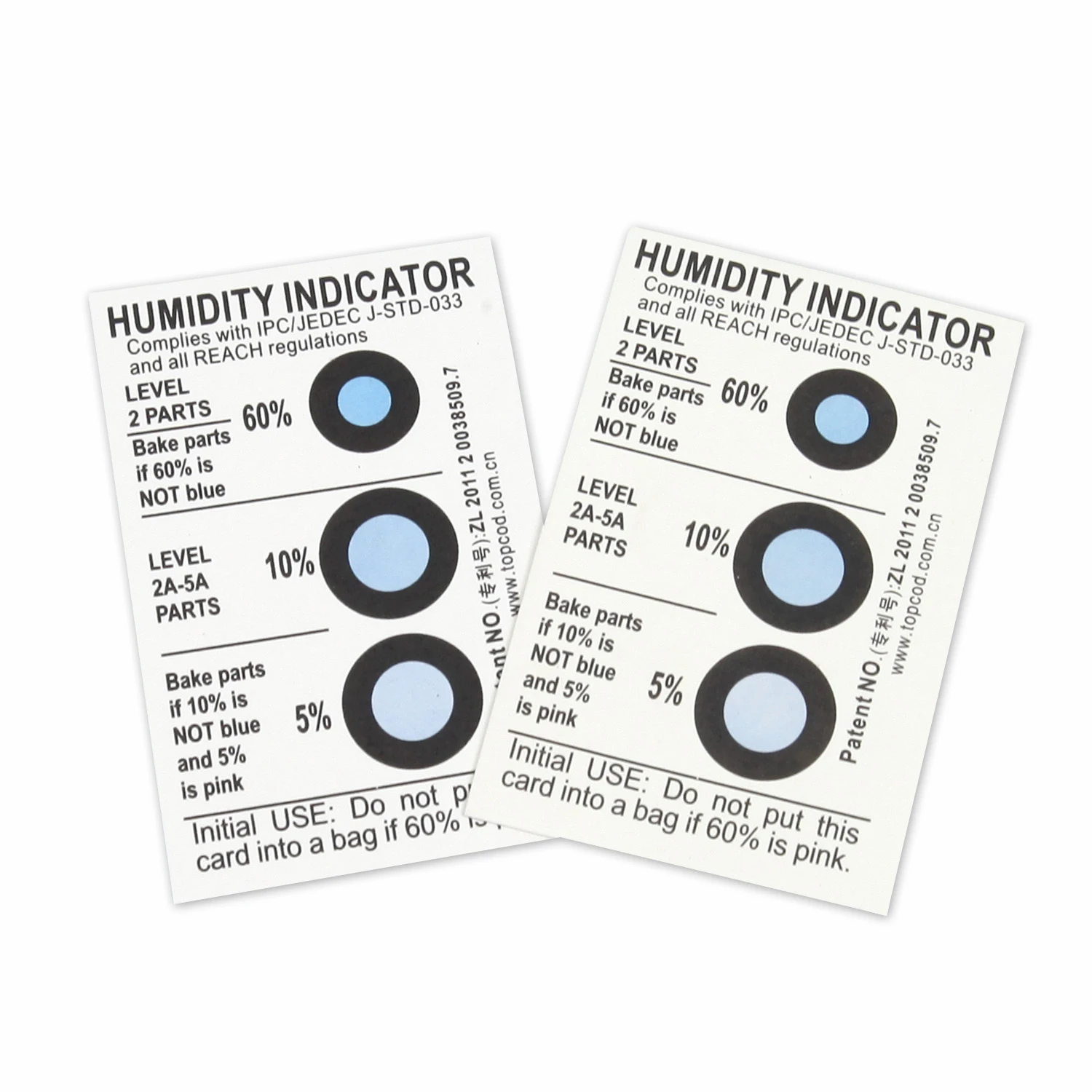

Available configurations
HICs are available in many configurations and can be customized for any number of applications. It meets military specifications(Mil-I-8835 and Mil-Std-2073- 1D Method 50) and JEDEC standards (J-STD-033A and anticipated revision J-STD-033B). One-spot,three-spot, four-spot and six-spot cards are currently available, in a range of customizable humidity levels.
HICs are available in many configurations and can be customized for any number of applications. It meets military specifications
(Mil-I-8835 and Mil-Std-2073- 1D Method 50) and JEDEC standards (J-STD-033A and anticipated revision J-STD-033B). One-spot,
three-spot, four-spot and six-spot cards are currently available, in a range of customizable humidity levels.
HICs are available in many configurations and can be customized for any number of applications. It meets military specifications
(Mil-I-8835 and Mil-Std-2073- 1D Method 50) and JEDEC standards (J-STD-033A and anticipated revision J-STD-033B). One-spot,
three-spot, four-spot and six-spot cards are currently available, in a range of customizable humidity levels.
Description | Characteristics |
Indicates | 10%, 20%, 30%, 40%, 50%, 60% relative humidity |
Material | White Blotting Paper 300 g/m2 |
Dimensions | 105mm x 37mm |
Printing | Heavy Black on White |

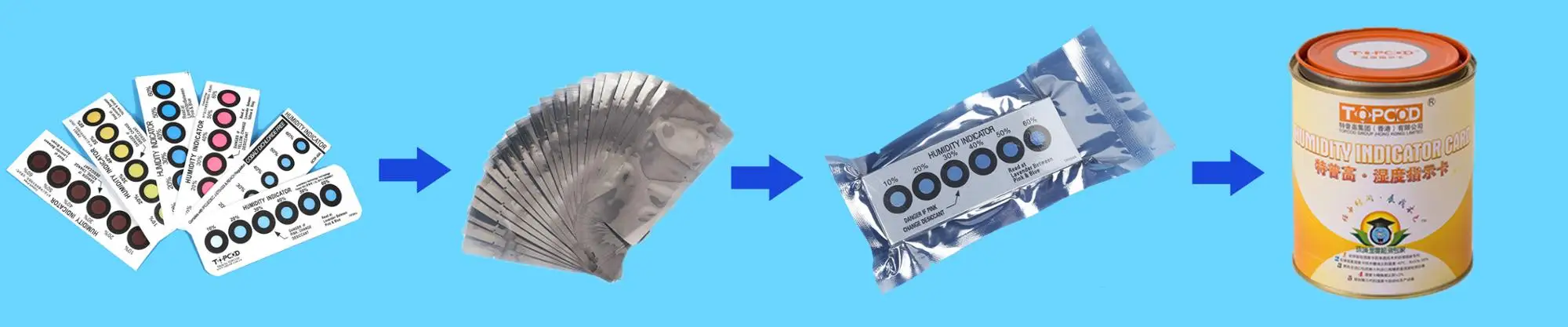

Packaging | 260 pcs per tin can,packed by seal bag and tin can |
Standards | JEDEC J-STD-033 |
Shelf Life | 2 years from date of manufacture provided container is not opened or damaged |
Storage Condition | Keep in dry area away from sunlight under normal temperature condition (10 °C ~ 40°C) |
Typical applications
Industries: Semiconductors, Electronics, Military, Industrial * Semiconductors
* Electronics
* Military components
* Optical instruments
* Preservation packaging
* Bulk Packaging
* Metals/Automotive parts
* Produce
* Museums and artifacts
* Diagnostics
Dot Type | Card Size (L*Hmm) | Packing (PCS/Bag/Can/Ctn) | Carton Size (L*H*Wmm) |
1 dot | 45X55 | 4000/200/20/1 | 550X230X230 |
2 dots | 50X75 | 5000/500/10/1 | 500X130X100 |
3 dots | 50X75 | 4000/200/20/1 | 550X550X12O |
4 dots | 50X75 | 5000/250/25/1 | 550X550X12O |
5 dots | 55X90 | 5000/250/25/1 | 550X335X280 |
6 dots | 105X37 | 5200/260/20/1 | 550X230X270 |
REVERSIBLE CARDS
1.Usage Requirements

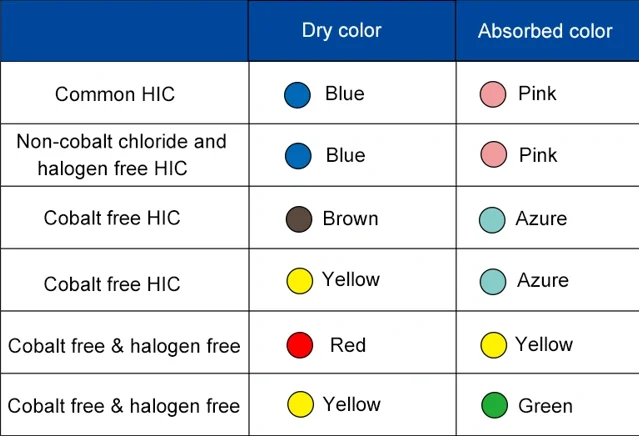

Humidity indicator spots change from blue (dry) to pink (humid) as relative humidity changes.
Current relative humidity is indicated by a lavender color.
Indicator spots will change within eight hours of being exposed to a change in relative humidity.
Humidity indicator spots are reversible. Pink spots will change back to blue when the volume of air is dried. Pink or lavender spots can be returned to blue by placing them in a sealed container with one unit (33 grams) of desiccant for 48 hours.
The highest humidity indicator spot should be blue before the card is put to use.
The humidity indicator card will be at its most accurate when used at a temperature of 73°F (23°C).
Avoid contact with indicator spots. Wash any irritated areas with clean water.
2.Storage and Handling
When storing, keep indicators in their original container, sealed with a desiccant if possible.
Replace desiccant after container is opened three times.
Store in a cool, dry area.
Keep indicators away from water or steam.
Keep away from ammonia gases, which will render the indicators useless.
Humidity indicator spots change from blue (dry) to pink (humid) as relative humidity changes.
Current relative humidity is indicated by a lavender color.
Indicator spots will change within eight hours of being exposed to a change in relative humidity.
Humidity indicator spots are reversible. Pink spots will change back to blue when the volume of air is dried. Pink or lavender spots can be returned to blue by placing them in a sealed container with one unit (33 grams) of desiccant for 48 hours.
The highest humidity indicator spot should be blue before the card is put to use.
The humidity indicator card will be at its most accurate when used at a temperature of 73°F (23°C).
Avoid contact with indicator spots. Wash any irritated areas with clean water.
2.Storage and Handling
When storing, keep indicators in their original container, sealed with a desiccant if possible.
Replace desiccant after container is opened three times.
Store in a cool, dry area.
Keep indicators away from water or steam.
Keep away from ammonia gases, which will render the indicators useless.
MAXIMUM/IRREVERSIBLE CARDS
1.Usage Requirements
Each level of humidity is represented by a blue crystal.
The blue crystal will dissolve into an unmistakable large blue spot when its indicated humidity level has been reached for more than 24 hours.
2.Storage and Handling
When storing, keep indicators in their original container.
Do not open individual bags until ready for use.
Store in a cool, dry area.
Each level of humidity is represented by a blue crystal.
The blue crystal will dissolve into an unmistakable large blue spot when its indicated humidity level has been reached for more than 24 hours.
2.Storage and Handling
When storing, keep indicators in their original container.
Do not open individual bags until ready for use.
Store in a cool, dry area.
Why choose us?
1-18 years experience in desiccant industry,including 1500-plus customers as far as 2019. Topcod has already established long-term cooperation with more than 100 well-known enterprises and brands.1-18 years experience in desiccant industry,including 1500-plus customers as far as 2019. Topcod has already established long-term cooperation with more than 100 well-known enterprises and brands.
There are 1500-plus customers as far as 2019. Topcod has already established long-term cooperation with more than 100 well-known enterprises and brands.

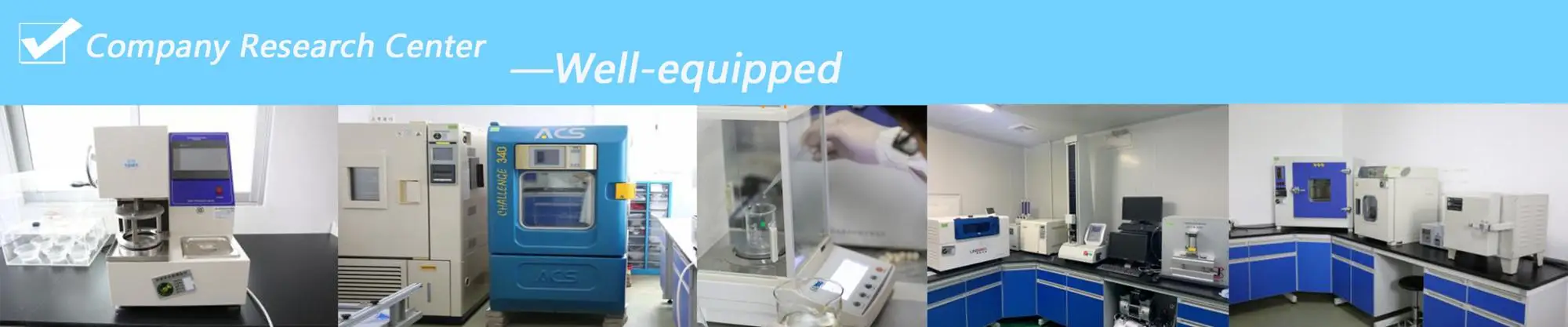

We were established in 2004, and set up branches in Shenzhen, Shunde, and Germany. We are a high-tech enterprise integrating scientific research, production, marketing, technical services, packaging consulting, quality testing, and providing solutions.
2-OEM/ODM available.
3-Eco-friendly.
4-Free sample and fast delivery time

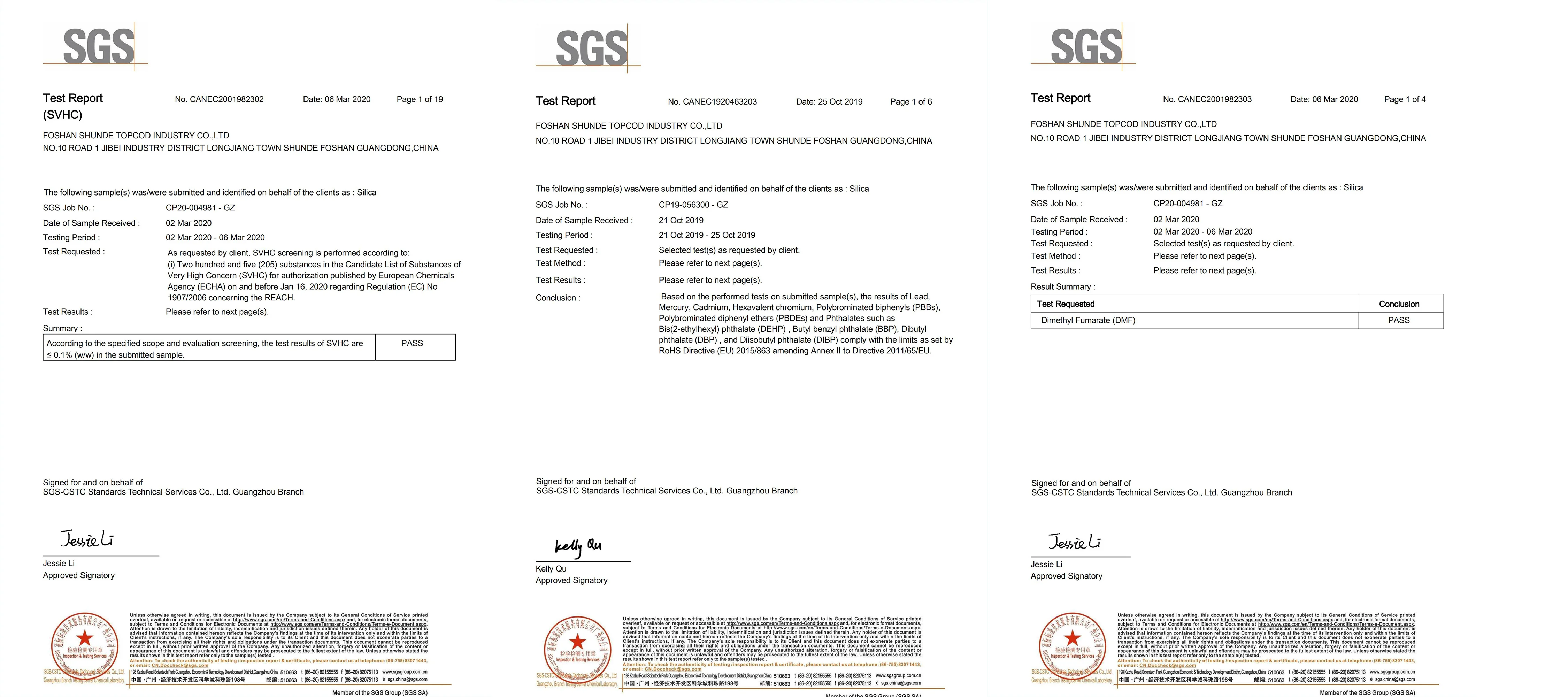

5-SGS, MSDS, REACH, RoHS, DMF free approval. Most importantly, we have silica gel REACH registration.
2-OEM/ODM available.
3-Eco-friendly.
4-Free sample and fast delivery time
5-SGS, MSDS, REACH, RoHS, DMF free approval. Most importantly, we have silica gel REACH registration.
6-Technique research development---Participate in formulating and revising industry standard and national standard about desiccants & oxygen absorber, organizing colloquias with leading enterprises in various industries, providing professional solutions.
7-Independent research and develop wrapping paper of desiccants---Detuch paper(which is eco-friendly, water-proof, dust-proof,smooth, lint-free)

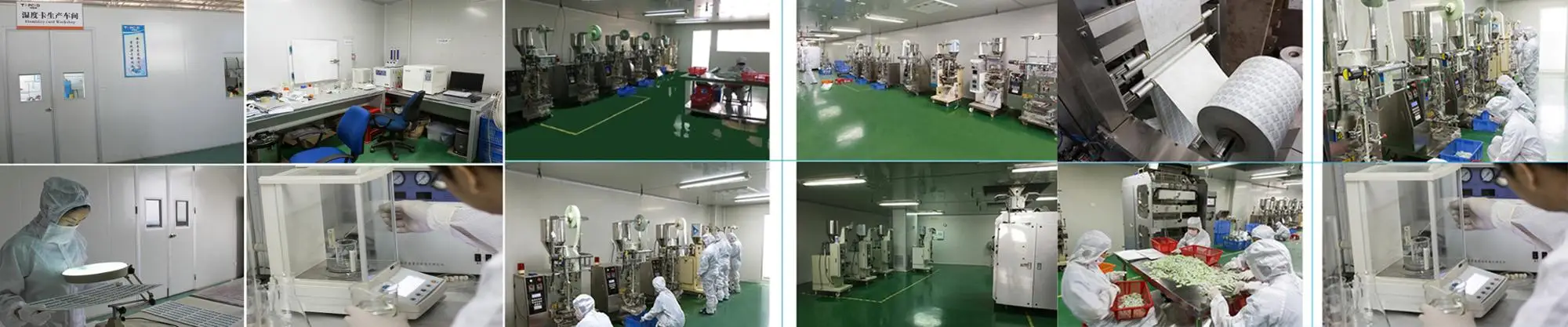

8-Workshop Display - more than 200 desiccants' machines. Foshan, Shanghai, Shenzhen, HongKong, Germany all we have set sales and branch services can satisfy your requirement.
8-Workshop Display - more than 200 desiccants' machines. Foshan, Shanghai, Shenzhen, HongKong, Germany all we have set sales and branch services can satisfy your requirement.
TOPCOD always adhere to the belief that,
Only improve and explore the technology,
Can we mrrt customers needs,
Can we keep pace the times,
Can we lead the way in this industry all the time......
Owns advanced mechanized production line
Combines R&D, production and sale together

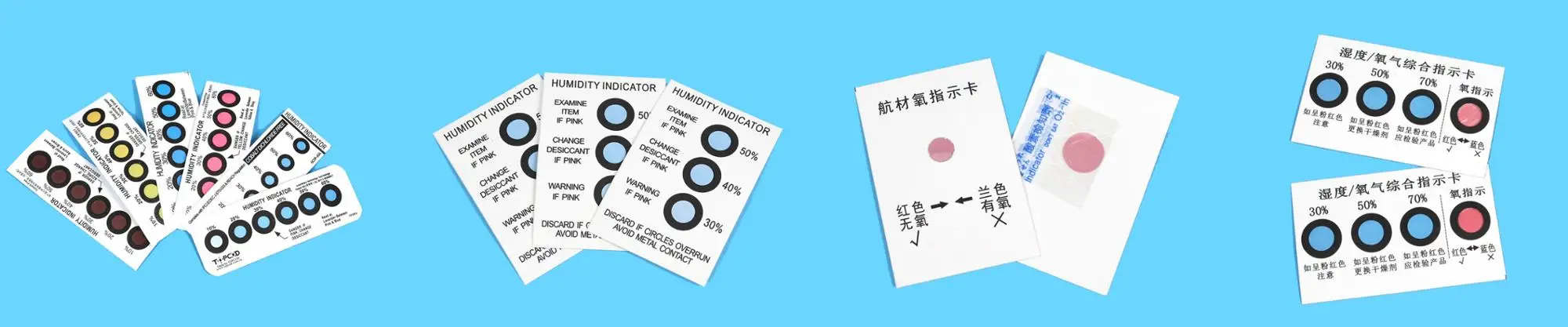

Other product range:
Industrial desiccant (silica gel desiccant / montmorillonite desiccant / activated clay desiccant);
Food & pharmaceutical grade desiccant;
Deoxidizer (Oxygen scravenger/absorber);
Activated carbon deodorant;
Humidity Indicator Card (HIC);
Esd aluminum foil bag / Vacuum bag / VCI bag / rust proof bag (film);
Industrial desiccant (silica gel desiccant / montmorillonite desiccant / activated clay desiccant);
Food & pharmaceutical grade desiccant;
Deoxidizer (Oxygen scravenger/absorber);
Activated carbon deodorant;
Humidity Indicator Card (HIC);
Esd aluminum foil bag / Vacuum bag / VCI bag / rust proof bag (film);
Product quality meets requirements!!!
Hurry and contact us!
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?

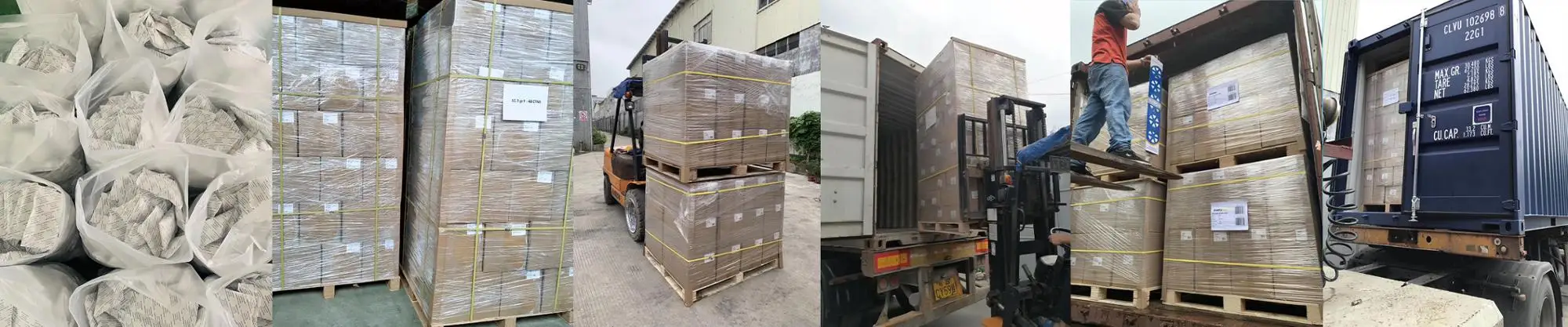

-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2.Can I buy samples placing orders?
-Yes.Please feel free to contact us.
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
