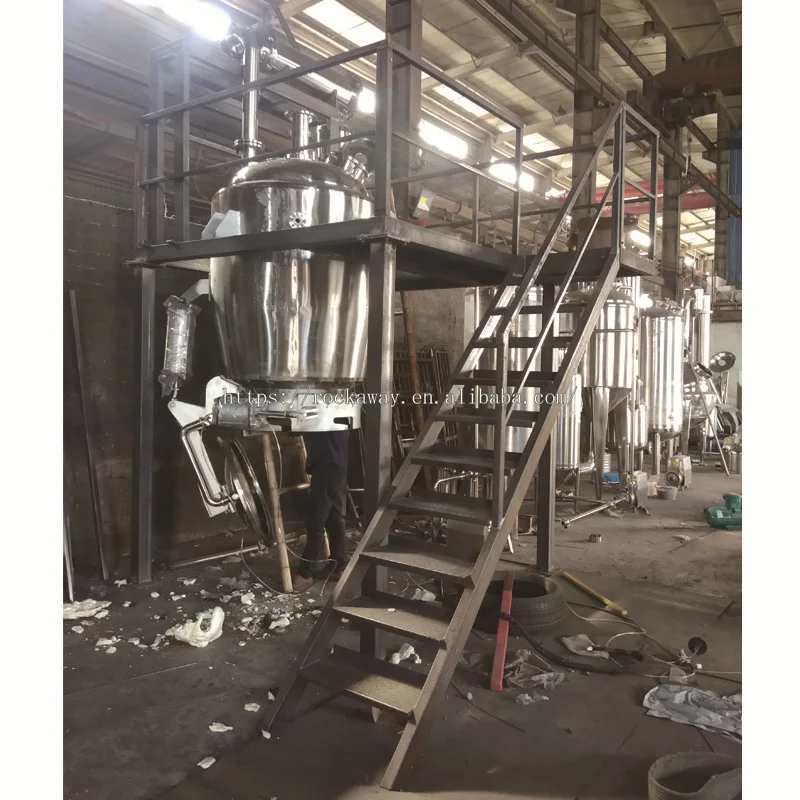

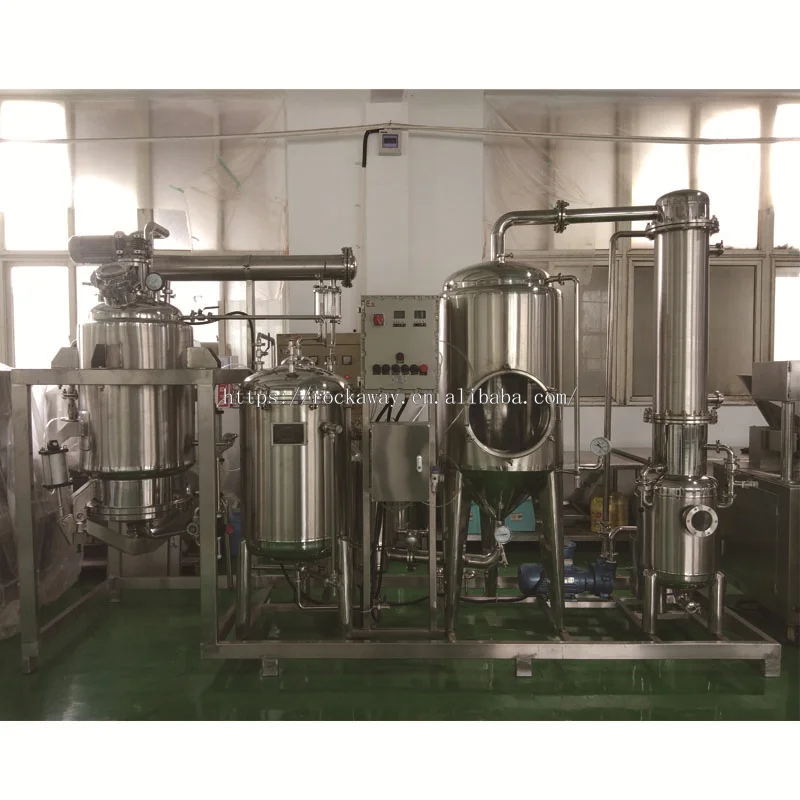

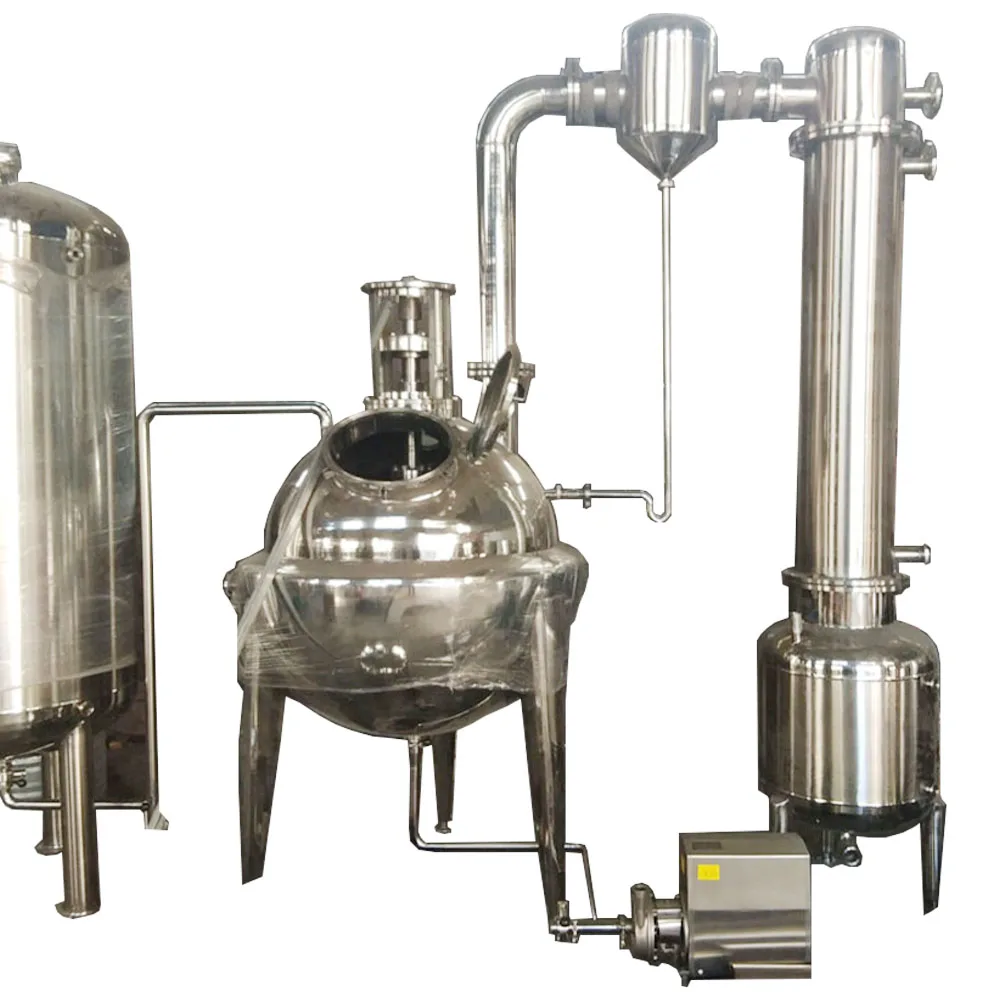

Solvent/water extraction machine
- Category: >>>
- Supplier: Wuxi Rockaway Machinery Co. Ltd.
Share on (1600460609051):
Product Overview
Description
Products Description
Solvent/water extraction machine
Factory price.Good quality.
Features:
SUS316L or SUS304
Accordance to GMP standard
20 years' experience make and install
Difference volume for choose
Provide you the whole production line for herbal extraction
Features:
SUS316L or SUS304
Accordance to GMP standard
20 years' experience make and install
Difference volume for choose
Provide you the whole production line for herbal extraction
Application:
Extraction tank is applied to water extraction, soaking extraction, reflux extraction, extracting aroma oil, recovery of organic solvent and etc, working under atmospheric pressure and micropressure, is efficient in performance and easy in operate.
The machine is complete with CIP cleaning system inside, meeting GMP standard.

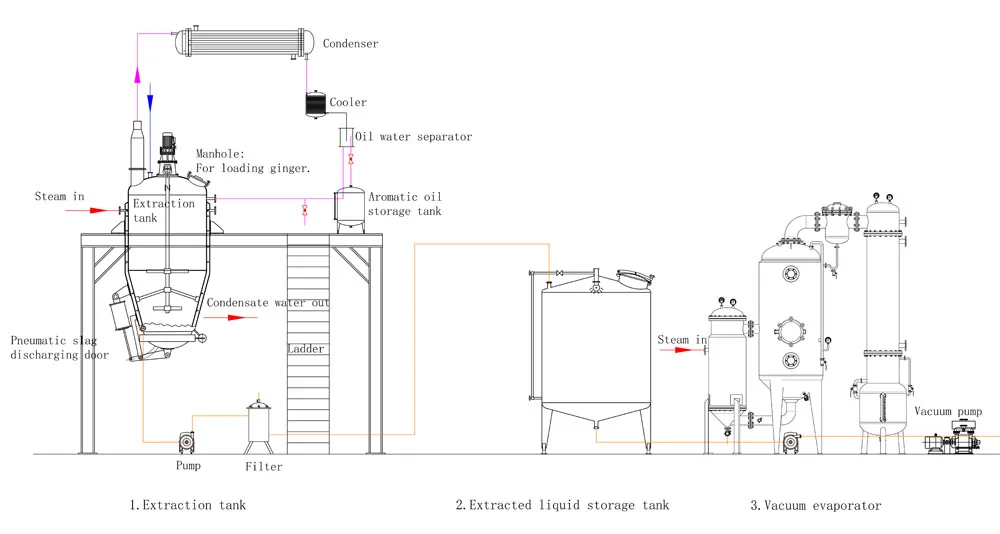

Components:
Extracting tank, defoaming device, condenser, cooler, filter, oil-water separator, delivery pump and etc.
The main body of the extracting tank consists of an inner cylinder, a jacket layer, a heat insulating layer, a branch ear, a
pneumatic slag discharging gate, and a heat insulating layer of the extracting tank,and the aluminum silicate rock wool is used as
the heat insulating material, the inner cylinder body is SUS304/316L. The tank is equipped with CIP cleaning ball, thermometer,
explosion-proof sight lamp, quick opening feed gate, etc..
Characteristics:
1. The slag door structure adopts closed cylinder slag door,there are two cylinder pushing turn solid rotation aside, thread
structure which make its multi wedge block drive the door lock up slag, slag door and tank flange platen close and seal well, with high safety factor.
2. Material discharge pipe adopts stainless steel pipe, liquid outlet joint is sealed reliably, avoiding the fatigue stress of
the metal hose and affecting the frequent breakage and leakage.
3. Complying with (GMP) standard requirements.
Extraction tank is applied to water extraction, soaking extraction, reflux extraction, extracting aroma oil, recovery of organic solvent and etc, working under atmospheric pressure and micropressure, is efficient in performance and easy in operate.
The machine is complete with CIP cleaning system inside, meeting GMP standard.
Components:
Extracting tank, defoaming device, condenser, cooler, filter, oil-water separator, delivery pump and etc.
The main body of the extracting tank consists of an inner cylinder, a jacket layer, a heat insulating layer, a branch ear, a
pneumatic slag discharging gate, and a heat insulating layer of the extracting tank,and the aluminum silicate rock wool is used as
the heat insulating material, the inner cylinder body is SUS304/316L. The tank is equipped with CIP cleaning ball, thermometer,
explosion-proof sight lamp, quick opening feed gate, etc..
Characteristics:
1. The slag door structure adopts closed cylinder slag door,there are two cylinder pushing turn solid rotation aside, thread
structure which make its multi wedge block drive the door lock up slag, slag door and tank flange platen close and seal well, with high safety factor.
2. Material discharge pipe adopts stainless steel pipe, liquid outlet joint is sealed reliably, avoiding the fatigue stress of
the metal hose and affecting the frequent breakage and leakage.
3. Complying with (GMP) standard requirements.

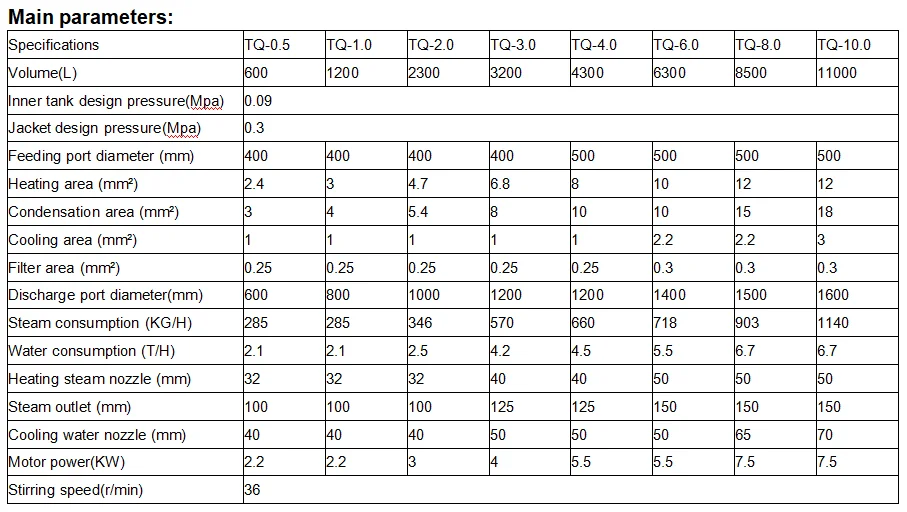

Product Paramenters
Company Profile
Wuxi Rockaway Machinery Co., Ltd. is a professional manufacturer with 12 years of manufacturing experience in evaporation equipment, pharmaceutical equipment, dairy equipment, juice and beverage equipment in China. Our factory covers an area of 4200 square meters and has 47 skilled workers. So far, we have produced and installed more than 140 projects at home and abroad. Such as Southeast Asia, India, Africa, Britain, Canada, Turkey, Germany, Honduras, Peru, Argentina, etc.
Our products are widely used in the pharmaceutical, dairy, beverage, juice, food and chemical industries. Rockaway company is responsible for the design, production, installation, commissioning, training, and thoughtful after-sales service.
Our mission is to offer high quality machines with satisfactory prices.
Welcome to visit our factory. We are happy to show you our machines and projects.
We look forward to establishing business relationships with you and growing together.
Our products are widely used in the pharmaceutical, dairy, beverage, juice, food and chemical industries. Rockaway company is responsible for the design, production, installation, commissioning, training, and thoughtful after-sales service.
Our mission is to offer high quality machines with satisfactory prices.
Welcome to visit our factory. We are happy to show you our machines and projects.
We look forward to establishing business relationships with you and growing together.
