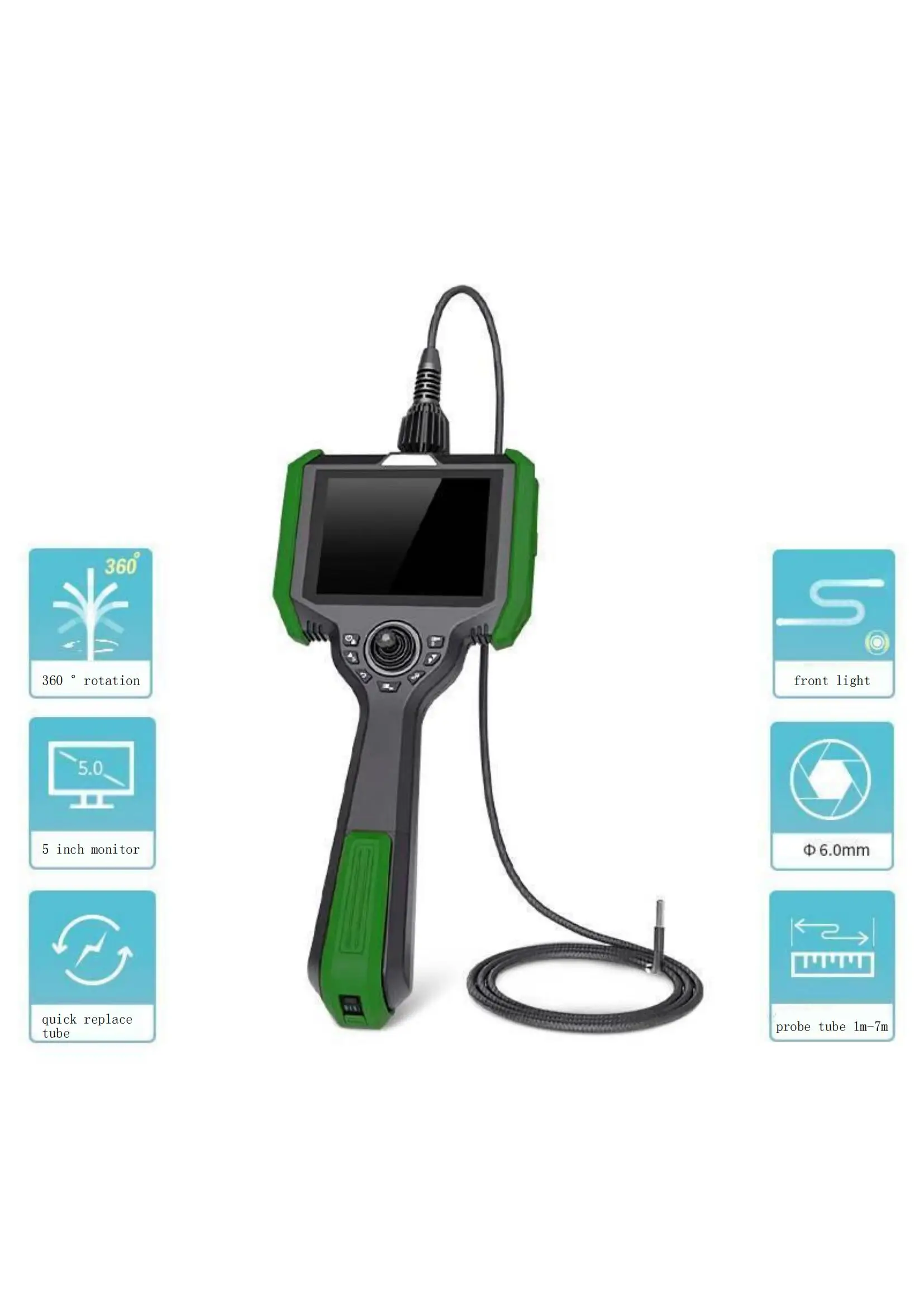

720P High Resolution Camera Portable Snaked Borescope with 1.5M Testing Cable 360 Degree Rotation 5 inch LCD

Product Overview

Description

720P High Resolution Camera Portable Snaked Borescope with 1.5M Testing Cable 360 Degree Rotation 5 inch LCD



Specifications :



Main features:

Portable 3.5 inch, 1 million pixels, the whole machine weighs less than 500g

High brightness Rear LED illumination, can adapt to different detection needs

Large depth of field 5-120mm large depth of field

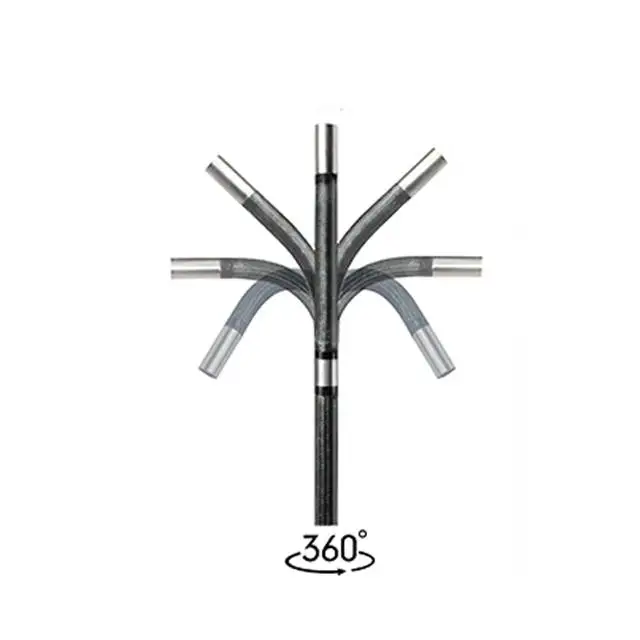

High precision Mechanical guidance, 360 degree arbitrarily rotating, precise control 0 delay

Super wear-resistant four-layer tungsten braided tube, waterproof, wear-resistant, anti-corrosion

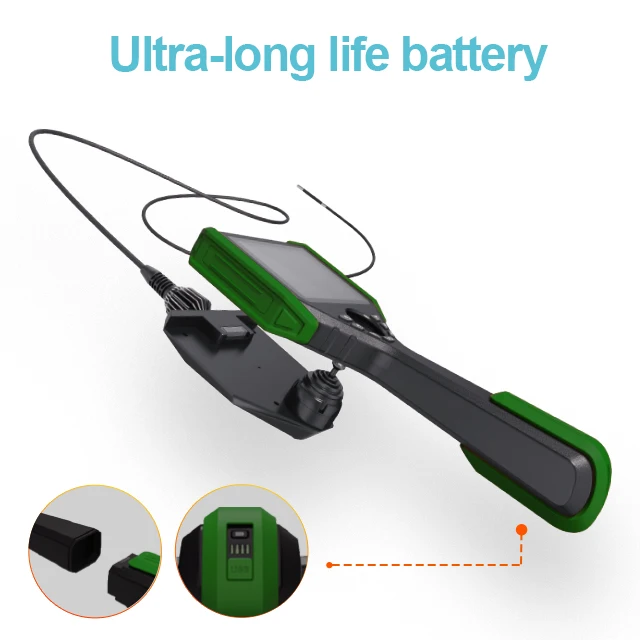

Super battery life Replaceable battery, continuous operation  4 hours

High-brightness display Wide-angle high-brightness LCD

Steering flexibility After two turns, it can also rotate 120 degrees

Technical specifications:

Bending angle	180 degrees
System / Software
Pictures/video format	JPG/MP4

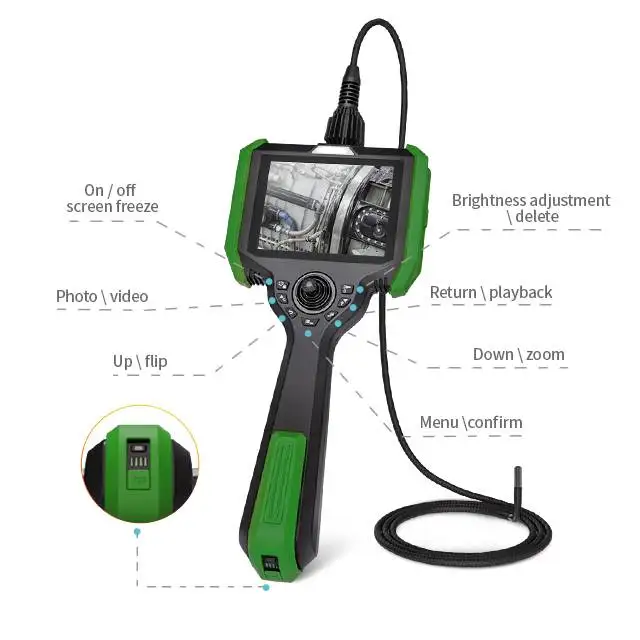

Pictures control	Taking photos,recording,Zoom, freeze, flip, replay, simulate ruler, etc.
System language	Chinese, English, etc 8 languages

Operation environment:
Body temperature	-10℃~50℃
Probe lens camera	-20℃~70℃
Storage temperature	-20℃~60℃
Relative humidity	Max 90%
Waterproof standard	IP67
Body specifications:
Size	251*100*75mm
Battery	4 hours
Monitor	3.5 inches IPS LCD
SD card	8G
Video output	HDMI
Forward
Pixels	1000000
Camera lens diameter	6mm / 3.9mm 3.9mm 2.8mm 6mm
Cable length	1.5M -- 4.0M 2m 1m 5m
FOV	90,120degrees optional
Forward illumination	50000lux
DOF	5-120,3-20,50-infinity
Direction	360degrees rotation

 Packing list:

Items	Specifications	Qty	Unit
1	Endoscope	1	set
2	Card reader	1	pcs
3	TF card(8GB)	1	pcs
4	Battery (18650)	2	pcs
5	Instrument box	1	pcs
6	Charging adaptor	1	set
7	Manual	1	pcs
