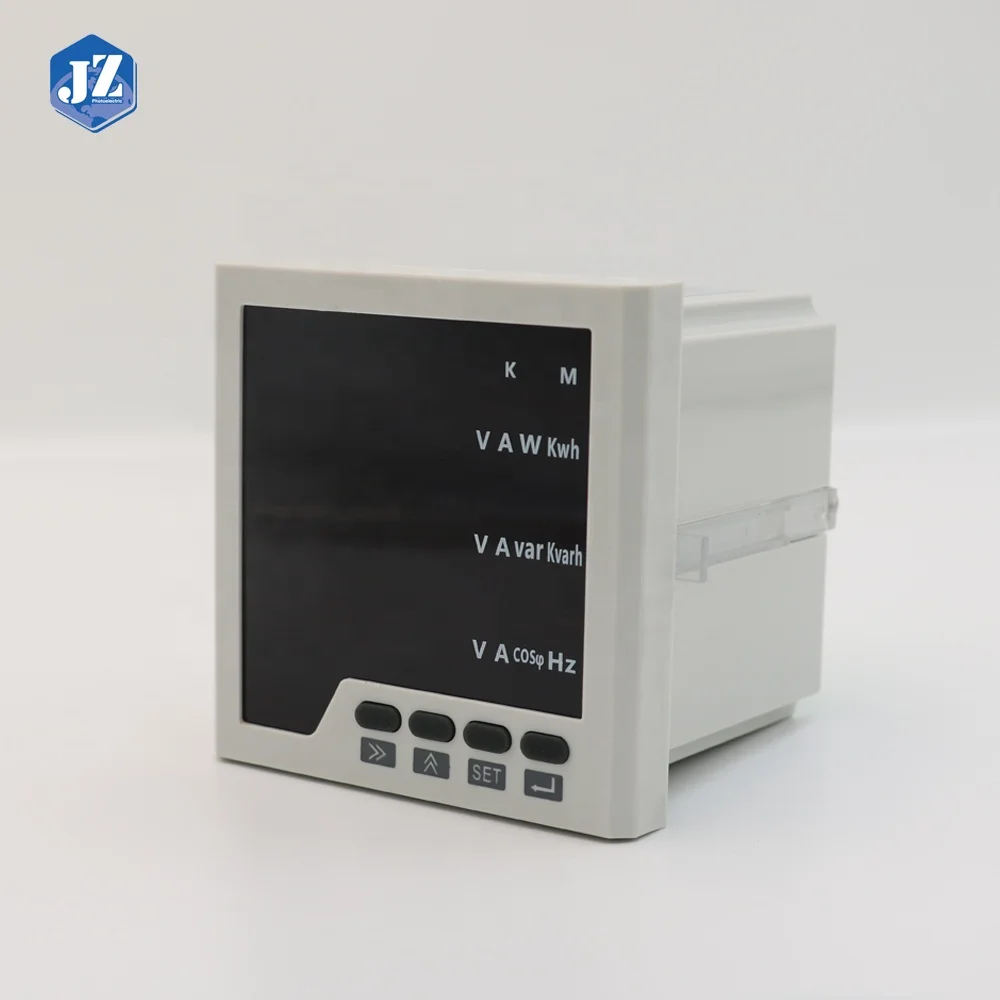

OEM 380V Voltage Current Power Frequency Combination Digital Panel Meter
- Category: >>>
- Supplier: Wenzhou Jiuzhao Photoelectric Co. Ltd.
Share on (1600460636563):
Product Overview
Description

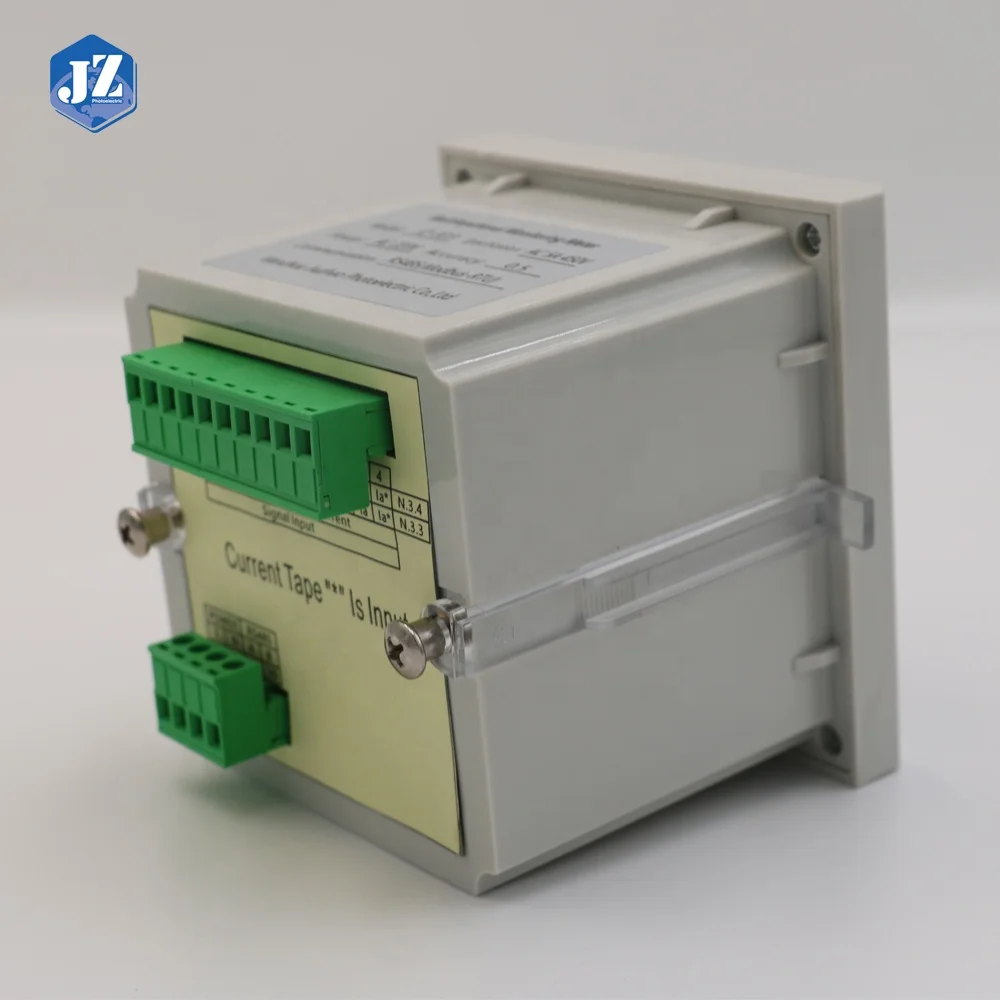

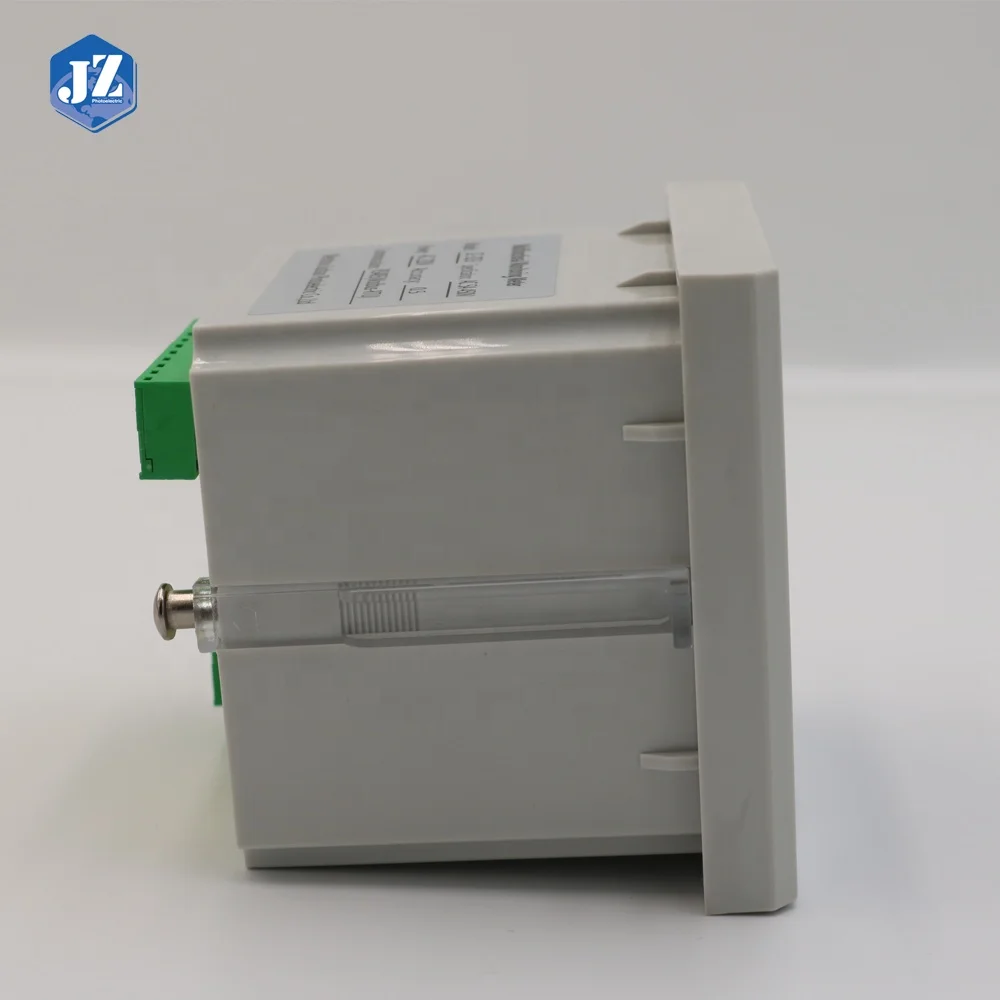

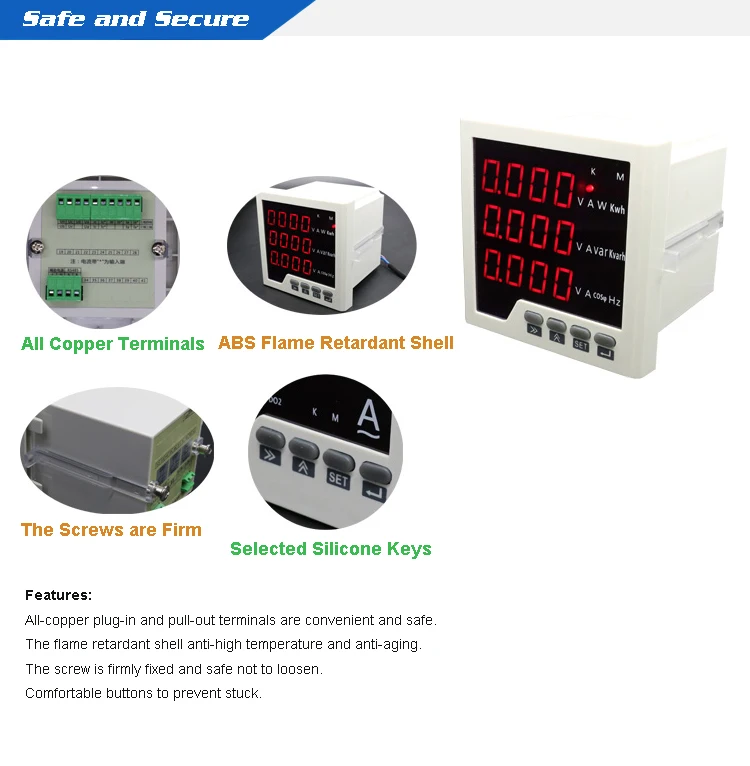

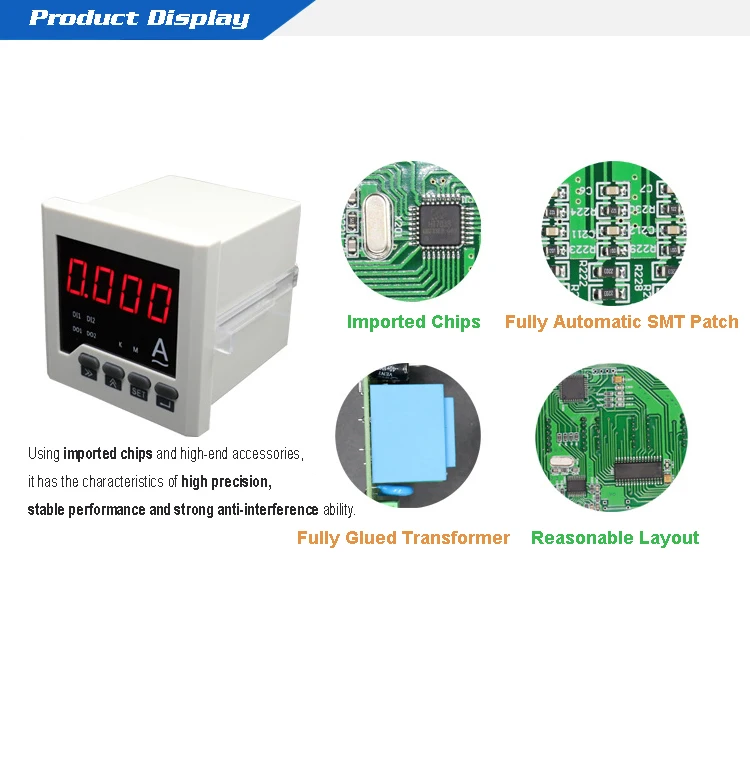

OEM 380V Voltage Current Power Frequency Combination Digital Panel Meter
The multi-function monitoring instrument is a performance monitoring instrument. It has the functions of high-precision real-time measurement of power parameters, harmonic measurement, forward and reverse active/reactive energy measurement, time-of-use energy measurement, time-of-use energy timing meter reading, power quality analysis, real-time waveform display, event recording, demand and other functions. And equipped with a wealth of input and output interfaces can be used for monitoring and control of field equipment status, It also integrates the RS-485 communication interface, which can be integrated with various intelligent power distribution systems and energy management systems to share rich monitoring data and power quality data.
The multi-function monitoring instrument has a very high cost performance and can directly replace conventional power transmitters, measuring instruments, electric energy meters and related auxiliary units. The application fields are very wide, such as energy management systems, power monitoring systems, industrial and mining enterprises, public facilities, intelligent buildings and switch cabinets and other power distribution network systems.
Specification
Technical Indicators
Measurement Accuracy
Voltage Level 0.5
Current Level 0.5
Active Power Level 0.5
Reactive Power Level 0.5
Power Factor Level 0.5
Frequency ±0.02Hz
Active Energy Level 0.5S or 0.2
Reactive Energy Level 1or 2
Signal Input

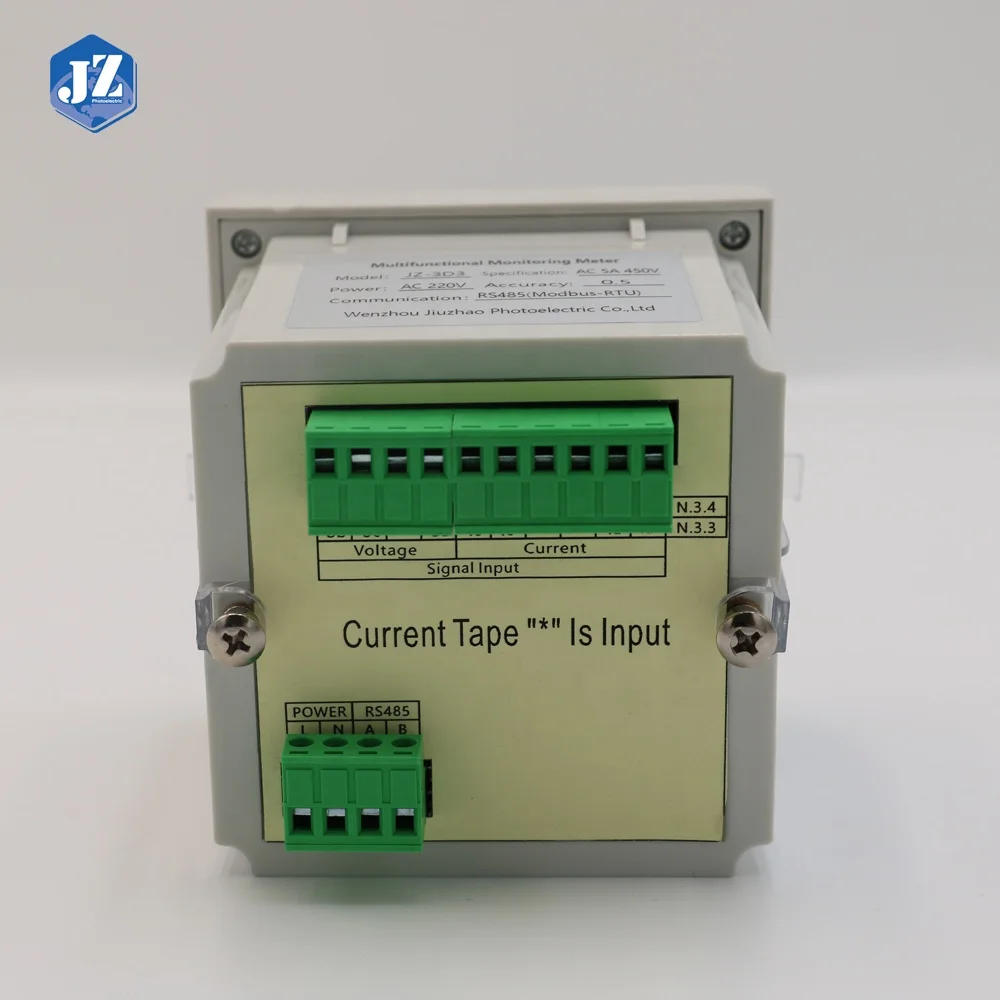

Wiring Method: Three-phase four-wire, three-phase three-wire
Rated Voltage: AC 57.7V,AC 100V,AC 220V,AC 380V
Rated Current: AC 1A,AC 5A
Overload Voltage: 1.2 times (continuous), 2 times/1 second (instantaneous)
Current: 1.2 times (continuous), 10 times/5 seconds (instantaneous)
Power Consumption Voltage: <1VA/Phase, Current: <0.4VA/Phase
Impedance Voltage: >300kΩ, Current: <20mΩ
Frequency: 45~65Hz
Auxiliary Power
The scope of work AC/DC 80V~270V,AC220V,AC380V,AC100V
Power consumption <4VA
Functional Module

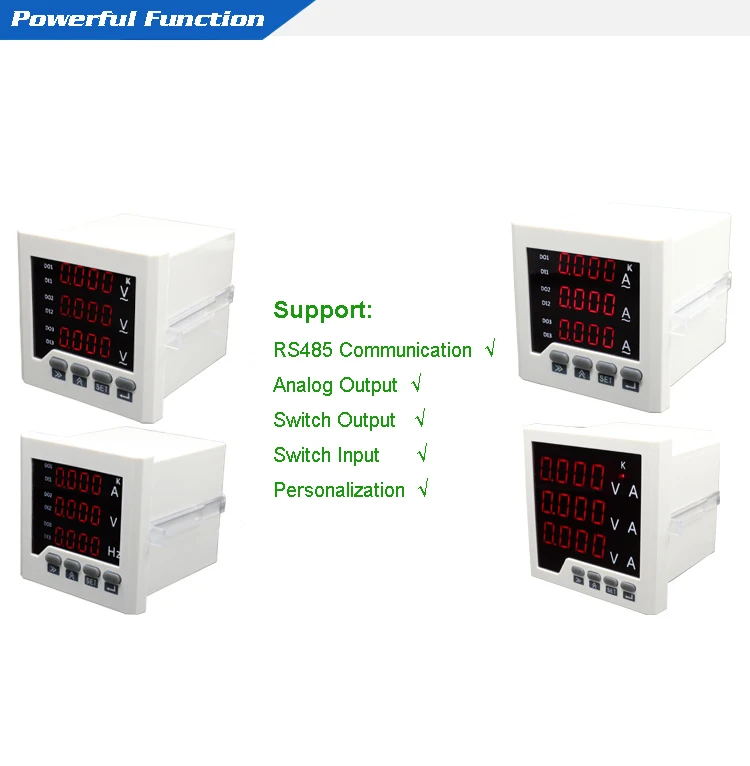

Communication interface : 1 channel RS-485 communication, Modbus-RTU protocol
Baud rate: 1200~9600bps, default 2400bps
Switch input: support 4-way dry node input
Switch output: support 3-way relay output, capacity: AC250V/5A, DC30V5A
Transmitting output: Support 1 channel analog output: 0/4~20mA or 0~5/10V
Power pulse output: support 2 channels of power pulse output, constant: 8000imp/KWh(Kvarh)
Environment
Operating Temperature -10℃~+55℃
Storage Temperature -25℃~+70℃
Relative temperature: ≤93%, no corrosive gas place
Altitude ≤2500m
Safety
Insulation discharge >100MΩ
AC withstand voltage AC2KV
Electromagnetic Compatibility
Electrostatic Discharge: Level 4
Electrical Fast Transient Burst: Level 4
Surge (Shock): Level 4
Dimensions

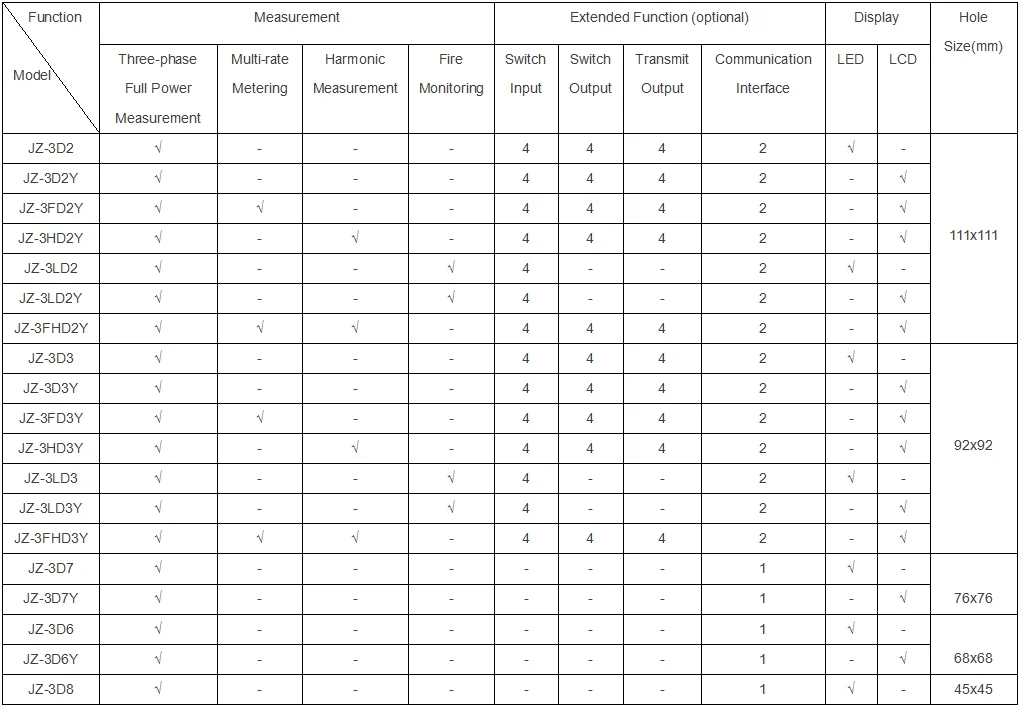

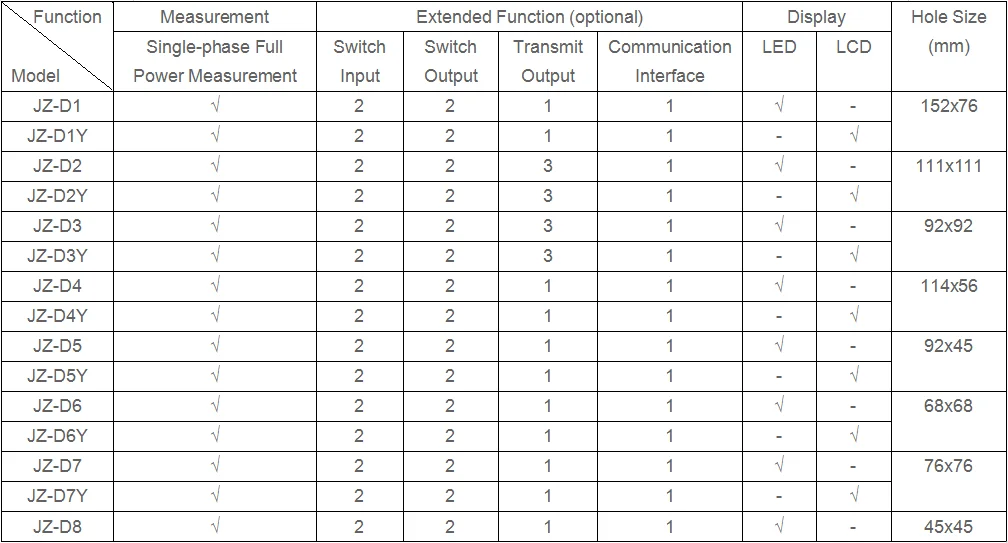

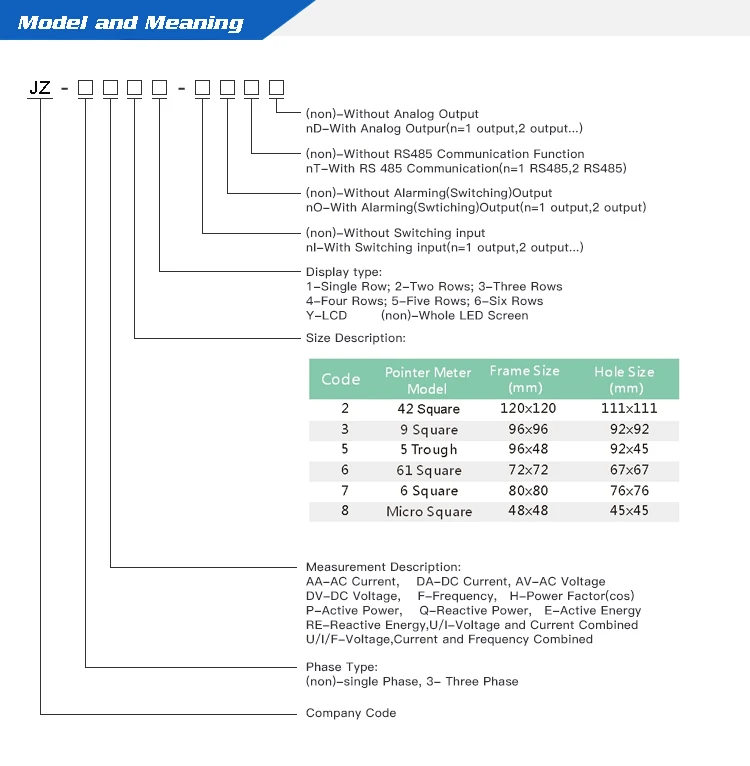

Frame Size(mm): 120×120; 80×80; 96×48; 96×96; 80×80; 48×48; 120×60; 160×80
Hole Size(mm): 111×111; 76×76; 92×45; 92×92; 68×68; 45×45; 114×56; 152×76
