13.5 x 13.5 mm 1411mm optical 3W to 15W cob high power led chip
13.5 x 13.5 mm 1411mm optical 3W to 15W cob high power led chip
13.5 x 13.5 mm 1411mm optical 3W to 15W cob high power led chip

13.5 x 13.5 mm 1411mm optical 3W to 15W cob high power led chip

Share on (1600460659871):


Price:

Quantity:


Product Overview

Description



Product Description

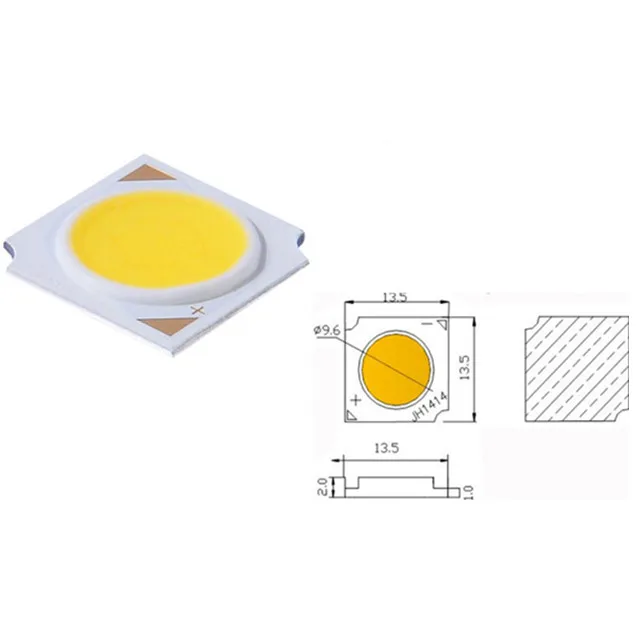

13.5 x 13.5 mm 1411mm optical 3W to 15W cob high power led chip


Power
Optical Diameter
Product Diameter
Voltage(V)
Current(mA)
CRI
luminous efficiency
3W
11MM
13.5*13.5mm
9-11V
300mA
80
120lm/w
5W
11MM
13.5*13.5mm
15-17V
300mA
80
120lm/w
7W
 11MM
13.5*13.5mm
21-23V
300mA
80
120lm/w
10W
11MM
13.5*13.5mm
30-32V
300mA
80
120lm/w
12W
11MM
13.5*13.5mm
36-38V
300mA
80
120lm/w
15W
11MM
13.5*13.5mm
45-47V
300mA
80
120lm/w


Features of Flip chip COB LED:

1.Small size of the COB can achieve high power efficiency.
2.Easy to use for customers.
3.using chips of well known manufacturer
4.package without wire, more stable, better heat dissipation.
5.high luminous efficiency, high color render index
6.low attenuation,long life span of 50000 H





Application

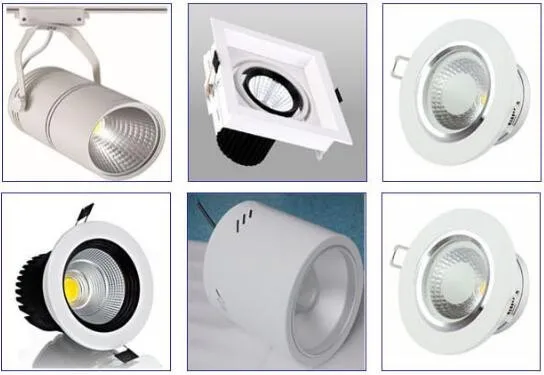

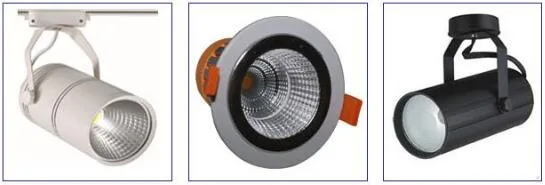

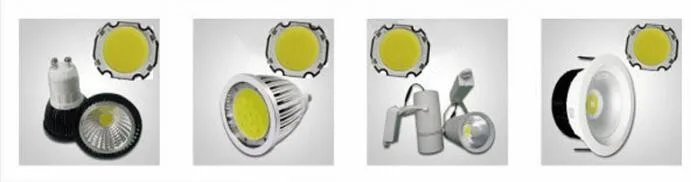

LED downlight, LED spotlight, LED tracklight and other indoor lighting fixtures
